Battery Removal

1. Slide battery lock switch (A) to the unlock position. (Figure 3-4)

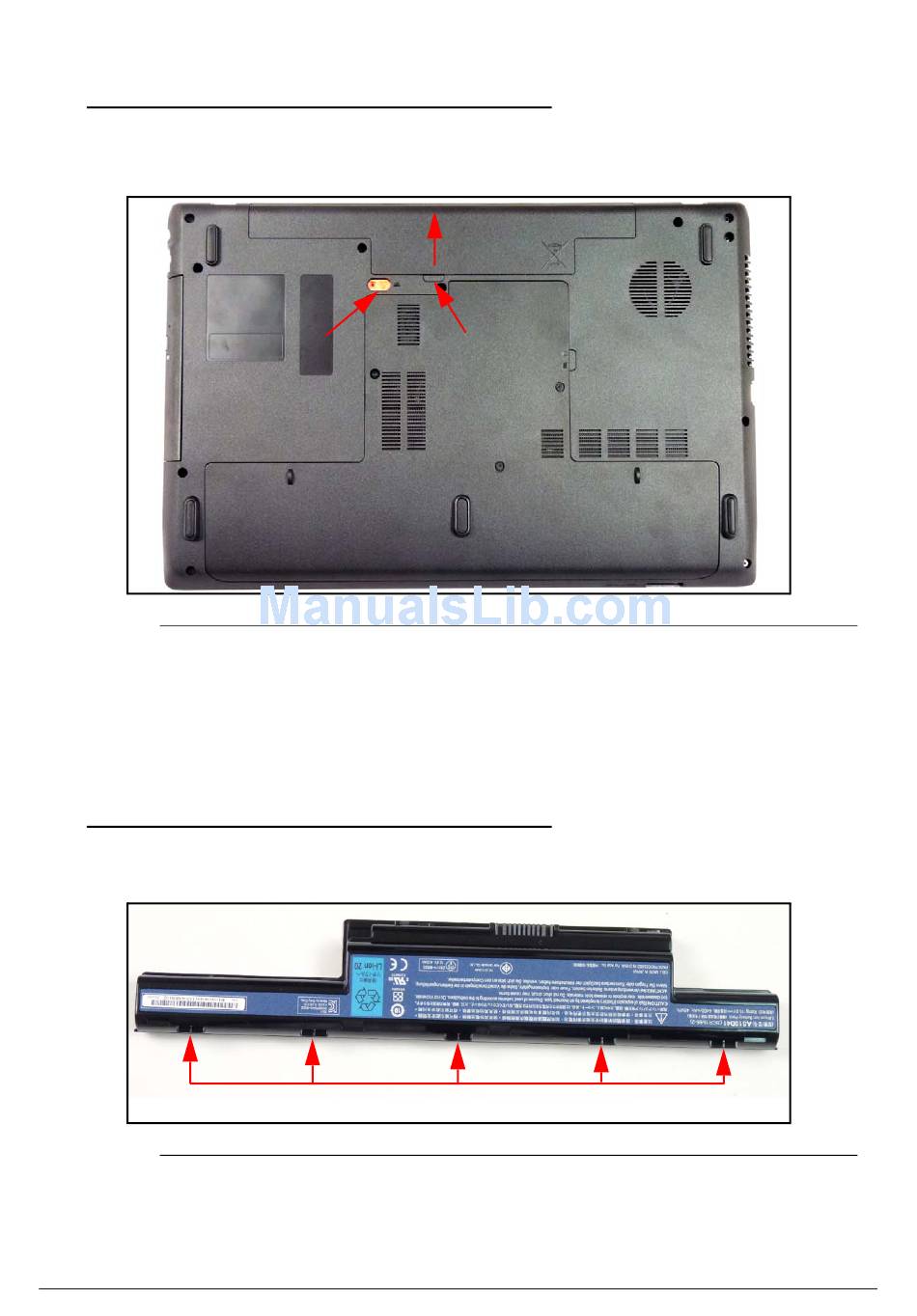

Figure 3-4. Battery
?
IMPORTANT:
2. Use slot (B) to pull battery (C) from battery bay and remove battery from lower cover.

Battery Installation

1. Align flanges (D) on battery to slots (E) in battery bay. (Figure 3-5 and
Figure 3-5. Battery Flanges
Machine Maintenance Procedures
A
Follow local regulations for battery disposal.
C
B
D
0
0
Figure 3-6)
