with INSTALLATION and MAINTENANCE
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES
Write Serial Number here:
_________________________
SGWO30SS MANUAL

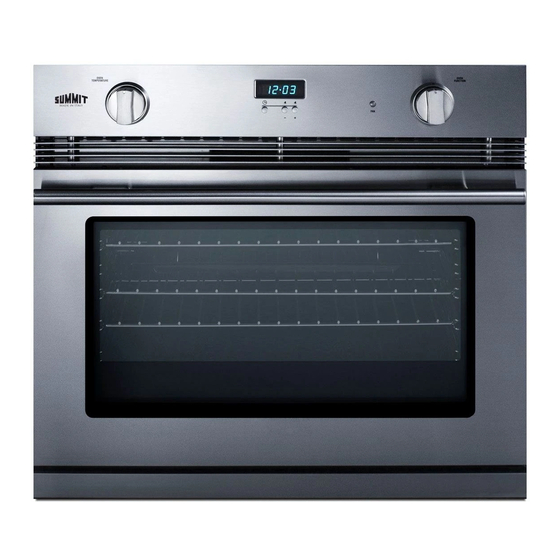

GAS WALL OVEN
Model: SGWO30SS
OWNER'S MANUAL
INSTRUCTIONS
AND OPERATING INSTRUCTIONS.
- 1 -
FELIX STORCH, INC.
Summit Appliance Division
An ISO 9001:2015 registered company
770 Garrison Avenue
Bronx. New York 10474
www.summitappliance.com
SUMMIT 201805 GAS OVEN
Advertisement
Table of Contents
Related Manuals for Summit SGWO30SS
Summary of Contents for Summit SGWO30SS
- Page 1 BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. FELIX STORCH, INC. Summit Appliance Division Write Serial Number here: An ISO 9001:2015 registered company 770 Garrison Avenue _________________________ Bronx. New York 10474 www.summitappliance.com - 1 - SUMMIT 201805 GAS OVEN SGWO30SS MANUAL...
-
Page 2: Important Safety Instructions
Doing so blocks air flow through the oven and may cause carbon monoxide poisoning. Aluminum foil linings may also trap heat, causing a fire hazard. - 2 - SUMMIT 201805 GAS OVEN SGWO30SS MANUAL... - Page 3 Burners may be hot even though they have no flame and are dark in color. Areas near burners and interior oven surfaces may become hot enough to cause burns. Make sure hot areas have had sufficient time to cool before touching them. - 3 - SUMMIT 201805 GAS OVEN SGWO30SS MANUAL...
-
Page 4: Before Using The Oven
Attention: During first use of the oven gas burner, or after a long non-working period, the burner may not ignite at once, so try the ignition procedure again until the flow of gas allows ignition. If the problem persists, call an authorized technician for repair. - 4 - SUMMIT 201805 GAS OVEN SGWO30SS MANUAL... -
Page 5: Electronic Timer
Press the button for 4 seconds until the hours display flashes. Change the hours only by using the “+” or “-” button. The minutes and hidden seconds will not be affected. - 5 - SUMMIT 201805 GAS OVEN SGWO30SS MANUAL... -
Page 6: Selector Switch
FORCED AIR CONVECTION FAN OR DEFROST: Use this setting when forced air convection is necessary for a more even cooking finish. Also, use this setting to defrost frozen food by speeding up air circulation. - 6 - SUMMIT 201805 GAS OVEN SGWO30SS MANUAL... -
Page 7: Maintenance
Any of the following are considered to be abnormal and may require servicing: - Burner flame with yellow tips - Difficult burner ignition - Burners fail to remain lighted - Burner flames out - Difficulty turning gas valves. - 7 - SUMMIT 201805 GAS OVEN SGWO30SS MANUAL... -
Page 8: Replacing The Oven Light
3) Remove by unscrewing lens bulb cover and light bulb. 4) Replace bulb with a 25 W – 120 VAC appliance bulb only. 5) Replace lens bulb cover. 6) Reconnect power to range. Reset electronic clock. - 8 - SUMMIT 201805 GAS OVEN SGWO30SS MANUAL... -
Page 9: Installation Instructions
Ventilation must be in accordance with local installation code. The appliance must be installed in a well-ventilated environment to guarantee a correct combustion gases exchange, proper air circulation and working temperature within safety limits (see figure 08). - 9 - SUMMIT 201805 GAS OVEN SGWO30SS MANUAL... - Page 10 In Canada the appliance must be installed in accordance with the current CSA Standard C22.1 - Canadian Electrical Code part 1. IMPORTANT: The appliance must only be installed by a qualified and specialized electrician. - 10 - SUMMIT 201805 GAS OVEN SGWO30SS MANUAL...
- Page 11 - Connect new flexible cord prongs to terminal block and fix flexible cord lock. Remember the ground wire (yellow and green) must be longer by about one inch than the other ones. For Line and Neutral wire connection, follow signs on terminal block. - 11 - SUMMIT 201805 GAS OVEN SGWO30SS MANUAL...
- Page 12 Turn off all pilots and main gas valve of other gas appliances. d) Turn off main gas valve at meter. e) Before connecting the oven, apply pipe thread compound approved for LPG to all threads. - 12 - SUMMIT 201805 GAS OVEN SGWO30SS MANUAL...
-
Page 13: Gas Conversion
“P” fig. n°13). Cautiously extract the burner “B” from the rear seat, being careful not to shake the thermocouple and the ignition spark plug cable. - 13 - SUMMIT 201805 GAS OVEN SGWO30SS MANUAL... -
Page 14: Service/Parts Information
Flame must be of sufficient size to be stable on all burner ports. If flame adjustment is needed, adjust ONLY on the LOW setting. Never adjust flame size on higher setting. - 14 - SUMMIT 201805 GAS OVEN SGWO30SS MANUAL... -
Page 15: Dimensions Of The Appliance
NOTE: In our continuing effort to improve the quality and performance of our cooking products, it is sometimes necessary to make changes to the appliance without revising this guide. The manufacturer does not take any responsibility for printing errors in this booklet. - 15 - SUMMIT 201805 GAS OVEN SGWO30SS MANUAL... - Page 16 FIGURES Fig. n° 01 Fig. n° 02 Fig. n° 03 Fig. n° 05 Fig. n° 06 Fig. n° 07 - 16 - SUMMIT 201805 GAS OVEN SGWO30SS MANUAL...
- Page 17 Fig. n° 09 Fig. n° 10 Fig. n° 11 Fig. n° 11A - 17 - SUMMIT 201805 GAS OVEN SGWO30SS MANUAL...
- Page 18 Fig. n° 12 Fig. n° 13 Fig. n° 13A Fig. n° 14 - 18 - SUMMIT 201805 GAS OVEN SGWO30SS MANUAL...
-
Page 19: Wiring Diagram
WIRING DIAGRAM - 19 - SUMMIT 201805 GAS OVEN SGWO30SS MANUAL... -
Page 20: One-Year Limited Warranty
Phone: (718) 893-3900 For parts and accessory ordering, Fax: (844) 478-8799 troubleshooting and helpful hints, visit: www.summitappliance.com/support www.summitappliance.com P r i n t e d i n I t a l y - 20 - SUMMIT 201805 GAS OVEN SGWO30SS MANUAL...
