Battery Back-Up Example Use Case - CyberData 011527 Operation Manual

1.5 Battery Back-Up Example Use Case

The CyberData InformaCast Enabled WiFi Alert Button interacts with InformaCast over a WiFi
network. When used on a network with battery back up or generator power redundancy, the onboard
batteries of the buttons allow emergency notifications to be sent in the event of power failure. See
Figure
Note
Operation Guide
1-3.

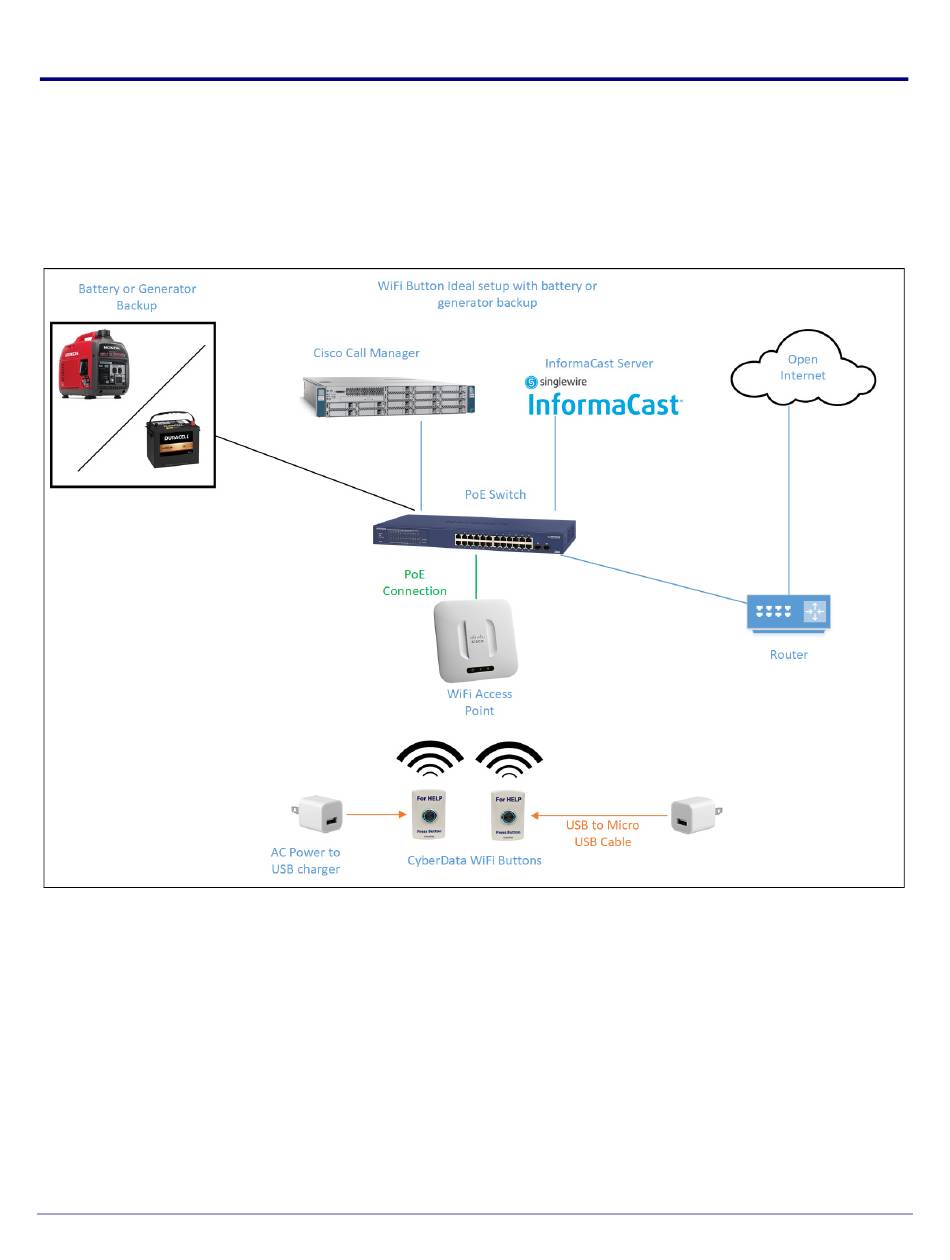

Figure 1-3. Example Use Case
Since the M2M Contact Closures require the IP Address of the button to function as
expected, it is recommended to set up the button with either a Static IP Address or a DHCP
Address reservation.
931788B
Product Overview and Setup
Battery Back-Up Example Use Case
CyberData Corporation
5
