CyberData 011527 Installation Quick Reference

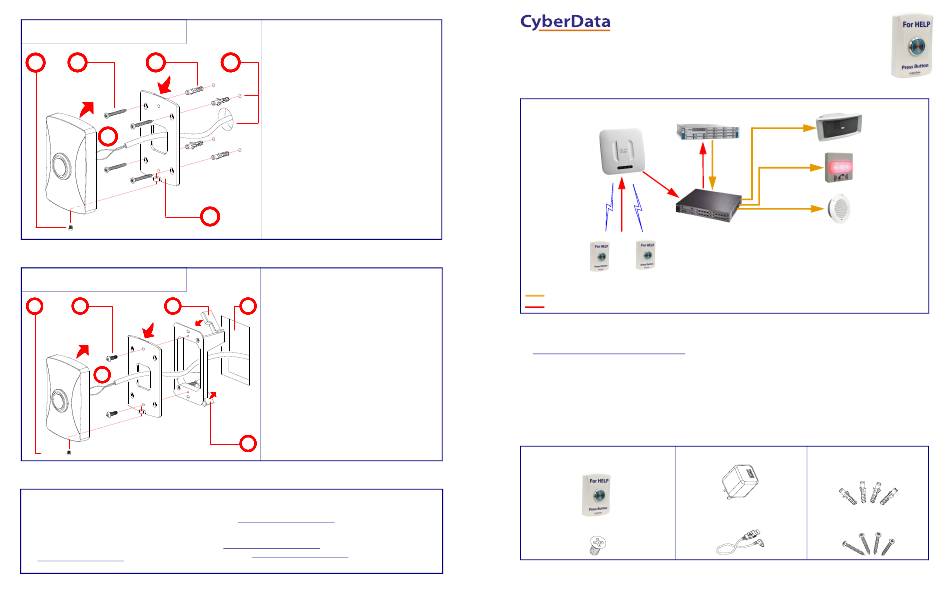

Mounting Options—Wall Mounting
To be installed and or used in accordance with the
appropriate electrical codes and regulations.
6 4 2
5
Mounting Options—Optional Plastic Low Voltage Bracket (Not Included)
To be installed and or used in accordance with the
appropriate electrical codes and regulations.
5 3 2
4
Contacting CyberData
Corporate Headquarters
Sales: 831-373-2601 ext. 334
CyberData Corporation
Support: 831-373-2601 ext. 333
3 Justin Court
Support Website:
Monterey, CA 93940, USA
RMA Department: 831-373-2601 ext. 136
RMA Email: RMA@CyberData.net
Phone: 831-373-2601
RMA Status:
Fax: 831-373-4193
Warranty Information:
http://www.cyberdata.net/
© 2020, CyberData Corporation, ALL RIGHTS RESERVED
1. Prepare hole cutouts for both wires and the plastic-
ribbed anchors. Use the provided Mounting Template
or place the backplate directly onto the mounting
1
surface. Mark the surface, and then drill the holes. (Drill
Size: 3/16-inch / 4.8-mm) for the plastic-ribbed anchors.
2. Use a rubber mallet to hammer the plastic-ribbed
anchors into the prepared holes.
3. Line up the backplate's Elongated Hole to the plastic-
ribbed anchors.
4. Install the mounting screws through the backplate
and plastic-ribbed anchors.
5. Connect the wires to the terminals on the
InformaCast Enabled WiFi Alert Button. See the
Power Connection diagram on this Quick Reference
Placemat.
6. Put the InformaCast Enabled WiFi Alert Button and
the backplate together by installing the flat head
machine screw on the bottom.
3
1. Make a hole cutout for the Low Voltage Bracket*.
2. Fold down the flagnuts, and then insert the Low
1
Voltage Bracket into the hole cutout.
3. Install the mounting screws* through the backplate
and the Low Voltage Bracket.
4. Connect the wires to the terminals on the
InformaCast Enabled WiFi Alert Button. See the
Power Connection diagram on this Quick Reference
Placemat.
5. Put the InformaCast Enabled WiFi Alert Button and
the backplate together by Installing the flat head
machine screw on the bottom.
*The Low Voltage Bracket and mounting screws are
not provided.
2
http://support.cyberdata.net/
http://support.cyberdata.net/
http://support.cyberdata.net/
931786A Quick Reference
The IP Endpoint Company
Typical Installation
InformaCast Enabled WiFi Alert Button Connectivity
J1
InformaCast Enabled WiFi Alert Button
+5V Power with built-in battery
InformaCast Protocol
M2M interface/SNMP Trap
Getting Started
J1
• Download the InformaCast Enabled WiFi Alert Button Operations Guide PDF file from the Downloads tab at:
http://www.cyberdata.net/products/011527/
• Create a plan for the locations of your speakers.
• WARNING: To prevent injury, this apparatus must be securely attached to the wall in accordance with the installation
instructions.
• WARNING: The USB or J3 connectors are intended for intra-building connections only and do not route to the outside plant.
• WARNING: The device enclosure is not rated for any AC voltages!
Parts
(1) InformaCast Enabled WiFi
Alert Button Assembly
(1x) M3 Flat Head Machine Screw
Quick Reference
Installation Quick Reference

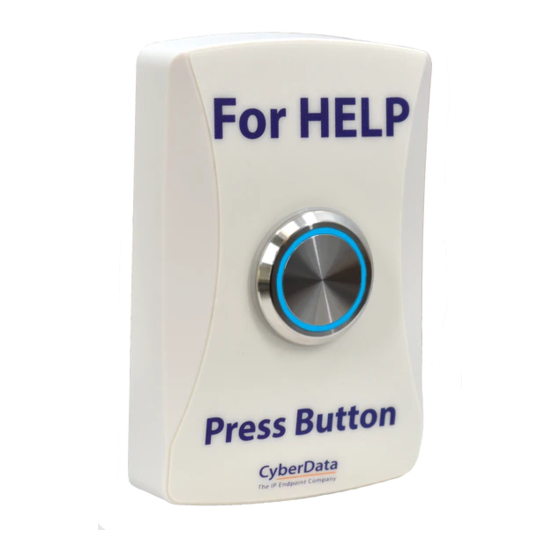

InformaCast Enabled WiFi Alert Button
011527
InformaCast Server
WiFi Access Point
011472 InformaCast Enabled IP66 Outdoor Horn
011377 InformaCast Enabled RGB (Multi-Color) Strobe
PoE Switch
802.11 b.g.n
When the InformaCast Enabled WiFi Alert Button is
depressed, it sends a message to the InformaCast Server.
This will generate an event within the InformaCast software
which will then generate an appropriate mass notification
response.
(1) USB to AC Adapter
(1) Accessory Kit
3 ft USB Cable for WiFi Button
931786A © 2020, CyberData Corporation, ALL RIGHTS RESERVED
011396 InformaCast Enabled Speaker
Accessory Kit
(4x) Plastic Ribbed Anchor
(4x) Wall Mounting #6x1.25" Pan
Head Phillips Sheet Metal Screw
