1.4 Typical Installation

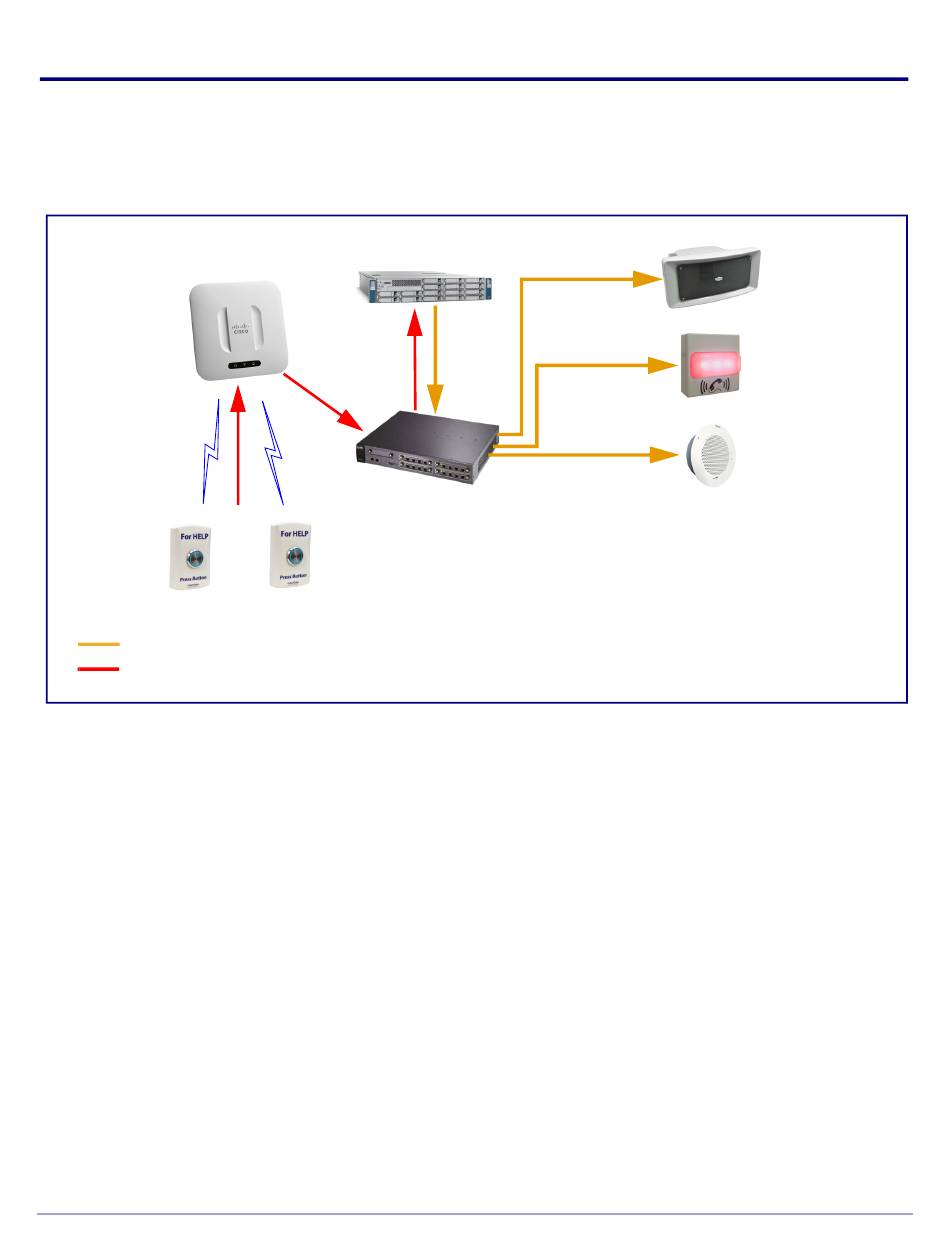

Figure 1-2
InformaCast Enabled WiFi Alert Button Connectivity
WiFi Access Point
802.11 b.g.n
InformaCast Enabled WiFi Alert Button
+5V Power with built-in battery
InformaCast Protocol
M2M interface/SNMP Trap
Note
Operation Guide
shows the typical installation for the InformaCast Enabled WiFi Alert Button.
Figure 1-2. Typical Installation
InformaCast Server
PoE Switch
Since the M2M Contact Closures require the IP Address of the button to function as
expected, it is recommended to set up the button with either a Static IP Address or a DHCP
Address reservation.
931788B
011472 InformaCast Enabled IP66 Outdoor Horn
011377 InformaCast Enabled RGB (Multi-Color) Strobe
011396 InformaCast Enabled Speaker
Pressing the InformaCast Enabled WiFi Alert Button
generates a message to the Informacast server, generating
an event that will send the configured mass notification.
