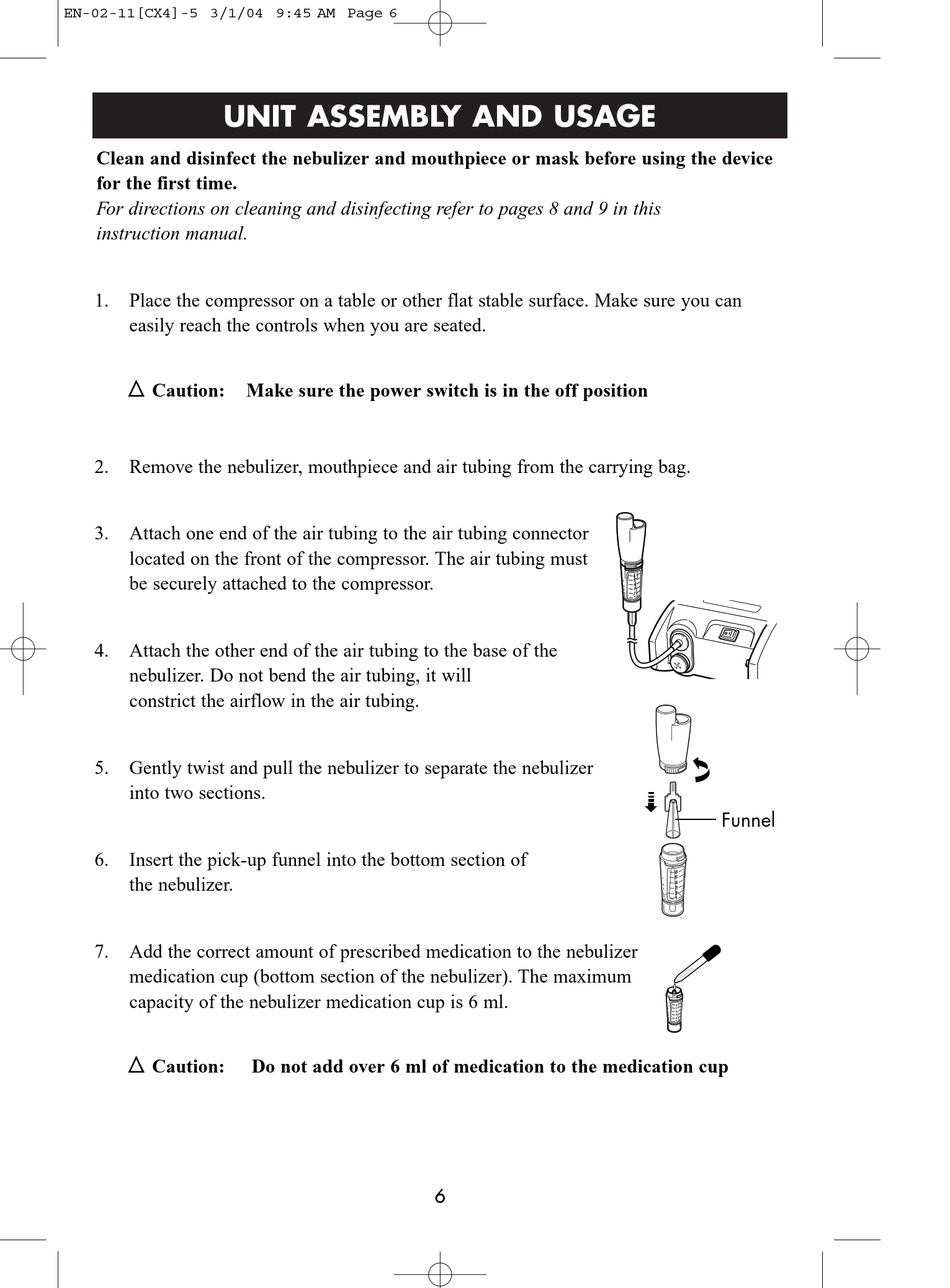

UNIT ASSEMBLY AND USAGE

Clean and disinfect the nebulizer and mouthpiece or mask before using the device
for the first time.
For directions on cleaning and disinfecting refer to pages 8 and 9 in this
instruction manual.
1. Place the compressor on a table or other flat stable surface. Make sure you can
easily reach the controls when you are seated.
>
Caution:
2. Remove the nebulizer, mouthpiece and air tubing from the carrying bag.
3. Attach one end of the air tubing to the air tubing connector
located on the front of the compressor. The air tubing must
be securely attached to the compressor.
4. Attach the other end of the air tubing to the base of the
nebulizer. Do not bend the air tubing, it will
constrict the airflow in the air tubing.
5. Gently twist and pull the nebulizer to separate the nebulizer
into two sections.
6. Insert the pick-up funnel into the bottom section of
the nebulizer.
7. Add the correct amount of prescribed medication to the nebulizer
medication cup (bottom section of the nebulizer). The maximum
capacity of the nebulizer medication cup is 6 ml.
>
Caution:
Make sure the power switch is in the off position
Do not add over 6 ml of medication to the medication cup
6
Funnel
