Mendota FV33I Gen 3 Installation And Operating Instructions Manual

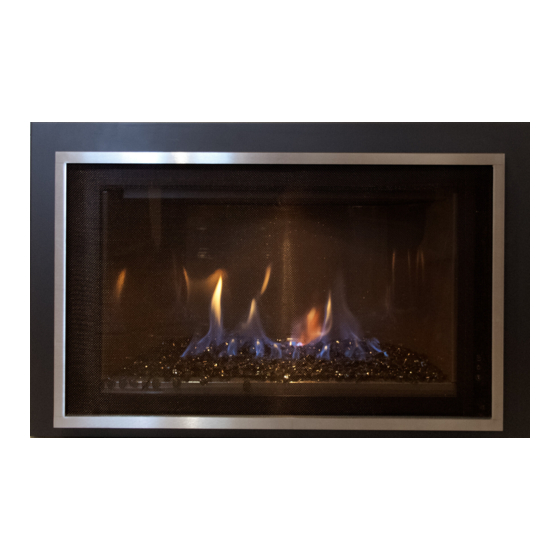

Fullview direct vent gas fireplace insert heater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL NO. AA-11-03119 FV33I Gen 3 FULLVIEW DIRECT VENT GAS FIREPLACE INSERT HEATER
WARNING: If the information in these instructions
is not followed exactly, a fire or explosion may
result causing property damage, personal injury, or
loss of life.
- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
- WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
•
•
Do not touch any electrical switch; do not
use any phone in your building.
Immediately call your gas supplier from a
•
neighbor's phone. Follow the gas supplier's
instructions.
If you cannot reach your gas supplier, call the
•
fire department.
- Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
This appliance may be installed in an aftermarket,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by local
codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gasses unless a
certified kit is used.
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and must be installed.
Installation and Operating Instructions
85-03-01058-0
AVERTISSEMENT. Assurez-vous de bien suivre les
instructions données dans cette notice pour réduire au
minimum le risque d'incendie ou d'explosion ou pour
éviter tout dommage matériel, toute blessure ou la mort.
Ne pas entreposer ni utiliser d'essence ni d'autres vapeurs
ou liquids inflammables dans le voisinage de cet appareil
ou de tout autre appareil.
- QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ:
• Ne pas tenter d'allumer d'appareil.
• Ne touchez à aucun interrupteur. Ne pas vous servir des
téléphones se trouvant dans le bâtiment où vous trouvez.
• Appelez immédiatement votre fournisseur de gaz depuis
un voisin. Suivez les instructions du fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de gaz,
appelez le service des incendies.
- L'installation et l'entretien doivent être assurés par un
installateur ou un service d'entretien qualifié ou par le
fournisseur de gaz.
Cet appareil peut être installé dans une maison
préfabriquée (É.-U. seulement) ou mobile déjà installée à
demeure si les règlements locaux le permettent.
Cet appareil doit être utilisé uniquement avec les types de
gaz indiqués sur la plaque signalétique. Une trousse de
conversion est fournie avec cet appareil.
Une barrière conçue pour réduire le risque de brûlures
du verre chaud est fournie avec cet appareil et doit être
installée.
FV33i Gen 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FV33I Gen 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mendota FV33I Gen 3

Summary of Contents for Mendota FV33I Gen 3

  • Page 1 Installation and Operating Instructions MODEL NO. AA-11-03119 FV33I Gen 3 FULLVIEW DIRECT VENT GAS FIREPLACE INSERT HEATER WARNING: If the information in these instructions AVERTISSEMENT. Assurez-vous de bien suivre les is not followed exactly, a fire or explosion may instructions données dans cette notice pour réduire au...

  • Page 2: Hot Surfaces Are Normal

    Fall. 1.2 HOT SURFACES ARE NORMAL Mendota Inserts comply with ANSI Z21.88-2017 Standards for maximum surface temperatures (ambient plus 117 F) on exposed “combustible” surfaces adjacent to the Insert.

  • Page 3: Table Of Contents

    Table of Contents ..........2 NITIAL IRING AND URING ROCEDURE ............2 URFACES ARE ORMAL ........2 ERIODIC AND ANNUAL CLEANING ARE REQUIRED ..............2 EEP THE FLUE WARM SAFETY AND WARNING INFORMATION ........5 3.2.16.5.1 Paint Types Approved for Use ....34 3.2.16.5.2 Sealants Type Approved for Use ....
  • Page 4 FIRST TIME LIGHTING INSTRUCTIONS ........77 ........54 LASS EMOVAL AND EINSTALLATION ............77 PERATING NSTRUCTIONS ........... 77 AS TO IREPLACE 5.10 FREQUENTLY ASKED QUESTIONS ........... 78 ........55 IGHT ULB AND IGHT NSTALLATION ........55 IGHT ULB AND IGHT NSTALLATION 4.10 N LPG C...

  • Page 5: Safety And Warning Information

    2.1.1 Building Permit & Inspection Requirements All installations of Mendota fireplaces and inserts must comply with all the requirements stated in this Installation and Operating Manual. The dealer and/or installer must obtain all required building permits and inspection approvals from the local building inspection department or the local jurisdiction.

  • Page 6: Safety Warnings

    HIGH-ALTITUDE INSTALLATION INFORMATION: Prior to installing at altitudes higher than 7,500 ft., understand the need for gas input derating. Contact your local gas company to see if your gas type is already derated for your altitude or contact Mendota Technical Service for support.
  • Page 7 Never obstruct the flow of combustion and ventilation air. Keep the front of the fireplace clear of all obstacles and materials for servicing and proper operation. Use only Mendota approved Screens, Fronts and Trim Kits. Due to high temperature, the fireplace should be located out of traffic areas and away from furniture and draperies.
  • Page 8 été plongée dans l’eau. Do not use any fronts or doors with this fireplace unless they are certified by Mendota and installed by a certified installer.

  • Page 9: Requirements For The Commonwealth Of Mass

    A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation Page 9 85-03-01058-O FV33i Gen 3...

  • Page 10: General Technical References

    If the ignition control system goes into lockout mode, always wait 5 minutes before attempting to relight. Never block off convection air openings or paths. Trim panels or surrounds shall not seal ventilation openings in the fireplace. Always use Mendota decorative fronts and Mendota approved vent systems and vent caps only. Page 10...
  • Page 11 ATTENTION It is important that the blowers are turned on during this step to prevent the curing smoke from staining the wall finish above the fireplace. Mendota recommends completing Step 1 prior to installation of wall finish materials. Visible smoke and strong odor are to be expected during this step. If desired, disable smoke alarms before this step, smoke from the initial curing cycle will set off smoke alarms.

  • Page 12: Mechanical Technical References

    3.2.1 Install Only in Woodburning fireplaces This Mendota Insert must be installed and serviced by a qualified installer, service agency, or the gas supplier. This Gas Fired Insert Heater can only be installed inside a Masonry Woodburning Fireplace cavity or inside a Factory Built Zero Clearance Woodburning Fireplace Cavity.
  • Page 13 The listing label is located in the air gap on the left side of the Insert between the glass frame and outer edge of the Insert. It is secured to a chain and loosely inserted in the left air gap and can be pulled out to be viewed. Figure 2-1 Listing Label Serial Label Location Page 13 85-03-01058-O FV33i Gen 3...
  • Page 14 Supplied in manual box. To be attached to existing Located on right side of unit near electrical inlet. fireplace opening prior to insert installation. Located on top of unit near vent adapter. Located on chain with serial plate at bottom of unit. Page 14 85-03-01058-O FV33i Gen 3...
  • Page 15 Located on glass door of unit. Page 15 85-03-01058-O FV33i Gen 3...
  • Page 16 3.2.4 FV33i Insert Ratings Information This Mendota insert must be installed in an existing masonry wood burning fireplace or a factory built ZC wood burning fireplace. This Mendota insert must be installed and serviced by a qualified installer, service agency, or the gas supplier.
  • Page 17 HINT: To greatly reduce surface temperatures surrounding this Insert during operation, Mendota recommends operating the integrated convection air blowers which aid in cooling all surrounding surfaces. Mendota Inserts comply with ANSI Z21.88-2017 Standards for maximum surface temperatures (ambient plus 117 F) on exposed “combustible”...
  • Page 18 3.2.6 Overall Insert Dimensions Front View Top View Right Side View Back View Page 18 85-03-01058-O FV33i Gen 3...
  • Page 19 3.2.7 Insert Features Identification Insert Features Diagram , below. Identify the features included with this Insert and their locations. Insert Features Diagram MANUAL GAS SHUTOFF - LEFT SIDE SWITCHES- RIGHT SIDE Page 19 85-03-01058-O FV33i Gen 3...
  • Page 20 U-shaped section tightly and lift. Once this Insert is moved to its final location, you may remove and discard the lifting handles, if necessary, to reduce the width of this Insert. Lifting Handles Page 20 85-03-01058-O FV33i Gen 3...
  • Page 21 Basix surround. For a faceplate for door kits, slide the floor cover plate forward fully and tighten the screws. For a Basix surround, push the floor cover plate rearward fully and tighten the screws. FLOOR COVER PLATE ADJUSTMENT Page 21 85-03-01058-O FV33i Gen 3...
  • Page 22 If the measured distance is greater than 1-3/4”, you must consider a “custom surround” with a deeper outer edge depth. Mendota offers stock surrounds with outer edge depths of 5/16”, ½” and 1-3/4”. Other outer edge depths are offered as custom surrounds.
  • Page 23 44” 31” FLAT, ½”, 1-3/4” In addition to these stock sizes, other Basix Surrounds are also offered for applications with Grace Decorative Fronts. Consult with your Mendota Dealer for specifics and availability. BASIX SURROUND SIZES Page 23 85-03-01058-O FV33i Gen 3...
  • Page 24 Faceplate surrounds are offered as stocked items in various sizes, shapes (rectangle and arched) and with three outer edge finish options. The deeper outer edge finishes allow installation of this Insert in cavities of shallower depths. Consult with your Mendota Dealer for specific details and availability. Use if installing one of these decorative door options: Andover Door Kit b.
  • Page 25 OUTER EDGE DEPTH MINIMUM CAVITY DEPTH OUTER EDGE DIMENSIONAL IMAGE REQUIRED FLAT (5/16”) 17-3/4” **NOT AVAILBLE ON ARCHED SURROUNDS ** 1/2" 17-1/2” 1-3/4” 16” ” SURROUND OUTER EDGE DEPTH vs MINIMUM FIREPLACE DEPTH REQUIREMENT Page 25 85-03-01058-O FV33i Gen 3...
  • Page 26 You may request a rendering with known dimensions, or you may supply the fireplace opening dimensions and request, as an example, equal reveal outside a Grace kit or a door kit. Mendota will provide you with a rendered image showing exact size and shape.
  • Page 27 NPFA 211 Approved: Install an R-1 rated ceramic board or R-1 rated mineral board on the wall you are attempting to protect. by using this method of protection, if the required horizontal clearance was 12”, the resulting clearance will be reduced by 50% to 6” between the heat source and the R-1 Rated wall board. Page 27 85-03-01058-O FV33i Gen 3...
  • Page 28 Note: The distance from the Floor Level of this Insert to the Top Air Gap is 18-1/8”. Mantel Clearances 30-1/8” TO AN 8-inch MANTEL Minimum Distance from Floor to 8" Mantel is 30-1/8” Approved Mantel Profiles Page 28 85-03-01058-O FV33i Gen 3...
  • Page 29 Mantel Clearance Reduction Method Page 29 85-03-01058-O FV33i Gen 3...
  • Page 30 If these materials are used it is recommended that the insert is raised at least 12” above the floor. Mendota does not guarantee any materials used around the insert. Mendota disclaims any and all liability for any damage to finishing materials including warping, discoloring, cracking, peeling or flaking. This also includes any off-gassing or unpleasant smells from materials when they are heated.
  • Page 31 3. All facing materials used on the new framed structure and within 24” of the existing fireplace opening, in all four directions, must be of the noncombustible type. Note: The suggestions given in this section are Mendota Fireplace’s recommendations only. All local building code requirements must still be researched and followed.
  • Page 32 Information for common materials used is given below. Mendota does not guarantee any materials used around the insert. Mendota disclaims any and all liability for any damage to finishing materials including warping, discoloring, cracking, peeling or flaking.
  • Page 33 230 F. The epoxy resin coating used on granite slabs are resistant to discoloring and structural failures up to 350 F. Mendota does not assume any liability for discoloring, flaking or cracking of marble or granite. Page 33...

  • Page 34: Paint Types Approved For Use

    Mendota cautions that due to natural structural defects that can exist within marble and stone pieces, cracking and/or flaking of the marble or stone is possible and must be considered prior to selection and application around Mendota inserts. Mendota further cautions that proper adhesives be used to attach stone facings.
  • Page 35 Many television manufacturers specify in their installation instructions that the television must not be installed near or above a heat source. The decision to install a television near or above a Mendota fireplace rests solely on the consumer. It is the consumers responsibility to satisfy television specifications and ensure the television will not exceed maximum operation temperatures.
  • Page 36 24 inches above the top air gap of this fireplace. The cavity must be deep enough for the television to be recessed at least 2 inches in from the wall. Page 36 85-03-01058-O FV33i Gen 3...
  • Page 37 MENDOTA RECOMMENDED VENT COMPONENTS AND VENT KITS LIST NOTE: Mendota “highly” recommends that you use one of the two vent caps listed below. Mendota has thoroughly investigated, designed, and confirmed by testing that these two caps perform flawlessly during high wind speeds up to 40 MPH.
  • Page 38 Chimney flues can vary in shape, size, and type. During inspection, make note of the type of the flue system used. Professionally clean and make any repairs before installing a Mendota gas Insert. Especially, pay attention to unlined flues which may have missing or severely damaged mortar joints.
  • Page 39 Always use full size vent caps and allow a minimum 3” clearance from vent cap top to the chimney cap. For wider chimney caps and slabs, greater than 16” wide, increase the clearance above the vent cap to 6” minimum. If necessary, raise the slab to supply the required clearance. Page 39 85-03-01058-O FV33i Gen 3...
  • Page 40 Alternatively, you may also vertically extend the wood burning flue liner up 24” higher than the top surface of the gas appliance vent cap. Side by Side Flues Side by Side Vent Caps Page 40 85-03-01058-O FV33i Gen 3...

  • Page 41: Electrical Technical References

    The insert comes with the cord exiting on the side of the insert. If an installation does not allow room on the side for the electric cord the cord can be rerouted through a hole in the rear of the insert. Electrical Junction Box Page 41 85-03-01058-O FV33i Gen 3...
  • Page 42 Not using a strain relief clamp can lead to arcing between loose connections and pose a fire hazard. If an outlet is installed inside a wood burning fireplace always use a metal junction box, MC Cable, and strain relief clamps. Strain Relief Clamp Page 42 85-03-01058-O FV33i Gen 3...
  • Page 43 The four (4) AA batteries will allow operation of this Insert for approximately ten days. While using the backup DC power, the convection blower and accent light functions will not be available. BACKUP DC POWER INLET Page 43 85-03-01058-O FV33i Gen 3...
  • Page 44 Wi-Fi connection press and hold the button to reset the connection. The application is called “Proflame Connect” and is available in your phone’s app store. Please see the “Proflame WIFI Dongle; Use and Installation Instructions” PDF for installation and use instructions. Page 44 85-03-01058-O FV33i Gen 3...

  • Page 45: Plumbing Technical References

    CORRECT GAS PRESSURE AND PROPER GAS SUPPLY LINE SIZING IS IMPERATIVE TO THE SUCCESSFUL PERFORMANCE OF YOUR MENDOTA GAS FIREPLACE INSERT. BE SURE THE GAS SUPPLIER OR PLUMBER CAREFULLY CHECKS FOR CORRECT GAS PRESSURE AND GAS LINE SIZING WHEN INSTALLING THE FIREPLACE INSERT.
  • Page 46 If local building codes require one, obtain an external keyed wall-mounted or floor-mounted manual gas shutoff valve approved per local gas plumbing codes and install per local gas plumbing codes in the specified location. Local requirements supersede all other codes. Keyed Manual Gas Shutoff Valve Page 46 85-03-01058-O FV33i Gen 3...
  • Page 47 The flex line end adapter supplied with this Insert provides a 3/8” male NPT end fitting. Based on the gas line size you have selected use an appropriate NPT fitting to adapt and connect to the 3/8” male NPT flex end adapter. Flex End Adapter Page 47 85-03-01058-O FV33i Gen 3...
  • Page 48 This appliance has been converted for use at an altitude of: Orifice size: Manifold Pressure: Input (Btu/h): Fuel Type: Converted by: Date of conversion: Cet appreeil a été converti au ________________ Injecteur Pression à la tubulure d'alimentation Déoit calorifique Page 48 85-03-01058-O FV33i Gen 3...

  • Page 49: Installation Checklist

     Install log set, coals and inswool media.  Test fire Insert.  Teach consumer how to use remote control and all functions of this insert  Complete warranty registration at mendotahearth.com/warranty This installation was performed and completed by: Date: Page 49 85-03-01058-O FV33i Gen 3...

  • Page 50: Unpacking The Insert

    Philips head drywall screws that secure a cardboard L pincher at the bottom of each corner of the box. Lift the outer box vertically straight upward until lower edge of the box clears the top of the unit body. Set the box aside. Mendota recommends recycling the outer box. Outer Box Removal Page 50...

  • Page 51: Contents Of The Manual Packet

    Once the outer box is removed, you will find the Insert body and a manual packet white box. This manual packet white box includes the items shown in the table, below. Contact Mendota Technical Service if any parts are missing.

  • Page 52: Bending Up The Shipping Clips

    3. Remove screwdriver. Insert screwdriver tip into one hole in clip. Lift screwdriver up. To break clip off, repeat up down motion of screwdriver seven to eight times. Shipping Clip STEP 1 & STEP 2 STEP 3 Bend Up Clip 2 Bend Up Clip 1 Page 52 85-03-01058-O FV33i Gen 3...

  • Page 53: Leveling Bolts

    The leveling bolts supplied are designed specifically for application with this product. only use leveling bolts supplied by Mendota and for leveling purposes only. Never use leveling bolts for purposes of lifting unit up to make up for ash lip heights or other lifting or raising needs.

  • Page 54: Glass Door Removal And Reinstallation

    4. Use the tool provided to connect the spring latches to the glass frame. Insert tool into hole in spring latch, pull latch towards you, rotate latch so the hook is facing downward then release latch to hook to door frame. Door is now connected and sealed to unit. Page 54 85-03-01058-O FV33i Gen 3...

  • Page 55: Light Bulb And Light Lens Installation

    The insert comes with the light bulb and lens installed. To replace the bulb when needed follow the steps below. The accent light uses a halogen G9 25Watt light bulb. Replacement bulbs are available from your Mendota dealer. Part Number 10-11-00020.

  • Page 56: Natural Gas To Lpg Conversion

    WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. Kit # HA-82-00411 for Mendota Model FV33i This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction.
  • Page 57 Tighten down orifices. WARNING: It is of the utmost importance that the correct burner orifices be installed for both the rear and front burners. Removing Orifices Page 57 85-03-01058-O FV33i Gen 3...
  • Page 58 11. Tighten down hex shaped base of pilot using a 7/16” open end wrench. CAUTION: Always use two pinch tools to hold, loosen and tighten pilot hood base to prevent damage to pilot mount bracket. Main Gas Valve Pinch Pilot Base with Vice Grips Page 58 85-03-01058-O FV33i Gen 3...
  • Page 59 Warning: This modulating conversion kit must only be applied as part of a conversion kit supplied by the fireplace manufacturer for specific fireplace and type of gas being converted. Warning: Correct operation of the system cannot be guaranteed if the conversion kit or value have been dropped or sustained strong impact. Page 59 85-03-01058-O FV33i Gen 3...
  • Page 60 Verify that the burner tubes ignite quickly, and the burner flames propagate smoothly along the entire length of the burners. Pilot Flames Pilot Flame and Burner Ports Page 60 85-03-01058-O FV33i Gen 3...

  • Page 61: Fireplace Cavity Preparation

    WARNING. This fireplace has been converted for use with a gas fireplace insert only and cannot be used for burning wood or solid fuels unless all original parts have been replaced, and the fireplace re-approved by the Authority Having Jurisdiction.” Page 61 85-03-01058-O FV33i Gen 3...

  • Page 62: Venting

    4” exhaust flex and 6” air intake flex with spring spacers between the two flex pipes. NOTE: Mendota recommends that both exhaust and air intake flex liners be run all the way to the vent cap. Seals between flex liners and unit top and vent cap must be permanent and as airtight as possible. Never use silicone sealants in pipe joints.
  • Page 63 Remove the vent adapter by unlatching spring loaded lever from front of the unit. Use the glass latch tool to hook into the latch, pull forward and lift latch up to release. Removing Vent Adapter Square Cap Round Round high wind cap Flex Liners Connections Page 63 85-03-01058-O FV33i Gen 3...
  • Page 64 12" (300 mm) above the fireplace hearth. The person below should wear leather gloves and Safety Glasses during this process to avoid being cut and to safeguard eyes from flying debris. Page 64 85-03-01058-O FV33i Gen 3...
  • Page 65 4.12.3 Attaching Flue Liners to Vent Cap Four hose clamps are supplied with each Mendota vent kit. Four #8 sheet metal screws are needed which are not supplied with Mendota vent kits. For vent kits (other brands) obtained from other distributors or suppliers, acquire four 4” diameter hose clamps and eight #8 sheet metal screws.

  • Page 66: Attaching Warning Label To Zc W

    Before installing this appliance in the ZC Woodburning Fireplace, this label must be mechanically attached to the ZC Woodburning Fireplace floor using self-drilling sheet metal screws (not supplied). Secure this label on floor on the floor adjacent to the right or left walls. Warning Label Page 66 85-03-01058-O FV33i Gen 3...

  • Page 67: Insert Body Installation

    5. Slide vent adapter forward between guide rails. Vent adapter’s front flat section should contact insert top as you slide the Vent Adapter forward. Use spring loaded lever to pull vent adapter back into place on the unit and then latch it to front of unit. Vent Adapter Latching Page 67 85-03-01058-O FV33i Gen 3...
  • Page 68 5. If you wish, you may use the four #8 X 1/2” long sheet metal screws provided to secure the Basix or Faceplate permanently to the Insert body. However, Mendota discourages doing so unless necessary. Always properly level and plumb the Insert body to prevent tipping of the insert. Failure to properly level and plumb the Insert body may lead to the Insert body tipping forward and pushing the Basix or Faceplate hooks off the shoulder rivets.
  • Page 69 IMPORTANT: Try each new shutter setting approx. ½ hr. before making additional changes. NOTE: Changes Burner Air Shutter Controls in front burner flame can be made by re-arranging the coals and front burner air shutter opening. Page 69 85-03-01058-O FV33i Gen 3...

  • Page 70: Lighting Checklist

     DO NOT proceed with operation unless burner cycles "on/off" without delays and the flame is "stable" and not "lifting" off burner after 5 minutes of initial ignition. Caution: If ignition control system goes into lockout mode, be sure to wait a minimum of five minutes before relighting. Page 70 85-03-01058-O FV33i Gen 3...

  • Page 71: Aesthetic Considerations

    We are committed to quality and satisfaction for all Mendota owners. Thank you for choosing a Mendota to be a source of comfort and beauty in your home.
  • Page 72 (Note: If you do not hear any beeps when you press the sync button, contact your Mendota dealer or installer for assistance.) Within seven seconds, press the “on” button on the remote control. The fireplace will beep four times to indicate that the remote control’s command is accepted and sets to the particular code of that controller.
  • Page 73 This also controls the rear burner on/off. 4. Mode Selection Button: This button is used to toggle between the various function icons: flame height, fan speed, accent light, and rear burner. Page 73 85-03-01058-O FV33i Gen 3...

  • Page 74: Remote Control Operating Instructions

    5.5.3 Understanding Your Remote-Control Icons Your remote control displays and controls the following functions. See below for detailed control explanations. Note: the “AUX On” function is not used in this fireplace. Remote Control Icons Page 74 85-03-01058-O FV33i Gen 3...
  • Page 75 The flame height of the front burner will not change when you turn the rear burner on or off. The flame height can only be changed in the Flame Height mode. 85-03-01058-O FV33i Gen 3 Page 75...

  • Page 76: Ipi And Pilot On Demand Modes

    Note: The snowflake icon will be always visible on the display when in CPI mode. Recommended: Mendota recommends that CPI mode is used during the winter months when the average daily high temperature falls below 50 °...

  • Page 77: First Time Lighting Instructions

    4. Turn OFF the external manual shutoff valve if was required and supplied by installer and mounted adjacent to fireplace. 5. Turn OFF all electric power to the fireplace if service is to be performed. Page 77 85-03-01058-O FV33i Gen 3...

  • Page 78: Frequently Asked Questions

    5.10.2 Where can I find the model and serial numbers? When requesting service, you will be asked to provide the model number and serial number to your Mendota dealer. This information will expedite the warranty verification process. This is an example of your listing label: Listing label location: The listing label is located in the air gap on the left side of the Insert between the glass frame side and the outer edge of the Insert.
  • Page 79 3” to 12” long area) and the gasket adhesive in no longer functional to stick to glass, then replace the gasket. 9. Visually inspect the vent terminal (vent cap) for leaves, twigs, and other debris accumulation. Clean if required. 10. Clean door glass. 11. Clean enamel firebox lining if one is installed. Page 79 85-03-01058 FV33i Gen 3...
  • Page 80 These adjustments should be made by a qualified technician to achieve the best flame performance. Contact your installer or Mendota dealer if you feel your fireplace is not burning correctly. Improper setup and adjustment is not covered under warranty.
  • Page 81 This should clear the lockout mode. Turn on the remote and start the fireplace. Ensure the master switch is in the run/on position. After completing these steps, contact your Mendota dealer if fireplace will not turn on. 5.10.13 What happens when I first light my fireplace? When you first light your fireplace, the initial curing phase is initiated.

  • Page 82: Required Periodic Inspections

    Check joints between the gasket pieces at the corners. They should butt against each other to create a seal. Gaps between gasket pieces can cause exhaust leaks and lead to acrid smell concerns. 85-03-01058-O FV33i Gen 3 Page 82...

  • Page 83: Over Firing Or Under Firing Of Burner

    If you are using a “backyard” Natural Gas well as the gas source, you must submit formal gas analysis data sheets to Mendota Fireplaces for review and calculation of proper main burner orifice sizes prior to first firing. It is known that unpurified Natural Gas from “backyard” wells can contain high energy levels causing over firing.

  • Page 84: Replacement Parts Information

    6.7 REPLACEMENT PARTS INFORMATION 6.7.1 Replacement Parts List Please contact your Mendota Dealer for parts availability and parts pricing. PART ITEM NUMBER DESCRIPTION 05-02-00344 Valve, 885 ProFlame (NG) SIT# 0.885.001 05-02-00396 Split Flow Solenoid Valve 05-04-00074 PILOT, SS BARREL, 3-WAY HOOD 05-02-00416 SIT ProFlame II Module, 0.584.665...
  • Page 85 6.7.2 Convection Air Blower System Parts Blower System Parts 6.7.3 Burner System Parts Burners Systems Parts Page 85 85-03-01058 FV33i Gen 3...
  • Page 86 6.7.4 Gas Valve Train Parts Gas Valve Train Parts Gas Valve Assembly Parts Page 86 85-03-01058 FV33i Gen 3...
  • Page 87 6.7.5 Ignition Control Module Assembly Parts 05-02-00416 HA-110-00105 6.7.6 Accent Light Accent Light Bulb & Lens Installation Accent Light Lens Installation Page 87 85-03-01058 FV33i Gen 3...
  • Page 88 The glass frame assembly and its individual components are available through Johnson Gas Appliance Company. Contact your dealer for more detailed ordering information. GLASS FRAME ASSEMBLY REPLACEMENT PARTS LIST ITEM PART NUMBER DESCRIPTION FRAME, WELDMENT, GLASS, FV33i HA-82-00419 GASKET, TADPOLE, 5/8” BULB, 3/4” TAIL 65-02-00103 65-06-01272 GLASS, CERAMIC, FV33i Page 88 85-03-01058 FV33i Gen 3...

  • Page 89: Final Installation And Homeowner Checklist

     Burner flames are “stable” and are not “lifting” off burner.  Inform owner that an initial curing step is required. Read and follow Mendota Fireplace and Insert Curing Instructions (found on unit and in owner’s manual). Smoke will emit during initial curing step.

  • Page 90: Warranty Policy Statement

    7.2 WARRANTY POLICY STATEMENT Mendota Fireplace, a division of Johnson Gas Appliance Company, extends this Limited Lifetime Warranty to the original purchaser of this appliance provided the product remains in the original place of installation. The items covered by this limited warranty and the period of such coverage is set forth in the table below.

  • Page 91: Conditions

    Owner accepts that this appliance requires close monitoring of children and vulnerable individuals who are in the vicinity of this appliance when it is in operation. Mendota does not assume or accept any liability claims for burns or other physical or material damages resulting from touching hot glass surface and hot metal surfaces that are part of this appliance or other adjacent object such as hearth pads and mantels that may heat up during operation of this appliance.
  • Page 92 How to Obtain Warranty Service 1. If you discover a problem that you believe to be covered by the warranty, you must report to your Mendota Dealer within 30 days, with proof of purchase, purchase date, model name and serial number.
  • Page 93 Owner Registration After installation, Mendota fireplace owners must register with Mendota to qualify for the Lifetime Limited Warranty within 30 days. Product registration will activate your Lifetime Limited Warranty. Owners should complete the forms available at: mendotahearth.com/warranty Note: Your Mendota dealer can assist with warranty applications and information.
  • Page 94 NOTES Page 94 85-03-01058 FV33i Gen 3...
  • Page 96 Johnson Gas Appliance Company 520 E Avenue NW Cedar Rapids, Iowa 52405 Mendota Warranty Registration...
