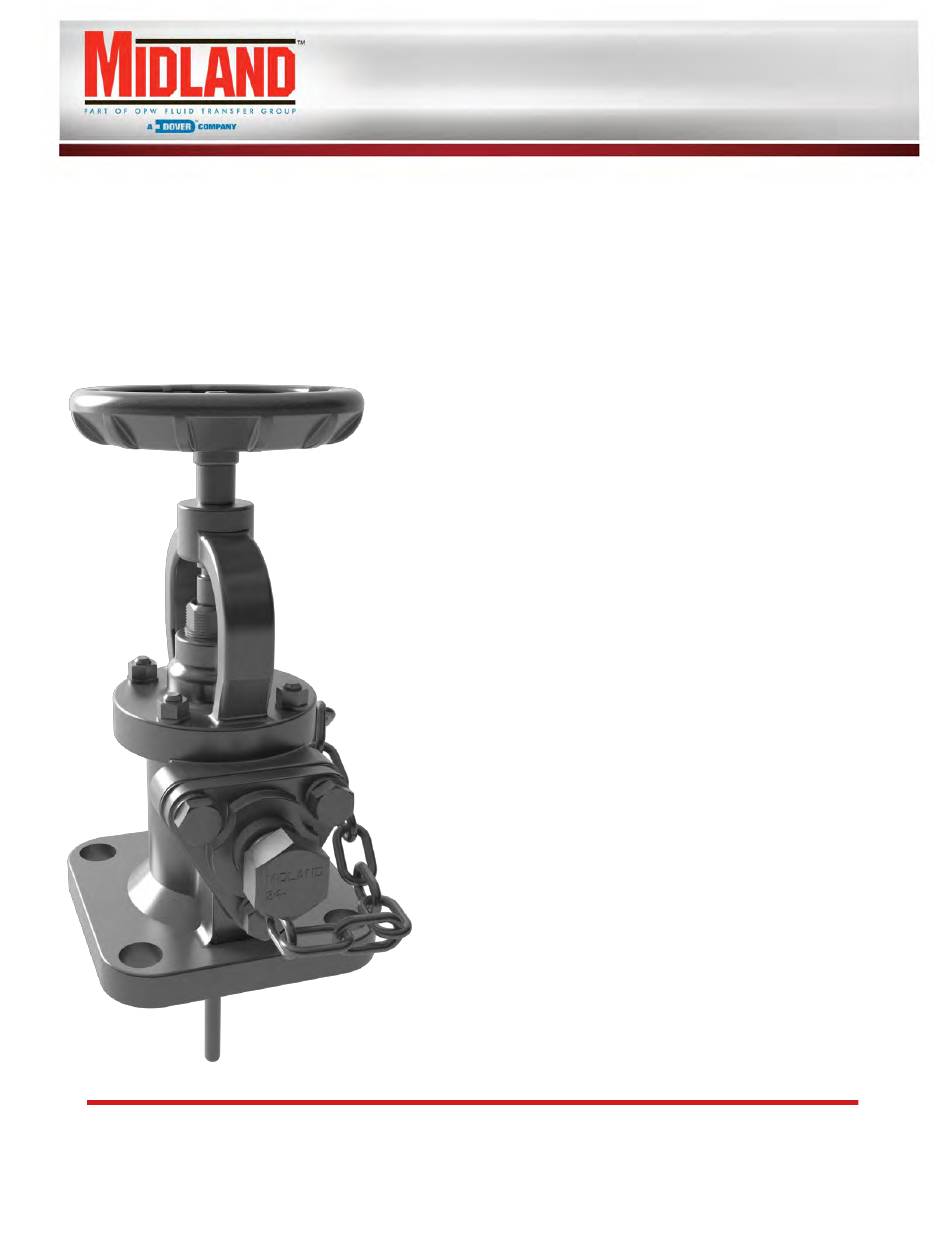

Document Number: A-718D, Revision 1.0
Issue Date: February 20, 2020
Page 1 of 36
1" Angle Valves
A-718D Series
Installation, Operation & Maintenance Manual
www.midlandmfg.com
7733 Gross Point Road • Skokie, IL 60077 • (847) 677-0333 • Fax (847) 677-0138 •

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Midland A-718D Series and is the answer not in the manual?

Questions and answers

Related Manuals for Dover Midland A-718D Series

Summary of Contents for Dover Midland A-718D Series

  • Page 1 Document Number: A-718D, Revision 1.0 Issue Date: February 20, 2020 Page 1 of 36 1" Angle Valves A-718D Series Installation, Operation & Maintenance Manual www.midlandmfg.com 7733 Gross Point Road • Skokie, IL 60077 • (847) 677-0333 • Fax (847) 677-0138 •...

  • Page 2: Table Of Contents

    Table of Contents Introduction ........................... 3 Technical Specifications ......................3 Torque Values for Bolts ......................4 Valve Perspectives........................5 Pre-Installation Regulations / Requirements................7 Valve Installation ........................... 9 Preliminary Considerations ....................... 9 Installation Procedure ....................... 9 Operating Instructions ......................... 12 Valve Operation Notes and Precautions ..................

  • Page 3: Introduction

    Introduction The A-718D Series 1" angle valves are top loading transfer valves with a unique seat design that permits self-draining and ease of maintenance and repair. The energized and adjustable stem packing and soft, self- centering valve seat eliminates potential leak paths and further increasing the long life and reliability in Chlorine transportation.

  • Page 4: Torque Values For Bolts

    Torque Values for Bolts Item # Description Material Torque Value Monel 48 ft-lb Cap Screws 1/2-13 UNC 2B 38 ft-lb 20 ft-lb Top Nut 1/2-13 UNC 2B Monel 22 ft-lb Hex Nut 3/8-16 UNC 2A 20 ft-lb Inconel 38 ft-lb Slotted Nut 7/18-20 UNF 2B 32 ft-lb...

  • Page 5: Valve Perspectives

    Valve Perspectives Item Qty. Part Name Hand Wheel Stem Seal Retainer Body 1" Bonnet Cap Screw Packing Screw w/Insert Packing Insert Seat Seal-VV Packing Ring Assembly O-Ring-Stem O-Ring-Flange Lock Nut Stud 3/8" Split Lock Washer Hex Nut O-Ring Retaining Pin Slotted Nut Male Packing Adapter 1/2"...
  • Page 6 Figure 1-3 Side View and Cross-Sectional View with Callouts Doc. #: A-718D, Rev. 1.0 Page 6 of 36...

  • Page 7: Pre-Installation Regulations / Requirements

    Pre-Installation Regulations / Requirements 1.4.1 Regulations Midland Top Transfer, Angle Valves are used in contact with a variety of products, many of which are hazardous materials. The acceptance and transportation of products are regulated by the DOT and AAR in the U.S.A., and in Canada by CTC and Transport Canada.
  • Page 8 1.4.4 Required Tools Before arriving at the installation site obtain the required tools and supplies prior to performing the procedures indicated in this guide. Recommended Wrenches Component Material Torque [ft-lb (N·m)] Item # Monel 48 ft-lb (65 N·m) 1/2” Socket/Wrench Cap Screws 38 ft-lb (52 N·m) 20 ft-lb (27 N·m)

  • Page 9: Valve Installation

    2.0 Valve Installation Preliminary Considerations 2.1.1 New valves are tested, adjusted and sealed at Midland. If a new valve has been left in its original packaging, is undamaged and is not more than six (6) months old, it may be installed on a tank car without retesting or recalibration.
  • Page 10 2.2.7 Take out the rubber plug from the cover plate opening. 2.2.8 The valve should be “closed” with the stem all the way up. Under no circumstances should a “cheater” or handle extension be used to close this valve, as over-tightening will damage the valve’s Teflon seat.
  • Page 11 2.2.13 Attached to the bonnet is a tag that indicates operating instructions on one side of the tag and on the reverse side are blanks to be filled in. The record of the valve’s service experience will be valuable information in evaluating the valve’s performance.

  • Page 12: Operating Instructions

    3.0 Operating Instructions Valve Operation Notes and Precautions NOTE: Operation of the valve must conform with all applicable CTC, AAR, DOT specifications (Parts 173.31, 174.67, etc.), other governmental bodies, and the operating instructions of your company. 3.1.1 Bear in mind with the Midland angle valve that it will seal completely with much less torque than a metal- to-metal seated valve.

  • Page 13: Maintenance Instructions

    4.0 Maintenance Instructions NOTE: It is important that a periodic retest and preventative maintenance program be established. The DOT and AAR have set forth a retesting interval that should be considered the maximum length of time between tests. To assist in scheduling valves for retest, a tag showing the installation date is attached to the valve.

  • Page 14: Valve Disassembly

    5.0 Valve Disassembly 5.1.1 Before valve disassembly, open and close the hand wheel to run the stem (item 2) up and down to ensure that the stem is neither bent nor binding in the threaded part of the bonnet (item 5). Bent stems must be straightened to proceed with the disassembly.
  • Page 15 5.1.3 Remove the outlet flange (item 30). If it is difficult to dislodge, screw a 1" threaded nipple about 10" long into the port. Move it back and forth gently to loosen the flange and work it off the valve body (item 4). Figure 5-4 Remove Outlet Flange 5.1.4 Loosen the packing screw (item 7).
  • Page 16 5.1.6 Rest the end portion of the stem on wood block leveled with body. Make sure there is only 3" between the body and the wood block. Drift out retaining pin using a standard 1/8" diameter drift. Then unscrew the retainer slotted nut, remove the retainer assembly, retainer O-ring and retainer seal washer.
  • Page 17 5.1.7.1 At this point, remove the seat insert (item 31) from the body (item 4). The seat insert will be held in place by pressure exerted by the two (2) O-rings (item 33). One possible option to assist in the removal of the seat insert is by placing a circular piece of hardwood or plastic on top of the seat insert on the inside of the body through the outlet hole.
  • Page 18 If the packing (item 10) remains in the body, a hook-shaped tool will dislodge it, as well as the male adapter (item 20) , wave spring (item 28) and the two (2) stem O-rings in the body (item 11). The hook-shaped tool can be obtained from Midland (P/N: 712-27-CS).
  • Page 19 (approximately 1/16"). Run your fingernail around the crown to be sure it is free of any nicks, scratches or pits. Also, any chatter or tool marks on the seat crown should removed. The overall height of the crown should not be less than 7/32". If the tongue needs to be re-dressed, the tongue’s dimensions are 4.745 ± 0.005”...

  • Page 20: Valve Inspection & Replacement Of Parts

    6.0 Valve Inspection & Replacement of Parts Follow the guidelines in this section for inspecting the condition of valve components after disassembly. In some instances a component can be properly evaluated for damage or cracks only with the use of specialized techniques, such as dye-penetration or magnetic-particle testing, according to a qualified procedure by certified trained personnel.
  • Page 21 6.1.2 Stem (item 2). Roll the stem in “V” blocks or on a flat surface. It will be apparent if the stem is bowed. If straightening is required, do not grip or deflect it on the ground surface of the packing zone, in the Acme thread zone, in the 1/16"-20 thread area and below, where deformation of the metal would foul the threads or damage stem straightness.
  • Page 22 6.1.7 Outlet Flange (item 30). The O-ring groove and the flat gasket surfaces must be free of nicks, scratches and pits. Similarly, the 1" NPT must be in good condition. If necessary, clean the 1" NPT with a tap. However, a thread gauge should be used to be sure the thread is not oversized. The standard hand engagement is 0.400 inches and the acceptable tolerance is plus or minus one full turn (0.087 inches).

  • Page 23: Special Inspection Considerations

    6.1.10 Seat Insert (item 31). This is a critical part that must be examined carefully. The crown of the seat has a full-radius (approximately 1/16"). Run your fingernail around the crown to be sure it is free of any nicks, scratches or pits.

  • Page 24: Cleaning

    7.0 Cleaning NOTE: In preparation for reassembly, all metallic parts should be cleaned. Do not use solvents or grease lubricants that are incompatible with the products in the tank. For example, a petroleum-based grease may cause a chemical reaction when it comes in contact with chlorine. Contact your supervising engineer for suitable cleaning and lubricating material recommendations.

  • Page 25: Valve Reassembly

    8.0 Valve Reassembly 8.1.1 Place the bonnet on the body to ensure an accurate fit. Ensure that the body and bonnet flanges mate with no space in-between. Then take the bonnet off the body. Lightly grease the inside threads, the bore and the bottom flange face of the bonnet.
  • Page 26 8.1.3 If the packing screw and white PTFE wiper (item 24) are in good condition, apply a light film of grease on the inside and outside surfaces of the packing screw. Figure 8-5 Inspect Packing Screw and Wiper Figure 8-6 Grease Packing Screw 8.1.4 Place packing screw (item 8) into the bonnet yoke.
  • Page 27 8.1.6 Assemble five (5) Teflon V-rings (item 11) in a stack and apply grease to the inside and outside of the ® packing. Figure 8-10 Lubricate Rings 8.1.7 Lubricate interior of the body neck. Insert packing spring into the neck of the body as shown. Figure 8-11 Lubricate Body Neck Figure 8-12 Insert Packing Spring 8.1.8...
  • Page 28 8.1.9 Apply grease to the two (2) O-ring grooves recessed in the top of the body. Grease both O-rings. It should be easier to position the top O-ring, then install the other one into the lower groove. Be sure both O-rings are properly installed in the grooves.
  • Page 29 8.1.11 Grease the top part of the body flange and put the bonnet assembly on it, inserting the valve stem through the two installed O-rings of the body. Make sure the bonnet arms are in-line with the triangular outlet of the valve body as shown below.
  • Page 30 8.1.13 Put the hand wheel (item 1) on the stem and run it up and down to be sure the stem moves freely. Figure 8-20 Place Hand Wheel on Stem 8.1.14 Tighten the packing screw to 30 ± 3 ft-lb (40 ± 4 N·m) to seat the Teflon packing rings.
  • Page 31 8.1.16 Grease the cavities in the base of the body, the lower gasket (item 32) and insert gasket. Figure 8-23 Grease Body Base Figure 8-24 Install Lower Gasket 8.1.17 Grease the exterior surface of the seat insert and insert it into the body by pushing it down with the palm of your hang and slowly rotating it.
  • Page 32 8.1.18 Rotate the stem until 7/16"-20 threaded area is well below tongue on the seat insert. Lightly grease the 7/16"-20 threads. Insert retainer seal washer, O-ring and retainer assembly through the bottom of the stem and secure the seat seal in place with retaining nut. Once nut is tightly secured, insert retaining pin to prevent retainer assembly and nut from backing out.
  • Page 33 8.1.21 Press the outlet flange into the side port of the body. Install lock washers and bolts; tighten bolts to 45 ft-lb (61 N·m). Figure 8-33 Install Outlet Flange Figure 8-34 Install Washers/Bolts Figure 8-35 Tighten Bolts 8.1.22 Assemble the instruction plate (item 23), hand wheel washer rounded edge facing upwards (item 25) and hand wheel nut (item 13) on the stem.
  • Page 34 8.1.23 Install the outlet pipe plug (item 29) in the outlet flange. Figure 8-38 Install Pipe Plug 8.1.24 Attach the chain to the body. Figure 8-39 Attach Chain to Body Figure 8-40 Secure Chain to Body Doc. #: A-718D, Rev. 1.0 Page 34 of 36...

  • Page 35: Valve Testing Procedure

    9.0 Valve Testing Procedure If your company has an approved test procedure, follow it. If it does not, these procedures provide essential guidelines in regards to pressure testing. CAUTION: Safety Protection. Wear appropriate safety glasses or face-shield and protective clothing when conducting this procedure. Valve testing involves high-velocity air and water flow that can cause injury.

  • Page 36: Warranty

    10.0 Warranty Midland warrants the products of its own manufacture to be free of defects in material and workmanship for a period of one (1) year from the date of invoice. Furnished materials and accessories purchased from other manufacturers are warranted only by and to the extent of those manufacturers’ warranties, if any. MIDLAND MAKES NO WARRANTY OF ANY KIND WHATSOEVER, EXPRESS OR IMPLIED, OTHER THAN AS SPECIFICALLY STATED HERE MIDLAND MAKES NO WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE OR USE.
