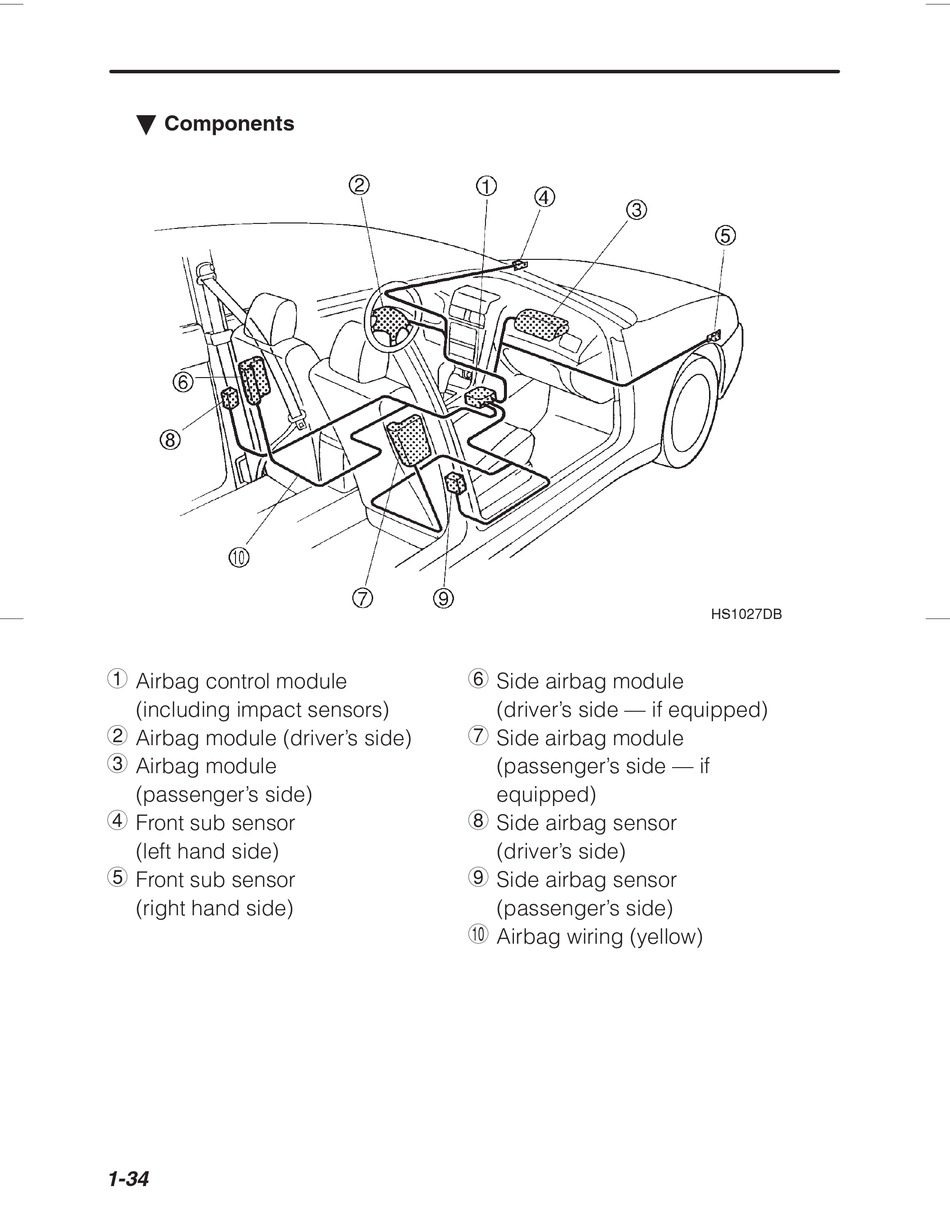

B Components
1
Airbag control module
(including impact sensors)
2
Airbag module (driver's side)
3
Airbag module
(passenger's side)
4
Front sub sensor
(left hand side)
5
Front sub sensor
(right hand side)
1-34
6
Side airbag module
(driver's side — if equipped)
7
Side airbag module
(passenger's side — if
equipped)
8
Side airbag sensor
(driver's side)
9
Side airbag sensor
(passenger's side)
Q
Airbag wiring (yellow)
HS1027DB
