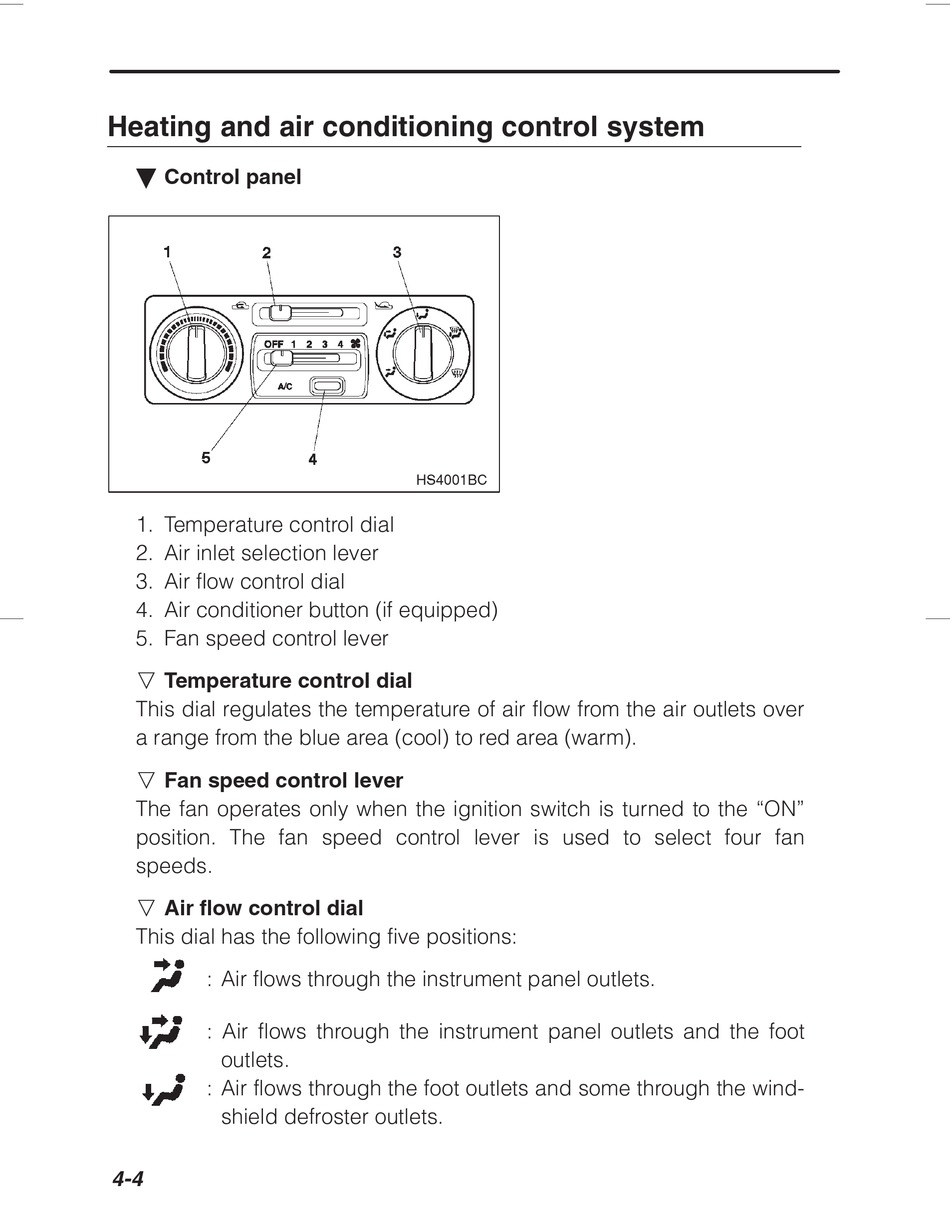

Heating and air conditioning control system

B Control panel
1. Temperature control dial
2. Air inlet selection lever
3. Air flow control dial
4. Air conditioner button (if equipped)
5. Fan speed control lever
n Temperature control dial
This dial regulates the temperature of air flow from the air outlets over
a range from the blue area (cool) to red area (warm).
n Fan speed control lever
The fan operates only when the ignition switch is turned to the "ON"
position. The fan speed control lever is used to select four fan
speeds.
n Air flow control dial
This dial has the following five positions:
: Air flows through the instrument panel outlets.
: Air flows through the instrument panel outlets and the foot
outlets.
: Air flows through the foot outlets and some through the wind-
shield defroster outlets.
