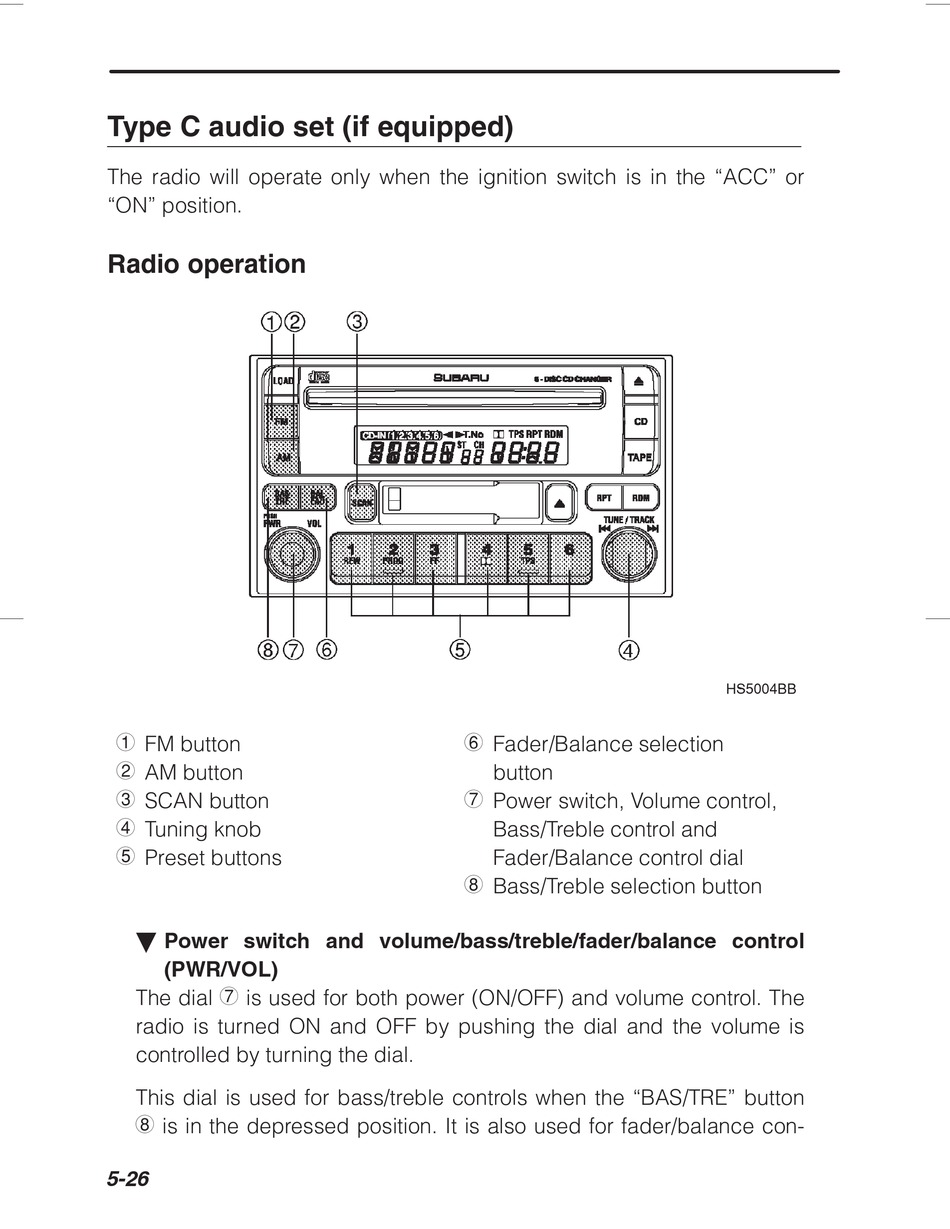

Type C audio set (if equipped)

The radio will operate only when the ignition switch is in the "ACC" or
"ON" position.
Radio operation
1
FM button
2
AM button
3
SCAN button
4
Tuning knob
5
Preset buttons
B Power switch and volume/bass/treble/fader/balance control
(PWR/VOL)
7
The dial is used for both power (ON/OFF) and volume control. The
radio is turned ON and OFF by pushing the dial and the volume is
controlled by turning the dial.
This dial is used for bass/treble controls when the "BAS/TRE" button
8
is in the depressed position. It is also used for fader/balance con-
5-26
6
Fader/Balance selection
button
7
Power switch, Volume control,
Bass/Treble control and
Fader/Balance control dial
8
Bass/Treble selection button
HS5004BB
