Type B Audio Set (If Equipped) - Subaru 2002 Forester Owner's Manual

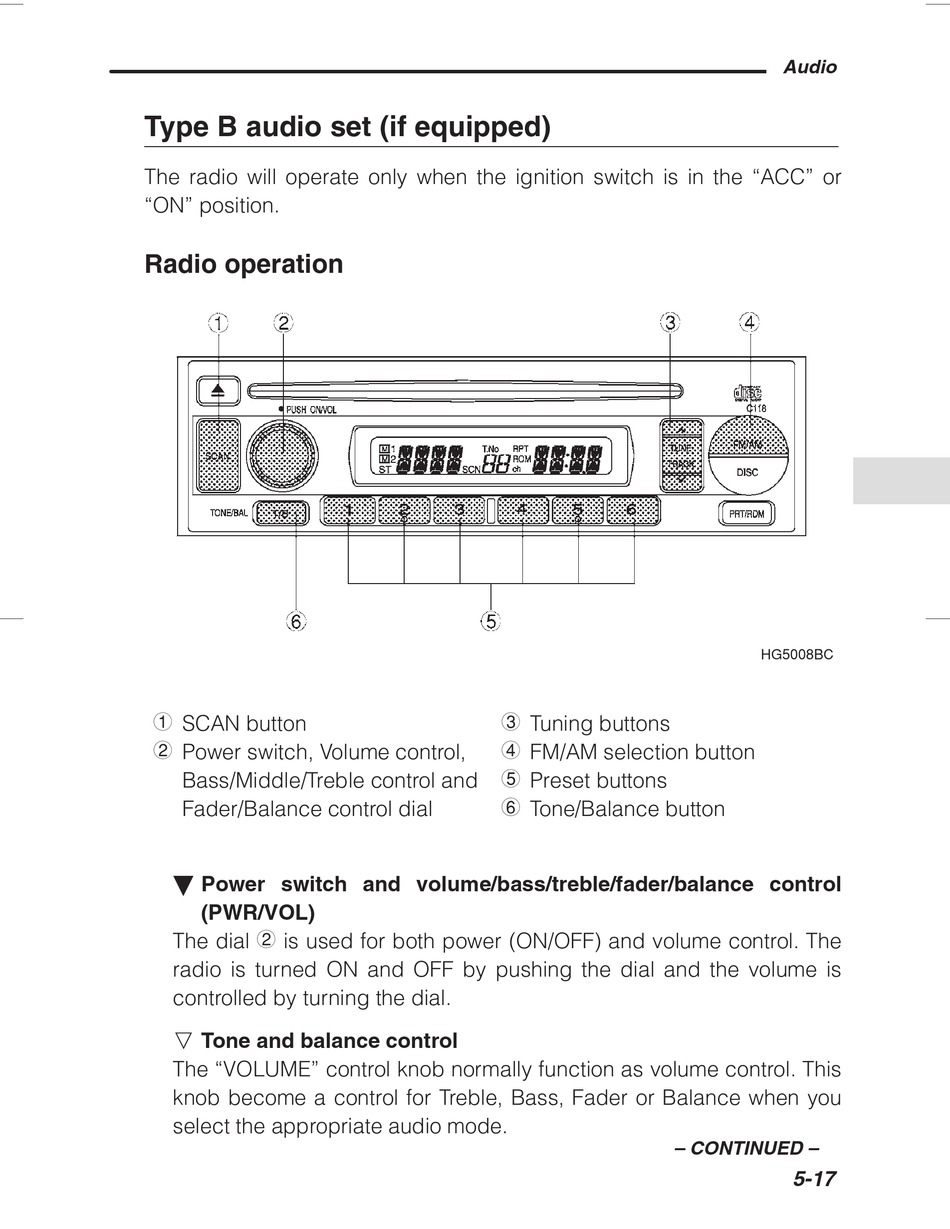

Type B audio set (if equipped)

The radio will operate only when the ignition switch is in the "ACC" or
"ON" position.
Radio operation
1
SCAN button
2
Power switch, Volume control,
Bass/Middle/Treble control and
Fader/Balance control dial
B Power switch and volume/bass/treble/fader/balance control
(PWR/VOL)
2
The dial is used for both power (ON/OFF) and volume control. The
radio is turned ON and OFF by pushing the dial and the volume is
controlled by turning the dial.
n Tone and balance control
The "VOLUME" control knob normally function as volume control. This
knob become a control for Treble, Bass, Fader or Balance when you
select the appropriate audio mode.
3
Tuning buttons
4
FM/AM selection button
5
Preset buttons
6
Tone/Balance button
Audio
HG5008BC
– CONTINUED –
5-17
