- Page 1 Safety Instructions / User's Manual RGBW full range with white light / LED Panel of enhanced exibility Metal Ballast / CRI 95 or above / Ball mount bracket with 16mm spigot Color temperature 2700ºK ~ 6500ºK / Extension up to 10 meter...
- Page 2 FULL COLOR FLEXIBLE LED LIGHT Thank you for purchasing the Cineroid. The Cineroid CFL LED Light is high quality RGBW soft light with portable size. Light weight and thin panel makes easy to use and getting around any type, environment. Please thoroughly read the user manual for best operation and understanding of all of the functions of the Cineroid LED light.
- Page 3 Cineroid CFL FULL COLOR FLEXIBLE LED LIGHT Safety Precautions Please observe the following safety precautions as they are meant for the safe and proper use of the product to reduce the risk of accidents. Upon reading the user manual, keep it in a safe and available place.
-
Page 4: Table Of Contents
Cineroid CFL FULL COLOR FLEXIBLE LED LIGHT Table of Contents Safety Precautions Table of Contents CFL00 Package Contents CFL800 Package Contents Name of each part Before Using Connect LED Panel to the Ballast Input the Power by DC Input the Power by Battery... - Page 5 Cineroid CFL FULL COLOR FLEXIBLE LED LIGHT Operating Basic Operation CCT Mode (White Color) RGB Mode Hue/Sat Mode Preset Effect Mode User Effect Mode System Firmware Update Color Unit Master / Slave Specifications Optional Accessoires...
-
Page 6: Cfl00 Package Contents

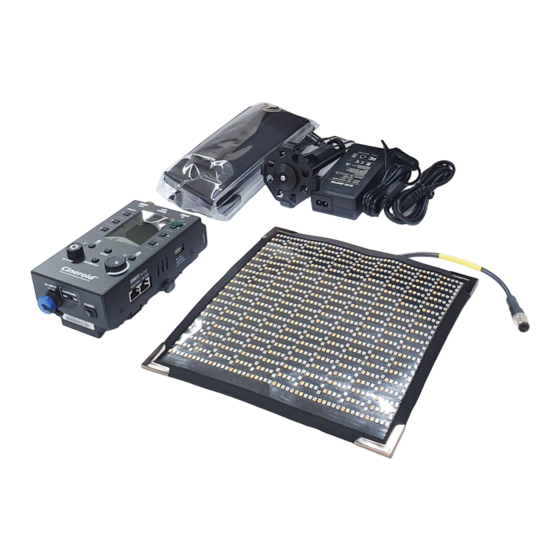

Cineroid CFL FULL COLOR FLEXIBLE LED LIGHT CFL00 Package Contents Please ensure all parts are present after opening the box. CFL00 Single Set LED Panel, Ballast(V-Battery Mount), Soft Diffuser, Bracket CFL400V with spigot, AC Adapter, Carrying Bag, Manual LED Panel, Ballast(G-Battery Mount), Soft Diffuser, Bracket... - Page 7 Cineroid CFL FULL COLOR FLEXIBLE LED LIGHT LED Panel Ballast Extension Cable X-Bracket AC Adapter Soft Diffuser Manual Carrying Bag...
-
Page 8: Cfl800 Package Contents
Cineroid CFL FULL COLOR FLEXIBLE LED LIGHT CFL800 Package Contents Please ensure all parts are present after opening the box. CFL800 Single Set LED Panel, Ballast(V-Battery Mount), Soft Diffuser, Bracket CFL800V with spigot, AC Adapter, Carrying Bag, Manual LED Panel, Ballast(G-Battery Mount), Soft Diffuser, Bracket... - Page 9 Cineroid CFL FULL COLOR FLEXIBLE LED LIGHT LED Panel Ballast Extension Cable H-Bracket AC Adapter Soft Diffuser Manual Carrying Bag...
-
Page 10: Name Of Each Part
Cineroid CFL FULL COLOR FLEXIBLE LED LIGHT Name of each part LED Panel with Bracket Set LED Panel on the Bracket To combine the LED panel with the bracket, rotate the 4 screws of the bracket by pressing and screwing... - Page 11 Cineroid CFL FULL COLOR FLEXIBLE LED LIGHT Name of each part Ballast Preset Buttons DMX In Color Display DC Input LED Panel Port Battery Charge Switch DMX Out Power Switch D-Tap Output 1/4” Mount USB Output DMX Master / Slave...
-
Page 12: Before Using
Cineroid CFL FULL COLOR FLEXIBLE LED LIGHT Before Using... -
Page 13: Connect Led Panel To The Ballast
Cineroid CFL FULL COLOR FLEXIBLE LED LIGHT Before Using Connect LED Panel to the Ballast Connect the LED panel and ballast connectors. And then screw the nut to tight. It can be used extension cable between connectors.(optional) Input the Power by DC Connect the LED panel and ballast connectors. -
Page 14: Input The Power By Battery
When removing the battery, press the detach latch and remove the battery in reverse order of mounting. Battery Latch Power On / Off Press the button to turn on the controller. The CINEROID logo appears briefly on the controller screen. -
Page 15: Usb Output
Cineroid CFL FULL COLOR FLEXIBLE LED LIGHT Before Using USB Output Ballast can be used in a 5V, 1A USB output. Connect the power to the controller and use it with the switch turned on. D-Tap Output (CL-DV/CL-DG) CL-DV or CL-DG Ballast can be used D-tap output. -
Page 16: Charging The Battery
Cineroid CFL FULL COLOR FLEXIBLE LED LIGHT Before Using Charging the Battery V or G Battery can be charged on the ballast throgh DC power. Install the battery to the ballast, turn off the power switch while DC power is connected, and turn on the Charging switch. -
Page 17: Set The Soft Box
Cineroid CFL FULL COLOR FLEXIBLE LED LIGHT Before Using Set the Soft Box Install the Soft Box Body first. Open Soft Box Body and attach it to the Velcro on the back of the LED panel. After installing the Soft Box Body, cover the Soft Diffuser to the Velcro outside Soft Box Body. -
Page 18: Operating
Cineroid CFL FULL COLOR FLEXIBLE LED LIGHT Operating Basic Operation DMX-1 Unit [%] DMX-1 Unit [%] CCT MODE CCT MODE RGB MODE RGB MODE HUE/SAT MODE HUE/SAT MODE EFFECT MODE EFFECT MODE USER EFFECT USER EFFECT SYSTEM SET SYSTEM SET 1. -
Page 19: Cct Mode (White Color)
Cineroid CFL FULL COLOR FLEXIBLE LED LIGHT Operating CCT Mode (White Color) ① Brightness DMX-1 Unit [%] Turning the brightness wheel button to the [CCT MODE] right to increase brightness. Turn to the left to decrease brightness. You can adjust the Brightness by 0~100% dimming. -
Page 20: Rgb Mode
Cineroid CFL FULL COLOR FLEXIBLE LED LIGHT Operating RGB Mode Current Color ① Brightness DMX-1 Unit [RGB] Turn the Brightness Wheel to adjust the [RGB MODE] brightness. Brightness can be set from 0 to 31 % 100%. The current color is displayed next to the brightness indicator. -
Page 21: Hue/Sat Mode
Cineroid CFL FULL COLOR FLEXIBLE LED LIGHT Operating Hue/Sat Mode Current Color ① Brightness DMX-1 Unit [%] Turn the Brightness Wheel to adjust the [HUE / SAT] brightness. Brightness can be set from 0 to 52 % 100%. The current color is displayed next to the brightness indicator. -
Page 22: Preset 1
Cineroid CFL FULL COLOR FLEXIBLE LED LIGHT Operating Preset Preset 6 of the RGB colors that you use often, you can conveniently use. 1 ~ 6 Press Preset Button for 1 sec. And the current value will be set in the preset. -
Page 23: Effect Mode
Cineroid CFL FULL COLOR FLEXIBLE LED LIGHT Operating Effect Mode Indicates lighting effects according to the situation. Repeat with a certain pattern. DMX-1 Unit [%] ① Select the Effcet Green cursor appears under the effect Thunder Bolt name you are selecting. -
Page 24: System
Cineroid CFL FULL COLOR FLEXIBLE LED LIGHT System Firmware Update ① Download new firmware data to USB memory through Cineroid homepage. ② Connect USB memory that contains firmware data to Ballast. ③ If you click F/W Update in System, the update will start automatically. -
Page 25: Master / Slave
Cineroid CFL FULL COLOR FLEXIBLE LED LIGHT System Master / Slave MASTER Unit [%] You can control multiple CL800 simultaneously by operating one CL800. SYNC MASTER ① Connect the ballast to be used as master and the SYNC SLAVE ballast to be used as slave by using RJ45 cable. -
Page 26: Specifications 6
Cineroid CFL FULL COLOR FLEXIBLE LED LIGHT Specifications LED Panel Ballast Model PN-CFL00e PN-CFL800e Dimension 170 x 86 x 70 mm Dimension 240 x 240 mm 460 x 240 mm Weight 500 g Weight 160 g 300 g Dimming 0~100 %... - Page 27 Cineroid CFL FULL COLOR FLEXIBLE LED LIGHT www.cineroid.com...
