Summary of Contents for Cineroid Metal Series

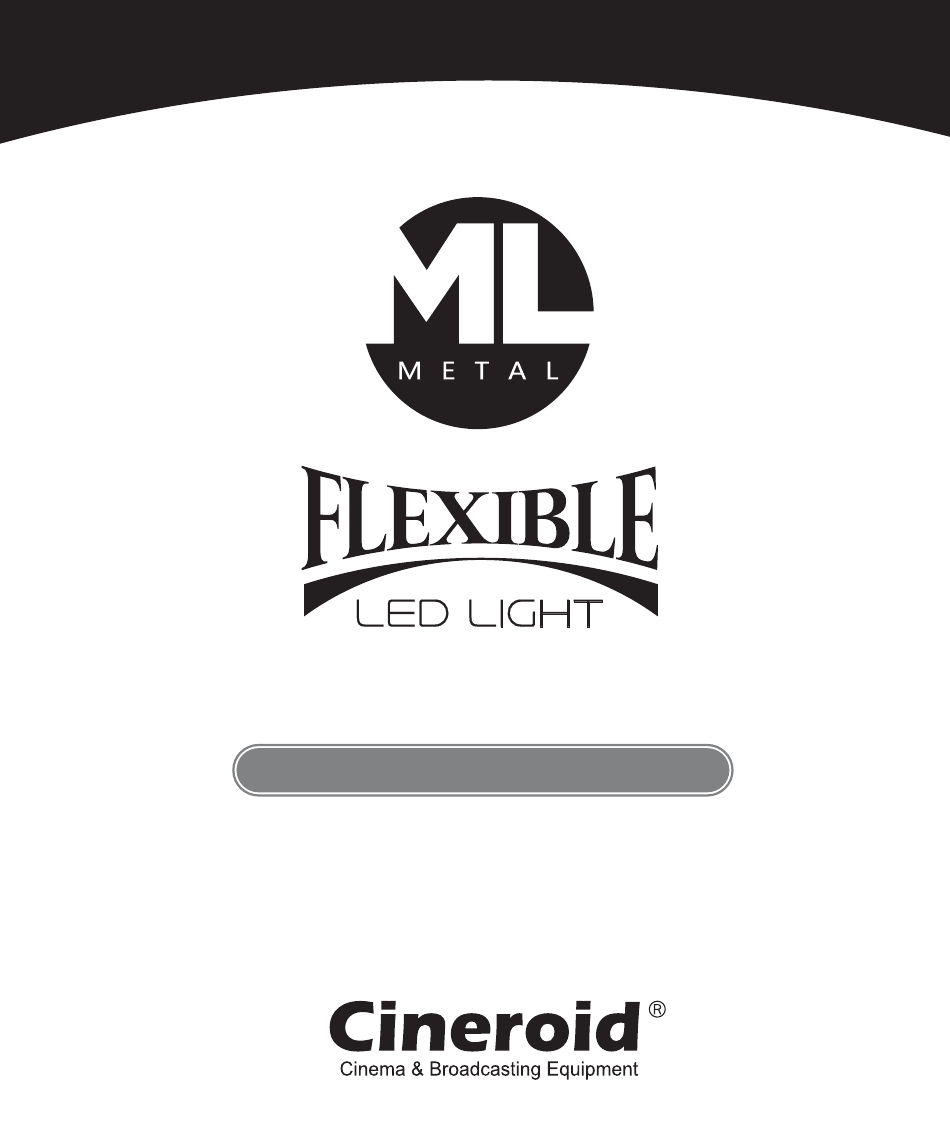

  • Page 1 fl400 / fl800 / mL800 Important Safety Instructions User's Manual...
  • Page 2: Important Safety Instructions

    Thank you for purchasing CINEROID LED Light. The Cineroid LED employs a very high color rendering index (CRI). It displays a very stable color temperature and brightness so that both motion pictures and still images can be taken in their most natural color tones.
  • Page 3 Specfications Flexible LED Panel Metal LED Panel Model Model Model PN-FL400 PN-ML800 Dimension 240 x 240 mm Dimension Dimension 460 x 240 mm Weight Weight Weight 160 g 580 g Dimming 0~100% Dimming Dimming 0~100% Photometric 2000 lux Photometric Photometric 3400 lux Color Temperature Color Temperature...
  • Page 4: Package Contents

    Package Contents Controller LED Panel X-Bracket AC Adapter Di user Set Manual Extension Cable...
  • Page 5 LED Panel (PN-ML800) / Controller (V-Battery Mount) / H-Bracket / ML800V Extension Cable (3m) / AC Adapter / Di user Set / Manual LED Panel (PN-ML800) / Controller (Gold-Battery Mount) / H-Bracket / ML800G Extension Cable (3m) / AC Adapter / Di user Set / Manual LED Panel (PN-ML800) / Controller / H-Bracket / ML800N Extension Cable (3m) / AC Adapter / Di user Set / Manual...
  • Page 6 Setting Flexible LED Light...
  • Page 7 Set the LED Panel on the Bracket Push down 4 mount arms on 4 coners of bracket to set LED panel with X-bracket. PN-FL400 / PN-FL800 PN-ML800 Connect LED Panel to the Controller Connect the LED panel and control box connectors. And then screw thenut to tight.
  • Page 8 Input the Power by AC Power 1. Connect the power source using the AC cable supplied with the package. 2. Turn on the power button to check the LCD. 3. DC power is available also. Input the Power by Battery (FL-DV/FL-DG) 1.
  • Page 9: Name Of Each Part

    Operating Controller Name of each part 1/4” Mount Power Switch D-Tap Output Battery Charge Switch DMX In DC Input LED Panel Port DMX Out Display Color temperature Lock Lamp Color temperature Dimmer Color temperature Lock Button Brightness Dimmer Brightness Lock Button Brightness Lock Lamp Battery Mount DMX Setting / Preset Buttons...
  • Page 10 2. Adjust Brightnes Turning the brightness dial to the right to increases brightness. Turn the dial to the left decreases brightness. You can adjust the Brightness by 0~100% dimming. 3. Lock the change of the value Press the button to lock the color temperature dimmer. The LED will light up red and the dimmer cannot work.
  • Page 11: Charging The Battery

    5. Charging the Battery You can use the controller to charge the battery(FLV or FLG). Controller connected to the AC is turned o and the Battery Charging Switch is operated, charging of the battery starts. During the charging, the LCD shows status of charging. 6.

This manual is also suitable for:

Flexible fl400Flexible seriesFlexible fl800Metal ml800
