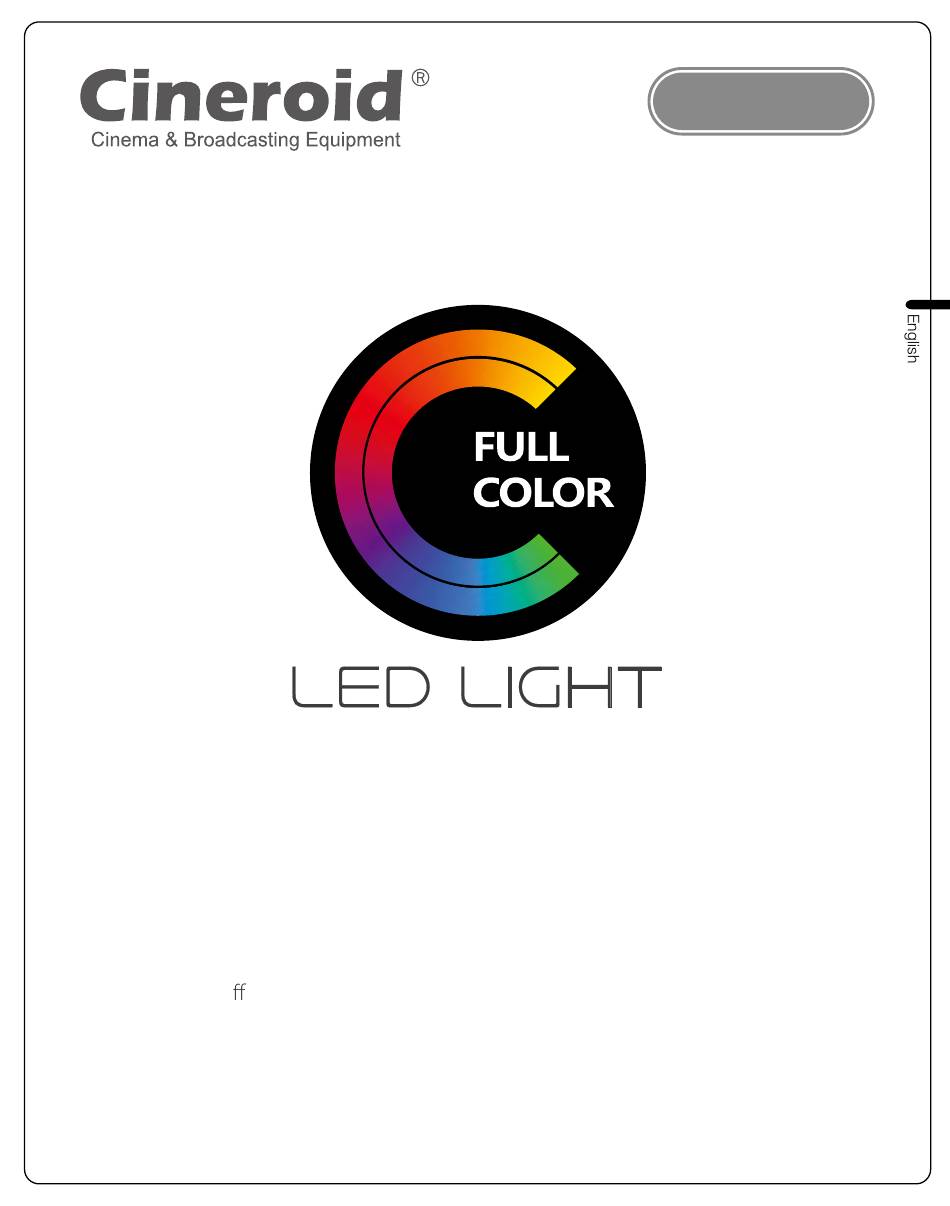

cL800
Safety Instructions / User's Manual
RGBW full range with white light / Light weight metal panel
Metal Ballast / CRI 95 or above / Ball mount bracket with 16mm spigot
Color temperature 2700ºK ~ 6500ºK / Extension up to 10 meter
100% dimming / DMX Built-in / Battery charging / Real time synchro
Custom e ect / 6 Preset reserve / USB 5V output / USB Firmware update
www.cineroid.com
Advertisement
Table of Contents
Related Manuals for Cineroid CL800
Summary of Contents for Cineroid CL800
- Page 1 Safety Instructions / User's Manual RGBW full range with white light / Light weight metal panel Metal Ballast / CRI 95 or above / Ball mount bracket with 16mm spigot Color temperature 2700ºK ~ 6500ºK / Extension up to 10 meter...
- Page 2 CL800. Test Before Operating It is recommended to test the CL800 before operating. Check if the CL800 can be turned on once powered, and check if the information/menu is being properly displayed on the LCD.
-
Page 3: Safety Precautions
Cineroid CL800 FULL COLOR LED LIGHT Safety Precautions Please observe the following safety precautions as they are meant for the safe and proper use of the product to reduce the risk of accidents. Upon reading the user manual, keep it in a safe and available place. -
Page 4: Table Of Contents
Safety Precautions Table of Contents Package Contents Components of each Models Name of each part Before Using CL800 Connect LED Panel to the Ballast Input the Power by DC Input the Power by Battery Power On / Off Charging the Battery... - Page 5 Cineroid CL800 FULL COLOR LED LIGHT Operating CL800 Basic Operation CCT Mode (White Color) RGB Mode Hue/Sat Mode Preset Effect Mode User Effect Mode System Firmware Update Color Unit Master / Slave Specifications Optional Accessoires...
-
Page 6: Package Contents
Cineroid CL800 FULL COLOR LED LIGHT Package Contents LED Panel Ballast Extension Cable H-Bracket AC Adapter Soft Diffuser Manual Carrying Bag... -
Page 7: Components Of Each Models
Cineroid CL800 FULL COLOR LED LIGHT Components of each Models Please ensure all parts are present after opening the box. CL800 Single Set LED Panel, Ballast(V-Battery Mount), Soft Diffuser, Bracket CL800V with spigot, AC Adapter, Carrying Bag, Manual LED Panel, Ballast(G-Battery Mount), Soft Diffuser, Bracket... -
Page 8: Name Of Each Part
Cineroid CL800 FULL COLOR LED LIGHT Name of each part LED Panel with Bracket Set LED Panel on the Bracket To combine the LED panel with the bracket, rotate the 4 screws of the bracket by pressing and screwing them together. - Page 9 Cineroid CL800 FULL COLOR LED LIGHT Name of each part Ballast Preset Buttons DMX In Color Display DC Input LED Panel Port Battery Charge Switch DMX Out Power Switch D-Tap Output 1/4” Mount USB Output DMX Master / Slave Battery Mount...
-
Page 10: Before Using Cl800
Cineroid CL800 FULL COLOR LED LIGHT Before Using CL800... -
Page 11: Connect Led Panel To The Ballast
Cineroid CL800 FULL COLOR LED LIGHT Before Using CL800 Connect LED Panel to the Ballast Connect the LED panel and ballast connectors. And then screw the nut to tight. It can be used extension cable between connectors.(optional) Input the Power by DC Connect the LED panel and ballast connectors. -
Page 12: Input The Power By Battery
When removing the battery, press the detach latch and remove the battery in reverse order of mounting. Battery Latch Power On / Off Press the button to turn on the controller. The CINEROID logo appears briefly on the controller screen. -
Page 13: Charging The Battery
Cineroid CL800 FULL COLOR LED LIGHT Before Using CL800 Charging the Battery Connect the battery to the ballast, turn off the power switch while DC power is connected, and turn on the Charging switch. When the battery is charging, a red battery icon appears on the display. -
Page 14: Set The Soft Box
Cineroid CL800 FULL COLOR LED LIGHT Before Using CL800 Set the Soft Box Install the Soft Box Body first. Open Soft Box Body and attach it to the Velcro on the back of the LED panel. After installing the Soft Box Body, cover the Soft Diffuser to the Velcro outside Soft Box Body. -
Page 15: Operating Cl800
Cineroid CL800 FULL COLOR LED LIGHT Operating CL800 Basic Operation DMX-1 Unit [%] DMX-1 Unit [%] CCT MODE CCT MODE RGB MODE RGB MODE HUE/SAT MODE HUE/SAT MODE EFFECT MODE EFFECT MODE USER EFFECT USER EFFECT SYSTEM SET SYSTEM SET 1. -
Page 16: Cct Mode (White Color)
Cineroid CL800 FULL COLOR LED LIGHT Operating CL800 CCT Mode (White Color) ① Brightness DMX-1 Unit [%] Turning the brightness wheel button to the [CCT MODE] right to increase brightness. Turn to the left to decrease brightness. You can adjust the Brightness by 0~100% dimming. -
Page 17: Rgb Mode
Cineroid CL800 FULL COLOR LED LIGHT Operating CL800 RGB Mode Current Color ① Brightness DMX-1 Unit [RGB] Turn the Brightness Wheel to adjust the [RGB MODE] brightness. Brightness can be set from 0 to 31 % 100%. The current color is displayed next to the brightness indicator. -
Page 18: Hue/Sat Mode
Cineroid CL800 FULL COLOR LED LIGHT Operating CL800 Hue/Sat Mode Current Color ① Brightness DMX-1 Unit [%] Turn the Brightness Wheel to adjust the [HUE / SAT] brightness. Brightness can be set from 0 to 52 % 100%. The current color is displayed next to the brightness indicator. -
Page 19: Preset
Cineroid CL800 FULL COLOR LED LIGHT Operating CL800 Preset Preset 6 of the RGB colors that you use often, you can conveniently use. 1 ~ 6 Press Preset Button for 1 sec. And the current value will be set in the preset. -
Page 20: Effect Mode
Cineroid CL800 FULL COLOR LED LIGHT Operating CL800 Effect Mode Indicates lighting effects according to the situation. Repeat with a certain pattern. DMX-1 Unit [%] ① Select the Effcet Green cursor appears under the effect Thunder Bolt name you are selecting. -
Page 21: System
Cineroid CL800 FULL COLOR LED LIGHT System Firmware Update ① Download new firmware data to USB memory through Cineroid homepage. ② Connect USB memory that contains firmware data to Ballast. ③ If you click F/W Update in System, the update will start automatically. -
Page 22: Master / Slave
Unit [%] DMX 512 channels and DMX controllers can be used to control multiple CL800s simultaneously. DMX MODE 5 ① Connect the DMX controller to the CL800 Ballast CH 97: using an XLR 5pin cable. CH 98: CH 99: GREEN... -
Page 23: Specifications
Cineroid CL800 FULL COLOR LED LIGHT Specifications LED Panel Metal Ballast Dimension 460 x 240 mm Dimension 170 x 86 x 70 mm Weight 500 g Weight 600 g Dimming 0~100% Dimming 0~100% 2700ºK ~ 6500ºK Photometric 3400 lux Display... - Page 24 Customer Support Center SECULINE CO., Ltd Tel. +82.70.4347.4901 Fax. +82.70.4347.4999 E-mail. support@secu-line.com Rm 1105, Ace techno tower 8th, 11, Digital-ro 33-gil, Guro-gu, Seoul, Republic of Korea 08380 Made in Korea CL800_1.0...
