Cineroid FL1600k User Manual

Flexible led light
Hide thumbs

Advertisement

Quick Links

Download this manual
FL1600k / FL1600vk
Important Safety Instructions
User's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the FL1600k and is the answer not in the manual?

Questions and answers

Related Manuals for Cineroid FL1600k

Summary of Contents for Cineroid FL1600k

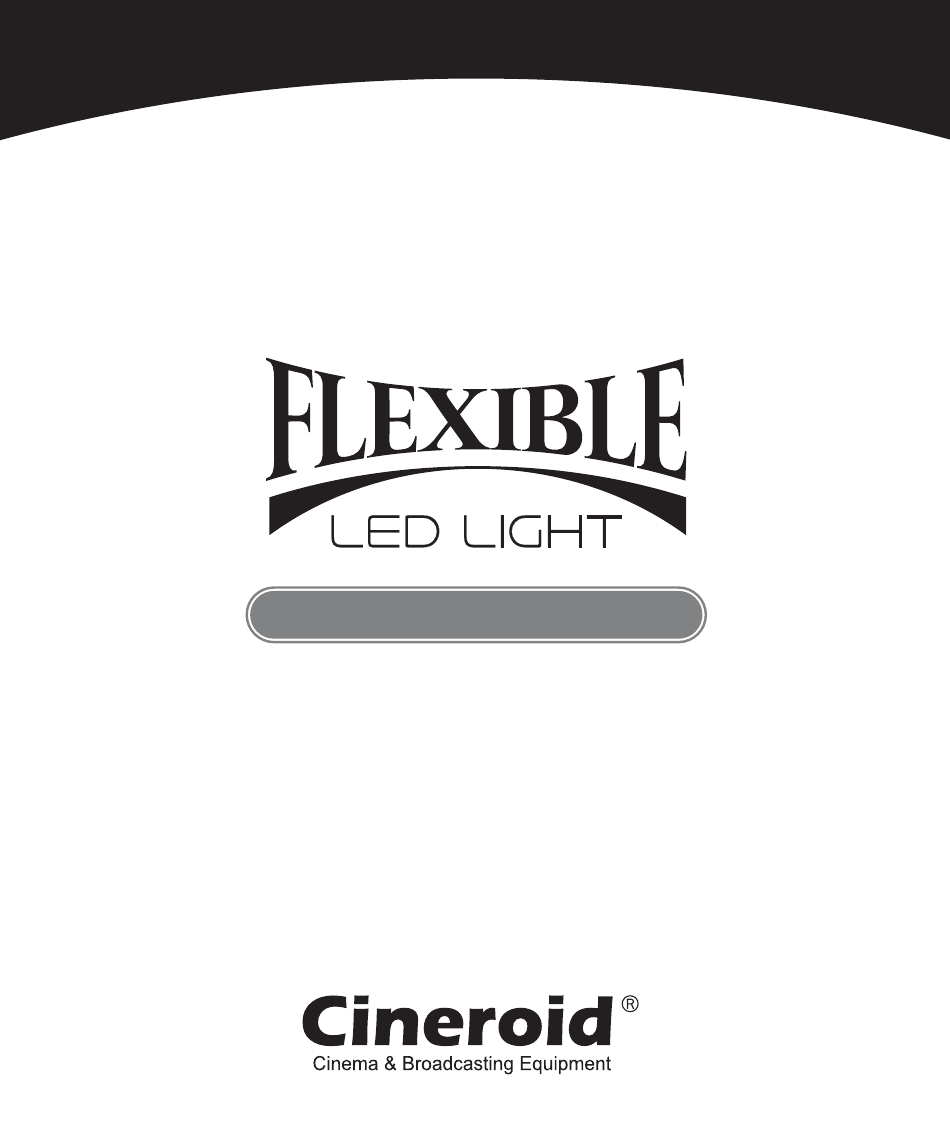

  • Page 1 FL1600k / FL1600vk Important Safety Instructions User's Manual...

  • Page 2: Important Safety Instructions

    Thank you for purchasing CINEROID FL1600. The Cineroid LED employs a very high color rendering index (CRI). It displays a very stable color temperature and brightness so that both motion pictures and still images can be taken in their most natural color tones.

  • Page 3: Package Contents

    Package Contents Please ensure all parts are present after opening the box. Panel Support(PS800) x2 LED Panel(PN-FL800) x2 Controller Plate Ballast (LM1600) Soft Box Set Y Cable Ball Head...

  • Page 4: Name Of Each Part

    Name of each part V battery latch DC input V battery mount Accessory mount Brightness lock lamp Color temp. lock lamp Power Switch LED Panel port DMX on/o button DMX display AC input DMX channel setting Latch Display Handle Color temperature dimmer DMX out Brightness dimmer DMX in...

  • Page 5: Optional Accessories

    Specfications Ballast (LM1600) LED Panel (PN-FL800) Dimension 355 x 170 x 90 mm Dimension 460 x 240 mm Weight Weight 300 g Dimming 0~100% Dimming 0~100% 2700ºK ~ 6500ºK Photometric 3400 lux Display Mono LCD Color Temperature 2700ºK ~ 6500ºK Cable Length 2m (can be extended) LED Cells...
  • Page 6 Setting FL1600 Attach Panel Support to each other Locate and insert the joining point of Panel Support. Then tighten the two screws to secure it.
  • Page 7 Attach LED Panel Pull out the LED panel port to the back of the Panel Support. Attach the LED panel to the Panel Support by velcro. Install Ballast plate Install Ballast plate using 8 screws on Panel Support. Y cable terminals and two LED panels. Install Ballast Insert the Ballast into the plate by pushing it into the hole.
  • Page 8 Install Ball head Align the ball head with the hole on the ballast. Then, x it by turning it. When detaching, press the detach button and remove it in reverse order of mounting. Install the soft box Fix Coner Support to the corner of Panel Support with 2 screws.
  • Page 9 Input the Power 1. AC adapter 1. Connect the power source using the AC cable supplied with the package. 2. Turn on the power button to check the LCD. 3. DC power is available also. (24C / 240W) 1. Insert the V battery to the battery port. 2.
  • Page 10 Opterating the ballast 1. Adjust Brightness Turning the brightness dial to the right increases brightness. Turn the dial to the left decreases brightness. You can adjust the Brightness by 0~100% dimming. Display shows up to value. 2. Adjust the Color Temperature Turn the dial to the right increases Color temperature and left decreases Color temperature.
  • Page 11 4. DMX Press DMX button 1 second in order to set channel. DMX LCD will be shown blinking. Change the channel 000~511 by turning the button. Press DMX button to select channel. (1 channel : Adjusting brightness / 2 channels : Adjusting brightness and color temperature.

This manual is also suitable for:

Fl1600vk
