Fountain Components
Item Description
Esplanade
Fountain - Large
Bowl
Esplanade
Fountain -
Pedestal
Esplanade
Fountain -
Pump Cover
Door
Esplanade
Fountain - Basin
Fountain Information:
• Three people are recommended for the installation of this fountain!
• This fountain holds approximately 37 gallons of water.
• This fountain uses a medium fountain cover: FTNCOV-MED
• Compatible with #10 Refill Device and LED kit
• A different style stopper may be requested for the refill kit.
Pump Information:
OEMPF320 - 320 GPH Pump (16 ft. cord length)
Tools Required:
Bubble Level
Screwdriver
Component
Quantity
Item #
FT-78D-
1
79A
FT-
1
78E/79B
FT-
1
8EE/79BB
FT-
1
78F/79C

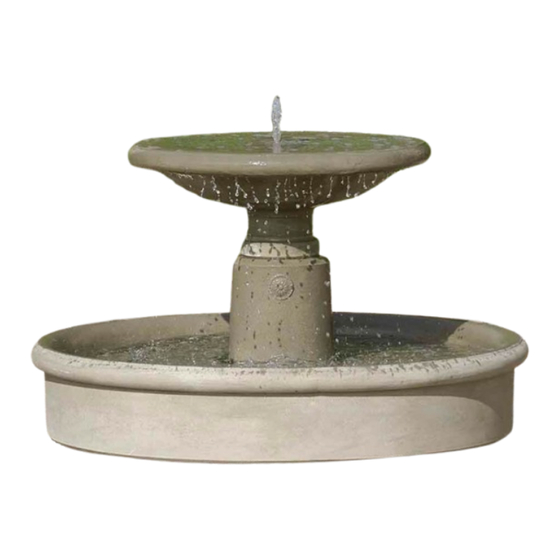

FT-79 Esplanade Fountain
Assembly Instructions
Pump Kit Parts List
Component
PK300 Pump
(use adapter indicated)
#10 Stopper
Approx. 25" length of 1/2" black
non-kink tubing
Approx. 4" length of 3/8" i.d. copper
3/8" copper coupling
Hose Clamps
Proudly
MADE IN USA
Quantity
1
1
1
1
pipe
1
Wedges
2
2
rev 4/1/2020
Advertisement
Table of Contents
Related Manuals for Campania International Esplanade FT-79
Summary of Contents for Campania International Esplanade FT-79
- Page 1 FT-79 Esplanade Fountain Assembly Instructions Fountain Information: • Three people are recommended for the installation of this fountain! • This fountain holds approximately 37 gallons of water. • This fountain uses a medium fountain cover: FTNCOV-MED • Compatible with #10 Refill Device and LED kit •...
- Page 2 FT-79 Esplanade Fountain Assembly Instructions Three people are recommended for the installation of this fountain! Fountain Set-Up: Assembly & Installation - A fountain can be difficult to install without knowing and understanding the steps involved. To ensure your fountain is installed properly, please read our instructions and tips before you begin.
- Page 3 FT-79 Esplanade Fountain Assembly Instructions Step 10 - Fit the pump cover (FT-78EE/79BB) into the large pedestal (FT-78E/79B). Step 11 - Fill the fountain with water. FT-78EE/79BB (3 lbs) 5"L x 2"W x 4.5"H...
- Page 4 Maintenance: Pump Care - The fountain relies heavily on the quality of the pump. A well-maintained pump can last several years. Step 1 - Fully submerge: Ensure the pump is fully submerged at all times to avoid damage. Step 2 - E nsure water level is sufficient: Check water levels regularly as water may evaporate over time, and periodically change water to avoid algae buildup.
