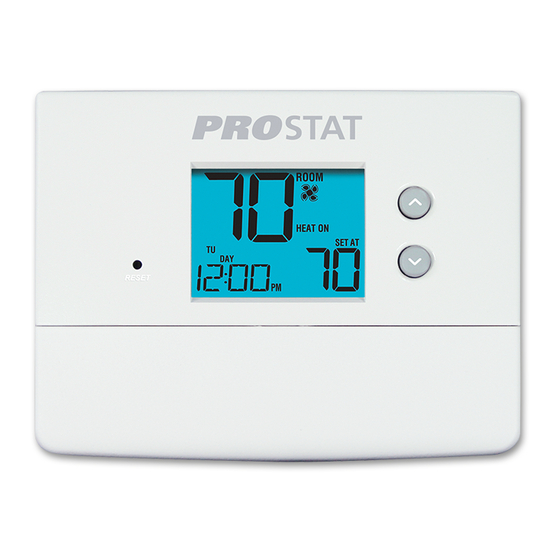

Programmable Thermostats
PRS4110
PRS4210
1 Specifications
2 Installation
3 Setting User Options
4 Setting Your
Program Schedule
Warning
Attention
Read all instructions before proceeding.
This thermostat requires 24 Volt AC Power or two (2) properly installed
"AA" Alkaline batteries for proper operation. When connecting 24 Volt
AC Power the batteries may be installed as a backup.
installation and all components of the system shall conform to
Class II Circuits per NEC code.
For use only as described in this manual. Any other use will void warranty.
1 Specifications
This thermostat is compatible with:
• Single stage heat / cool conventional and heat pump systems
• Conventional systems up to 2 heat / 2 cool (PRS4210 only)
• Single compressor heat pump systems with an auxiliary heat stage (PRS4210)
• 250 – 750 millivolt heat only systems
Electrical and control specifications:
• Electrical Rating: 24 Volt AC
• 1 amp maximum load per terminal
• AC Power: 18 – 30 Volts AC
• DC Power: 3.0 Volt DC (2 "AA" Alkaline Batteries Included)
• Control Range: 45° – 90° F (7° – 32° C)
• Temperature Accuracy: +/- 1° F (+/- .5° C)
Terminations
• PRS4110 – Rc, Rh, O, B, Y1, W1, G, C
• PRS4210 – Rc, Rh, O, B, Y1, E/W1, G, W2, C
Single Stage Heat / Cool
Conventional and Heat Pump
Up to 2 Heat / 1 Cool
Conventional and Heat Pump
Model number is located on back of thermostat
5 Operating Your Thermostat
6 Additional Operation Features
7 Thermostat Maintenance
Turn off power to the heating or cooling
equipment before installation.
For installation by experienced service
technicians only.
User
Manual
Thermostat
PRS4110-100-02
Advertisement
Table of Contents
Related Manuals for Prostat PRS4110
Summary of Contents for Prostat PRS4110
- Page 1 • Control Range: 45° – 90° F (7° – 32° C) • Temperature Accuracy: +/- 1° F (+/- .5° C) Terminations • PRS4110 – Rc, Rh, O, B, Y1, W1, G, C PRS4110-100-02 • PRS4210 – Rc, Rh, O, B, Y1, E/W1, G, W2, C...
-
Page 2: Installation
Avoid installation in locations where the thermostat can be affected by drafts, dead air spots, hot or cold air ducts, sunlight, appliances, concealed pipes, chimneys and outside walls. Install your new PROSTAT thermostat in 5 basic steps: 1 Install the Sub-Base 2 Provide Power... - Page 3 Connect Your Wires Conventional Systems Typical Wiring Configurations NOTE: The “Installer Switch” option will be configured in the next step. Heat Only or Millivolt Set Installer Switch to CONV Rh Power Connection W Heat Relay (appears as W1/E on PRS4210) Fan Relay [note 4] 24 Volt AC Transformer Common [note 1] 1 HEAT / 1 COOL Single or Dual Transformer...
- Page 4 Heat Pump Systems Typical Wiring Configurations NOTE: The “Installer Switch” option will be configured in the next step. 1 HEAT / 1 COOL - No Auxiliary Heat Set Installer Switch to HP 24 Volt AC Power Connected to Rh with supplied Jumper Wire O or B Changeover Valve [note 2] Compressor Relay Fan Relay...
-
Page 5: Setting User Options
Attach Thermostat to Sub-Base 1. Line up the thermostat body with the sub-base. 2. Carefully push the thermostat body against the sub-base until it snaps into place. 3. Insert quick reference card into slot on top of thermostat. 3 Setting User Options Advanced User Options User options allow you to customize some of your thermostat’s features. - Page 6 Tips Before Setting Your Program Schedule • Make sure your current time and day of the week are set correctly. • When programming, make sure the AM and PM indicators are correct. • Your NIGHT event cannot exceed 11:50 p.m. This thermostat has been configured with one of the following programming options:...
- Page 7 Programming a 7 Day Schedule The 7 day programming mode gives you the option to program individual days (1 day at a time) or to use SpeedSet and program the entire week (all 7 days) with a 4 event program schedule. Setting All 7 Days at Once (SpeedSet ®...
-
Page 8: Operating Your Thermostat
Programming a 5-2 Day Schedule The 5-2 day programming mode allows you to program Monday - Friday with one 4 event schedule and then allows you to change Saturday and Sunday with a different 4 event schedule. 1. Press the PROG button. The display will switch to programming mode. -
Page 9: Additional Operation Features
5 Operating Your Thermostat Temperature Adjustment Temporary Adjustment – Press the button to adjust the current set point temperature. Extended Adjustment – Press the HOLD button so that HOLD appears in the display screen. Press to adjust the current set temperature. Status Indicators Status indicators appear in the display to let you know if your system is heating, cooling or off. -
Page 10: Thermostat Maintenance
PROPARTS agrees to repair or replace at its option any PROSTAT thermostat under warranty provided it is returned postage prepaid to our warranty facility in a padded carton within the warranty period, with proof of the original date of purchase and a brief description of the malfunction. -
Page 11: Especificaciones
• Rango de control: 7º - 32 ºC (45 °- 90 °F) • Precisión de la temperatura: +/- .5 °C (+/- 1° F) Terminaciones: • PRS4110 – Rc, Rh, O, B, Y1, W1, G, C PRS4110-100-02 • PRS4210 – Rc, Rh, O, B, Y1, Y2, E/W1, G, W2, C... -
Page 12: Instalación
Evite la instalación en lugares donde el termostato pueda ser afectado por corrientes de aire, aire estancado, ductos de aire frío o caliente, luz solar, electrodomésticos, tuberías ocultas, chimeneas y paredes exteriores. Instale su nuevo termostato PROSTAT en 5 pasos básicos: 1 Instale la sub-base 2 Suministre energía 3 Conecte los cables 4 Configure los interruptores de instalación... - Page 13 Conecte los cables Sistemas convencionales Configuraciones típicas de cableado NOTA: La opción “Interruptor de instalación” se configurará en el siguiente paso. Calefacción solamente o milivoltaje Configurar el interruptor de instalación en CONV Rh Conexión de la energía W Relé de calefacción (aparece como W1/E en el modelo PRS4210) Relé...
- Page 14 Sistemas de bomba de calor Configuraciones típicas de cableado NOTA: La opción “Interruptor de instalación” se configurará en el siguiente paso. 1 etapa de calefacción / 1 etapa de aire acondicionado – Sin calefacción auxiliar Configure el interruptor de instalación en HP Energía a 24 voltios de CA Conectado a Rh con el cable para puente suministrado O o B...
- Page 15 Fije el termostato a la sub-base 1. Alinee el cuerpo del termostato con la sub-base. 2. Empuje cuidadosamente el cuerpo del termostato contra la sub-base hasta que encaje en su sitio. 3. Introduzca la tarjeta de consulta rápida en la ranura de la parte superior del termostato.
- Page 16 4 Configuración de la agenda de su programa Configuración de la hora y del día 1. Cuando esté en el modo de funcionamiento normal, presione el botón DAY/TIME (Día / Hora) en el teclado. La pantalla cambiará al modo de configuración Día / Hora y la hora se emitirá...
- Page 17 Programación de 5 - 2 días – Días hábiles/Fin de semana Configuraciones originales 4 Eventos Hora: 6:00 a.m. Hora: 6:00 a.m. Calefacción: 21°C (70°F) Calefacción: 21°C (70°F) Aire acondicionado: 25°C (78°F Aire acondicionado: 25°C (78°F) Hora: 8:00 a.m. Hora: 8:00 a.m. Calefacción: 17°C (62°F) Calefacción: 21°C (70°F) Aire acondicionado: 29°C (85°F)
- Page 18 Configuración de días individuales (el modo para 7 días) 1. Presione el botón PROG (Programar). La pantalla cambiará al modo de programación. Aparecerá la letra M (Monday), lo que indica el día lunes y la hora destellará. 2. Presione el botón SYSTEM (Sistema) para seleccionar HEAT (Calefacción) o COOL (Aire Acondicionado).
- Page 19 5 Funcionamiento de su termostato Configuración del modo de control del sistema El control del sistema cuenta con varios modos de funcionamiento que pueden seleccionarse al mover el interruptor del sistema a la posición apropiada. COOL (Aire acondicionado) Sólo funcionará el sistema de aire acondicionado. (Apagado) Los sistemas de calefacción y de aire acondicionado están apagados.
- Page 20 PROSTAT. Esta garantía limitada es aplicable desde la fecha de compra original por un técnico profesional. PROSTAT acepta reparar o reemplazar a su elección cualquier termostato PROSTAT que se encuentre bajo garantía, siempre y cuando se devuelva, con gastos de correo pagados, a nuestro centro de garantías en...
Need help?
Do you have a question about the PRS4110 and is the answer not in the manual?
Questions and answers

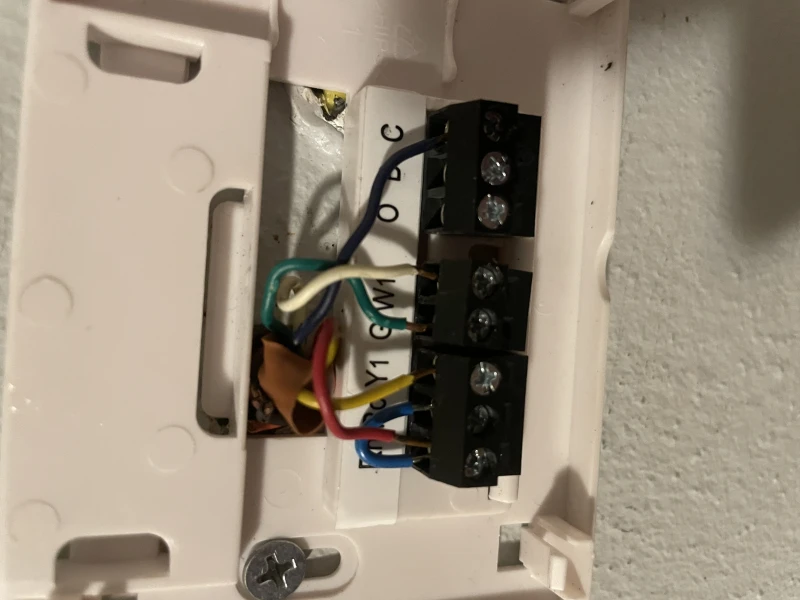

I’m installing a prostat PRS3210 from a Prs4110 which common wire should it be installed in? It says common wire not necessary when batteries are installed but I see it says o connection and I didn’t have that on the 4110 2 pics 1st is 4110 2nd is 3210
I have a PRS4110 t-stat. and I am trying to get rid of the programs and use like a regular t-stat. TKS
To reset the Prostat PRS4110 thermostat and operate it like a regular thermostat without programs, follow these steps:
1. Reset the thermostat by gently pressing the reset button using a small object (like a toothpick or paperclip). The reset button is inside a small hole on the front of the thermostat labeled “reset.” This erases all user settings and programming.
2. After resetting, enter the User Options menu by holding down the RETURN button for about 3 seconds until the screen changes.
3. Use the arrow buttons to reach Option 1, which controls the programming mode.
4. Select “PRO NO” for Non-Programmable Mode.
5. Press RETURN to save the setting and exit. The thermostat will now operate without programmed schedules.
