Summary of Contents for Horizon Hobby E-flite AT-6

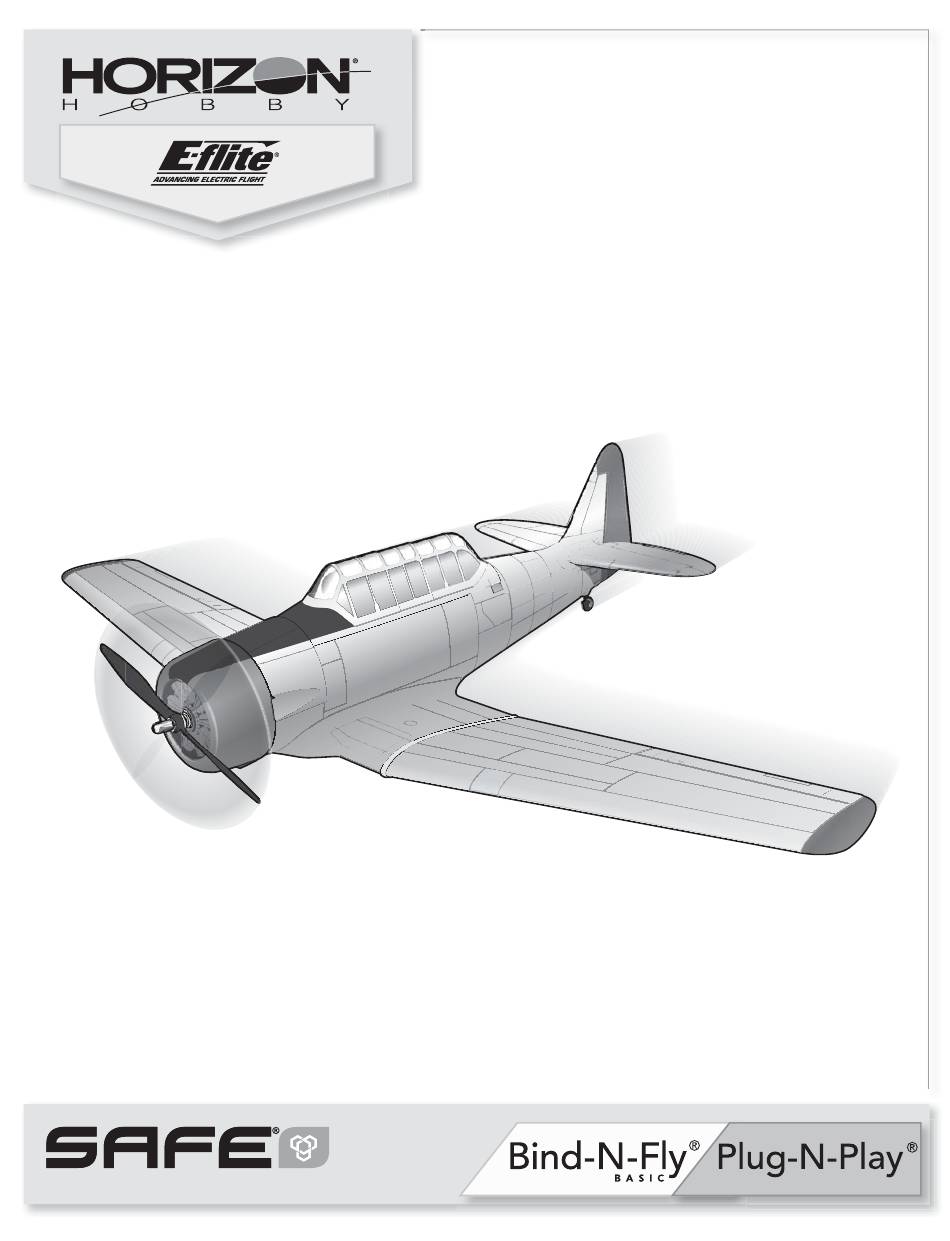

- Page 1 AT-6 Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni ® SAFE Select Technology, Optional Flight Envelope Protection...
- Page 2 NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language: The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superfi cial injury.
-
Page 3: Table Of Contents
Box Contents Quick Start Information Transmitter Set up your transmitter using the Setup transmitter setup chart Hi Rate Low Rate 20mm 12mm 20mm 12mm 18mm 10mm Dual Rates 16mm 8mm 25mm 15mm Landing Takeoff Flaps =30mm =15mm Center of 92-98mm back from leading edge of wing Gravity (CG) at the fuselage. -
Page 4: Select Technology
® SAFE Select Technology ® The evolutionary SAFE Select technology can offer an extra level of protection so you can perform the fi rst fl ight with confi dence. No complex transmitter programming is required. Just follow the simple bind process to make the SAFE Select system active. When activated, bank and pitch limitations keep you from over-controlling and automatic self-leveling makes recovery from risky or confusing attitudes as simple as releasing the sticks. -
Page 5: Model Assembly
Model Assembly Horizontal Tail Installation 1. Insert the horizontal tail joiner tube (A) into the fuselage. Slide the horizontal 2 x 10mm self-tapping tail halves (B) into place with the control horn facing down. button head 2. Secure the horizontal tail piece in place using the included 2 screws (C). Use care to avoid over-tightening the screw. -
Page 6: Battery Installation And Esc Arming
Battery Installation and ESC Arming Battery Selection ® The E-fl ite 2200mAh 11.1V 3S 30C Li-Po battery (EFLB22003S30) is recommended. Refer to the Optional Parts List for other recommended batteries. If using a battery other than those listed, the battery should be within the range of capacity, dimensions and weight of the E-fl ite Li-Po battery packs to fi t in the fuselage. -
Page 7: Transmitter And Receiver Binding
Transmitter and Receiver Binding / Switching ON and OFF SAFE Select Switching ON SAFE Select Binding Sequence This product requires an approved Spektrum ™ DSM2 ® /DSMX ® compatible transmitter. Visit www.bindnfl y.com for a complete list of approved transmitters. The aircraft has an optional SAFE Select feature, which can be switched ON or OFF easily by binding in a specifi c manner as described below. -
Page 8: Select Switch Designation
® SAFE Select Switch Designation ® SAFE Select technology can be easily assigned to any open switch (2 or 3 Mode 1 and 2 Transmitters position) on your transmitter. With this new feature, you now have the fl exibility to enable or disable the technology while in fl ight. IMPORTANT: Before assigning your desired switch, ensure that the travel for that channel is set at 100% in both direction. -
Page 9: Center Of Gravity (Cg)
Center of Gravity (CG) The CG location is measured from the leading edge of the wing at the root. This CG location has been determined with the recommended Li-Po battery (EFLB22003S300). Tip: Measure the CG with the aircraft inverted. 92-98mm back from leading edge of wing at the fuselage. -
Page 10: Flying Tips And Repairs
Flying Tips and Repairs Consult local laws and ordinances before choosing a fl ying location. Once on the ground, avoid sharp turns until the plane has slowed enough to prevent scraping the wingtips. Range Check your Radio System NOTICE: If a crash is imminent, reduce the throttle and trim fully. -
Page 11: Post Flight
Post Flight 1. Disconnect the fl ight battery from the ESC (Required for Safety and 5. Repair or replace all damaged parts. battery life). 6. Store the fl ight battery apart from the aircraft and monitor the 2. Power OFF the transmitter. battery charge. -
Page 12: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Throttle not at idle and/or throttle trim too high Reset controls with throttle stick and throttle trim at lowest setting Aircraft will not re- Throttle servo travel is lower than 100% Make sure throttle servo travel is 100% or greater spond to throttle but responds to other Throttle channel is reversed... -
Page 13: Ama National Model Aircraft Safety Code
AMA National Model Aircraft Safety Code Effective January 1, 2014 B. RADIO CONTROL A. GENERAL 1. All pilots shall avoid fl ying directly over unprotected people, vessels, vehicles or structures and shall avoid endangerment of life and property A model aircraft is a non-human-carrying aircraft capable of sustained fl ight of others. -
Page 14: Limited Warranty
Product, (iv) attempted service by offi ce. anyone other than a Horizon Hobby authorized service center, (v) Product not Warranty Requirements purchased from an authorized Horizon dealer, or (vi) Product not compliant... -
Page 15: Contact Information
Compliance Information for the European Union EU Compliance Statement: EFL8750 - Horizon Hobby, LLC hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the RED and EMC Directives. EFL8775 - Horizon Hobby, LLC hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the EMC Directives. -
Page 16: Replacement Parts
Replacement Parts • Ersatzteile • Pièces de rechange • Pezzi di ricambio Part # | Nummer Description Beschreibung Description Descrizione Numéro | Codice EFL8751 Bare Fuselage: AT-6 1.5m Bloßer Rumpf: AT-6 1,5m Fuselage nu : AT-6 1,5 m Fusoliera nuda: AT-6 1.5m EFL8752 Bare Wing: AT-6 1.5m Bloßer Flügel: AT-6 1,5m... -
Page 17: Optional Parts
Optional Parts • Optionale Bauteile • Pièces optionnelles • Pezzi opzionali Part # | Nummer Description Beschreibung Description Descrizione Numéro | Codice DYN1400 “LiPo Charge Protection „LiPo Ladeschutzbeutel, klein“ « Sac de protection du chargeur de "Sacchetto di protezione per Bag,Small” batterie Li-Po, petit »... - Page 18 E-fl ite, DSM, DSM2, DSMX, Bind-N-Fly, BNF, the BNF logo, Plug-N-Play, AS3X, SAFE, the SAFE logo, ModelMatch, Z-Foam, Thrust, Prophet, EC3, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
