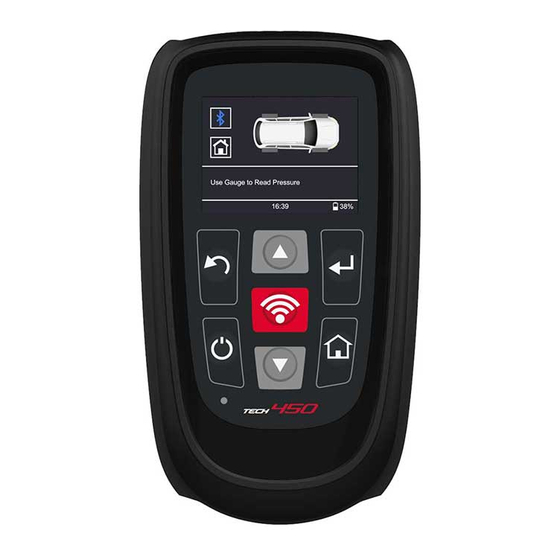

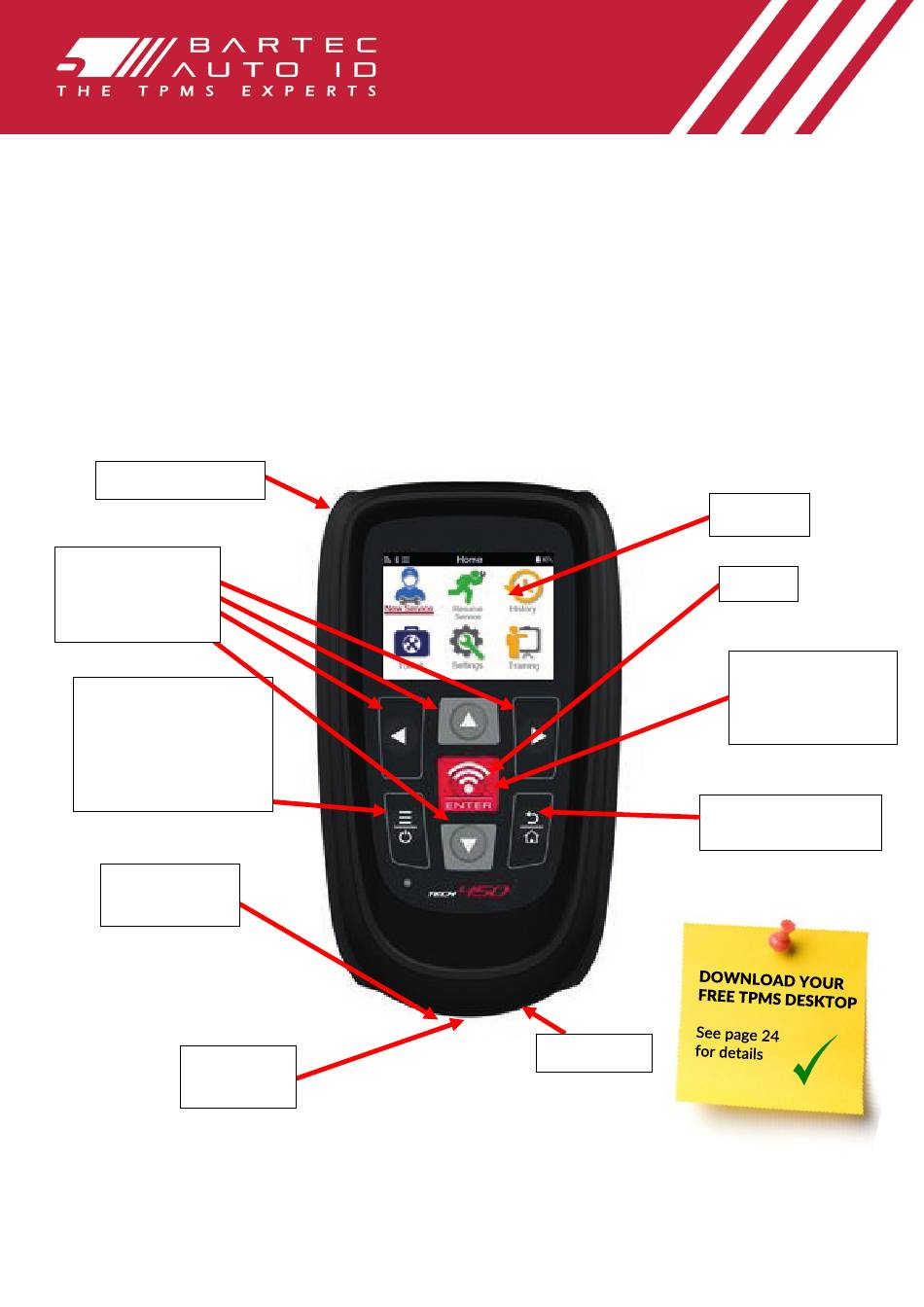

Rubber housing
Up/Down/Left
/Right
Navigation
On/Off:
hold down
for a few seconds
More information:
on some screens more
TPMS information can be
viewed
USB cable
connector
OBD
Socket
Bartec Auto ID Ltd.
TECH450
Tyre Pressure Monitoring System Tool
User Guide
Home/Back/Esc:
returns to Home menu
Mini-USB
JULY 2021
Display
Enter
Test:
commence a TPM
test, only works on
Vehicle Audit Screen
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bartec Auto ID TECH450
Summary of Contents for Bartec Auto ID TECH450
- Page 1 Vehicle Audit Screen More information: on some screens more TPMS information can be viewed Home/Back/Esc: returns to Home menu USB cable connector Mini-USB Socket Bartec Auto ID Ltd. JULY 2021...
-
Page 2: Foreword
2021 OREWORD Thank you for choosing the TECH450. This manual will help you get your tool up & running and explains how to get the most out of all its great features. PLEASE ENSURE THAT YOUR TOOL IS FULLY CHARGED BEFORE YOU FIRST USE IT AND BEFORE REGISTRATION. -
Page 3: Table Of Contents
TECH450 User Guide 2021 ONTENTS ......................2 OREWORD ....................3 ONTENTS .................... 4 MPORTANT OTICES ................... 5 AFETY RECAUTIONS ................... 7 EFORE ETTING TARTED ....................7 OMPONENTS ....................... 8 EGISTRATION ....................11 HARGING ON/OFF S ................11 OWER EQUENCE ...................... 12 TPMS I ................ -
Page 4: Important Notices
TECH450 User Guide 2021 MPORTANT OTICES AFETY EFINITIONS All Danger, Warning, Important, and Note messages must be followed for your safety. These safety messages are in the following form DANGER: Means you may risk possible loss of life. WARNING: Means you may risk possible bodily harm. -
Page 5: Safety Precautions
• Unauthorised disposal of waste electrical and electronic equipment is punishable by law with appropriate penalties. ISPOSING OF BATTERIES The TECH450 contains a Lithium Polymer rechargeable battery which is not accessible • to the user. WARNING Risk of fire of explosion if the battery is replaced by an incorrect type •... - Page 6 This tool is guaranteed against any manufacturing fault for 12 months as of date of invoice (parts and labour) only if product has been correctly used. Serial number must stay readable and proof of purchase must be retained for presentation upon request. Bartec Auto ID Ltd Unit 9 Redbrook Business Park...
-
Page 7: Before Getting Started
ETTING TARTED 1. Charging NOTICE: Only use the power supply or USB cable that is included in the TECH450 tool kit to charge this tool. The use of un-approved power supplies may damage it and will void the tool warranty. -
Page 8: Registration
TECH450 User Guide 2021 EGISTRATION Automatic registration takes place when the tool is first turned on. Registration enables the notification of software updates and the ability to download update files to the tool. Once an account has been made with TPMS Desktop, the tool will be registered to that account, and the latest available updates will be downloaded. - Page 9 TECH450 User Guide 2021 Select ‘Register’ to create a new account. The following screen will be displayed: It is important to fill in all fields completely and accurately. This information will help Bartec remain in contact regarding updates and other important TPMS information. Choose a username (without a space) and password.
- Page 10 ‘Update’. Once registered, the user will see the tool listed, along with a whether the tool is up to date: Updating the TECH450 and keeping it up to date using the TPMS Desktop is recommended. 10 | P a g e...
-
Page 11: Charging Tool
2021 HARGING The TECH450 is shipped with a charged battery. It is recommended that the tool is charged 2+ hours before first use. For optimum performance, always keep it sufficiently charged. The TECH450 will notify the user when the battery has low power, and the battery icon will change colour from white to red. -
Page 12: Home Menu
TECH450 User Guide 2021 Used to check sensors, relearn sensors to the vehicle, New Service perform OBD diagnostic, program sensors, and receive TPMS information Resume Service Used to resume your last job History Used to call up all stored works. User is able to search by registration or model, and can also use this history function to upload and clear Service Data. -
Page 13: Ore Tpms Information
TECH450 User Guide 2021 TPMS I NFORMATION ELECT EHICLE When starting a New Service, the user will be prompted to select the vehicle that requires TPMS maintenance. Scroll through the menus to select the correct manufacturer, model and year to see all available service functions. -
Page 14: New Service
Program Sensor Copy using stored data Enter ID manually Multiprogramming Identify Universal sensor Technical Information Detailed sensor & service kits information Vehicle Data Allows the user to review the service data captured with the TECH450 14 | P a g e... -
Page 15: Heck Ensors
TECH450 User Guide 2021 1/6 C HECK ENSORS Use this function to test the fitted sensors before continuing with further steps. To check the status of the TPMS sensors on the vehicle, select Check Sensors from the Service Screen. A screen similar to the following should be displayed: Use the arrow keys to select the sensor which needs to be read. - Page 16 TECH450 User Guide 2021 OSSIBLE EADING CENARIOS Note that if a faulty Sensor has been replaced, some method of relearn procedure will need to be followed, as explained later in this manual. Successful Sensor Read Sensor was successfully activated and decoded.
-
Page 17: 2/6 Programmable Sensor
TECH450 User Guide 2021 2/6 P ROGRAMMABLE ENSOR The “Program Sensors” on the service menu enables the function of programming aftermarket replacement sensors like the HUF IntelliSens, Alcar Sensors, Alligator sens.it or the Schrader EZ-sensor. Even when they are already mounted in a wheel or programmed to another vehicle. -
Page 18: 3/6 Relearn
It can take up to 20 minutes to relearn the sensor IDs. OBD Relearns: OBD connection allows the TECH450 to directly program the vehicle electronics module with sensor IDs. Note that not all vehicles support vehicle communications modes. - Page 19 TECH450 User Guide 2021 Selected tyre. Processing order: Left Front, Right Front, Right Rear, Left Rear As well as the pressure and temperature, we also display the “mode” of the sensor. In some cases the mode cannot be changed and isn’t important, but in some cases it will need to be changed in order for the relearn to work.
-
Page 20: 4/6 Obd Diagnostics
TECH450 User Guide 2021 These specific Service advices will only appear if applicable for the preselected Make, Model and Year combination. 4/6 OBD D IAGNOSTICS This option will only be listed for vehicles that Diagnostics Bartec coverage for. It reads... -
Page 21: 5/6 Technical Information
TECH450 User Guide 2021 5/6 T ECHNICAL NFORMATION Technical Gives detailed information about Information replacement parts, service kits, sensors, vehicles service tips. Sensors do not have to be read to access the following information. View Replacement Parts Used to show all Replacement Sensor part numbers that can be... -
Page 22: 6/6 Review Vehicle Data
TECH450 User Guide 2021 6/6 R EVIEW EHICLE Sensors and OBD need to have been read for data to be shown. The menu gives direct access to specific screens that display the Vehicle data. This option is helpful if the user wants to have a second look at the Sensor and OBD Data. -
Page 23: Settings
TECH450 User Guide 2021 ETTINGS Connections Connect to TPMS Desktop and WiFi. General Check and update time and date on the tool, and change the language displayed Sound and Vibration Enable or disable tool sounds or vibrations TPMS Change the units displayed when reading a TPMS sensor, for... -
Page 24: Tpms Desktop
ESKTOP The TPMS Desktop provides revolutionary technology to help manage Bartec TPMS tools on a PC. The TPMS Desktop is designed to work with the following Bartec tools; TECH400, TECH300, TECH500, TECH450, TECH600, and the TAP100/200. Go to www.tpmsdesktop.eu to download your FREE copy now! - Page 25 ETTINGS To be able to use the TECH450 with Bluetooth, the tool first needs to be configured. Go to Settings > Connections > “TPMS Desktop: Add device” The Tool will then attempt to connect with TPMS Desktop on the PC.
-
Page 26: Updating The Tool Via Usb C
Step 3: TPMS Desktop will check for the latest available update for the TECH450. If there is an update available, a notification will be displayed. Select ‘OK’ to confirm that the update can be applied to the tool. -
Page 27: Updating Your Tool Via W I F I
PPENDIX APPENDIX A: Vehicle Identification Number VIN) When using the TECH450 tool, it is important for the user to verify the Model Year to help insure looking for that proper sensor and using the proper vehicle Digit in COMs when necessary. - Page 28 “Park”, as otherwise it will not work on the vehicle. The TECH450 tool has the ability to perform the necessary mode change. If a sensor is shown as “Ship”, “Test” or “Off” and the relearn toolkit provides the option “Set Sensor to Park Mode”, please use this option to change the sensor mode into the correct one: Go to “Relearn”...
-
Page 29: Echnical Pecification
125KHz - 15uT @ 8cm maximum magnetic field Simplified EU Declaration of Conformity Bartec Auto ID Ltd hereby declares that this device is in compliance with the essential requirements and other provisions of Directive 2014/53/EU (RED). The full text of the EU Declaration of Conformity is available at: https://www.bartecautoid.com/pdf/simplified-eu-declaration-of-conformity.pdf...
