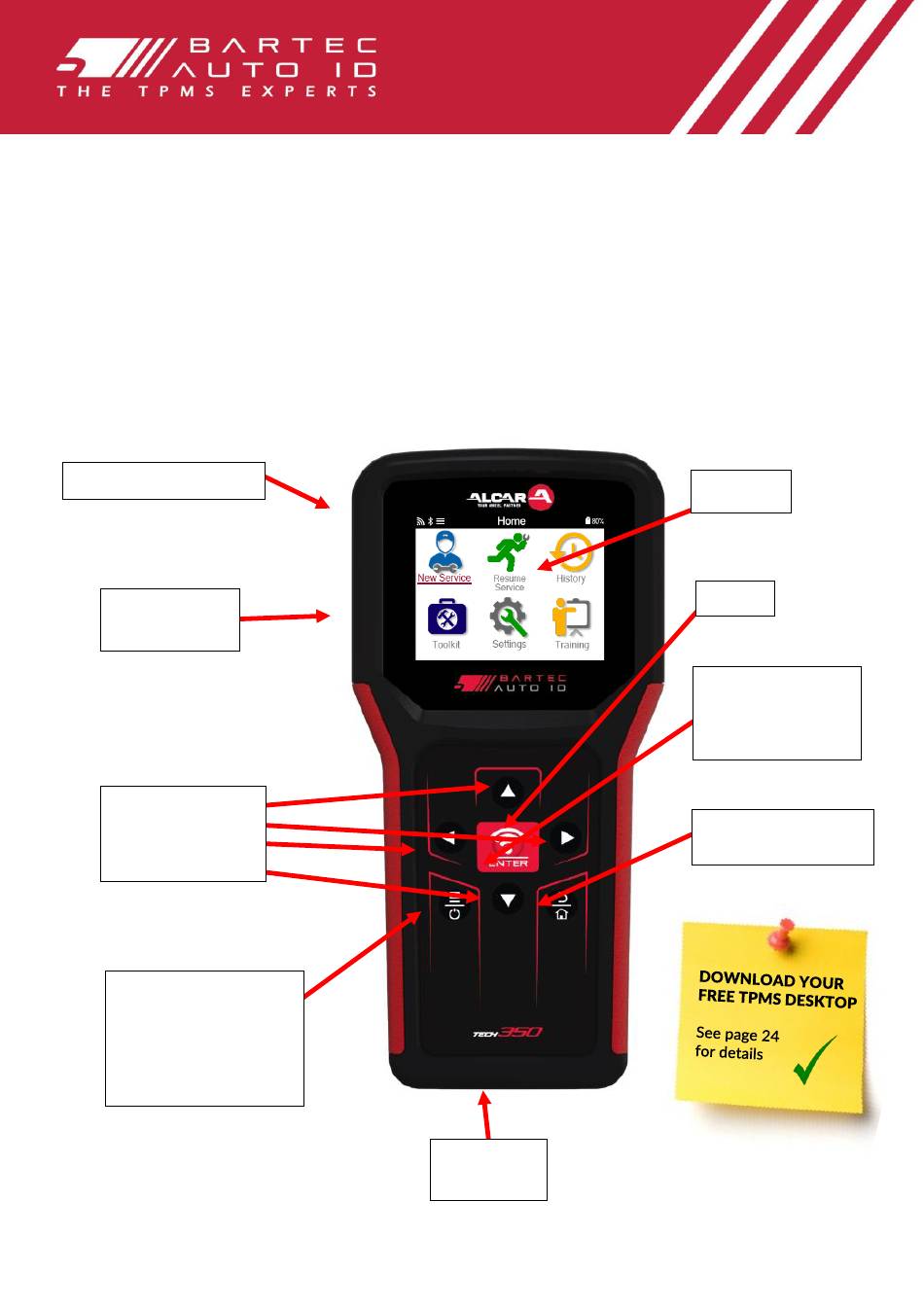

Bartec Auto ID Ltd.
ALCAR TECH350
Tyre Pressure Monitoring System Tool
User Guide
OBD
Socket
Display
Enter
Test:
commence a TPM
test, only works on
Vehicle Audit Screen
Home/Back/Esc:
returns to Home menu
NOV 2021
Advertisement
Table of Contents
Related Manuals for Bartec Auto ID ALCAR TECH350
Summary of Contents for Bartec Auto ID ALCAR TECH350
- Page 1 Vehicle Audit Screen Up/Down/Left Home/Back/Esc: /Right returns to Home menu Navigation On/Off: hold down for a few seconds More information: on some screens more TPMS information can be viewed Socket Bartec Auto ID Ltd. NOV 2021...
-
Page 2: Foreword
TECH350 User Guide NOV 2021 OREWORD Thank you for choosing the TECH350. This manual will help you get your tool up & running and explains how to get the most out of all its great features. PLEASE ENSURE THAT YOUR TOOL IS FULLY CHARGED BEFORE YOU FIRST USE IT AND BEFORE REGISTRATION. -
Page 3: Table Of Contents
TECH350 User Guide NOV 2021 ONTENTS ......................2 OREWORD ....................3 ONTENTS .................... 4 MPORTANT OTICES ................... 5 AFETY RECAUTIONS ................... 7 EFORE ETTING TARTED ....................7 OMPONENTS ....................... 8 EGISTRATION ....................11 HARGING ON/OFF S ................11 OWER EQUENCE ...................... -
Page 4: Important Notices
TECH350 User Guide NOV 2021 MPORTANT OTICES AFETY EFINITIONS All Danger, Warning, Important, and Note messages must be followed for your safety. These safety messages are in the following form DANGER: Means you may risk possible loss of life. WARNING: Means you may risk possible bodily harm. CAUTION: Means you risk damage to the vehicle or the tool. -
Page 5: Safety Precautions
TECH350 User Guide NOV 2021 AFETY RECAUTIONS Read carefully the installation, operating and maintenance instructions in the Operator’s manual. Do not allow unqualified persons to use this equipment. This will prevent injury to persons and damage to the equipment. The work place must be dry, sufficiently lit and well ventilated. Do not forget that breathing carbon monoxide (odourless) can be very dangerous and even fatal. - Page 6 This tool is guaranteed against any manufacturing fault for 12 months as of date of invoice (parts and labour) only if product has been correctly used. Serial number must stay readable and proof of purchase must be retained for presentation upon request. Bartec Auto ID Ltd Unit 9 Redbrook Business Park...
-
Page 7: Before Getting Started
TECH350 User Guide NOV 2021 EFORE ETTING TARTED 1. Charging NOTICE: Only use the power supply or USB cable that is included in the TECH350 tool kit to charge this tool. The use of un-approved power supplies may damage it and will void the tool warranty. -
Page 8: Egistration
TECH350 User Guide NOV 2021 EGISTRATION Automatic registration takes place when the tool is first turned on. Registration enables the notification of software updates and the ability to download update files to the tool. Once an account has been made with TPMS Desktop, the tool will be registered to that account, and the latest available updates will be downloaded. - Page 9 TECH350 User Guide NOV 2021 Select ‘Register’ to create a new account. The following screen will be displayed: It is important to fill in all fields completely and accurately. This information will help Bartec remain in contact regarding updates and other important TPMS information. Choose a username (without a space) and password.
- Page 10 TECH350 User Guide NOV 2021 After Login, the main screen of the TPMS Deskop is displayed. Connect the TECH350 to the computer. The TPMS Desktop will automatically register the “tool successfully registered”. The TPMS Desktop will tool, and will display the message: then check for any updates that can be applied to the tool.
-
Page 11: Harging Ool
TECH350 User Guide NOV 2021 HARGING The TECH350 is shipped with a minimum charged battery. It is recommended that the tool is charged 2+ hours before first use. For optimum performance, always keep it sufficiently charged. The TECH350 will notify the user when the battery has low power, and the battery icon will change colour from white to red. -
Page 12: Home Menu
TECH350 User Guide NOV 2021 Used to check sensors, relearn sensors to the vehicle, New Service perform OBD diagnostic, program sensors, and receive TPMS information Resume Service Used to resume your last job History Used to call up all stored works. User is able to search by registration or model, and can also use this history function to upload and clear Service Data. -
Page 13: Ore Tpms Information
TECH350 User Guide NOV 2021 TPMS I NFORMATION If you see this icon on the screen press for more TPMS information or TPMS options. ELECT EHICLE When starting a New Service, the user will be prompted to select the vehicle that requires TPMS maintenance. -
Page 14: New Service
TECH350 User Guide NOV 2021 ERVICE Check Sensors This uses a quick and easy to follow process which allows the user to read sensors, process the data, read battery status & IDs. Relearn All relearn procedures are available OBD Diagnostics Used to diagnose vehicle problems, receive sensor IDs and reads the vehicle VIN Create... -
Page 15: Heck Ensors
TECH350 User Guide NOV 2021 1/6 C HECK ENSORS Use this function to test the fitted sensors before continuing with further steps. To check the status of the TPMS sensors on the vehicle, select Check Sensors from the Service Screen. A screen similar to the following should be displayed: Use the arrow keys to select the sensor which needs to be read. - Page 16 TECH350 User Guide NOV 2021 OSSIBLE EADING CENARIOS Note that if a faulty Sensor has been replaced, some method of relearn procedure will need to be followed, as explained later in this manual. Successful Sensor Read Sensor was successfully activated and decoded.
-
Page 17: 2/6 Programmable Sensor
TECH350 User Guide NOV 2021 2/6 P ROGRAMMABLE ENSOR The “Program Sensors” on the service menu enables the function of programming aftermarket replacement sensors like the HUF IntelliSens, Alcar Sensors, Alligator sens.it or the Schrader EZ-sensor. Even when they are already mounted in a wheel or programmed to another vehicle. The user can choose from a selection of sensors which match the preselected MMY. -
Page 18: 3/6 Relearn
TECH350 User Guide NOV 2021 Recommended sensor position for programming: 3/6 R ELEARN To find out which relearn type is available for a vehicle, just turn on the tool and select Relearn. Or refer to the current coverage list at www.bartecautoid.com >... - Page 19 TECH350 User Guide NOV 2021 Selected tyre. Processing order: Left Front, Right Front, Right Rear, Left Rear As well as the pressure and temperature, we also display the “mode” of the sensor. In some cases the mode cannot be changed and isn’t important, but in some cases it will need to be changed in order for the relearn to work.
-
Page 20: 4/6 Obd Diagnostics
TECH350 User Guide NOV 2021 These specific Service advices will only appear if applicable for the preselected Make, Model and Year combination. 4/6 OBD D IAGNOSTICS This option will only be listed for vehicles that Diagnostics Bartec coverage for. It reads information from vehicle such as the VIN,... -
Page 21: 5/6 Technical Information
TECH350 User Guide NOV 2021 5/6 T ECHNICAL NFORMATION Technical Gives detailed information about Information replacement parts, service kits, sensors, vehicles service tips. Sensors do not have to be read to access the following information. View Replacement Parts Used to show all Replacement Sensor part numbers that can be fitted to the preselected MMY View Service Kits Used to show all Replacement Service Kit part numbers that... -
Page 22: 6/6 Review Vehicle Data
TECH350 User Guide NOV 2021 6/6 R EVIEW EHICLE Sensors and OBD need to have been read for data to be shown. The menu gives direct access to specific screens that display the Vehicle data. This option is helpful if the user wants to have a second look at the Sensor and OBD Data. 22 | P a g e... -
Page 23: Settings
TECH350 User Guide NOV 2021 ETTINGS Connections Connect with an OBD cable and TPMS Desktop. General Check and update time and date on the tool, and change the language displayed Sound Enable or disable tool sounds TPMS Change the units displayed when reading a TPMS sensor, for Pressure, Temperature, and the TPMS ID Power Change the length of time before the tool automatically turns off... -
Page 24: Tpms Desktop
TECH350 User Guide NOV 2021 TPMS D ESKTOP The TPMS Desktop provides revolutionary technology to help manage Bartec TPMS tools on a PC. The TPMS Desktop is designed to work with the following Bartec tools; TECH400, TECH300, TECH500, TECH350, TECH450, TECH600, and the TAP100/200. - Page 25 TECH350 User Guide NOV 2021 YSTEM ETTINGS Configure the TPMS Desktop Application to meet the tyre shop’s needs. Connectivity is just a few clicks away with TPMS Desktop. ISPLAY Garage/Tyre shop display screen functionality enables the technician to show the customer their vehicle readings on a TV or monitor in the garage or waiting room.
-
Page 26: Updating The Tool Via Usb C
TECH350 User Guide NOV 2021 USB C PDATING THE ABLE The tool is compatible with PCs running Windows operating systems. Step 1: he Tool will display a USB icon, to indicate Power on the TECH350 and connect to a PC. T that it is ready to receive update files. -
Page 27: Appendix
TECH350 User Guide NOV 2021 PPENDIX APPENDIX A: Vehicle Identification Number VIN) When using the TECH350 tool, it is important for the user to verify the Model Year to help insure looking for that proper sensor and using the proper vehicle Digit in COMs when necessary. - Page 28 TECH350 User Guide NOV 2021 APPENDIX C: MODES and MODE CHANGING Sensors can have many different “modes” when they have been read, such as Learn, Tool LF, YD Sleep, YD Rest, Hi Norm Dly. Some of those are called sleep mode to preserve battery life. Mostly, these modes are not important because the sensor will be supplied already in the correct mode to use.
-
Page 29: Echnical Pecification
125KHz - 10uT @ 8cm maximum magnetic field Simplified EU Declaration of Conformity Bartec Auto ID Ltd hereby declares that this device is in compliance with the essential requirements and other provisions of Directive 2014/53/EU (RED). The full text of the EU Declaration of Conformity is available at: https://www.bartecautoid.com/pdf/simplified-eu-declaration-of-conformity.pdf...
