Summary of Contents for Bartec Auto ID TECH700

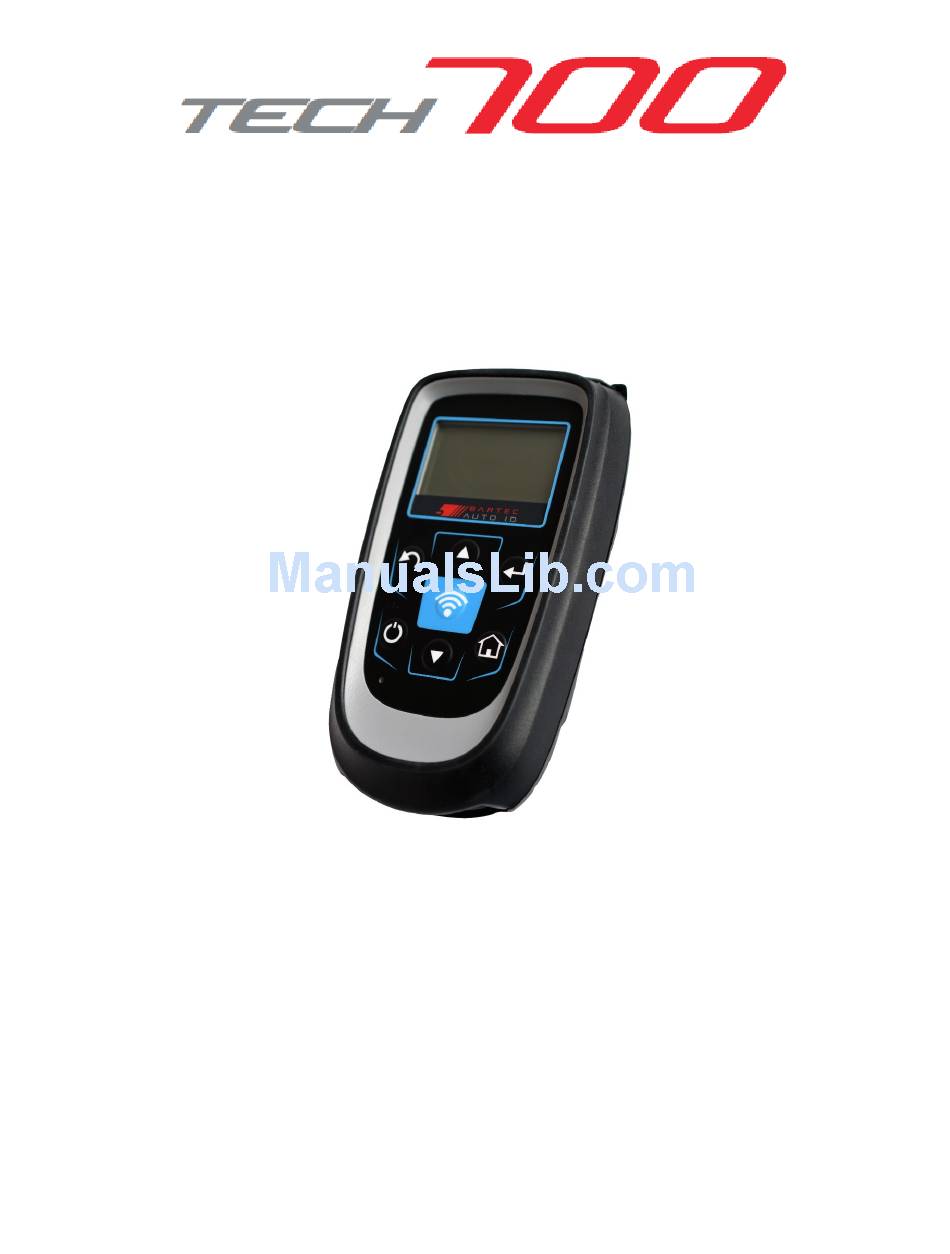

- Page 1 UIDE Tyre Pressure Monitoring System Tool TECH700 Software version v57.0.3.2 TR 2018...
-
Page 2: Foreword
Trucks and Buses. Hereby, Bartec Auto ID declares that the product referenced above is in compliance with the essential requirements of Directive 1999/5/EC, on the approximation of the laws of the member states relating to Directive 1999/5/EC. - Page 3 T E C H 7 0 0 User Guide 2 0 1 8 P a g e...
-
Page 4: Table Of Contents
T E C H 7 0 0 User Guide 2 0 1 8 ABLE ONTENTS Foreword .................. 2 Table Of Contents ..............4 Important Notices ..............5 Safety Precautions ..............7 Kit Components ..............10 Tool Layout ................11 Menu Navigation ..............12 Tool Positioning .............. -
Page 5: Important Notices
CAUTION: Means you risk damage to the vehicle or the tool. These safety messages cover situations Bartec Auto ID is aware of. Bartec Auto ID cannot know, evaluate and advise you as to all the possible hazards. You must be certain that any conditions or service procedures encountered do not jeopardize your personal safety. - Page 6 The right is reserved to make changes at any time without obligation to notify any person or organization of such revisions or changes. Further, Bartec Auto ID shall not be liable for errors contained with the furnishing, performance or use of this material.
-
Page 7: Safety Precautions
T E C H 7 0 0 User Guide 2 0 1 8 AFETY RECAUTIONS Read carefully the installation, operating and maintenance instructions in the Operator’s manual. Do not allow unqualified people to use this equipment. This will prevent injury to people and damage to the equipment. - Page 8 Unauthorised disposal of waste electrical and electronic equipment is punishable by • law with appropriate penalties. Disposing of batteries The TECH700 contains a Lithium Polymer rechargeable battery which is not accessible • to the user. Batteries must be recycled or disposed of properly. Do not throw batteries away as •...
- Page 9 Do not open the TECH700 or attempt to perform maintenance or repair operations • on any internal parts. You are advised to keep the packaging and to re-use it if the TECH700 is moved to • another site. When using the TECH700 remember: Do not subject the TECH700 to magnetic or electric interference.
-
Page 10: Kit Components
• Quick Start Guide • Bluetooth-Dongle Identifying Kit Components and Features The TECH700 is battery operated and generates a low-frequency magnetic field to activate tyre sensors. It receives UHF radio signals from the tyre sensors typically at 433MHz and 315MHz... -
Page 11: Tool Layout
T E C H 7 0 0 User Guide 2 0 1 8 AYOUT Rubber housing Mini USB Display USB Cable and Charger Test Back Enter Up/Down Quick-Start-Guide navigation Home Bluetooth-Dongle Sensor diagnostic tool On/Off Wireless-Charger P a g e | 11... -
Page 12: Menu Navigation
2 0 1 8 AVIGATION The TECH700 menu system provides a hierarchy of instructions and commands. The top line of the display will always indicate the current menu selected. The home key will always return to the Home Menu screen. - Page 13 T E C H 7 0 0 User Guide 2 0 1 8 On/Off Key Hold down for a few seconds to turn on or off Up Arrow Navigates up within the current menu selection Down Arrow Navigates down within the current menu selection Navigates to the next menu or actions ENTER Key the currently highlighted item...
-
Page 14: Tool Positioning
OSITIONING Correct tool positioning is important to ensure effective sensor activation and decode. Place the TECH700 against the tyre wall, adjacent to the tyre valve stem, pointing towards the sensor location as shown below. Avoid placing the tool over the metal rim. -
Page 15: Tool Connections/Charging Tool
2 0 1 8 ONNECTIONS HARGING NOTE: Only use the power supply or USB cable included in the TECH700 kit to charge this tool. The use of unapproved power supplies may damage your tool and will invalidate the tool warranty. -
Page 16: Power On/Off Sequence
2 0 1 8 During charging the battery status icon will scroll. At the point of insufficient battery power the TECH700 will flash its battery icon for two seconds. The TPM Data will be saved prior to power off. ON/OFF S... -
Page 17: Home Menu
T E C H 7 0 0 User Guide 2 0 1 8 The home screen, which provides access to the main functional items of the TECH700, is shown after power up. Home Vehicle Check Sensor Check View Sensor Data... - Page 18 T E C H 7 0 0 User Guide 2 0 1 8 6. My Tool This feature provides access to WiFi, Tool Info, Enter update Mode, Usage, support, and Workflow Settings allowes changes to: Date/Time, Restore Defaults, Sensor ID, Pressure, Temperature, Display Contrast and Language.
-
Page 19: Vehicle Check
T E C H 7 0 0 User Guide 2 0 1 8 EHICLE HECK Home Vehicle Check Sensor Check View Sensor Data Delete Data Toolkit My Tool Select by Make Ford FUSO Mercedes-Benz Setra Unknown Select by Model Actros Antos Arocs Mercedes-Benz Actros... - Page 20 T E C H 7 0 0 User Guide 2 0 1 8 Press Test To Activate Axle 1, Right Searching Receiving Data:001 20 | P a g e...
- Page 21 T E C H 7 0 0 User Guide 2 0 1 8 118 PSI 111 PSI 113 PSI 112 PSI 117 PSI P a g e | 21...
- Page 22 T E C H 7 0 0 User Guide 2 0 1 8 ENSOR HECK Home Vehicle Check Sensor Check View Sensor Data Delete Data Toolkit My Tool Select Sensor Type Bendix Huf Delta-P Schrader PAL ID (Auto) Untested Untested Untested Untested Esc to continue...
- Page 23 T E C H 7 0 0 User Guide 2 0 1 8 ID (Auto) F05E0B14 Untested Untested Untested Esc to continue 4 additional reading later: 1446219699 56338FB3 1446219616 56338F60 1500001975 596836B7 1446218894 56338C8E Sensor Type Stationary Schrader PAL(Merc.) Stationary Schrader PAL(Merc.) Stationary 100%...
-
Page 24: Possible Reading Scenarios
T E C H 7 0 0 User Guide 2 0 1 8 OSSIBLE EADING CENARIOS Successful Sensor Read TPMS sensor was successfully activated and decoded. Displays pressure (in Bar, PSI or KPa) at wheel location. The wheel icon will appear filled No Sensor found Press any key to continue No Sensor found... -
Page 25: View Sensor Data
T E C H 7 0 0 User Guide 2 0 1 8 Check the sensor Part number to insure the correct fitment for the vehicle selected. ENSOR When highlighted, press the enter key to review the data records. Homehicle Vehicle Check 116.0 Sensor Check... -
Page 26: Settings
T E C H 7 0 0 User Guide 2 0 1 8 ETTINGS When highlighted, press the enter key to change the settings. Settings Sensor ID: Select to display the Sensor ID in DECIMAL, HEXIDECIMAL or AUTO. Automatic reading matches the ID format to the sensor under test. Pressure: Select to display the required units of measurement: PSI, Bar and KPa. -
Page 27: Results Audit System
ESULTS UDIT YSTEM The TECH700 provides stored data record as an audit file via USB to a PC. The TECH700 appears as a “Mass Storage Device”. No additional software is required. The USB cable is included in the toolkit. It is not necessary to power up the tool prior to connecting to the PC – the tool will power up automatically. - Page 28 T E C H 7 0 0 User Guide 2 0 1 8 Audit file examples Mercedes: Battery Wheel TPM Type Reads ID Hex ID Dec Mode State Battery Pressure Temperature BERU GEN3.42 19200 Bi-Phase 433 MHzFM F869B2FD 4167676669 Trig´d Tx Months 113 PSI 23°C...
-
Page 29: Technical Specification
Stationary 113 PSI 23°C ECHNICAL PECIFICATION TECH700 TECHNICAL SPECIFICATION Power Supply: Lithium Polymer rechargeable battery, not user serviceable... Max power consumption: 1.5W Schrader TPM, 0.5W all others Display: LCD display. Resolution 128x64 pixels Keyboard: 7 keys membrane keyboard Input/output: Mini-B style USB used to Connect to PC for firmware update and audit file download.
