Bartec Auto ID Tech500SDE User Manual

Tyre pressure monitoring system tool
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
U
G
SER
UIDE
Tyre Pressure Monitoring
System Tool
Bartec Auto ID Ltd.
SW Version: R.53 (English)
2015

Advertisement

Table of Contents
loading

Related Manuals for Bartec Auto ID Tech500SDE

Summary of Contents for Bartec Auto ID Tech500SDE

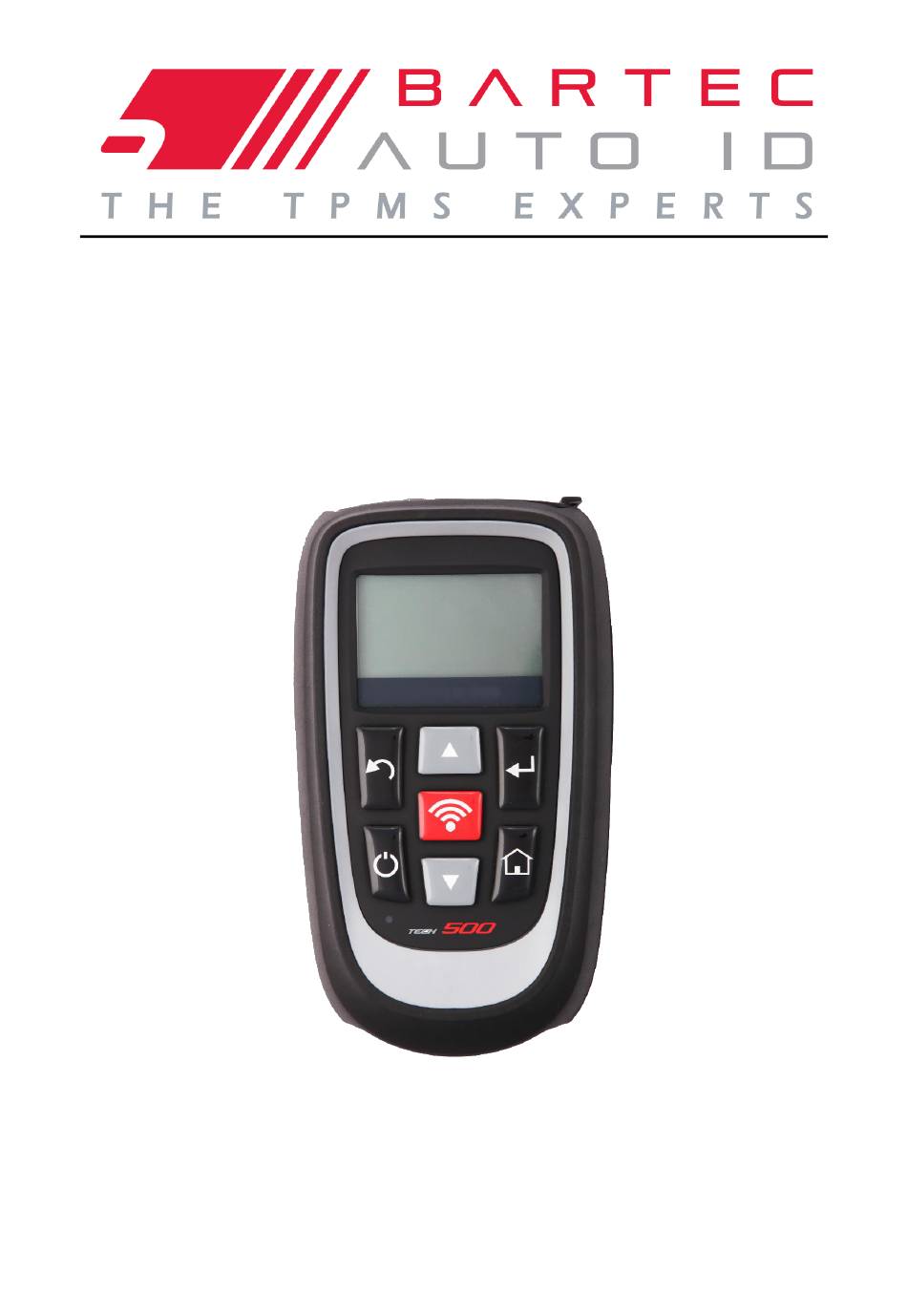

  • Page 1 UIDE Tyre Pressure Monitoring System Tool Bartec Auto ID Ltd. SW Version: R.53 (English) 2015...

  • Page 2: Foreword

    Please become fully familiar with the instructions in this user’s manual. It should be kept ready to hand for consultation whenever required. The TECH500SDE tool is a test tool for test and diagnostics of vehicle TPM systems. It is designed for future updating and extension with new functions and vehicle coverage.

  • Page 3: Table Of Contents

    T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 ONTENTS ..................... 2 OREWORD ................4 MPORTANT OTICES ................5 AFETY RECAUTIONS ............... 8 EFORE TARTED ................... 9 OMPONENTS ..................10 AYOUT ................11 AVIGATION ................

  • Page 4: Important Notices

    T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 MPORTANT OTICES SAFETY DEFINITIONS All Danger, Warning, Important, and Note messages must be followed for your safety. These safety messages are in the following formats: DANGER: Means you may risk possible loss of life.

  • Page 5: Afety Recautions

    T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 AFETY RECAUTIONS Read carefully the installation, operating and maintenance instructions in the Operator’s manual. Do not allow unqualified persons to use this equipment. This will prevent injury to persons and damage to the equipment.
  • Page 6 Unauthorised disposal of waste electrical and electronic equipment is punishable by law with appropriate penalties. Disposing of batteries  The TECH500SDE contains a Lithium Polymer rechargeable battery which is not accessible to the user.  Batteries must be recycled or disposed of properly. Do not throw batteries away as part of normal refuse disposal.
  • Page 7 Do not open the TECH500SDE or attempt to perform maintenance or repair operations on any internal parts.  You are advised to keep the packaging and to re-use it if the TECH500SDE is moved to another site. When using the TECH500SDE tool remember: ...

  • Page 8: Before You Get Started

    2 0 1 5 EFORE TARTED Before you get started using your Tech500SDE TPMS tool, there are a few items to be aware of. Charge your tool The Tech500SDE is shipped with a fully charged battery, but due to shelf drain it may require charging.

  • Page 9: Kit Components

     Bluetooth Stick  User Manual Identifying Kit Components and Features The TECH500SDE tool is battery operated and generates a low-frequency magnetic field to activate tyre sensors. It receives UHF radio signals from the tyre sensors typically at 434MHz. Bluetooth...

  • Page 10: Ool Ayout

    T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 AYOUT Mini USB SD Card Rubber housing Display Up/Down navigation Test Enter Back Home On/Off OBD cable connector 10 | P a g e...

  • Page 11: Menu Navigation

    2 0 1 5 AVIGATION The TECH500SDE tool’s menu system provides a hierarchy of instructions and commands. The top line of the display will always indicate the current menu selected. The home key will always return to the Home Menu screen.

  • Page 12: Ool Ositioning

    OSITIONING Proper tool positioning is important to insure sensor activation and decode. Place the Tech500SDE on the tyre, at the TPMS sensor, pointed toward the sensor location as shown below. Do NOT touch the metal rim. The tool needs to point through the rubber at the sensor.

  • Page 13: Tool Connections

    T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 ONNECTIONS OBDII Connection on cable connects to the vehicle if required for relearn DB15 Connection connects tool to cable. USB Port for battery charging, software updates, and audit file viewing and saving.

  • Page 14: Harging Ool

    When the battery is being charged the indicator segments ‘walks’ from left to right. When there is an insufficient amount of power remaining in the battery, the TECH500SDE tool will flash its battery icon for two seconds, save all of the TPM Data and then power itself off. 14 |...

  • Page 15: Power On/Off Sequence

    T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 ON/OFF S OWER EQUENCE The Tech 500SDE is powered up using the ON/OFF key. To power the unit on press the On/Off Key for approx 2 seconds – the display will light showing a logo and tool name.

  • Page 16: Home Menu

    T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 The home screen, which provides access to the main functional items of the TECH500SDE tool, is shown after power up. Home Vehicle Check Program Sensor...

  • Page 17: Vehicle Check

    T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 5. Toolkit With this item highlighted, press the enter key and a submenu opens in which you will find your options for the RKE monitor and the UHF monitor. Used to test the remote car key or to use the UHF Monitor.

  • Page 18: Vehicle Audit Screen

    T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 Select by Year The display below shows that the TPM type was fitted to the Lotus Elise in 01/ 2008, and therefore there is only one choice in this menu. Some models will have several year options because the TPM type changed over time.

  • Page 19: Possible Reading Scenarios

    T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 Selected Vehicle Check tyre Toolkit View Vehicle Information Review Vehicle Data Press Test To Activate Left Front During testing, the screen confirms the sensor type being tested and displays a progress bar.
  • Page 20 T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 Successful Sensor Read TPMS sensor was successfully activated and decoded. Displays pressure (in Bar or PSI) at wheel location. Failed Sensor Read No Sensor Activation or Decode. May be wrong sensor fitment or non-functioning sensor.

  • Page 21: Successful Sensor Read

    T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 UCCESSFUL ENSOR Following a successful read the TECH500SDE tool will emit a single tone. Sensor ID in Hexadecimal or Decimal Pressure in Bar or PSI Temperature in Celsius or Fahrenheit ID:0C11624A H °C: 21...

  • Page 22: Vehicle Check Toolkit

    T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 The edit option allows the user to mark a wheel which has a mechanical problem such as a corroded valve stem. Any of these options will then take you to the “ Go to…” screen. Go to…...
  • Page 23 T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 Vehicle Check Toolkit Sensor Search UHF Monitor Connect tool to OBD II Port and turn Ignition ON OBD Position: Below Dashboard. Driver’s Side Press Enter to read ESC to cancel Sensor Search...

  • Page 24: View Vehicle Information

    T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 EHICLE NFORMATION Use the arrow keys to move the arrow to the View Vehicle Information and press the enter key. Sensors do not have to have been read to access the Information.
  • Page 25 T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 View Replacement Parts: This item shows the available replacement parts for replacing a faulty sensor. View Sensor Information: The information screen shows the sensor type and other useful Information. View Vehicle Information: This item displays all important information about the vehicle under check.

  • Page 26: Review Vehicle Data

    T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 EVIEW EHICLE Use the arrow keys to move the arrow to the Review Vehicle Date and press the Enter button. Sensors and OBD need to have been read for data to be shown.
  • Page 27 T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 View Sensor Data: No menu page name is provided, instead the screen provides all of the TPM Data available from the TPM Type read; this may include: TPM ID (Hexadecimal &...

  • Page 28: Program Sensor

    T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 ROGRAM ENSOR The “Program Sensor” menu on the home screen enables the function of programming aftermarket replacement sensors like the Alligator sens.it or the Schrader EZ-sensor.
  • Page 29 T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 The displayed sensors may vary, not every replacement sensor is compatible with every vehicle. Please select now one of the options. The tool will then guide you step by step through the programming process.

  • Page 30: Relearn

    TPM sensors in turn. Active (drive) relearns can take up to 20 minutes to relearn the TPM IDs. OBD relearns require the use of the TECH500SDE tool and the supplied OBD cable. Stationary Relearns: Stationary Relearns use the vehicles on-board TPMS system to listen for transmissions from TPM sensors while the vehicle is in a “Learn Mode”.
  • Page 31 TPM IDs. Note that not all vehicles support vehicle communications modes. Once 4 TPM IDs are stored within the TECH500SDE tool, it can be connected to the OBD interface using the provided cable. To find out which relearn type is available for your vehicle just turn your tool on and select Relearn.
  • Page 32 T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 To perform a relearn read all 4 wheels. If one or more sensors are faulty, please use the ‘Relearn Toolkit’. Relearn Toolkit Program Sensor Sensor Search UHF Monitor Relearn Toolkit...
  • Page 33 “View Vehicle Information” menu and select “View Vehicle Info.” the tool displays now where the OBD is positioned. Now follow the steps provided on the screen and press Enter. The Tech500SDE will now program the ECU. VIN reading will work on most, but not on all vehicles.

  • Page 34: Review Data

    T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 Move the arrow with the Down Arrow Key to View Vehicle information and press enter. Then select View Relearn Procedures to get detailed information how to relearn this vehicle type.

  • Page 35: Toolkit

    T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 Then select the vehicle you like to review. On the following screen is no menu page name provided instead, the screen provides all of the TPM Data available from the TPM Type read; this may include: TPM ID (Hexadecimal &...

  • Page 36: M Y Tool - Settings - Networks

    T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 Sub-menu containing important information and settings about the tool itself. Home Vehicle Check Program Sensor Relearn Vehicle Data Toolkit My Tool This item is a sub menu, pressing the Enter Key will take the user to the Work Flow menu.
  • Page 37 T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 Temperature: Select Celsius or Fahrenheit. Display Contrast: Adjust tool display contrast. Lang.: Select Language for tool. Date/Time: Allows you to set the date and time. Networks You can now choose between Bluetooth and WiFi.

  • Page 38: Registering Your Tool

    - Serial Number of the tool. Usage View the number of Power Cycles, Sensor Activations and OBD Relearns. Support On screen reference for Bartec Auto ID Ltd support. Workflow Vehicle No.: allows you to select different formats of licence plates. OBD required: EGISTERING It is of great importance to register your tool.
  • Page 39 The first page you will see is the TPMS Tool Support Center page, showing the Tech500SDE and the TPMS PAD latest software release versions. Click on ‘Register’ to create a new account. Select ‘Register’to create a new account. It is important to fill in all fields completely and accurately.
  • Page 40 T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 If your details are accepted, you get the following message. The following email should arrive within a few minutes: Following the ‘Click here’ link will take you back to the website. This page is showing that you are now a registered user.
  • Page 41 T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 Then click on ‘Tools’. Selecting Tools gives you the option to register a new tool. The serial number is printed on the back (under the rubber housing) and in the ‘My Tool’ menu in ‘Tool Info’.

  • Page 42: Updating Your Tool Via Pc

    Power the Tech 500SDE on, and from the Main Menu, select My Tool, and then select Update Tool. Tool will prompt user to “Insert USB Lead to Transfer Update Files”. Insert the USB cable to the Tech500SDE. My Tool Software Updates...
  • Page 43 T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 UPDATE MODE V5 INSERT USB LEAD TO TRANSFER UPDATE FILES Step 2: Your tool should open a window on your computer screen. The tool now is seen by your computer as a Removable Disk.
  • Page 44 T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 Once Transfer is complete, wait for instructions on the tools screen. Note: Every tool needs its own unique update file. The file can only be used for the specific tool identified by the serial number.

  • Page 45: Updating Your Tool Via Wifi

    T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 Updating your tool via WiFi Once you have set up your tool to connect to your WiFi network, you can set it up for updating via WiFi. Go to My Tool \ Software Updates.
  • Page 46 US coverage (optional) The file will be downloaded onto your computer. Connect your Tech500SDE to your computer with the USB cable and click and drag the file from your computer’s download section onto the removable disk of the Tech500SDE.
  • Page 47 The TPMS Desktop provides revolutionary technology to help you manage your Bartec TPMS tools on your computer. The TPMS Desktop is designed to work with the following Bartec tools; TECH400SDE, TECH500SDE and the TPMS PAD. TPMS Desktop features: Audits - Complete job reports recorded and stored for when you need them Service Manager –...
  • Page 48 Go to https://tools.bartecautoid.com/tpmsdesktop/ to download your free copy now! ETTINGS To be able to use your Tech500SDE with Bluetooth, you need to configure the tool first. Go to My Tool and then to Networks. My Tool Home...
  • Page 49 If you have problems using your built-in Bluetooth you can use the USB dongle that is part of your Tech500SDE kit. Select Devices and Printers in Control Panel. Right click on the Bluetooth dongle icon and click on Bluetooth settings. Tick the boxes as seen on the Options tab below.

  • Page 50: Appendix

    APPENDIX A: Vehicle Identification Number VIN) When using the TECH500SDE tool, it is important to verify the Model Year you are working on to help insure that you are looking for that proper sensor and are using the proper vehicle COMs when necessary.
  • Page 51 T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 APPENDIX B: FAQ’S & TROUBLESHOOTING GUIDE 1. The tool is set up correctly for make model and year but the tool does not work on the sensor? Answer: hold the tool in the proper position, TPM is actually faulty or vehicle has incorrect TPM installed.
  • Page 52 T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 APPENDIX C: GLOSSARY TPMS – Tyre Pressure Monitoring System, sometimes referred to as RTPMS. Indirect System – TPM system that uses the ABS wheel sensors. Direct System –...
  • Page 53 T e c h 5 0 0 S D E User Guide R.53 2 0 1 5 APPENDIX D: TPMS SYSTEM REVIEW When diagnosing TPMS systems, understanding what the tell-tale light means is important. When cycling the ignition for off to run, the TPMS tell-tale should come on, and go off.
  • Page 54 2 0 1 5 APPENDIX E: MODES and MODE CHANGING The TECH500SDE tool has the ability to perform the necessary mode changes required for TPMS sensors to take them from the shelf, and fit them to the vehicle. In some cases, these will happen automatically when activating the sensors.

  • Page 55: Echnical Pecification

    User Guide R.53 2 0 1 5 ECHNICAL PECIFICATION TECH500SDE TECHNICAL SPECIFICATION Power Supply: Lithium Polymer rechargeable battery, not user serviceable... Max power consumption: 1.5W Schrader TPM, 0.5W all others Display: LCD single colour, graphic, resolution 128x64 Keyboard: 7 keys, dust, water and grease-resistant Input/output: Mini-B style USB used to Connect to PC for firmware update and audit file download.
