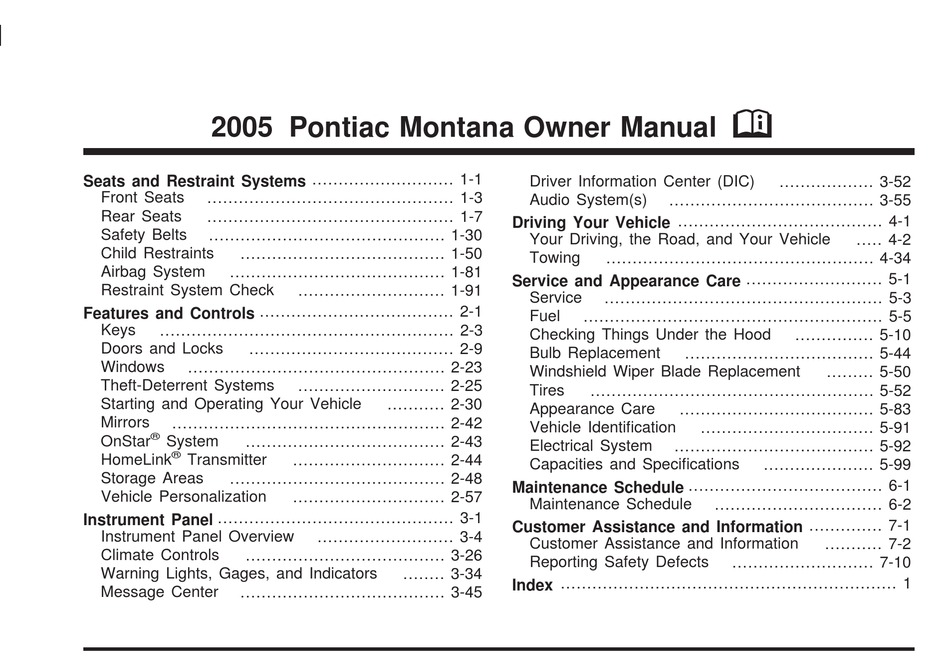

2005 Pontiac Montana Owner Manual
Seats and Restraint Systems ........................... 1-1
Front Seats
............................................... 1-3
Rear Seats
............................................... 1-7
Safety Belts
............................................. 1-30
Child Restraints
....................................... 1-50
Airbag System
......................................... 1-81
Restraint System Check
Features and Controls ..................................... 2-1
Keys
........................................................ 2-3
Doors and Locks
....................................... 2-9
Windows
................................................. 2-23
Theft-Deterrent Systems
Starting and Operating Your Vehicle
Mirrors
.................................................... 2-42
®
OnStar
System
...................................... 2-43
®
HomeLink
Transmitter
Storage Areas
......................................... 2-48
Vehicle Personalization
Instrument Panel ............................................. 3-1
Instrument Panel Overview
Climate Controls
...................................... 3-26
Warning Lights, Gages, and Indicators
Message Center
....................................... 3-45
............................ 1-91
............................ 2-25
........... 2-30
............................. 2-44
............................. 2-57
.......................... 3-4
........ 3-34
Driver Information Center (DIC)
Audio System(s)
....................................... 3-55
Driving Your Vehicle ....................................... 4-1
Your Driving, the Road, and Your Vehicle
Towing
................................................... 4-34
Service and Appearance Care .......................... 5-1
Service
..................................................... 5-3
Fuel
......................................................... 5-5
Checking Things Under the Hood
Bulb Replacement
Windshield Wiper Blade Replacement
Tires
...................................................... 5-52
Appearance Care
..................................... 5-83
Vehicle Identification
Electrical System
...................................... 5-92
Capacities and Specifications
Maintenance Schedule ..................................... 6-1
Maintenance Schedule
Customer Assistance and Information .............. 7-1
Customer Assistance and Information
Reporting Safety Defects
Index ................................................................ 1
M
.................. 3-52
............... 5-10
.................................... 5-44
......... 5-50
................................. 5-91
..................... 5-99
................................ 6-2
........... 7-2
........................... 7-10
..... 4-2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2005 Montana and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pontiac 2005 Montana

  • Page 1 2005 Pontiac Montana Owner Manual Seats and Restraint Systems ... 1-1 Front Seats ... 1-3 Rear Seats ... 1-7 Safety Belts ... 1-30 Child Restraints ... 1-50 Airbag System ... 1-81 Restraint System Check ... 1-91 Features and Controls ... 2-1 Keys ...
  • Page 2: How To Use This Manual

    GENERAL MOTORS, GM, the GM Emblem, PONTIAC, the PONTIAC Emblem, and the name MONTANA are registered trademarks; of General Motors Corporation. This manual includes the latest information at the time it was printed. We reserve the right to make changes after that time without further notice.
  • Page 3: Safety Warnings And Symbols

    Safety Warnings and Symbols There are a number of safety cautions in this book. We use a box and the word CAUTION to tell about things that could hurt you if you were to ignore the warning. CAUTION: These mean there is something that could hurt you or other people.
  • Page 4: Vehicle Damage Warnings

    Vehicle Damage Warnings Also, in this manual you will find these notices: Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly.
  • Page 5 These are some examples of symbols that may be found on the vehicle:...
  • Page 6 NOTES...
  • Page 7: Table Of Contents

    Section 1 Front Seats ...1-3 Manual Seats ...1-3 Six-Way Power Seats ...1-4 Heated Seats ...1-5 Reclining Seatbacks ...1-5 Head Restraints ...1-7 Rear Seats ...1-7 Rear Seat Operation ...1-7 Second Row Safety Belt Stowage ...1-7 Flip and Fold Feature ...1-8 Split Bench Seats ...1-8 Bucket Seats ...1-16 Captain Chairs ...1-22 Stowable Seat ...1-26...
  • Page 8 Section 1 Airbag System ...1-81 Where Are the Airbags? ...1-84 When Should an Airbag Inflate? ...1-87 What Makes an Airbag Inflate? ...1-88 How Does an Airbag Restrain? ...1-89 What Will You See After an Airbag Inflates? ...1-89 Servicing Your Airbag-Equipped Vehicle ...1-91 Seats and Restraint Systems Restraint System Check ...1-91 Checking Your Restraint Systems ...1-91...
  • Page 9: Manual Seats

    Front Seats Manual Seats Use the lever located on the front of the seat to adjust the seat forward or rearward. Pull up the lever to unlock the seat. Slide the seat to where you want it and release the lever. CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle...
  • Page 10: Six-Way Power Seats

    Six-Way Power Seats Your vehicle may have this feature. If it does, the six-way power seat control is located on the outboard sides of the driver’s and front passenger’s seats. • Move the front of the control up or down to adjust the front portion of the cushion up or down.
  • Page 11: Heated Seats

    Heated Seats Your vehicle may have this feature. If it does, the heated seat switches are located in the instrument panel switchbank. This feature will heat the lower cushions and lower back of the driver’s and front passenger’s seats for added comfort. The left switch is for the driver’s seat and the right switch is for the front passenger’s seat.
  • Page 12 But don’t have a seatback reclined if your vehicle is moving. CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts can not do their job when you are reclined like this. The shoulder belt can not do its job because it will not be against your body.
  • Page 13: Second Row Safety Belt Stowage

    Head Restraints Adjust your head restraint so that the top of the restraint is closest to the top of your head. This position reduces the chance of a neck injury in a crash. Head restraints are fixed on some models and adjustable on others.
  • Page 14: Flip And Fold Feature

    Flip and Fold Feature The rear seats in your vehicle can be folded forward. Use this feature for exiting and entering third row seats. 1. If the seats have the adjustable head restraints, push them fully down. 2. Fold the seatback flat on the seat, by either pulling on the nylon strap on the rear of the...
  • Page 15: Second Row

    Adjusting the Split Bench Seats (Second Row) The second row bench seats are adjustable. There are two adjustment levers on each section of the split bench seats to adjust the seat forward or rearward. One is located below the center, in the front of each section of the split bench.
  • Page 16: Folding Or Reclining The Seatbacks

    Folding or Reclining the Seatbacks CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure it is locked.
  • Page 17: Removing The Split Bench Seat

    To raise a seatback, pull the nylon strap or lift the recliner lever while raising the seatback until it locks upright. Push and pull on the seatback to check that it is locked into place. To recline the seatback, pull the nylon strap or lift the recliner lever.
  • Page 18 5. From behind the bench seat, pull the nylon strap at the center of the base of the seat to release the rear latches from the floor pins. Do not let go of the strap until the seat is folded all the way forward.
  • Page 19: Replacing The Split Bench Seats

    Replacing the Split Bench Seats CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure it is locked.
  • Page 20 1. Squeeze the angled bar toward the solid crossbar while placing the front hooks of the bench seat onto the front two floor pins. 1-14 2. Make sure the bench seat is angled so that the front hooks clear the floor pins. If the front legs are not attached correctly, the rear legs will not attach to the rear set of floor pins.
  • Page 21 If the front latches are not attaching correctly, check that the seat is in the full rear position. 3. Firmly push the rear hooks onto the rear floor pins by pushing down on the rear of the seat. 4. Try to raise the seat to check that it is locked down. 5.
  • Page 22: Adjusting The Bucket Seats

    Bucket Seats If your vehicle has the bucket seats, the seatbacks can be folded down or reclined. The seats can also be adjusted forward or rearward and removed. One of the bucket seats may be equipped with a built-in child restraint. See Built-In Child Restraint on page 1-69 . Adjusting the Bucket Seats There are two adjustment levers on each seat to adjust the seat forward or rearward.
  • Page 23 Folding or Reclining the Seatbacks CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure it is locked.
  • Page 24: Removing The Bucket Seats

    To recline the seatback, pull the nylon strap or lift the recliner lever. Press back on the seatback until you reach the desired position, then let go of the strap or lever. To return the seatback to an upright position, pull on the nylon strap or lift the recliner lever without putting any pressure on the seatback.
  • Page 25 You can also lift the lever on the side of the seat to release the rear latches from the floor pins. Do not let go of the strap or lever until the seat is folded all the way forward. 4. To unlatch the front latches, with the seat folded forward, squeeze the angled bar toward the straight crossbar.
  • Page 26: Replacing The Bucket Seats

    Replacing the Bucket Seats CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure it is locked.
  • Page 27 Make sure the seats are in the full rear position before beginning this procedure. 1. With the seat folded, squeeze the angled bar toward the straight crossbar while placing the front hooks of the bucket seat onto the front two floor pins.
  • Page 28: Captain Chairs

    Captain Chairs If your vehicle has captain’s chairs, the chairs and seatbacks can be adjusted forward or rearward. Adjusting the Captain’s Chairs (Second Row) The second row captain’s chairs can be adjusted forward or rearward. There are two adjustment levers on each seat. One is located below the center, in front of the seat.
  • Page 29: Removing The Captain's Chairs

    Removing the Captain’s Chairs 2. The seat can then be lifted off the front floor pins and removed from the vehicle. 1. Pull the nylon strap behind the chair to release the rear hooks from the floor pins. 1-23...
  • Page 30: Replacing The Captain's Chairs

    Replacing the Captain’s Chairs CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure it is locked.
  • Page 31 Make sure the seatbacks are in the upright position, the seat belts are on the correct side of the chairs and the second row captain’s chairs are in the full rear position before beginning this procedure. 1. Hook the front latches over the front floor pins. 2.
  • Page 32: Stowable Seat

    Stowable Seat Your vehicle may have a stowable seat. The stowable seat is a full bench seat and comes with the convenience center. See Convenience Center on page 2-54 for more information. The stowable seat can be removed and replaced, or with the seatback folded, it can lie flush with the convenience center.
  • Page 33: Removing The Stowable Seat

    Removing the Stowable Seat 1. Remove the convenience center, if it is in the vehicle. See Convenience Center on page 2-54 for more information. 2. Make sure all items are off of the stowable seat. 3. If the seatback is down, put the seatback in its upright position before removing the seat.
  • Page 34: Replacing The Stowable Seat

    Replacing the Stowable Seat CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure it is locked.
  • Page 35 Do not put the stowable seat in so it faces rearward because it will not latch that way. The stowable seat has to go in before the convenience center. See Convenience Center on page 2-54 for more information. The stowable seat has seat position labels, located on the back of the seat, showing where the seat must go.
  • Page 36: Safety Belts: They Are For Everyone

    Safety Belts Safety Belts: They Are for Everyone This part of the manual tells you how to use safety belts properly. It tells you some things you should not do with safety belts. CAUTION: Do not let anyone ride where he or she can not wear a safety belt properly.
  • Page 37: Why Safety Belts Work

    You never know if you’ll be in a crash. If you do have a crash, you don’t know if it will be a bad one. A few crashes are mild, and some crashes can be so serious that even buckled up a person wouldn’t survive. But most crashes are in between.
  • Page 38 Put someone on it. 1-32 Get it up to speed. Then stop the vehicle. The rider doesn’t stop.
  • Page 39 The person keeps going until stopped by something. In or the instrument panel... a real vehicle, it could be the windshield... 1-33...
  • Page 40: Questions And Answers About Safety Belts

    or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That’s why safety belts make such good sense. 1-34 Questions and Answers About Safety Belts...
  • Page 41: How To Wear Safety Belts Properly

    If I am a good driver, and I never drive far from home, why should I wear safety belts? You may be an excellent driver, but if you are in an accident — even one that is not your fault — you and your passengers can be hurt.
  • Page 42: Driver Position

    Driver Position Lap-Shoulder Belt The driver has a lap-shoulder belt. Here is how to wear it properly. 1. Close and lock the door. 2. Adjust the seat so you can sit up straight. To see how, see “Seats” in the Index. 1-36 3.
  • Page 43 4. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. If the belt is not long enough, see Safety Belt Extender on page 1-49 . Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
  • Page 44 What is wrong with this? The shoulder belt is too loose. It will not give nearly as much protection this way. 1-38 CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
  • Page 45 What is wrong with this? The belt is buckled in the wrong place. CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones.
  • Page 46 What is wrong with this? The belt is over an armrest. 1-40 CAUTION: You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt.
  • Page 47 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
  • Page 48 What is wrong with this? The belt is twisted across the body. 1-42 CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to fix it.
  • Page 49: Shoulder Belt Height Adjustment

    To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
  • Page 50: Safety Belt Use During Pregnancy

    Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.
  • Page 51: Lap-Shoulder Belt

    Lap-Shoulder Belt All rear seating positions have lap-shoulder belts. Here is how to wear one properly. 1. Pick up the latch plate and pull the belt across you. Do not let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly.
  • Page 52 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
  • Page 53: Rear Safety Belt Comfort Guides For Children And Small Adults

    Rear Safety Belt Comfort Guides for Children and Small Adults Rear safety belt comfort guides will provide added safety belt comfort for older children who have outgrown booster seats and for small adults. When installed on a shoulder belt, the comfort guide better positions the belt away from the neck and head.
  • Page 54 2. Place the guide over the belt and insert the two 3. Be sure that the belt is not twisted and it lies flat. edges of the belt into the slots of the guide. The guide must be on top of the belt. 1-48...
  • Page 55: Safety Belt Pretensioners

    4. Buckle, position and release the safety belt as described in Rear Seat Passengers on page 1-44 . Make sure that the shoulder belt crosses the shoulder. To remove and store the comfort guides, squeeze the belt edges together so that you can take them out of the guides.
  • Page 56: Child Restraints

    Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. 1-50 What is the proper way to wear safety belts? If possible, an older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide.
  • Page 57 CAUTION: Never do this. Here two children are wearing the same belt. The belt can not properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time. What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt is very close to the child’s face or neck?
  • Page 58: Infants And Young Children

    CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt.
  • Page 59 CAUTION: People should never hold a baby in their arms while riding in a vehicle. A baby does not weigh much — until a crash. During a crash a baby will become so heavy it is not possible to hold it. For example, in a crash at only 25 mph (40 km/h), a 12-lb (5.5 kg) baby will suddenly become a 240-lb (110 kg) force on a person’s arms.
  • Page 60 1-54 CAUTION: Children who are up against, or very close to, any airbag when it inflates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
  • Page 61 For most basic types of child restraints, there are many different models available. When purchasing a child restraint, be sure it is designed to be used in a motor vehicle. If it is, the restraint will have a label saying that it meets federal motor vehicle safety standards.
  • Page 62: Child Restraint Systems

    Child Restraint Systems An infant car bed (A), a special bed made for use in a motor vehicle, is an infant restraint system designed to restrain or position a child on a continuous flat surface. Make sure that the infant’s head rests toward the center of the vehicle.
  • Page 63 A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields. A booster seat (F-G) is a child restraint designed to improve the fit of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a five-point harness.
  • Page 64 How do child restraints work? A child restraint system is any device designed for use in a motor vehicle to restrain, seat, or position children. A built-in child restraint system is a permanent part of the motor vehicle. An add-on child restraint system is a portable one, which is purchased by the vehicle’s owner.
  • Page 65: Where To Put The Restraint

    Where to Put the Restraint Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. We, therefore, recommend that child restraints be secured in a rear seat, including an infant riding in a rear-facing infant seat, a child riding in a forward-facing child seat and an older child riding in a booster seat.
  • Page 66 If the child restraint does not have a top strap, one can be obtained, in kit form, for many child restraints. Ask the child restraint manufacturer whether or not a kit is available. 1-60 In Canada, the law requires that forward-facing child restraints have a top strap, and that the strap be anchored.
  • Page 67: Top Strap Anchor Location

    Top Strap Anchor Location Third Row An anchor bar for a top strap is located at the rear of the seat cushion for each second and third row outboard seating position, and for the center position of the second row. Second Row 1-61...
  • Page 68: Lower Anchorages And Top Tethers For Children (Latch System)

    Third Row (Stowable Seat) The anchor bar for the stowable bench seat is located on the passenger’s side of the crossbar. Use the center seating position to use the anchor bar properly. If the convenience center is in the vehicle, you must lift the tray sill to use the anchor.
  • Page 69 A. Lower Anchorage B. Lower Anchorage C. Top Tether A. Lower Anchorage B. Lower Anchorage In order to use the LATCH system in your vehicle, you need a child restraint designed for that system. 1-63...
  • Page 70: Securing A Child Restraint Designed For The Latch System

    To assist you in locating the lower anchors for this child restraint system, each seating position with the LATCH system has a label on the seatback. The labels are located at each lower anchor position, near the base of the second row outboard bucket seats, the 40 side of the 60/40 split bench seat, and both second row captain’s chairs.
  • Page 71: Securing A Child Restraint In A Rear Seat Position

    Securing a Child Restraint in a Rear Seat Position If your child restraint is equipped with the LATCH system, see Lower Anchorages and Top Tethers for Children (LATCH System) on page 1-62 . See Top Strap on page 1-59 if the child restraint has a top strap or top tether.
  • Page 72 4. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. 1-66 5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor.
  • Page 73: Securing A Child Restraint In The Right Front Seat Position

    Securing a Child Restraint in the Right Front Seat Position Your vehicle has a front passenger airbag. Never put a rear-facing child restraint in this seat. Here is why: CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the front passenger’s airbag inflates.
  • Page 74 4. Buckle the belt. Make sure the release button is 5. Pull the rest of the lap belt all the way out of the positioned so you would be able to unbuckle the retractor to set the lock. safety belt quickly if you ever had to. 1-68...
  • Page 75: Built-In Child Restraint

    6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. You may find it helpful to use your knee to push down on the child restraint as you tighten the belt.
  • Page 76 60/40 Bench Seat If your vehicle has this option in a bucket seat, each bucket seat that has the built-in child restraint fits in only one location in your vehicle. To find out where a bucket seat that has a built-in child restraint must be located in your vehicle see Rear Seat Operation on page 1-7 .
  • Page 77: Securing A Child In The Built-In Child Restraint

    CAUTION: Using the vehicle’s built-in child restraint as a booster seat for a larger child could cause injury to the child in a sudden stop or crash. A child whose weight is over 40 pounds, whose height is over 40 inches or whose shoulders are above the shoulder belt slots for the harness system should use a restraint system that is appropriate for their size, either an...
  • Page 78 2. Rotate the head restraint rearward until it touches 3. Lower the child restraint cushion. the top of the seatback. Make sure there is no gap between the lower edge of the head restraint and the top of the seatback. 1-72...
  • Page 79 You will be using the child restraint’s harness (A) to secure your child. Do not use the vehicle’s safety belts. CAUTION: Using the vehicle’s regular safety belts on a child seated on the built-in child restraint cushion can cause serious injury to the child in a sudden stop or crash.
  • Page 80 4. Before placing the child in the child restraint, add slack to the shoulder harness. Pull the black shoulder harness release strap firmly. At the same time pull both shoulder harness straps through the slots in the seatback as shown. 5.
  • Page 81 7. Push the latch plate (B) into the buckle until it clicks. Be sure the buckle is free of any foreign objects that may prevent you from securing the latch plates. If you can not secure a latch plate, see your dealer for service before using the child restraint.
  • Page 82 11. Now fasten the left and right halves of the shoulder harness clip together. The clip can be easily pulled apart and is designed to pull apart during a collision. 1-76 CAUTION: A built-in child restraint harness that is not properly adjusted can cause injury to the child in a sudden stop or collision.
  • Page 83 12. Pull the shoulder harness adjustment strap (C) firmly until the harness is snugly adjusted around the child. You should not be able to put more than two fingers between the harness and the child’s chest. Make sure the harness and buckle strap are not twisted.
  • Page 84 Removing the Child from the Built-In Child Restraint 1. Unfasten the shoulder harness clip. 1-78 2. Unlatch the harness by pushing the button on the buckle. 3. Move one side of the harness off the child’s shoulder. 4. Move the other side of the harness off the child’s shoulder.
  • Page 85: Storing The Built-In Child Restraint

    Storing the Built-In Child Restraint Always properly store the built-in child restraint before using the vehicle’s lap-shoulder belt. 1. Move both latch plates and both sides of the shoulder harness clip to the bottom of the harness straps. 2. Fold the child restraint cushion and leg rest up into the seatback.
  • Page 86 4. Then press the leg rest firmly into the seatback, and secure it by pressing the upper corners against the fastener strips on the seatback. 1-80 5. Rotate the head restraint forward and push it all the way down. Just like the other restraint systems in your vehicle, your built-in child restraint needs to be periodically checked and may need to have parts replaced after a crash.
  • Page 87: Airbag System

    Airbag System Your vehicle has airbags — a frontal airbag for the driver and another frontal airbag for the right front passenger. Your vehicle may also have side impact airbags. Side impact airbags are available for the driver and right front passenger. If your vehicle has a side impact airbag for the driver and/or the right front passenger, the words AIR BAG will appear on the airbag covering on the side of the...
  • Page 88 Here are the most important things to know about the airbag system: CAUTION: You can be severely injured or killed in a crash if you are not wearing your safety belt — even if you have airbags. Wearing your safety belt during a crash helps reduce your chance of hitting things inside the vehicle or being ejected from it.
  • Page 89 CAUTION: Both frontal and side impact airbags inflate with great force, faster than the blink of an eye. If you are too close to an inflating airbag, as you would be if you were leaning forward, it could seriously injure you. Safety belts help keep you in position for airbag inflation before and during a crash.
  • Page 90: Where Are The Airbags

    There is an airbag readiness light on the instrument panel cluster, which shows the airbag symbol. The system checks the airbag electrical system for malfunctions. The light tells you if there is an electrical problem. See Airbag Readiness Light on page 3-38 for more information.
  • Page 91 The right front passenger’s frontal airbag is in the instrument panel on the passenger’s side. If your vehicle has one, the driver’s side impact airbag is in the side of the driver’s seatback closest to the door. 1-85...
  • Page 92 If your vehicle has one, the right front passenger’s side impact airbag is in the side of the passenger’s seatback closest to the door. 1-86 CAUTION: If something is between an occupant and an airbag, the airbag might not inflate properly or it might force the object into that person causing severe injury or even death.
  • Page 93: When Should An Airbag Inflate

    When Should an Airbag Inflate? The driver’s and right front passenger’s frontal airbags are designed to inflate in moderate to severe frontal or near-frontal crashes. But they are designed to inflate only if the impact exceeds a predetermined deployment threshold. Deployment thresholds take into account a variety of desired deployment and non-deployment events and are used to predict how severe a crash is likely to be in time for the airbags to inflate and help...
  • Page 94: What Makes An Airbag Inflate

    The frontal airbags (driver and right front passenger) are not intended to inflate during vehicle rollovers, rear impacts, or in many side impacts because inflation would not likely help the occupants. Your vehicle may or may not have a side impact airbag. See Airbag System on page 1-81 .
  • Page 95: How Does An Airbag Restrain

    How Does an Airbag Restrain? In moderate to severe frontal or near frontal collisions, even belted occupants can contact the steering wheel or the instrument panel. In moderate to severe side collisions, even belted occupants can contact the inside of the vehicle. The airbag supplements the protection provided by safety belts.
  • Page 96 Airbag inflation does not prevent the driver from seeing or being able to steer the vehicle, nor does it stop people from leaving the vehicle. CAUTION: When an airbag inflates, there is dust in the air. This dust could cause breathing problems for people with a history of asthma or other breathing trouble.
  • Page 97: Servicing Your Airbag-Equipped Vehicle

    Servicing Your Airbag-Equipped Vehicle Airbags affect how your vehicle should be serviced. There are parts of the airbag system in several places around your vehicle. Your dealer and the service manual have information about servicing your vehicle and the airbag system. To purchase a service manual, see Service Publications Ordering Information on page 7-11 .
  • Page 98: Replacing Restraint System Parts After A Crash

    Replacing Restraint System Parts After a Crash CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as soon as possible.
  • Page 99: Features And Controls

    Section 2 Keys ...2-3 Remote Keyless Entry System ...2-4 Remote Keyless Entry System Operation ...2-5 Doors and Locks ...2-9 Door Locks ...2-9 Power Door Locks ...2-10 Last Door Closed Locking ...2-11 Programmable Automatic Door Locks ...2-12 Lockout Protection ...2-12 Dual Sliding Doors ...2-13 Power Sliding Door (PSD) ...2-16 Liftgate ...2-21 Windows ...2-23...
  • Page 100 Section 2 ® HomeLink Transmitter ...2-44 ® Programming the HomeLink Transmitter ...2-45 Storage Areas ...2-48 Glove Box ...2-48 Cupholder(s) ...2-48 Compact Overhead Console ...2-49 Overhead Console ...2-49 Front Seat Storage Net ...2-51 Luggage Carrier ...2-52 Rear Storage Area ...2-53 Convenience Net ...2-53 Convenience Center ...2-54 Features and Controls Vehicle Personalization ...2-57...
  • Page 101: Keys

    Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. They could operate the power windows or other controls or even make the vehicle move. The children or others could be badly injured or even killed.
  • Page 102: Remote Keyless Entry System

    ® Your vehicle has the PASS-Key system. The key has a transponder in the key head that matches a decoder in the vehicle’s steering column. If a replacement key or any additional key is needed, you must purchase this key from your dealer. The key will have PK3 stamped on it.
  • Page 103: Remote Keyless Entry System Operation

    At times you may notice a decrease in range. This is normal for any remote keyless entry system. If the transmitter does not work or if you have to stand closer to your vehicle for the transmitter to work, try this: •...
  • Page 104: Remote Power Sliding Door Operation

    With the content theft-deterrent system, the UNLOCK button on the remote keyless entry transmitter will disarm the system. See Content Theft-Deterrent on page 2-26 for more details. When you use your remote keyless entry transmitter to unlock your vehicle or to operate the power sliding door(s), the parking lamps will flash to let you know the command was received.
  • Page 105: Matching Transmitter(S) To Your Vehicle

    You can operate the power sliding door(s) with the remote keyless entry transmitter only when the power sliding door override switch(es) on the overhead console is turned off. See Power Sliding Door (PSD) on page 2-16 . If your vehicle’s fuel filler door is opened, the driver’s side power sliding door will not open completely.
  • Page 106: Battery Replacement

    Battery Replacement Under normal use, the battery in your remote keyless entry transmitter should last about three years. You can tell the battery is weak if the transmitter will not work at the normal range in any location. If you have to get close to your vehicle before the transmitter works, it is probably time to change the battery.
  • Page 107: Doors And Locks

    Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers — especially children — can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked.
  • Page 108: Power Door Locks

    From the inside, use the manual or power door locks. To unlock either front door from the inside, pull back on the manual lever. To lock either front door from the inside, push the manual lever forward. 2-10 Power Door Locks From the inside, press the front of the power door lock switch, located on either front door, to unlock all doors and the liftgate.
  • Page 109: Last Door Closed Locking

    You can lock all doors and the liftgate from the inside by pressing the rear of the power lock switch on either front door. With the content theft-deterrent system, the power door lock switch may cause the system to arm. See Content Theft-Deterrent on page 2-26 for more details.
  • Page 110: Programmable Automatic Door Locks

    Programmable Automatic Door Locks All of the doors will lock automatically when you move your shift lever out of PARK (P). All doors will unlock automatically when the ignition is turned off while the shift lever is in PARK (P). If someone needs to get out while you are not in PARK (P), have that person use the manual lever or the power door lock switch.
  • Page 111: Dual Sliding Doors

    Dual Sliding Doors Sliding Door Lock To open either sliding door from outside the vehicle, pull the handle out and then pull the door toward the rear. If you slide the door all the way back, the door will rest in a detent position.
  • Page 112 CAUTION: If your vehicle is facing downward on a steep grade (15 percent or more), the door may not stay open and could slam shut, possibly injuring someone. To make sure the door does not slam shut be sure to hold it open until everyone is clear of the door, and only then allow it to slowly close.
  • Page 113: Canceling The Sliding Door Security Lock

    Sliding Door Security Lock Your vehicle is equipped with a sliding door security lock that helps prevent young children or other passengers from opening the sliding door(s) using the inside door handle. To use one of these locks, do the following: 1.
  • Page 114: Power Sliding Door (Psd)

    Power Sliding Door (PSD) If your vehicle has this feature, you can open and close the sliding door(s) using the switches inside of your vehicle. You can also operate the power sliding door(s) with your remote keyless entry transmitter. See Remote Keyless Entry System on page 2-4 .
  • Page 115 If you have the dual sliding doors, your vehicle has these switches. The left switch is for the driver’s side power sliding door and the right switch is for the passenger’s side sliding door. The power sliding door and the power sliding door override is one switch.
  • Page 116 CAUTION: If you shift the transaxle out of PARK (P) and accelerate before the power sliding door latches closed, the door may reverse to the open position. A child or others could fall out of the vehicle and be injured. Always make sure the power sliding door is closed and latched before you drive away.
  • Page 117 To open the power sliding door(s) when the power sliding door override switch(es) is on, pull the inside or outside handle and slide the door all the way back. CAUTION: If your vehicle is facing downward on a steep grade (15 percent or more), the door may not stay open and could slam shut, possibly injuring someone.
  • Page 118: Resetting The Power Sliding Door

    Resetting the Power Sliding Door The power sliding door may operate incorrectly or not at all because of the following conditions: • A low voltage or dead battery • A disconnected battery • If the instrument panel PWR/HEATED SEAT PSD fuse or the underhood fuse 8, 27, or 29 are removed or blown.
  • Page 119: Liftgate

    Liftgate To unlock or lock the liftgate from the outside, use the remote keyless entry transmitter. For more information, see Remote Keyless Entry System Operation on page 2-5 . Open the liftgate using the handle located above the license plate. Once slightly opened, the liftgate will rise by itself.
  • Page 120 To close the liftgate, pull down on the handle, then firmly shut the liftgate. Don’t drive with the liftgate open, even slightly. See Engine Exhaust on page 2-40 . A message in your instrument panel cluster will warn you if the liftgate is not completely closed. See Rear Hatch Ajar Warning Message on page 3-50 .
  • Page 121: Windows

    Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
  • Page 122: Power Windows

    Power Windows 2-24 If your vehicle has power windows, the switches on the driver’s door armrest control the front windows when the ignition is in RUN, ACCESSORY or when Retained Accessory Power (RAP) is active. See Retained Accessory Power (RAP) on page 2-31 . The driver’s power window switch has two down positions.
  • Page 123: Power Rear Quarter Windows

    Power Rear Quarter Windows Your vehicle may have power rear quarter windows. This switch, located in the overhead console switchbank, is used for opening and closing the power rear quarter windows. Press the textured part of the switch to open the windows;...
  • Page 124: Content Theft-Deterrent

    Content Theft-Deterrent Your vehicle may have a theft-deterrent alarm system. A light located on top of your instrument panel, near the center of the vehicle next to the windshield, will flash slowly to let you know that the system has been armed. While armed, the doors will not unlock with the power door lock switch.
  • Page 125: Disarming With Your Key

    Arming with the Remote Keyless Entry Transmitter Your alarm system will arm when you use your remote keyless entry transmitter to lock the doors, if the key is not in the ignition. The security light will turn on to let you know the system is arming.
  • Page 126: Theft-Deterrent Systems

    ® PASS-Key ® Your PASS-Key III system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
  • Page 127 If the engine still does not start, and the key appears to be undamaged, try another ignition key. At this time, you may also want to check the instrument panel PASS KEY fuse. If the engine still does not start with the other key, your vehicle needs service.
  • Page 128: Starting And Operating Your Vehicle

    Starting and Operating Your Vehicle New Vehicle Break-In Notice: Your vehicle does not need an elaborate break-in. But it will perform better in the long run if you follow these guidelines: • Do not drive at any one speed — fast or slow —...
  • Page 129: Retained Accessory Power (Rap)

    B (LOCK): This is the only position from which you can remove the key. This position locks your ignition and transaxle. Notice: Using a tool to force the key from the ignition switch could cause damage or break the key. Use the correct key and turn the key only with your hand.
  • Page 130: To Use The Engine Coolant Heater

    Notice: Holding your key in START for longer than 15 seconds at a time will cause your battery to be drained much sooner. And the excessive heat can damage your starter motor. Wait about 15 seconds between each try to help avoid draining your battery or damaging your starter.
  • Page 131: Automatic Transaxle Operation

    CAUTION: Plugging the cord into an ungrounded outlet could cause an electrical shock. Also, the wrong kind of extension cord could overheat and cause a fire. You could be seriously injured. Plug the cord into a properly grounded three-prong 110-volt AC outlet. If the cord will not reach, use a heavy-duty three-prong extension cord rated for at least 15 amps.
  • Page 132 If you cannot shift out of PARK (P), ease pressure on the shift lever – push the shift lever all the way into PARK (P) as you maintain brake application. Then move the shift lever into the gear you wish. See Shifting Out of Park (P) on page 2-39 .
  • Page 133: Warm-Up Shift

    Notice: Shifting out of PARK (P) or NEUTRAL (N) with the engine racing may damage the transaxle. The repairs would not be covered by your warranty. Be sure the engine is not racing when shifting your vehicle. AUTOMATIC OVERDRIVE (D): This position is for normal driving.
  • Page 134 SECOND (2): This position gives you more power but lower fuel economy than THIRD (3). You can use SECOND (2) on hills. It can help control your speed as you go down steep mountain roads, but then you would also want to use your brakes off and on. Notice: Driving in SECOND (2) for more than 25 miles (40 km) or at speeds over 55 mph (90 km/h) may damage the transaxle.
  • Page 135: Parking Brake

    Parking Brake The parking brake is located under the instrument panel on the driver’s side of the vehicle. To set the parking brake, hold the regular brake pedal down with your right foot and push down on the parking brake pedal with your left foot. If the ignition is on, the brake system warning light will come on.
  • Page 136: Shifting Into Park (P)

    Shifting Into Park (P) CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake firmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
  • Page 137: Torque Lock

    Torque Lock If you are parking on a hill and you do not shift your vehicle into PARK (P) properly, the weight of the vehicle may put too much force on the parking pawl in the transmission. You may find it difficult to pull the shift lever out of PARK (P).
  • Page 138: Parking Over Things That Burn

    Parking Over Things That Burn CAUTION: Things that can burn could touch hot exhaust parts under your vehicle and ignite. Do not park over papers, leaves, dry grass or other things that can burn. 2-40 Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you cannot see or smell.
  • Page 139: Running Your Engine While You Are Parked

    Running Your Engine While You Are Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle.
  • Page 140: Mirrors

    Mirrors Manual Rearview Mirror The manual rearview mirror can be adjusted for day or night driving by pushing or pulling the tab at the bottom of the mirror. Outside Power Mirrors The control located on the driver’s door operates both outside rearview mirrors.
  • Page 141: Outside Heated Mirrors

    Outside Heated Mirrors If the vehicle has outside heated rearview mirrors, they are activated when the rear window defogger is turned on. See “Rear Window Defogger” in Climate Control System on page 3-26 . ® OnStar System ® OnStar uses global positioning system (GPS) satellite technology, wireless communications, and call centers to provide you with a wide range of safety, security, information, and convenience services.
  • Page 142: Homelink Transmitter

    ® OnStar Personal Calling ® As an OnStar subscriber, the Personal Calling capability is available if your hand-held cell phone is lost, forgotten, or has a low battery. It is a hands-free wireless phone that is integrated into the vehicle. Calls can be placed nationwide using simple voice commands with no additional contracts and no additional roaming charges.
  • Page 143: Programming The Homelink Transmitter

    This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference received, including interference that may cause undesired operation of the device. Changes and modifications to this system by other than an authorized service facility could void authorization to use this equipment.
  • Page 144 2. Position the end of your hand-held transmitter about 1 to 3 inches (3 to 8 cm) away from the ® HomeLink buttons while keeping the indicator light in view. 3. Simultaneously press and hold both the desired ® button on HomeLink and the hand-held transmitter button.
  • Page 145: Gate Operator And Canadian Programming

    Gate Operator and Canadian Programming Canadian radio-frequency laws require transmitter signals to “time out” or quit after several seconds of transmission. This may not be long enough for ® HomeLink to pick up the signal during programming. Similarly, some U.S. gate operators are manufactured to “time out”...
  • Page 146: Storage Areas

    Resetting Defaults ® To reset HomeLink to default settings do the following: 1. Hold down the two outside buttons for about 20 seconds until the indicator light begins to flash. 2. Continue to hold both buttons until the HomeLink indicator light turns off. 3.
  • Page 147: Compact Overhead Console

    Compact Overhead Console The front overhead console includes two reading lamps, a storage compartment and a switchbank. Overhead Console If your vehicle is equipped with an overhead console, it may contain the following: • Reading lamps. See Front Reading Lamps on page 3-20 or Rear Reading Lamps on page 3-20 .
  • Page 148: Garage Door Opener Compartment

    Garage Door Opener Compartment You can store your garage door opener in the rear compartment of your overhead console, and operate it from this position. To install your garage door opener, follow these instructions: 1. Open the compartment by pressing the latch forward.
  • Page 149: Front Seat Storage Net

    5. Add one peg at a time until your garage door opener operates with the compartment door closed when you press on it. Front Seat Storage Net There may be a storage net that stretches between the front seats. Pull the hooks towards the passenger’s seat and insert them into the holes.
  • Page 150: Luggage Carrier

    Luggage Carrier CAUTION: If you try to carry something on top of your vehicle that is longer or wider than the luggage carrier — like paneling, plywood, a mattress and so forth — the wind can catch it as you drive along.
  • Page 151: Rear Storage Area

    Notice: Loading cargo on the luggage carrier that weighs more than 150 lbs (68 kg) or hangs over the rear or sides of the vehicle may damage your vehicle. Load cargo so that it rests on the slats as far forward as possible and against the side rails, making sure to fasten it securely.
  • Page 152: Convenience Center

    2. Attach the lower hooks to the metal rings on the floor. 3. Once you’ve loaded items into the net, stretch the higher side of the net up and over the top of the load to hold it firmly in place. The convenience net has a maximum capacity of 100 lbs (45 kg).
  • Page 153: Replacing The Convenience Center

    Removing the Convenience Center 1. Make sure that all items are off the convenience center and that it is empty. 2. There is a knob (A) for the convenience center at rear of the vehicle near the handle (B) for the convenience center.
  • Page 154 5. Slide the convenience center in and align it so that the forks, located on the bottom rear of the convenience center, slide into the seat anchors. 6. Press down on the front of the convenience center so the center locates on the sill mounting bracket. 7.
  • Page 155: Vehicle Personalization

    Vehicle Personalization Your vehicle’s locks and lighting systems can be programmed with several different features. The features you can program depend on the options that came with your vehicle. The following chart shows the features that can be programmed. To determine which features your vehicle is equipped with, follow the steps listed for entering the programming mode.
  • Page 156: Entering Programming Mode

    Entering Programming Mode To program features, your vehicle must be in the programming mode. Follow these steps: 1. The content theft-deterrent system must be disarmed. See Content Theft-Deterrent on page 2-26 . 2. Remove the BCM PRGRM fuse from the instrument panel fuse block, located to the right of the glove box.
  • Page 157: Automatic Door Locks

    Your vehicle was originally programmed to Mode 4. The mode may have been changed since then. To determine the current mode, or to change the mode, do the following: 1. Follow the instructions for “Entering Programming Mode” earlier in this section. 2.
  • Page 158: Last Door Locking And Lockout Deterrent

    Mode 4: Automatic Unlocking with Transaxle in PARK (P) • Shift into PARK (P) with the ignition on; all doors will unlock automatically. • Shift out of PARK (P) with the ignition on and the driver’s door closed; all doors will lock automatically. Your vehicle was originally programmed to Mode 3.
  • Page 159: Remote Driver Unlock Control

    Your vehicle was originally programmed to Mode 4. The mode may have been changed since then. To determine the current mode, or to change the mode, do the following: 1. Follow the instructions for Entering Programming Mode on page 2-58 . 2.
  • Page 160: Remote Lock And Unlock Confirmation

    3. Count the number of chimes you hear. The number of chimes indicates the vehicle’s current programmed mode. If you do not wish to change the current mode, you can either exit the programming mode by following the instructions later in this section or program the next feature available on your vehicle.
  • Page 161: Content Theft-Deterrent System

    Mode 4: Exterior Lamps Flash and Horn Sounds on second LOCK press • When you use the remote keyless entry transmitter to lock your vehicle, your parking lamps will flash to let you know the command has been received. The horn will sound and your parking lamps will flash if you press the LOCK button again within five seconds.
  • Page 162: Arming And Disarming The Content Theft-Deterrent System

    Your vehicle was originally programmed to Mode 4. The mode may have been changed since then. To determine the current mode, or to change the mode, do the following: 1. Follow the instructions for Entering Programming Mode on page 2-58 . 2.
  • Page 163 Mode 2: Remote Keyless Entry Transmitter Arm/Disarm Only • The system will arm when you lock the doors with your remote keyless entry transmitter. The key must be removed from the ignition when you lock the doors or the content theft-deterrent system will not arm.
  • Page 164: Exiting Programming Mode

    3. Press the button with the horn symbol on the remote keyless entry transmitter. 4. Count the number of chimes you hear. The number of chimes indicates the vehicle’s current programmed mode. If you do not wish to change the current mode, you can either exit the programming mode by following the instructions later in this section or program the next feature available on your vehicle.
  • Page 165 Section 3 Instrument Panel Overview ...3-4 Hazard Warning Flashers ...3-6 Other Warning Devices ...3-6 Horn ...3-6 Tilt Wheel ...3-6 Turn Signal/Multifunction Lever ...3-7 Turn and Lane-Change Signals ...3-8 Headlamp High/Low-Beam Changer ...3-9 Flash-to-Pass ...3-9 Windshield Wipers ...3-9 Windshield Washer ...3-10 Cruise Control ...3-12 Exterior Lamps ...3-15 Daytime Running Lamps/Automatic...
  • Page 166 Section 3 Warning Lights, Gages, and Indicators ...3-34 Instrument Panel Cluster ...3-35 Speedometer and Odometer ...3-36 Dual Trip Odometers ...3-36 Tachometer ...3-37 Safety Belt Reminder Light ...3-38 Airbag Readiness Light ...3-38 Brake System Warning Light ...3-39 Anti-Lock Brake System Warning Light ...3-40 Traction Control System (TCS) Warning Light ...3-40 Engine Coolant Temperature Gage ...3-41...
  • Page 167 NOTES...
  • Page 168: Instrument Panel Overview

    Instrument Panel Overview...
  • Page 169 The main components of the instrument panel are the following: A. Side Outlets. See Outlet Adjustment on page 3-28 . B. Front Outlets. See Outlet Adjustment on page 3-28 . C. Turn Signal/Multifunction Lever. See Turn Signal/Multifunction Lever on page 3-7 . D.
  • Page 170: Hazard Warning Flashers

    Hazard Warning Flashers Your hazard warning flashers let you warn others. They also let police know you have a problem. Your front and rear turn signal lamps will flash on and off. The hazard warning flasher button is located on top of the steering column.
  • Page 171: Turn Signal/Multifunction Lever

    Turn Signal/Multifunction Lever The lever on the left side of the steering column includes the following: • Turn and Lane-Change Signals. See Turn and Lane-Change Signals on page 3-8 . • Headlamp High/Low-Beam Changer. See Headlamp High/Low-Beam Changer on page 3-9 . •...
  • Page 172: Turn And Lane-Change Signals

    Turn and Lane-Change Signals The turn signal has two upward (for right) and two downward (for left) positions. These positions allow you to signal a turn or a lane change. To signal a turn, move the lever all the way up or down.
  • Page 173: Headlamp High/Low-Beam Changer

    Headlamp High/Low-Beam Changer To change the headlamps from high to low beam or from low to high, pull the turn signal lever all the way toward you and release it. When the high beams are on, this light on the instrument panel cluster will also be on.
  • Page 174: Windshield Washer

    DELAY: Turn the band away from you to one of the five sensitivity settings between OFF and LOW, to choose the delayed wiping cycle. The further the band is turned toward LOW, the shorter the delay will be. Use this setting for light rain or snow. Remember that damaged wiper blades may prevent you from seeing well enough to drive safely.
  • Page 175: Rear Window Washer/Wiper

    Rear Window Washer/Wiper If your vehicle has a rear window wiper, the switch is located in the instrument panel switchbank. Press the wiper symbol on the bottom of the switch to turn on the intermittent wiper. To turn off the wiper, press the top of the switch.
  • Page 176: Cruise Control

    Cruise Control Your vehicle may have cruise control. With cruise control, you can maintain a speed of about 25 mph (40 km/h) or more without keeping your foot on the accelerator. This can really help on long trips. Cruise control does not work at speeds below about 25 mph (40 km/h).
  • Page 177: Resuming A Set Speed

    3. Press the SET button at the end of the lever and release it. 4. Take your foot off the accelerator pedal. Resuming a Set Speed Suppose you set your cruise control at a desired speed and then you apply the brake. This, of course, shuts off the cruise control.
  • Page 178 Reducing Speed While Using Cruise Control To reduce your speed while using cruise control, do one of the following: • Press the SET button at the end of the lever until you reach the lower speed you want, then release it. •...
  • Page 179: Exterior Lamps

    Exterior Lamps The control to the left of the steering column operates the exterior lamps. (Off/Auto): Turning the control to this setting will activate the automatic headlamps when it is dark enough outside and turn off all the lamps and lights during the day except the Daytime Running Lamps (DRL).
  • Page 180: Daytime Running Lamps/Automatic Headlamp System

    Daytime Running Lamps/Automatic Headlamp System Daytime Running Lamps (DRL) can make it easier for others to see the front of your vehicle during the day. DRL can be helpful in many different driving conditions, but they can be especially helpful in the short periods after dawn and before sunset.
  • Page 181: Fog Lamps

    Fog Lamps Your vehicle may have fog lamps. If it does, the fog lamps switch is located in the instrument panel switchbank. Press the fog lamp symbol on the switch to turn on the lamps. The indicator light will be lit while the fog lamps are on. Press the top part of the switch to turn them off.
  • Page 182: Interior Lamp Override

    Interior Lamp Override This switch is located in the overhead console switchbank. Press the bottom of the switch to keep the interior lamps off while any door is open, or the top of the switch to allow the interior lamps to come on while any door is open.
  • Page 183: Delayed Lighting

    Delayed Lighting The delayed lighting feature will continue to illuminate the interior for 25 seconds after all doors have been closed, so that you can find your ignition and buckle your safety belt at night. Delayed lighting will not occur while the ignition is in RUN or ACCESSORY.
  • Page 184: Front Reading Lamps

    Front Reading Lamps There are two reading lamps in the overhead console. To turn either reading lamp on or off, press the lens of the lamp. These lamps will come on each time you open a door, unless you turn on the interior lamps override feature.
  • Page 185: Battery Run-Down Protection

    Battery Run-Down Protection Your vehicle has a feature to help prevent you from draining the battery, in case you accidentally leave the interior lamps on. If you leave any interior lamps on while the ignition is in LOCK or OFF, they will automatically turn off after 10 minutes.
  • Page 186: Overhead Console Switchbank

    If your vehicle is not equipped with the optional rear climate control system, there will be a storage space in this switchbank. The rubber mat can be removed for cleaning. Snap the mat into place after cleaning. Overhead Console Switchbank The overhead console switchbank is located in the overhead console.
  • Page 187 CAUTION: Even with the Ultrasonic Rear Park Assist system, the driver must check carefully before backing up. The system does not operate above typical backing speeds of 3 mph (5 km/h) while parking. And, the system does not detect objects that are more than 5 feet (1.5 meters) behind the vehicle.
  • Page 188: How The System Works

    How the System Works Unless disabled, the URPA will turn on automatically when the shift lever is moved into REVERSE (R). When the system turns on, the three lights on the display will illuminate for one and a half seconds to let you know that the system is working.
  • Page 189: Accessory Power Outlets

    Accessory Power Outlets With accessory power outlets you can plug in electrical equipment such as a cellular telephone or CB radio. The front accessory power outlet is located below the cupholder drawer. Pull the cover down to use the accessory power outlet. When not in use, keep the cover on.
  • Page 190: Climate Controls

    Climate Controls Climate Control System With this system you can control the heating, cooling and ventilation for your vehicle. Operation Turn the right knob clockwise or counterclockwise to direct the airflow inside of your vehicle. To change the current mode, select one of the following: (Vent): This mode directs air to the instrument panel outlets.
  • Page 191: Defogging And Defrosting

    (Recirculation): This mode keeps outside air from coming in the vehicle. It can be used to prevent outside air and odors from entering your vehicle or help heat or cool the air inside your vehicle more quickly. Press this button to turn the recirculation mode on or off. When the button is pressed, an indicator light will come on.
  • Page 192: Rear Window Defogger

    (Defrost): Pressing this button directs most of the air to the windshield and the side window outlets, with some air directed to the floor outlets. In this mode, the system will automatically turn off recirculation and run the air-conditioning compressor, unless the outside temperature is at or below freezing.
  • Page 193: Rear Climate Control System (Without Entertainment System)

    Rear Climate Control System (Without Entertainment System) Your vehicle may have a rear climate control system that allows the driver to adjust the fan speed or a rear-seat passenger to set a separate temperature and adjust the fan speed, for the rear seating area. This system works with the main climate control system in your vehicle.
  • Page 194: Rear Air Outlets

    To direct the airflow to the rear seating area, use the right knob located on the main climate control panel. • Select vent or bi-level mode to direct air to the rear of the vehicle through the overhead outlets. • Select floor, defog, or defrost mode to direct air to the rear of the vehicle through the floor outlets.
  • Page 195: (With Entertainment System)

    Rear Climate Control System (With Entertainment System) Your vehicle may have a rear climate control system that allows the driver to adjust the fan speed or a rear seat passenger to set a separate temperature and adjust the fan speed, for the rear seating area. This system works with the main climate control system in your vehicle.
  • Page 196: Passenger Compartment Air Filter

    (Fan): If the driver is adjusting the fan speed, use this control. Turn the fan knob on the rear fan control located below the main climate control system on the switchbank to numeral 1, 2, or 3 to increase or decrease airflow to the rear seating area.
  • Page 197 The access panel for the passenger compartment air filter is located in the back of the glove box. To replace the filter, do the following: 1. Pull the tab located on the outer access panel up and out. 2. Then push the tab, located on the left of the inner access panel, to the right.
  • Page 198: Warning Lights, Gages, And Indicators

    Warning Lights, Gages, and Indicators This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement.
  • Page 199: Instrument Panel Cluster

    Instrument Panel Cluster Your instrument panel cluster is designed to let you know at a glance how your vehicle is running. You’ll know how fast you’re going, how much fuel you’re using, and many other things you’ll need to drive safely and economically. The indicator warning lights and gages are explained on the following pages.
  • Page 200: Speedometer And Odometer

    Speedometer and Odometer Your speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). Your odometer shows how far your vehicle has been driven, in either miles (used in the United States) or kilometers (used in Canada). Your vehicle has a tamper-resistant odometer.
  • Page 201: Retro-Active Reset

    Retro-Active Reset Each of the two trip odometers has a feature called retro-active reset. This feature can be used to set either or both trip odometer(s) to the number of miles (kilometers) driven since the ignition was last turned on. This can be used if you forget to reset your trip odometer at the beginning of a trip.
  • Page 202: Safety Belt Reminder Light

    Safety Belt Reminder Light When the key is turned to RUN or START, a chime will come on for several seconds to remind people to fasten their safety belts. The safety belt light will also come on and stay on for several seconds.
  • Page 203: Brake System Warning Light

    The airbag readiness light should flash for a few seconds when you turn the ignition key to RUN. If the light doesn’t come on then, have it fixed so it will be ready to warn you if there is a problem. Brake System Warning Light When the ignition is on, the brake system warning light will come on when you set your parking brake.
  • Page 204: Anti-Lock Brake System Warning Light

    Anti-Lock Brake System Warning Light Your vehicle may have this light. If it does, the anti-lock brake system warning light should come on for a few seconds when you turn the ignition key to RUN. If the anti-lock brake system warning light stays on longer than normal after you’ve started your engine, turn the ignition off.
  • Page 205: Engine Coolant Temperature Gage

    • If the traction control system is affected by an engine-related problem, the system will turn off and the warning light will come on. If the traction control system warning light comes on and stays on for an extended period of time when the system is turned on, your vehicle needs service.
  • Page 206: If The Light Is Flashing

    This may prevent more serious damage to your vehicle. This system is also designed to assist your service technician in correctly diagnosing any malfunction. Notice: If you keep driving your vehicle with this light on, after awhile, your emission controls may not work as well, your fuel economy may not be as good, and your engine may not run as smoothly.
  • Page 207: If The Light Is On Steady

    If the Light Is On Steady You may be able to correct the emission system malfunction by considering the following: Did you recently put fuel into your vehicle? If so, reinstall the fuel cap, making sure to fully install the cap. See Filling Your Tank on page 5-8 . The diagnostic system can determine if the fuel cap has been left off or improperly installed.
  • Page 208: Emissions Inspection And Maintenance Programs

    Emissions Inspection and Maintenance Programs Some state/provincial and local governments have or may begin programs to inspect the emission control equipment on your vehicle. Failure to pass this inspection could prevent you from getting a vehicle registration. Here are some things you need to know in order to help your vehicle pass an inspection: Your vehicle will not pass this inspection if the SERVICE ENGINE SOON or check engine light is on or not...
  • Page 209: Fuel Gage

    Fuel Gage United States When the indicator nears empty, you still have a little fuel left, but you should get more soon. If your fuel is low, the warning message in the message center will come on. See Low Fuel Warning Message on page 3-51 .
  • Page 210: Service Traction System Warning Message

    Service Traction System Warning Message United States If your vehicle has the traction control system and this message is displayed when you’re driving, there may be a problem with your traction control system. Your vehicle may need service. When this message is displayed, the traction control system will not limit wheel spin.
  • Page 211: Engine Coolant Temperature Warning Message

    Engine Coolant Temperature Warning Message United States This message will come on when your engine gets too hot. If this message comes on, it means that your engine coolant has overheated. If you have been operating your vehicle under normal driving conditions, you should pull off the road, stop your vehicle and turn off the engine as soon as possible.
  • Page 212: Low Oil Pressure Message

    Low Oil Pressure Message United States Your vehicle is equipped with a low oil pressure warning message. Your oil pressure message lets you know when you may have a problem with your engine oil pressure. When the engine is running and this message appears, the engine oil level may be too low.
  • Page 213: Change Engine Oil Message

    Change Engine Oil Message United States When this message comes on and stays on after you have started the engine, it means that service is required for your vehicle. See Scheduled Maintenance on page 6-4 and Engine Oil on page 5-13 for more information.
  • Page 214: Door Ajar Warning Message

    Door Ajar Warning Message United States This message will come on when the ignition is turned to RUN or START and the driver’s or passenger’s door is open. It may also come on if a sliding door is not in the fully latched position.
  • Page 215: Low Fuel Warning Message

    ® PASS-Key III Security Message United States If you are ever driving and this message comes on and stays on, you will be able to restart your engine if you turn it off. ® Your PASS-Key III system, however, is not working properly and must be serviced by your dealer.
  • Page 216: Driver Information Center (Dic)

    Driver Information Center (DIC) Your vehicle may have a DIC. If it does, the DIC will show information about the vehicle and the surroundings. E/M (English/Metric Button): You can change the display to a metric or English reading at any time by pressing E/M.
  • Page 217: Automatic Compass Calibration

    Setting the Variance Turn the ignition on and cycle the DIC to the compass/temperature mode. Press both the E/M and MODE buttons simultaneously for about five seconds. The last entered variance zone number will be displayed. Press the E/M button until the proper variance number, as shown on the map for your location is shown.
  • Page 218: Resetting The Trip Computer

    Error Displays • An error of the vehicle’s speed sensor or fuel sender will cause -E- to be displayed. • In the absence of vehicle communications, a dash “- -” is displayed. If one of these error messages appear, see your dealer. Trip Computer There are five trip computer displays available by pushing the MODE button.
  • Page 219: Audio System(S)

    Audio System(s) Notice: Before adding any sound equipment to your vehicle, like a tape player, CB radio, mobile telephone, or two-way radio, make sure that it can be added by checking with your dealer. Also, check federal rules covering mobile radio and telephone units.
  • Page 220: Radio With Cd (Mp3)

    Radio with CD (Base Level) Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, the radio can do the following: •...
  • Page 221: Playing The Radio

    Playing the Radio PWR (Power): Push this knob to turn the system on and off. VOL (Volume): Turn this knob to increase or to decrease the volume. RCL (Recall): Push this knob to switch the display between the radio station frequency and the time. Push this knob to display the time with the ignition off.
  • Page 222: Setting Preset Stations

    SCAN : Press and hold either SCAN arrow for two seconds until SCAN appears on the display and you hear a beep. The radio will go to a station, play for a few seconds, then go on to the next station. Press either SCAN arrow again to stop scanning.
  • Page 223: Adjusting The Speakers (Balance/Fade)

    3. Press and hold the EQ button for two seconds. SELECT EQ # will appear on the display and the EQ symbol will flash. 4. Press EQ or turn the SELECT knob to select the EQ number. 5. Press and hold the EQ button or push the SELECT knob to store the equalization setting and the number.
  • Page 224: Rds Messages

    SCAN: Scan the stations within a PTY by performing the following: 1. Press PROG TYPE to activate program type select mode. The PTY symbol will appear on the display. 2. Turn the SELECT knob to select a PTY. 3. Once the desired PTY is displayed, press and hold either SCAN arrow, and the radio will begin scanning the stations in the PTY.
  • Page 225: Radio Messages

    INFO (Information): If the current station has a message, INFO will appear on the display. Press this button to see the message. The message may display the artist, song title, call in phone numbers, etc. If the entire message is not displayed, parts of the message will appear every three seconds.
  • Page 226: Xm Radio Messages

    Radio Display Message XL (Explicit XL on the radio display, Language Channels) after the channel name, indicates content with explicit language. Updating Updating encryption code No Signal Loss of signal Loading XM Acquiring channel audio (after 4 second delay) CH Off Air Channel not in service CH Unavail Channel no...
  • Page 227 Radio Display Message No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Locked Theft lock active Radio ID Radio ID label (channel 0) Unknown Radio ID not known (should only be if hardware failure) Chk XMRcvr...
  • Page 228: Playing A Cd

    Playing a CD Insert a CD partway into the slot, label side up. The player will pull it in and the CD should begin playing. If you want to insert a CD when the ignition is off, first press the eject symbol or push the RCL knob. If you insert a CD with the radio off and the ignition on, it will start to play.
  • Page 229 If either arrow is held or pressed more than once, the player will continue moving backward or forward through the CD. SCAN : Press and hold either arrow for more than two seconds until SCAN and the track number appear on the display and you hear a beep. The CD will go to the next track, play for a few seconds, then go on to the next track.
  • Page 230: Radio With Cd (Mp)

    Radio with CD (MP3) Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, the radio can do the following: • Seek to stations broadcasting the selected type of programming •...
  • Page 231 Playing the Radio PWR (Power): Push this knob to turn the system on and off. VOL (Volume): Turn this knob to increase or to decrease the volume. RCL (Recall): Push this knob to switch the display between the radio station frequency and the time. When the ignition is off, push this knob to display the time.
  • Page 232 SCAN : Press and hold either SCAN arrow for two seconds until SCAN appears on the display and you hear a beep. The radio will go to a station, play for a few seconds, then go on to the next station. Press either SCAN arrow again to stop scanning.
  • Page 233: Rds And Xm

    3. Press and hold the EQ button for two seconds. SELECT EQ # will appear on the display and the EQ symbol will flash. 4. Press EQ or turn the SELECT knob to select the EQ number. 5. Press and hold the EQ button or push the SELECT knob to store the equalization setting and the number.
  • Page 234 SCAN : Scan the stations within a PTY by performing the following: 1. Press PROG TYPE to activate program type select mode. The PTY symbol will appear on the display. 2. Turn the SELECT knob to select a PTY. 3. Once the desired PTY is displayed, press and hold either SCAN arrow, and the radio will begin scanning the stations in the PTY.
  • Page 235 ALERT! will not be affected by tests of the emergency broadcast system. This feature is not supported by all RDS stations. INFO (Information): If the current station has a message, INFO will appear on the display. Press this button to see the message. The message may display the artist, song title, call in phone numbers, etc.
  • Page 236 Radio Display Message XL (Explicit XL on the radio display, Language Channels) after the channel name, indicates content with explicit language. Updating Updating encryption code No Signal Loss of signal Loading XM Acquiring channel audio (after 4 second delay) CH Off Air Channel not in service CH Unavail Channel no...
  • Page 237 Radio Display Message No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Locked Theft lock active Radio ID Radio ID label (channel 0) Unknown Radio ID not known (should only be if hardware failure) Chk XMRcvr...
  • Page 238 Playing a CD Insert a CD partway into the slot, label side up. The player will pull it in and the CD should begin playing. If you want to insert a CD with the ignition off, first press the EJECT button or push the RCL knob. If you insert a CD with the radio off and the ignition on, it will start to play.
  • Page 239: Using An Mp3 Cd

    SEEK : Press the up arrow to go to the start of the next track. Press the down arrow to go to the start of the previous track. Pressing either arrow for more than two seconds will search the previous or next tracks at two tracks per second.
  • Page 240: Root Directory

    If a CD contains more than the maximum of 50 folders, 50 playlists, 10 sessions, and 255 files the player will let you access and navigate up to the maximum, but all items over the maximum will be ignored. Root Directory The root directory will be treated as a folder.
  • Page 241 File System and Naming The song name that will be displayed will be the song name that is contained in the ID3 tag. If the song name is not present in the ID3 tag, then the radio will display the file name without the extension (such as .mp3) as the track name.
  • Page 242 1 (Forward): Press and hold this pushbutton to advance quickly within a track. Press and hold this pushbutton for less than two seconds to advance at 10 times the normal playing speed. Press and hold it for more than two seconds to advance at 20 times the normal playing speed.
  • Page 243 SEEK : Press the up arrow to go to the start of the next track. Press the down arrow to go to the start of the previous track. Pressing either arrow for more than two seconds will search the previous or next tracks at two tracks per second.
  • Page 244: Radio With Cassette And Cd

    CD Messages CHECK CD: If this message appears on the display and/or the CD comes out, it could be for one of the following reasons: • It is very hot. When the temperature returns to normal, the CD should play. •...
  • Page 245: Finding A Station

    SCV (Speed-Compensated Volume): With SCV, the audio system adjusts automatically to make up for road and wind noise as you drive by increasing the volume as vehicle speed increases. Set the volume at the desired level. Press this button to select MIN, MED or MAX.
  • Page 246: Setting The Tone (Bass/Treble)

    Setting the Tone (Bass/Treble) TONE: Press and release this button until BASS, MID or TREB appears on the display. The SELECT LED indicator will light to show that the tone control can be adjusted. Turn the SELECT knob to increase or to decrease.
  • Page 247: Radio Data System (Rds)

    Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, the radio can do the following: • Seek to stations broadcasting the selected type of programming •...
  • Page 248: Setting Preset Ptys

    SCAN: Scan the stations within a PTY by performing the following: 1. Press the PROG TYPE button to activate program type select mode. The PTY symbol will appear on the display. 2. Turn the SELECT knob to select a PTY. 3.
  • Page 249: Rds Messages

    RDS Messages ALERT!: Alert warns of local or national emergencies. When an alert announcement comes on the current radio station, ALERT! will appear on the display. You will hear the announcement, even if the volume is low or a cassette tape or a CD is playing. If a cassette tape or CD is playing, play will stop during the announcement.
  • Page 250: Playing A Cassette Tape

    Radio Messages CALIBRATE: The audio system has been calibrated for your vehicle from the factory. If CALIBRATE appears on the display, it means that the radio has not been configured properly for the vehicle and must be returned to your GM dealer for service. Playing a Cassette Tape The tape player is built to work best with tapes that are up to 30 to 45 minutes long on each side.
  • Page 251: Cassette Tape Messages

    EQ (Equalizer): Press EQ to select the desired customized equalization setting while playing a cassette. The equalization will be set whenever a cassette tape is playing. See “EQ” listed previously for more information. SEEK : The tape must have at least three seconds of silence between each selection for seek to work.
  • Page 252: Cd Adapter Kits

    CLEAN PLAYER: If this message appears on the display, the cassette tape player needs to be cleaned. It will still play tapes, but it should be cleaned as soon as possible to prevent damage to the tapes and player. See Care of Your Cassette Tape Player on page 3-116 If the cassette tape is not playing correctly, for any other reason, try a known good cassette.
  • Page 253 1 (Forward): Press and hold this pushbutton to advance quickly within a track. You will hear sound at a reduced volume. Release this pushbutton to play the passage. The elapsed time of the track will appear on the display. RDM 3 (Random): Press this pushbutton to hear the tracks in random, rather than sequential, order.
  • Page 254: Radio With Six-Disc Cd

    CD Messages CHECK CD: If this message appears on the radio display and/or the CD comes out, it could be for one of the following reasons: • You are driving on a very rough road. When the road becomes smoother, the CD should play. •...
  • Page 255: Xm™ Satellite Radio Service

    This system relies upon receiving specific information from these stations and will only work when the information is available. In rare cases, a radio station may broadcast incorrect information that will cause the radio features to work improperly. If this happens, contact the radio station.
  • Page 256 AUTO VOL (Automatic Volume): With automatic volume, the audio system adjusts automatically to make up for road and wind noise as you drive. Set the volume at the desired level. Press this button to select MIN, MED, or MAX. Each higher setting will allow for more volume compensation at faster vehicle speeds.
  • Page 257 3. Tune in the desired station. 4. Press AUTO EQ to select the equalization. 5. Press and hold one of the six numbered pushbuttons until you hear a beep. Whenever that numbered pushbutton is pressed, the station that was set will return and the equalization that was selected will be stored for that pushbutton.
  • Page 258 Finding a Program Type (PTY) Station (RDS and XM™) To select and find a desired PTY perform the following: 1. Press the P-TYPE button to activate program type select mode. P-TYPE and the last selected PTY will appear on the display. 2.
  • Page 259 BAND (Alternate Frequency): Alternate frequency allows the radio to switch to a stronger station with the same program type. To turn alternate frequency on, press and hold BAND for two seconds. AF ON will appear on the display. The radio may switch to stations with a stronger frequency.
  • Page 260 INFO (Information): If the current station has a message, INFO will appear on the display. Press this button to see the message. The message may display the artist, song title, call in phone numbers, etc. If the entire message is not displayed, parts of the message will appear every three seconds.
  • Page 261 Radio Display Message XL (Explicit XL on the radio display, Language Channels) after the channel name, indicates content with explicit language. Updating Updating encryption code No Signal Loss of signal Loading XM Acquiring channel audio (after 4 second delay) CH Off Air Channel not in service CH Unavail Channel no...
  • Page 262 Radio Display Message No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Locked Theft lock active Radio ID Radio ID label (channel 0) Unknown Radio ID not known (should only be if hardware failure) Chk XMRcvr...
  • Page 263 Playing a CD If the ignition or radio is turned off, with a CD in the player, it will stay in the player. When the ignition or radio is turned on, the CD will start playing where it stopped, if it was the last selected audio source. When a CD is inserted, the CD symbol will appear on the CD.
  • Page 264 Playing a Specific Loaded CD For every CD loaded, a number will appear on the display. To play a specific CD, first press the CD AUX button, then press the numbered pushbutton that corresponds to the CD. A small bar will appear under the CD number that is playing and the track number will appear.
  • Page 265 RDM (Random): With random, you can listen to the tracks in random, rather than sequential, order, on one CD or on all of the CDs. To use random, do one of the following: • To play the tracks on the CD you are listening to in random order, press and release the RDM button.
  • Page 266: Using Song List Mode

    Using Song List Mode The six-disc CD changer has a feature called song list. This feature is capable of saving 20 track selections. To save tracks into the song list feature, perform the following steps: 1. Turn the CD player on and load it with at least one CD.
  • Page 267 To delete the entire song list, perform the following steps: 1. Turn the CD player on. 2. Press the SONG LIST button to turn song list on. S-LIST will appear on the display. 3. Press and hold the SONG LIST button for more than four seconds.
  • Page 268: Entertainment System

    Entertainment System Your vehicle may have a DVD entertainment system. The entertainment system works with the vehicle’s audio system and includes a DVD player, a video display screen, headphones, and a remote control. The entertainment system also integrates the rear climate control and rear seat audio functions.
  • Page 269 If the channel switch, located on the right side, is on A, the headphones will play the DVD or auxiliary device. See “Stereo RCA Jacks” later in this section for more information. If the channel switch is on B, the headphones will play the rear seat audio system.
  • Page 270: Stereo Rca Jacks

    Stereo RCA Jacks The RCA jacks are located on the DVD player faceplate. They allow audio and video signals to be connected from an auxiliary device such as a camcorder or a video game unit. Adapter connectors or cables, not included, may be required to connect the auxiliary device to the RCA jacks.
  • Page 271: Video Screen

    Video Screen The video screen is located in the overhead console. To use the video screen, do the following: 1. Push forward on the release button and the screen will fold down. 2. Pull the screen toward you and adjust its position as desired.
  • Page 272: Dvd Player

    DVD Player The DVD player is located in the front floor console. The DVD player can be controlled by the buttons on the DVD player and by the buttons on the remote control. See “Remote Control” later in this section for more information.
  • Page 273: Remote Control

    Some DVDs will not allow fast forwarding or skipping of the copyright information or the previews. Some DVDs will begin playing the movie automatically after the previews have finished, there may be a delay of up to 30 seconds. If the DVD does not begin playing the movie automatically, press the play/pause button on the DVD player faceplate or the remote control.
  • Page 274: Remote Control Buttons

    Remote Control Buttons Volume : Press the up or the down arrow to increase or to decrease the volume. (Play/Pause): Press this button to play a disc. Press this button while a disc is playing to pause. Press it again to continue playing. If you press and hold this button for three seconds or more, the DVD player will turn off.
  • Page 275: Cleaning The Video Screen

    Battery Replacement To change the batteries, do the following: 1. Remove the screw and open the battery door located on the back of the remote control. 2. Replace the two AAA batteries in the compartment. Make sure that they are installed correctly. 3.
  • Page 276: Rear Seat Radio Controls

    Rear Seat Radio Controls The following functions are controlled by the RSA system: PWR (Power): Press this button to turn the system on or off. The rear speakers will be muted when the RSA power is turned on. VOL (Volume): Press this knob lightly so it extends. Turn the knob to increase or to decrease the volume.
  • Page 277: Rear Seat Audio (Rsa) (With Entertainment System)

    P.SET PROG (Preset Program): Press this button to scan the preset radio stations set on the pushbuttons on the main radio. The radio will go to a preset station stored on the pushbuttons, play for a few seconds, then go on to the next preset station. Press this button again to stop scanning presets.
  • Page 278 RSA PWR (Power): Press this button to turn the system on or off. The headphone symbol will appear on the display above the video screen when the system is on. The rear speakers will be muted when the RSA power is turned on. BAND: Press this button to switch between FM1, FM2, AM, or XM1 or XM2 (if equipped) when the headphones are on channel B.
  • Page 279: Audio Steering Wheel Controls

    Theft-Deterrent Feature ® THEFTLOCK is designed to discourage theft of your vehicle’s radio. The feature works automatically by learning a portion of the Vehicle Identification Number (VIN). If the radio is moved to a different vehicle, it will not operate and LOCKED will appear on the display.
  • Page 280: Care Of Your Cassette Tape Player

    (Volume): Press the up or the down arrow to increase or to decrease the volume. PLAY: When listening to the radio, press this button to play a CD. MUTE: Press this button to silence the system. Press it again, or any other radio button, to turn the sound on.
  • Page 281 For best results, use a scrubbing action, non-abrasive cleaning cassette with pads which scrub the tape head as the hubs of the cleaner cassette turn. The recommended cleaning cassette is available through your dealership. The cut tape detection feature of your cassette tape player may identify the cleaning cassette as a damaged tape, in error.
  • Page 282: Xm™ Satellite Radio Antenna System

    Care of Your CDs and DVDs Handle discs carefully. Store them in their original cases or other protective cases and away from direct sunlight and dust. If the surface of a disc is soiled, dampen a clean, soft cloth in a mild, neutral detergent solution and clean it, wiping from the center to the edge.
  • Page 283: Driving Your Vehicle

    Section 4 Your Driving, the Road, and Your Vehicle ...4-2 Defensive Driving ...4-2 Drunken Driving ...4-2 Control of a Vehicle ...4-5 Braking ...4-5 Anti-Lock Brake System (ABS) ...4-6 Braking in Emergencies ...4-7 Traction Control System (TCS) ...4-8 Steering ...4-9 Off-Road Recovery ...4-11 Passing ...4-12 Loss of Control ...4-13 Driving at Night ...4-14...
  • Page 284: Your Driving, The Road, And Your Vehicle

    Your Driving, the Road, and Your Vehicle Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. See Safety Belts: They Are for Everyone on page 1-30 . Defensive driving really means “be ready for anything.”...
  • Page 285 Many adults — by some estimates, nearly half the adult population — choose never to drink alcohol, so they never drive after drinking. For persons under 21, it is against the law in every U.S. state to drink alcohol. There are good medical, psychological and developmental reasons for these laws.
  • Page 286 There is a gender difference, too. Women generally have a lower relative percentage of body water than men. Since alcohol is carried in body water, this means that a woman generally will reach a higher BAC level than a man of her same body weight will when each has the same number of drinks.
  • Page 287: Control Of A Vehicle

    CAUTION: Drinking and then driving is very dangerous. Your reflexes, perceptions, attentiveness, and judgment can be affected by even a small amount of alcohol. You can have a serious — or even fatal — collision if you drive after drinking. Please do not drink and drive or ride with a driver who has been drinking.
  • Page 288: Anti-Lock Brake System (Abs)

    If you keep pace with the traffic and allow realistic following distances, you will eliminate a lot of unnecessary braking. That means better braking and longer brake life. If your engine ever stops while you are driving, brake normally but do not pump your brakes. If you do, the pedal may get harder to push down.
  • Page 289: Using Anti-Lock

    The anti-lock system can change the brake pressure faster than any driver could. The computer is programmed to make the most of available tire and road conditions. This can help you steer around the obstacle while braking hard. As you brake, your computer keeps receiving updates on wheel speed and controls braking pressure accordingly.
  • Page 290: Traction Control System (Tcs)

    If you do not have anti-lock, use a “squeeze” braking technique. This will give you maximum braking while maintaining steering control. You can do this by pushing on the brake pedal with steadily increasing pressure. In an emergency, you will probably want to squeeze the brakes hard without locking the wheels.
  • Page 291: Steering

    You should turn the system off if your vehicle ever gets stuck in sand, mud or snow and rocking the vehicle is required. See Rocking Your Vehicle to Get It Out on page 4-29 and If You Are Stuck: In Sand, Mud, Ice or Snow on page 4-28 .
  • Page 292: Steering In Emergencies

    Suppose you are steering through a sharp curve. Then you suddenly apply the brakes. Both control systems — steering and braking — have to do their work where the tires meet the road. Unless you have four-wheel anti-lock brakes, adding the hard braking can demand too much of those places.
  • Page 293: Off-Road Recovery

    An emergency like this requires close attention and a quick decision. If you are holding the steering wheel at the recommended 9 and 3 o’clock positions, you can turn it a full 180 degrees very quickly without removing either hand. But you have to act fast, steer quickly, and just as quickly straighten the wheel once you have avoided the object.
  • Page 294: Passing

    Passing The driver of a vehicle about to pass another on a two-lane highway waits for just the right moment, accelerates, moves around the vehicle ahead, then goes back into the right lane again. A simple maneuver? Not necessarily! Passing another vehicle on a two-lane highway is a potentially dangerous move, since the passing vehicle occupies the same lane as oncoming traffic for several seconds.
  • Page 295: Loss Of Control

    • Check your mirrors, glance over your shoulder, and start your left lane change signal before moving out of the right lane to pass. When you are far enough ahead of the passed vehicle to see its front in your inside mirror, activate your right lane change signal and move back into the right lane.
  • Page 296: Driving At Night

    Of course, traction is reduced when water, snow, ice, gravel, or other material is on the road. For safety, you will want to slow down and adjust your driving to these conditions. It is important to slow down on slippery surfaces because stopping distance will be longer and vehicle control more limited.
  • Page 297 Here are some tips on night driving. • Drive defensively. • Do not drink and drive. • Adjust your inside rearview mirror to reduce the glare from headlamps behind you. • Since you cannot see as well, you may need to slow down and keep more space between you and other vehicles.
  • Page 298: Driving In Rain And On Wet Roads

    Driving in Rain and on Wet Roads Rain and wet roads can mean driving trouble. On a wet road, you cannot stop, accelerate, or turn as well because your tire-to-road traction is not as good as on dry roads. And, if your tires do not have much tread left, you will get even less traction.
  • Page 299: Driving Through Deep Standing Water

    Driving too fast through large water puddles or even going through some car washes can cause problems, too. The water may affect your brakes. Try to avoid puddles. But if you cannot, try to slow down before you hit them. CAUTION: Wet brakes can cause accidents.
  • Page 300: Driving Through Flowing Water

    Driving Through Flowing Water CAUTION: Flowing or rushing water creates strong forces. If you try to drive through flowing water, as you might at a low water crossing, your vehicle can be carried away. As little as six inches of flowing water can carry away a smaller vehicle.
  • Page 301: City Driving

    City Driving One of the biggest problems with city streets is the amount of traffic on them. You will want to watch out for what the other drivers are doing and pay attention to traffic signals. Here are ways to increase your safety in city driving: •...
  • Page 302: Freeway Driving

    Freeway Driving Mile for mile, freeways — also called thruways, parkways, expressways, turnpikes, or superhighways — are the safest of all roads. But they have their own special rules. The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving.
  • Page 303: Before Leaving On A Long Trip

    The exit ramp can be curved, sometimes quite sharply. The exit speed is usually posted. Reduce your speed according to your speedometer, not to your sense of motion. After driving for any distance at higher speeds, you may tend to think you are going slower than you actually are.
  • Page 304: Highway Hypnosis

    Highway Hypnosis Is there actually such a condition as highway hypnosis? Or is it just plain falling asleep at the wheel? Call it highway hypnosis, lack of awareness, or whatever. There is something about an easy stretch of road with the same scenery, along with the hum of the tires on the road, the drone of the engine, and the rush of the wind against the vehicle that can make you sleepy.
  • Page 305 If you drive regularly in steep country, or if you are planning to visit there, here are some tips that can make your trips safer and more enjoyable. • Keep your vehicle in good shape. Check all fluid levels and also the brakes, tires, cooling system, and transaxle.
  • Page 306: Winter Driving

    Winter Driving 4-24 Here are some tips for winter driving: • Have your vehicle in good shape for winter. • You may want to put winter emergency supplies in your vehicle. Also see Tires on page 5-52 . Include an ice scraper, a small brush or broom, a supply of windshield washer fluid, a rag, some winter outer clothing, a small shovel, a flashlight, a red cloth, and a couple of reflective warning triangles.
  • Page 307: Driving On Snow Or Ice

    Driving on Snow or Ice Most of the time, those places where your tires meet the road probably have good traction. However, if there is snow or ice between your tires and the road, you can have a very slippery situation. You will have a lot less traction, or grip, and will need to be very careful.
  • Page 308: If You Are Caught In A Blizzard

    Unless you have the anti-lock braking system, you will want to brake very gently, too. If you do have anti-lock, see Anti-Lock Brake System (ABS) on page 4-6 . This system improves your vehicle’s stability when you make a hard stop on a slippery road. Whether you have the anti-lock braking system or not, you will want to begin stopping sooner than you would on dry pavement.
  • Page 309 • Put on extra clothing or wrap a blanket around you. If you have no blankets or extra clothing, make body insulators from newspapers, burlap bags, rags, floor mats — anything you can wrap around yourself or tuck under your clothing to keep warm. You can run the engine to keep warm, but be careful.
  • Page 310: If You Are Stuck: In Sand, Mud, Ice Or Snow

    Then, shut the engine off and close the window almost all the way to preserve the heat. Start the engine again and repeat this only when you feel really uncomfortable from the cold. But do it as little as possible. Preserve the fuel as long as you can. To help keep warm, you can get out of the vehicle and do some fairly vigorous exercises every half hour or so until help comes.
  • Page 311: Rocking Your Vehicle To Get It Out

    Rocking Your Vehicle to Get It Out First, turn your steering wheel left and right. That will clear the area around your front wheels. If your vehicle has traction control, you should turn your traction control system off. See Traction Control System (TCS) on page 4-8 .
  • Page 312: Tire And Loading Information Label

    Tire and Loading Information Label Label Example A vehicle specific Tire and Loading Information label is attached to the center pillar (B-pillar). With the driver’s door open, you will find the label attached below the door lock post (striker). The tire and loading information label shows the number of occupant seating positions (A), and the maximum vehicle capacity weight (B) in kilograms and pounds.
  • Page 313 4. The resulting figure equals the available amount of cargo and luggage load capacity. For example, if the “XXX” amount equals 1400 lbs and there will be five 150 lb passengers in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs (1400 750 (5 x 150) = 650 lbs).
  • Page 314 Example 2 Item Description Vehicle Capacity Weight for Example 2 Subtract Occupant Weight 150 lbs (68 kg) Available Cargo Weight 4-32 Total Item 1,000 lbs (453 kg) 750 lbs (340 kg) 250 lbs (113 kg) Refer to your vehicle’s tire and loading information label for specific information about your vehicle’s capacity weight and seating positions.
  • Page 315: Certification/Tire Label

    Certification/Tire Label United States version shown, Canada similar The Certification/Tire label is found on the rear edge of the driver’s door. The label shows the gross weight capacity of your vehicle. This is called the Gross Vehicle Weight Rating (GVWR). The GVWR includes the weight of the vehicle, all occupants, fuel, and cargo.
  • Page 316: Towing

    Notice: Overloading your vehicle may cause damage. Repairs would not be covered by your warranty. Do not overload your vehicle. If you put things inside your vehicle — like suitcases, tools, packages, or anything else, they will go as fast as the vehicle goes.
  • Page 317: Dinghy Towing

    Here are some important things to consider before you do recreational vehicle towing: • What’s the towing capacity of the towing vehicle? Be sure you read the tow vehicle manufacturer’s recommendations. • How far will you tow? Some vehicles have restrictions on how far and how long they can tow.
  • Page 318: Towing A Trailer

    Towing a Trailer CAUTION: If you do not use the correct equipment and drive properly, you can lose control when you pull a trailer. For example, if the trailer is too heavy, the brakes may not work well — or even at all.
  • Page 319: If You Do Decide To Pull A Trailer

    You can ask your dealer for our trailering information or advice, or you can write us at: Pontiac - GMC Customer Assistance Center P.O. Box 33172 Detroit, MI 48232-5172 In Canada, write to:...
  • Page 320: Weight Of The Trailer Tongue

    Weight of the Trailer Tongue The tongue load (A) of any trailer is an important weight to measure because it affects the total or gross weight of your vehicle. The Gross Vehicle Weight (GVW) includes the curb weight of the vehicle, any cargo you may carry in it, and the people who will be riding in the vehicle.
  • Page 321: Trailer Brakes

    Hitches It’s important to have the correct hitch equipment. Crosswinds, large trucks going by and rough roads are a few reasons why you will need the right hitch. Here are some rules to follow: • The bumpers on your vehicle are not intended for hitches.
  • Page 322: Driving With A Trailer

    Driving with a Trailer CAUTION: If you have a rear-most window open and you pull a trailer with your vehicle, carbon monoxide (CO) could come into your vehicle. You cannot see or smell CO. It can cause unconsciousness or death. See Engine Exhaust on page 2-40 .
  • Page 323: Turns Signals When Towing A Trailer

    Following Distance Stay at least twice as far behind the vehicle ahead as you would when driving your vehicle without a trailer. This can help you avoid situations that require heavy braking and sudden turns. Passing You will need more passing distance up ahead when you are towing a trailer.
  • Page 324: Driving On Grades

    Driving On Grades Reduce speed and shift to a lower gear before you start down a long or steep downgrade. If you do not shift down, you might have to use your brakes so much that they would get hot and no longer work well. If you are towing a trailer that weighs more than 1,000 lbs (450 kg), you may prefer to drive in THIRD (3) instead of AUTOMATIC OVERDRIVE (D) or, as you...
  • Page 325: Maintenance When Trailer Towing

    When You Are Ready to Leave After Parking on a Hill 1. Apply your regular brakes and hold the pedal down while you: • Start your engine. • Shift into a gear. • Release the parking brake. 2. Let up on the brake pedal. 3.
  • Page 326 NOTES 4-44...
  • Page 327: Service And Appearance Care

    Section 5 Service ...5-3 Doing Your Own Service Work ...5-4 Adding Equipment to the Outside of Your Vehicle ...5-5 Fuel ...5-5 Gasoline Octane ...5-5 Gasoline Specifications ...5-5 California Fuel ...5-6 Additives ...5-6 Fuels in Foreign Countries ...5-7 Filling Your Tank ...5-8 Filling a Portable Fuel Container ...5-10 Checking Things Under the Hood ...5-10 Hood Release ...5-11...
  • Page 328 Section 5 Accessory Inflator ...5-66 If a Tire Goes Flat ...5-68 Changing a Flat Tire ...5-68 Removing the Spare Tire and Tools ...5-70 Removing the Flat Tire and Installing the Spare Tire ...5-73 Secondary Latch System ...5-78 Storing a Flat or Spare Tire and Tools ...5-80 Compact Spare Tire ...5-82 Appearance Care ...5-83 Fabric/Carpet ...5-83...
  • Page 329: Service

    Service Your dealer knows your vehicle best and wants you to be happy with it. We hope you will go to your dealer for all your service needs. You will get genuine GM parts and GM-trained and supported service people. We hope you will want to keep your GM vehicle all GM.
  • Page 330: Doing Your Own Service Work

    Doing Your Own Service Work If you want to do some of your own service work, you will want to use the proper service manual. It tells you much more about how to service your vehicle than this manual can. To order the proper service manual, see Service Publications Ordering Information on page 7-11 .
  • Page 331: Adding Equipment To The Outside Of Your Vehicle

    Adding Equipment to the Outside of Your Vehicle Things you might add to the outside of your vehicle can affect the airflow around it. This may cause wind noise and affect windshield washer performance. Check with your dealer before adding equipment to the outside of your vehicle.
  • Page 332: California Fuel

    California Fuel If your vehicle is certified to meet California Emission Standards (see the underhood emission control label), it is designed to operate on fuels that meet California specifications. If this fuel is not available in states adopting California emissions standards, your vehicle will operate satisfactorily on fuels meeting federal specifications, but emission control system performance may be affected.
  • Page 333: Fuels In Foreign Countries

    Notice: Your vehicle was not designed for fuel that contains methanol. Do not use fuel containing methanol. It can corrode metal parts in your fuel system and also damage the plastic and rubber parts. That damage would not be covered under your warranty.
  • Page 334: Filling Your Tank

    Filling Your Tank CAUTION: Fuel vapor burns violently and a fuel fire can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the pump island. Turn off your engine when you are refueling. Do not smoke if you are near fuel or refueling your vehicle.
  • Page 335 While refueling, let the fuel cap hang by the tether. CAUTION: If you spill fuel and then something ignites it, you could be badly burned. Fuel can spray out on you if you open the fuel cap too quickly. This spray can happen if your tank is nearly full, and is more likely in hot weather.
  • Page 336: Checking Things Under The Hood

    Filling a Portable Fuel Container CAUTION: Never fill a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the gasoline vapor. You can be badly burned and your vehicle damaged if this occurs. To help avoid injury to you and others: •...
  • Page 337: Hood Release

    Hood Release To open the hood, do the following: 1. Pull the hood release handle, located under the instrument panel on the driver’s side. 2. Go to the front of the vehicle and push up on the underhood release. It is located near the center of the hood, under the grille.
  • Page 338: Engine Compartment Overview

    Engine Compartment Overview When you lift the hood, here is what you will see: 5-12...
  • Page 339: Engine Oil

    A. Underhood Fuse Block. See Underhood Fuse Block on page 5-96 . B. Remote Positive (+) Terminal. See Jump Starting on page 5-39 . C. Windshield Washer Fluid Reservoir. See “Adding Washer Fluid” under Windshield Washer Fluid on page 5-34 . D.
  • Page 340: What Kind Of Engine Oil To Use

    When to Add Engine Oil If the oil is at or below the cross-hatched area at the tip of the dipstick, then you will need to add at least one quart of oil. But you must use the right kind. This section explains what kind of oil to use.
  • Page 341 • SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle. These numbers on an oil container show its viscosity, or thickness. Do not use other viscosity oils such as SAE 20W-50. Oils meeting these requirements should also have the starburst symbol on the container.
  • Page 342: Engine Oil Life System

    Notice: Use only engine oil identified as meeting GM Standard GM6094M and showing the American Petroleum Institute Certified For Gasoline Engines starburst symbol. Failure to use the recommended oil can result in engine damage not covered by your warranty. ® GM Goodwrench oil meets all the requirements for your vehicle.
  • Page 343: When To Inspect The Engine Air Cleaner/Filter

    How to Reset the Engine Oil Life System The Engine Oil Life System calculates when to change your engine oil and filter based on vehicle use. Anytime your oil is changed, reset the system so it can calculate when the next oil change is required. If a situation occurs where you change your oil prior to a CHANGE ENGINE OIL message being turned on, reset the system.
  • Page 344: How To Inspect The Engine Air Cleaner/Filter

    How to Inspect the Engine Air Cleaner/Filter To inspect the air cleaner/filter, remove the filter from the vehicle and lightly shake the filter to release loose dust and dirt. If the filter remains caked with dirt, a new filter is required. To inspect or replace the air cleaner/filter, do the following: 1.
  • Page 345: How To Check Automatic Transaxle Fluid

    Automatic Transaxle Fluid When to Check and Change Automatic Transaxle Fluid A good time to check your automatic transaxle fluid level is when the engine oil is changed. Change both the fluid and filter every 50,000 miles (83 000 km) if the vehicle is mainly driven under one or more of these conditions: •...
  • Page 346: Checking The Fluid Level

    To get the right reading, the fluid should be at normal operating temperature, which is 180°F to 200°F (82°C to 93°C). Get the vehicle warmed up by driving about 15 miles (24 km) when outside temperatures are above 50°F (10°C). If it is colder than 50°F (10°C), you may have to drive longer.
  • Page 347: How To Add Fluid Automatic Transaxle Fluid

    3. Check both sides of the dipstick, and read the lower level. The fluid level must be in the cross-hatched area. 4. If the fluid level is in the acceptable range, push the dipstick back in all the way. How to Add Fluid Automatic Transaxle Fluid Refer to the Maintenance Schedule to determine what kind of transaxle fluid to use.
  • Page 348: Engine Coolant

    Engine Coolant The cooling system in your vehicle is filled with ® DEX-COOL engine coolant. This coolant is designed to remain in your vehicle for 5 years or 150,000 miles (240 000 km), whichever occurs first, if you add ® only DEX-COOL extended life coolant.
  • Page 349: Checking Coolant

    Notice: If you use an improper coolant mixture, your engine could overheat and be badly damaged. The repair cost would not be covered by your warranty. Too much water in the mixture can freeze and crack the engine, radiator, heater core and other parts.
  • Page 350: Radiator Pressure Cap

    Adding Coolant If you need more coolant, add the proper DEX-COOL coolant mixture at the coolant recovery tank, but be careful not to spill it. CAUTION: Turning the radiator pressure cap when the engine and radiator are hot can allow steam and scalding liquids to blow out and burn you badly.
  • Page 351: Engine Overheating

    Engine Overheating You will find an engine coolant temperature gage on your vehicle’s instrument panel. See Engine Coolant Temperature Gage on page 3-41 . You also have an engine coolant temperature warning message on your instrument panel. See Engine Coolant Temperature Warning Message on page 3-47 .
  • Page 352: If No Steam Is Coming From Your Engine

    If No Steam Is Coming From Your Engine If you get an engine overheat warning but see or hear no steam, the problem may not be too serious. Sometimes the engine can get a little too hot when you: • Climb a long hill on a hot day.
  • Page 353: Cooling System

    Cooling System When you decide it is safe to lift the hood, here is what you will see: A. Radiator Pressure Cap B. Electric Engine Cooling Fans C. Coolant Recovery Tank CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can injure you.
  • Page 354 The coolant level should be at or above the FULL COLD mark. If it is not, you may have a leak at the pressure cap or in the radiator hoses, heater hoses, radiator, water pump or somewhere else in the cooling system.
  • Page 355 CAUTION: Adding only plain water to your cooling system can be dangerous. Plain water, or some other liquid such as alcohol, can boil before the proper coolant mixture will. Your vehicle’s coolant warning system is set for the proper coolant mixture. With plain water or the wrong mixture, your engine could get too hot but you would not get the overheat warning.
  • Page 356: How To Add Coolant To The Radiator

    How to Add Coolant to the Radiator Notice: Your engine has a specific radiator fill procedure. Failure to follow this procedure could cause your engine to overheat and be severely damaged. 1. You can remove the radiator pressure cap when the cooling system, including the radiator pressure cap and upper radiator hose, is no longer hot.
  • Page 357 3. After the engine cools, open the coolant air bleed valves. There are two bleed valves. One is located on the thermostat housing. The other is located on the thermostat bypass tube. 4. Fill the radiator with the proper DEX-COOL coolant mixture, up to the base of the filler neck.
  • Page 358: Power Steering Fluid

    8. Then replace the pressure cap. At any time during this procedure if coolant begins to flow out of the filler neck, reinstall the pressure cap. Be sure the arrows on the pressure cap line up with the vent tube. 9.
  • Page 359: When To Check Power Steering Fluid

    When to Check Power Steering Fluid It is not necessary to regularly check power steering fluid unless you suspect there is a leak in the system or you hear an unusual noise. A fluid loss in this system could indicate a problem. Have the system inspected and repaired.
  • Page 360: Windshield Washer Fluid

    Windshield Washer Fluid What Washer Fluid to Use When you need windshield washer fluid, be sure to read the manufacturer’s instructions before use. If you will be operating your vehicle in an area where the temperature may fall below freezing, use a fluid that has sufficient protection against freezing.
  • Page 361: Brakes

    Brakes Brake Fluid Your brake master cylinder reservoir is filled with DOT-3 brake fluid. See Engine Compartment Overview on page 5-12 for the location of the reservoir. There are only two reasons why the brake fluid level in the reservoir might go down. The first is that the brake fluid goes down to an acceptable level during normal brake lining wear.
  • Page 362: What To Add

    What to Add When you do need brake fluid, use only DOT-3 brake fluid. Use new brake fluid from a sealed container only. See Recommended Fluids and Lubricants on page 6-12 . Always clean the brake fluid reservoir cap and the area around the cap before removing it.
  • Page 363: Brake Wear

    Brake Wear Your vehicle has front disc brakes and may have rear drum brakes or rear disc brakes. Disc brake pads have built-in wear indicators that make a high-pitched warning sound when the brake pads are worn and new pads are needed. The sound may come and go or be heard all the time your vehicle is moving, except when you are pushing on the brake pedal firmly.
  • Page 364: Replacing Brake System Parts

    Replacing Brake System Parts The braking system on a vehicle is complex. Its many parts have to be of top quality and work well together if the vehicle is to have really good braking. Your vehicle was designed and tested with top-quality GM brake parts.
  • Page 365: Jump Starting

    Jump Starting If your battery has run down, you may want to use another vehicle and some jumper cables to start your vehicle. Be sure to use the following steps to do it safely. On vehicles equipped with the optional power sliding door, a low-voltage battery or replacing a battery may cause the system to become inoperative.
  • Page 366 Notice: If you leave your radio or other accessories on during the jump starting procedure, they could be damaged. The repairs would not be covered by your warranty. Always turn off your radio and other accessories when jump starting your vehicle. 3.
  • Page 367 CAUTION: Using a match near a battery can cause battery gas to explode. People have been hurt doing this, and some have been blinded. Use a flashlight if you need more light. Be sure the battery has enough water. You do not need to add water to the battery installed in your new vehicle.
  • Page 368 6. Connect the red positive (+) cable to the positive (+) terminal of the dead battery. Use a remote positive (+) terminal if the vehicle has one. 7. Do not let the other end touch metal. Connect it to the positive (+) terminal of the good battery. Use a remote positive (+) terminal if the vehicle has one.
  • Page 369 Jumper Cable Removal A. Heavy, Unpainted Metal Engine Part B. Good Battery or Remote Positive (+) Terminal C. Dead Battery or Remote Positive (+) Terminal To disconnect the jumper cables from both vehicles, do the following: 1. Disconnect the black negative ( ) cable from the vehicle that had the dead battery.
  • Page 370: Bulb Replacement

    Bulb Replacement For the proper type of replacement bulbs, see Replacement Bulbs on page 5-50 . For any bulb changing procedure not listed in this section, contact your dealer. Halogen Bulbs CAUTION: Halogen bulbs have pressurized gas inside and can burst if you drop or scratch the bulb. You or others could be injured.
  • Page 371 7. Install the new bulb through the black retainer ring and into the electrical connector. 8. Tighten the black retainer ring in place. Push the bulb firmly enough so that the blue tabs hook over the tab on the bulb. 9.
  • Page 372: Front Turn Signal, Sidemarker And Parking Lamps

    10. Align the pins on the bottom of the headlamp assembly with the holes in the lamp support bracket. 11. Reinstall the front turn signal/parking lamp assembly. See Front Turn Signal, Sidemarker and Parking Lamps next in this section. 5-46 Front Turn Signal, Sidemarker and Parking Lamps 1.
  • Page 373 Front Turn Signal/Parking Lamp 3. Pull the front turn signal/parking lamp assembly away from the vehicle. Front Sidemarker Lamp 4. Unscrew the bulb socket from the lamp assembly by pressing the tab while turning it counterclockwise. 5. Replace the bulb by pulling the old one out and gently pushing the new one into the lamp socket.
  • Page 374: Taillamps, Turn Signal, Stoplamps And Back-Up Lamps

    7. Line up and insert the tabs on the back of the assembly in the slots in the fender to reinstall the lamp assembly. Engage the lower clip on the back of the lamp assembly into the fender, keeping the upper tab on the front turn signal/parking lamp assembly inboard of the headlamp bracket tab.
  • Page 375 4. Remove the bulb holder by pressing the four retaining tabs and pulling the holder away from the assembly. A. Taillamp Bulb C. Turn Signal B. Back-up Lamp Bulb Lamp Bulb D. Stop/Taillamp Bulb 5. Replace the bulb by pulling the old bulb out and gently pushing the new bulb into the bulb holder socket.
  • Page 376: Windshield Wiper Blade Replacement

    Replacement Bulbs Exterior Lamp Back-up Lamps (3rd from Top) Front Sidemarker Lamps Front Turn Signal/Parking Lamps Headlamps Stop/Taillamps (Top) Taillamps (Bottom) Turn Signal Lamps (2nd from Top) For replacement bulbs not listed here, consult your dealer. 5-50 Windshield Wiper Blade Replacement Bulb Number 3156...
  • Page 377 4. While holding the wiper arm away from the glass, push the release clip from under the blade. 5. Push the release clip at the connecting point of the 6. Push the new wiper blade securely on the 7. Push the release clip, from Step 4, down to secure blade and the arm up.
  • Page 378: Tires

    Tires Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your GM Warranty booklet for details. For additional information refer to the tire manufacturer’s booklet included with your vehicle’s Owner’s Manual.
  • Page 379: Tire Sidewall Labelling

    Tire Sidewall Labelling Useful information about a tire is molded into its sidewall. The examples below show a typical passenger vehicle tire and a compact spare tire sidewall. Passenger (P-Metric) Tire Example (A) Tire Size: The tire size is a combination of letters and numbers used to define a particular tire’s width, height, aspect ratio, construction type and service description.
  • Page 380 Compact Spare Tire Example (A) Temporary Use Only: The compact spare tire or temporary use tire has a tread life of approximately 3,000 miles (5 000 km) and should not be driven at speeds over 65 mph (105 km/h). The compact spare tire is for emergency use when a regular road tire has lost air and gone flat.
  • Page 381: Tire Terminology And Definitions

    Tire Size The following illustration shows an example of a typical passenger vehicle tire size. (A) Passenger (P-Metric) Tire: The United States version of a metric tire sizing system. The letter P as the first character in the tire size means a passenger vehicle tire engineered to standards set by the U.S.
  • Page 382 Aspect Ratio: The relationship of a tire’s height to its width. Belt: A rubber coated layer of cords that is located between the plies and the tread. Cords may be made from steel or other reinforcing materials. Bead: The tire bead contains steel wires wrapped by steel cords that hold the tire onto the rim.
  • Page 383 Normal Occupant Weight: The number of occupants a vehicle is designed to seat multiplied by 150 lbs (68 kg). See Loading Your Vehicle on page 4-29 . Occupant Distribution: Designated seating positions. Outward Facing Sidewall: The side of an asymmetrical tire that has a particular side that faces outward when mounted on a vehicle.
  • Page 384: Inflation - Tire Pressure

    Vehicle Maximum Load on the Tire: Load on an individual tire due to curb weight, accessory weight, occupant weight, and cargo weight. Vehicle Placard: A label permanently attached to a vehicle showing the original equipment tire size and recommended inflation pressure. See Loading Your Vehicle on page 4-29 .
  • Page 385: Tire Inspection And Rotation

    How to Check Use a good quality pocket-type gage to check tire pressure. You cannot tell if your tires are properly inflated simply by looking at them. Radial tires may look properly inflated even when they are under-inflated. Check the tire’s inflation pressure when the tires are cold.
  • Page 386: When It Is Time For New Tires

    Do not include the compact spare tire in your tire rotation. After the tires have been rotated, adjust the front and rear inflation pressures as shown on the Tire and Loading Information label. Make certain that all wheel nuts are properly tightened. See “Wheel Nut Torque”...
  • Page 387: Buying New Tires

    Buying New Tires To find out what kind and size of tires you need, look at the Certification/Tire label or the Tire and Loading Information label. See Loading Your Vehicle on page 4-29 , for examples of the labels and where they can be found on your vehicle.
  • Page 388: Uniform Tire Quality Grading

    Uniform Tire Quality Grading Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example: Treadwear 200 Traction AA Temperature A The following information relates to the system developed by the United States National Highway Traffic Safety Administration, which grades tires by treadwear, traction and temperature performance.
  • Page 389: Wheel Alignment And Tire Balance

    Temperature – A, B, C The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure.
  • Page 390: Wheel Replacement

    Wheel Replacement Replace any wheel that is bent, cracked or badly rusted or corroded. If wheel nuts keep coming loose, the wheel, wheel bolts and wheel nuts should be replaced. If the wheel leaks air, replace it (except some aluminum wheels, which can sometimes be repaired). See your dealer if any of these conditions exist.
  • Page 391: Used Replacement Wheels

    Used Replacement Wheels CAUTION: Putting a used wheel on your vehicle is dangerous. You can’t know how it’s been used or how far it’s been driven. It could fail suddenly and cause a crash. If you have to replace a wheel, use a new GM original equipment wheel.
  • Page 392: Accessory Inflator

    Accessory Inflator Your vehicle may have an accessory inflator. With it, you can inflate things like air mattresses and basketballs, and you can also use it to bring your tires up to the proper pressure. The accessory inflator is located in the rear compartment on the driver’s side.
  • Page 393 If the accessory inflator system does not turn on or the light does not come on, the fuse may be blown or installed incorrectly. See Fuses and Circuit Breakers on page 5-93 or see your dealer for service. Your accessory inflator will automatically shut off after about 10 minutes.
  • Page 394: Changing A Flat Tire

    If a Tire Goes Flat It’s unusual for a tire to “blowout” while you’re driving, especially if you maintain your tires properly. If air goes out of a tire, it’s much more likely to leak out slowly. But if you should ever have a “blowout,” here are a few tips about what to expect and what to do: If a front tire fails, the flat tire will create a drag that pulls the vehicle toward that side.
  • Page 395 CAUTION: Changing a tire can be dangerous. The vehicle can slip off the jack and roll over or fall on you or other people. You and they could be badly injured or even killed. Find a level place to change your tire. To help prevent the vehicle from moving: 1.
  • Page 396: Removing The Spare Tire And Tools

    Removing the Spare Tire and Tools The tools you will need are located in the storage compartment at the rear of the vehicle, on the passenger’s side. To remove the tools, do the following: 1. Remove the side convenience net. 2.
  • Page 397: Spare Tire

    The tools you will be using include the jack (A), extension (B) and folding wrench (C). The compact spare tire is located under the rear of the vehicle. See Compact Spare Tire on page 5-82 for more information about the compact spare. To remove the compact spare tire, do the following: A.
  • Page 398 3. Tilt the retainer at the end of the cable to remove the compact spare tire from the cable, so it can be pulled up through the wheel opening. 5-72 The hoist is used to store a full-size or a flat road tire under the vehicle.
  • Page 399: Removing The Flat Tire And Installing The Spare Tire

    Removing the Flat Tire and Installing the Spare Tire If the wheel has a center cap, use the handle of the folding wrench to pry it off. Then, with the other end of the folding wrench, loosen the nuts. If your vehicle has the plastic bolt-on wheel covers, loosen the bolts completely using the folding wrench, and remove the wheel cover.
  • Page 400 Notice: If you use a jack to raise the vehicle without positioning it correctly, you could damage your vehicle. When raising your vehicle on a jack, avoid contact with the rear axle control arms. 2. Near each wheel, there is a notch (A and B) in the vehicle’s body.
  • Page 401 4. Attach the folding wrench to the jack, and turn the wrench clockwise to raise the jack head 3 inches (7.6 cm). 5. Raise the vehicle by turning the folding wrench clockwise in the jack. Raise the vehicle far enough off the ground so there is enough room for the compact spare tire to fit under the wheel well.
  • Page 402 CAUTION: Never use oil or grease on studs or nuts. If you do, the nuts might come loose. Your wheel could fall off, causing a serious accident. 8. Install the compact spare tire and put the wheel nuts back on with the rounded end of the nuts toward the wheel.
  • Page 403 CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to come loose and even come off. This could lead to an accident. Be sure to use the correct wheel nuts. If you have to replace them, be sure to get new GM original equipment wheel nuts.
  • Page 404: Secondary Latch System

    Secondary Latch System Your vehicle may have an underbody mounted tire hoist assembly equipped with a secondary latch system. It is designed to stop a tire from suddenly falling off your vehicle if the cable holding the spare tire is damaged. For the secondary latch to work, the tire must be stowed with the valve stem pointing down.
  • Page 405 To release the spare tire from the secondary latch, do the following: 1. Place the jack under the vehicle, ahead of the rear bumper. Position the center lift point of the jack under the center of the compact spare tire. 2.
  • Page 406: Storing A Flat Or Spare Tire And Tools

    Storing a Flat or Spare Tire and Tools CAUTION: Storing a jack, a tire, or other equipment in the passenger compartment of the vehicle could cause injury. In a sudden stop or collision, loose equipment could strike someone. Store all these in the proper place. 5-80 CAUTION: The underbody-mounted spare tire needs to be...
  • Page 407 1. Lay the tire near the rear of the vehicle with the valve stem down. 2. Remove the small center cap by tapping the back of the cap with the extension of the shaft, if the vehicle has aluminum wheels. 3.
  • Page 408: Compact Spare Tire

    A. Strap B. Bag and Tools C. Jack Store the center cap or the plastic bolt-on wheel covers until a full size tire is put back on the vehicle. When you replace the compact spare with a full-size tire, reinstall the bolt-on wheel covers or the center cap. Hand-tighten them over the wheel nuts, using the folding wrench.
  • Page 409: Appearance Care

    Appearance Care Cleaning products can be hazardous. Some are toxic. Other cleaning products can burst into flames if a match is struck near them or if they get on a hot part of the vehicle. Some are dangerous if their fumes are inhaled in a closed space.
  • Page 410: Special Fabric Cleaning Problems

    Most stains can be removed with club soda water. To clean, use the following instructions: 1. For liquids: blot with a clean, soft, white cloth. For solids: remove as much as possible and then vacuum or brush. 2. Apply club soda water to a clean, soft, white cloth.
  • Page 411: Interior Plastic Components

    Vinyl Use warm water and a clean cloth. • Rub with a clean, damp cloth to remove dirt. This may have to be done more than once. • Things like tar, asphalt, and shoe polish will stain if they are not removed quickly. Use a clean cloth and vinyl cleaner.
  • Page 412: Washing Your Vehicle

    Notice: If you use abrasive cleaners when cleaning glass surfaces on your vehicle, you could scratch the glass and/or cause damage to the rear window defogger and the integrated radio antenna. When cleaning the glass on your vehicle, use only a soft cloth and glass cleaner.
  • Page 413: Windshield, Backglass, And Wiper Blades

    Cleaning Exterior Lamps/Lenses Use only lukewarm or cold water, a soft cloth and a car washing soap to clean exterior lamps and lenses. Follow instructions under Washing Your Vehicle on page 5-86 . Finish Care Occasional waxing or mild polishing of the vehicle by hand may be necessary to remove residue from the paint finish.
  • Page 414: Aluminum Wheels

    Aluminum Wheels Notice: If you use strong soaps, chemicals, abrasive polishes, cleaners, brushes, or cleaners that contain acid on aluminum or chrome-plated wheels, you could damage the surface of the wheel(s). The repairs would not be covered by your warranty. Use only GM-approved cleaners on aluminum or chrome-plated wheels.
  • Page 415: Chemical Paint Spotting

    Tires To clean the tires, use a stiff brush with tire cleaner. Notice: Using petroleum-based tire dressing products on your vehicle may damage the paint finish and/or tires. When applying a tire dressing, always wipe off any overspray from all painted surfaces on your vehicle.
  • Page 416: Vehicle Care/Appearance Materials

    Vehicle Care/Appearance Materials See your GM dealer for more information on purchasing the following products. Description Polishing Cloth Interior and exterior Wax-Treated polishing cloth. Tar and Road Removes tar, road oil, Oil Remover and asphalt. Chrome Cleaner Use on chrome or and Polish stainless steel.
  • Page 417: Service Parts Identification Label

    Vehicle Identification Vehicle Identification Number (VIN) This is the legal identifier for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver’s side. You can see it if you look through the windshield from outside your vehicle.
  • Page 418: Power Windows And Other Power Options

    Electrical System Add-On Electrical Equipment Notice: Don’t add anything electrical to your vehicle unless you check with your dealer first. Some electrical equipment can damage your vehicle and the damage wouldn’t be covered by your warranty. Some add-on electrical equipment can keep other components from working as they should.
  • Page 419: Instrument Panel Fuse Block

    Fuses and Circuit Breakers The wiring circuits in your vehicle are protected from short circuits by a combination of fuses, circuit breakers, and fusible thermal links. Look at the silver-colored band inside the fuse. If the band is broken or melted, replace the fuse. Be sure you replace a bad fuse with a new one of the identical size and rating.
  • Page 420 5-94 Fuse Usage Steering Wheel Radio Control BACKLIGHT Switches (Illumination) PCM/PASS Instrument Cluster to PRNDL KEY/CLUSTER Indicators PWR MIRROR Power Remote Control Mirror Switch Cruise Control Module, Switch and CRUISE Release Switch Blank Not Used Powertrain Control Module (PCM), PCM/CRANK Ignition Crank ®...
  • Page 421 Fuse Usage Daytime Running Lamp Control Module LH T/LP Not Used RR DEFOG/ Rear Window Defogger Relay, HTD MIRROR Heated Mirrors ® ON STAR OnStar Inflatable Restraint Control Module HVAC Heater-A/C Control BLOWER Instrument Cluster, Body Control MALL Module, Electronic Level CLUSTER Control (ELC) Sensor and Relay, Theft, Door Ajar...
  • Page 422: Underhood Fuse Block

    Fuse BCM PRGRAM BCM Programming RH HEAD Not Used LP LOW RH HEAD Not Used LP HIGH IGN MAIN Relay and PCM, PCM/ABS Electronic Brake Control Module Circuit Breaker Daytime Running Lamps (DRL) HEADLAMP Control Module, Headlamp and Instrument Panel Dimmer Switch PWR SLD DR Power Sliding Door PWR WDO...
  • Page 423 Fuse Usage Coolant Fans Not Used Circuit Breakers: Front Comfort Controls Hi Blower, and Headlamp Fuses (Instrument Panel): Hazard and Stoplamp, PASS-Key Circuit Breaker: Power Seat and Power Sliding Door. Fuses (Instrument Panel): Electronic Level Control and Rear Defogger, Trailer, Fog Lamps Ignition Switch to Fuses (Instrument Panel): ABS/TCS Ignition, Cruise, DRL, Electronic PRNDL, Ignition 1, PSD, Air Bag, Turn...
  • Page 424 Fuse Usage A/C Clutch Relay to A/C Compressor Clutch Oil Driver Information Display, Heater A/C Control, Radio, Rear (LH and RH) Side Door Actuator Control Motor, Remote Control Door Lock Receiver (RCDLR), Security Indicator Lamp and Theft-Deterrent Shock Sensor Generator Automatic Transaxle (Torque Converter Clutch Solenoids) Stoplamp Switch to Powertrain Control Module...
  • Page 425: Capacities And Specifications

    Capacities and Specifications The following approximate capacities are given in English and metric measurements. See Recommended Fluids and Lubricants on page 6-12 for more information. Application Air Conditioning Refrigerant R134a Front A/C Front and Rear A/C Automatic Transaxle Cooling System With A/C With Rear Climate Control Engine Oil with Filter...
  • Page 426 NOTES 5-100...
  • Page 427: Maintenance Schedule

    Section 6 Maintenance Schedule ...6-2 Introduction ...6-2 Maintenance Requirements ...6-2 Your Vehicle and the Environment ...6-2 Using Your Maintenance Schedule ...6-2 Scheduled Maintenance ...6-4 Additional Required Services ...6-6 Maintenance Footnotes ...6-7 Maintenance Schedule Owner Checks and Services ...6-9 At Each Fuel Fill ...6-9 At Least Once a Month ...6-9 At Least Once a Year ...6-10 Recommended Fluids and Lubricants ...6-12...
  • Page 428: Your Vehicle And The Environment

    Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Have you purchased the GM Protection Plan? The Plan supplements your new vehicle warranties. See your Warranty and Owner Assistance booklet or your dealer for details. Maintenance Requirements Notice: Maintenance intervals, checks, inspections, replacement parts and recommended fluids and...
  • Page 429 This schedule is for vehicles that: • carry passengers and cargo within recommended limits. You will find these limits on the tire and loading information label. See Loading Your Vehicle on page 4-29 . • are driven on reasonable road surfaces within legal driving limits.
  • Page 430: Scheduled Maintenance

    Scheduled Maintenance When the change engine oil message comes on, it means that service is required for your vehicle. Have your vehicle serviced as soon as possible within the next 600 miles (1 000 km). It is possible that, if you are driving under the best conditions, the engine oil life system may not indicate that vehicle service is necessary for over a year.
  • Page 431 Scheduled Maintenance Service Maintenance I Maintenance II Change engine oil and filter. See Engine Oil on page 5-13 . Reset oil life system. See Engine Oil Life System on page 5-16 . An Emission Control Service. Lubricate chassis components. See footnote #. Visually check for any leaks or damage.
  • Page 432: Additional Required Services

    Additional Required Services The following services should be performed at the first maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
  • Page 433: Maintenance Footnotes

    Additional Required Services (cont’d) Service and Miles (Kilometers) Engine cooling system service (or every 5 years, whichever occurs first). An Emission Control Service. See footnote (i). Inspect engine accessory drive belt. An Emission Control Service. Maintenance Footnotes † The U.S. Environmental Protection Agency or the California Air Resources Board has determined that the failure to perform this maintenance item will not nullify the emission warranty or limit recall liability prior to...
  • Page 434 (d) Visually inspect wiper blades for wear or cracking. Replace blade inserts that appear worn or damaged or that streak or miss areas of the windshield. (e) Make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly.
  • Page 435: Owner Checks And Services

    Owner Checks and Services These owner checks and services should be performed at the intervals specified to help ensure the safety, dependability and emission control performance of your vehicle. Your GM Goodwrench dealer can assist you with these checks and services. Be sure any necessary repairs are completed at once.
  • Page 436: At Least Once A Year

    At Least Once a Year Starter Switch Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before you start, be sure you have enough room around the vehicle.
  • Page 437: Ignition Transaxle Lock Check

    Ignition Transaxle Lock Check While parked, and with the parking brake set, try to turn the ignition to LOCK in each shift lever position. • The ignition should turn to LOCK only when the shift lever is in PARK (P). •...
  • Page 438: Recommended Fluids And Lubricants

    Recommended Fluids and Lubricants Fluids and lubricants identified below by name, part number or specification may be obtained from your dealer. Usage Fluid/Lubricant Engine oil which meets GM Standard GM6094M and displays the American Petroleum Institute Certified for Gasoline Engines starburst symbol.
  • Page 439 Usage Fluid/Lubricant Hood Latch Assembly, Lubriplate Lubricant Aerosol Secondary (GM Part No. U.S. 12346293, in Latch, Pivots, Canada 992723) or lubricant Spring meeting requirements of NLGI #2, Anchor and Category LB or GC-LB. Release Pawl Hood and Door Hinges, Rear Folding Multi-Purpose Lubricant, Superlube Seat, Fuel (GM Part No.
  • Page 440: Normal Maintenance Replacement Parts

    Normal Maintenance Replacement Parts Replacement parts identified below by name, part number, or specification can be obtained from your dealer. Part Engine Air Cleaner/Filter Engine Oil Filter Passenger Compartment Air Filter Kit Spark Plugs Wiper Blades (Hook Type) Driver’s Side – 24.0 inches (60.0 cm) Passenger’s Side –...
  • Page 441: Maintenance Record

    Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service and the type of services performed in the boxes provided. See Maintenance Requirements on page 6-2 in this section. Any additional information from Owner Checks and Services on page 6-9 can be added on the following record pages.
  • Page 442 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-16...
  • Page 443 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-17...
  • Page 444 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-18...
  • Page 445: Customer Assistance And Information

    Section 7 Customer Assistance and Information ...7-2 Customer Satisfaction Procedure ...7-2 Online Owner Center ...7-3 Customer Assistance for Text Telephone (TTY) Users ...7-4 Customer Assistance Offices ...7-4 GM Mobility Program for Persons with Disabilities ...7-5 Roadside Assistance Program ...7-5 Courtesy Transportation ...7-7 Vehicle Data Collection and Event Data Recorders ...7-9 Customer Assistance and Information...
  • Page 446: Customer Assistance And Information

    Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to Pontiac. Normally, any concerns with the sales transaction or the operation of your vehicle will be resolved by your dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
  • Page 447: Online Owner Center

    The BBB Auto Line Program is an out of court program administered by the Council of Better Business Bureaus to settle automotive disputes regarding vehicle repairs or the interpretation of the New Vehicle Limited Warranty. Although you may be required to resort to this informal dispute resolution program prior to filing a court action, use of the program is free of charge and your case will generally be heard within...
  • Page 448: Customer Assistance Offices

    Customer Assistance Offices Pontiac encourages customers to call the toll-free number for assistance. If a U.S. customer wishes to write to Pontiac, the letter should be addressed to Pontiac’s Customer Assistance Center. United States — Customer Assistance Pontiac Customer Assistance Center P.O.
  • Page 449: Gm Mobility Program For Persons With Disabilities

    1-800-GM-DRIVE (463-7483) for details. All TTY users call 1-800-263-3830. Roadside Assistance Program As the owner of a new Pontiac vehicle, you are automatically enrolled in the Pontiac Roadside Assistance program. This value-added service is intended to provide you with peace of mind as you drive in the city or travel the open road.
  • Page 450: Canadian Roadside Assistance

    (762-3743), text telephone (TTY) users, call 1-888-889-2438. Pontiac reserves the right to limit services or reimbursement to an owner or driver when, in Pontiac’s judgement, the claims become excessive in frequency or type of occurrence. Roadside Assistance is not part of or included in the coverage provided by the New Vehicle Limited Warranty.
  • Page 451: Scheduling Service Appointments

    Courtesy Transportation Pontiac has always exemplified quality and value in its offering of motor vehicles. To enhance your ownership experience, we and our participating dealers are proud to offer Courtesy Transportation, a customer support program for new vehicles. The Courtesy Transportation program is offered to retail...
  • Page 452: Additional Program Information

    Public Transportation or Fuel Reimbursement If your vehicle requires overnight warranty repairs, reimbursement (five days maximum) may be available for the use of public transportation such as taxi or bus. In addition, should you arrange transportation through a friend or relative, reimbursement for reasonable fuel expenses (five day maximum) may be available.
  • Page 453: Vehicle Data Collection And Event Data Recorders

    Vehicle Data Collection and Event Data Recorders Your vehicle, like other modern motor vehicles, has a number of sophisticated computer systems that monitor and control several aspects of the vehicle’s performance. Your vehicle uses on-board vehicle computers to monitor emission control components to optimize fuel economy, to monitor conditions for air bag deployment and, if so equipped, to provide anti-lock braking and to help the driver control the vehicle...
  • Page 454: Reporting Safety Defects To The United States Government

    In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you’ll notify us. Please call us at 1-800-762-2737, or write: Pontiac Customer Assistance Center P.O. Box 33172 Detroit, MI 48232-5172 In Canada, please call us at 1-800-263-3777 (English) or 1-800-263-7854 (French).
  • Page 455: Service Bulletins

    Service Publications Ordering Information Service Manuals Service Manuals have the diagnosis and repair information on engines, transmission, axle, suspension, brakes, electrical, steering, body, etc. RETAIL SELL PRICE: $120.00 Transmission, Transaxle, Transfer Case Unit Repair Manual This manual provides information on unit repair service procedures, adjustments, and specifications for GM transmissions, transaxles, and transfer cases.
  • Page 456: Current And Past Model Order Forms

    Owner’s Information Owner publications are written specifically for owners and intended to provide basic operational information about the vehicle. The owner’s manual will include the Maintenance Schedule for all models. In-Portfolio: Includes a Portfolio, Owner’s Manual, and Warranty Booklet. RETAIL SELL PRICE: $35.00 Without Portfolio: Owner’s Manual only.
  • Page 457 Accessory Inflator ... 5-66 Accessory Power Outlets ... 3-25 Additives, Fuel ... 5-6 Add-On Electrical Equipment ... 5-92 Air Cleaner/Filter, Engine ... 5-17 Air Conditioning ... 3-26 Airbag Readiness Light ... 3-38 Airbag Sensing and Diagnostic Module (SDM) ... 7-9 Airbag System ...
  • Page 458 Audio System(s) (cont.) Setting the Time ... 3-55 Theft-Deterrent Feature ... 3-115 Understanding Radio Reception ... 3-116 XM™ Satellite Radio Antenna System ... 3-118 Automatic Door Locks ... 2-59 Automatic Transaxle Fluid ... 5-19 Operation ... 2-33 Battery ... 5-38 Run-Down Protection ...
  • Page 459 Check Engine Light ... 3-41 Checking Things Under the Hood ... 5-10 Chemical Paint Spotting ... 5-89 Child Restraints Built-In Child Restraint ... 1-69 Child Restraint Systems ... 1-56 Infants and Young Children ... 1-52 Lower Anchorages and Top Tethers for Children (LATCH System) ...
  • Page 460 Customer Assistance Information Courtesy Transportation ... 7-7 Customer Assistance for Text Telephone (TTY) Users ... 7-4 Customer Assistance Offices ... 7-4 Customer Satisfaction Procedure ... 7-2 GM Mobility Program for Persons with Disabilities ... 7-5 Reporting Safety Defects to General Motors ... 7-10 Reporting Safety Defects to the Canadian Government ...
  • Page 461 Electrical System (cont.) Instrument Panel Fuse Block ... 5-93 Power Windows and Other Power Options ... 5-92 Underhood Fuse Block ... 5-96 Windshield Wiper Fuses ... 5-92 Engine Air Cleaner/Filter ... 5-17 Battery ... 5-38 Change Oil Message ... 3-49 Check and Service Engine Soon Light ...
  • Page 462 Fuses Fuses and Circuit Breakers ... 5-93 Instrument Panel Fuse Block ... 5-93 Underhood Fuse Block ... 5-96 Windshield Wiper ... 5-92 Gage Engine Coolant Temperature ... 3-41 Fuel ... 3-45 Speedometer ... 3-36 Tachometer ... 3-37 Garage Door Opener ... 2-44 Gasoline Octane ...
  • Page 463 Instrument Panel Brightness ... 3-17 Cluster ... 3-35 Overview ... 3-4 Switchbank ... 3-21 Interior Lamp Override ... 3-18 Interior Lamps Control ... 3-17 Jump Starting ... 5-39 Keyless Entry System ... 2-4 Keys ... 2-3 Labelling, Tire Sidewall ... 5-53 Lamps Battery Run-Down Protection ...
  • Page 464 Locks (cont.) Lockout Protection ... 2-12 Power Door ... 2-10 Programmable Automatic Door Locks ... 2-12 Loss of Control ... 4-13 Low Fuel Warning Message ... 3-51 Low Oil Pressure Message ... 3-48 Luggage Carrier ... 2-52 Maintenance Schedule Additional Required Services ... 6-6 At Each Fuel Fill ...
  • Page 465 Odometer ... 3-36 Odometers, Dual Trip ... 3-36 Off-Road Recovery ... 4-11 Engine ... 5-13 Pressure Message ... 3-48 Older Children, Restraints ... 1-50 Online Owner Center ... 7-3 ® OnStar System ... 2-43 Other Warning Devices ... 3-6 Outlet Adjustment ... 3-28 Outside Convex Mirror ...
  • Page 466 Questions and Answers About Safety Belts ... 1-34 Radiator Pressure Cap ... 5-24 Radios ... 3-55 Care of Your Cassette Tape Player ... 3-116 Care of Your CD and DVD Player ... 3-118 Care of Your CDs and DVDs ... 3-118 Radio with Cassette and CD ...
  • Page 467 Safety Belt Pretensioners ... 1-49 Reminder Light ... 3-38 Stowage, Second Row Seat ... 1-7 Safety Belts Care of Safety Belts and Built-in Child Restraint Harness ... 5-86 Driver Position ... 1-36 How to Wear Safety Belts Properly ... 1-35 Questions and Answers About Safety Belts ...
  • Page 468 Spare Tire Installing ... 5-73 Removing ... 5-70 Storing ... 5-80 Specifications, Capacities ... 5-99 Speedometer ... 3-36 Split Bench Seats ... 1-8 Starting Your Engine ... 2-31 Steering ... 4-9 Steering Wheel Controls, Audio ... 3-115 Steering Wheel, Tilt Wheel ... 3-6 Storage Areas ...
  • Page 469 Tires (cont.) Tire Terminology and Definitions ... 5-55 Uniform Tire Quality Grading ... 5-62 Wheel Alignment and Tire Balance ... 5-63 Wheel Replacement ... 5-64 When It Is Time for New Tires ... 5-60 Top Strap ... 1-59 Top Strap Anchor Location ... 1-61 Towing Recreational Vehicle ...
  • Page 470 Warning Lights, Gages and Indicators ... 3-34 Warnings Hazard Warning Flashers ... 3-6 Other Warning Devices ... 3-6 Safety and Symbols ... iii Vehicle Damage ... iv Wheels Alignment and Tire Balance ... 5-63 Replacement ... 5-64 Where to Put the Restraint ... 1-59 Windows ...

This manual is also suitable for:

2005 montana sv6

Table of Contents

Save PDF
