Camera positioning
Requirements on your camera (device under test, DUT):
•
maximum lens diameter: 37 mm
•
minimum lens depth: 10 mm
Make sure, that
•
your DUT is as close as possible to the CAL3 opening
•
the lens is exactly in the middle of the diffusor
•
the front surface of the lens is least 10 mm inside the diffusor
•
for lenses >= 160° FOV (field of view) it is recommended to bring the lens at least
20 mm inside the diffusor
Not fulfilling these requirements will lead to inhomogeneous illuminated field of view. The
easiest way to align the camera correctly is to use the optional iQ-Align. (see 2.1)
Image Engineering
Operating instructions hardware

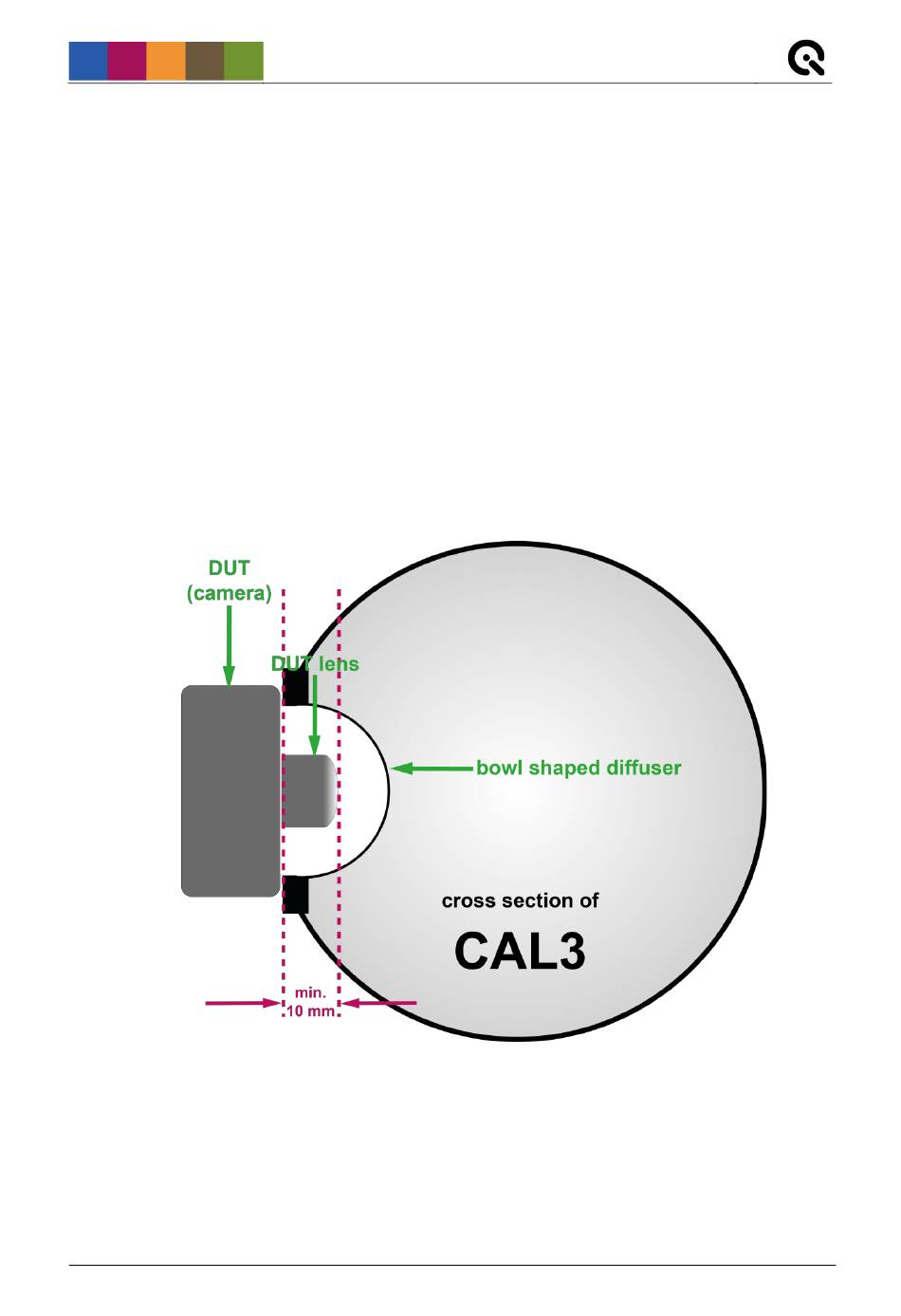

Positioning of DUT in front of CAL3
CAL3
