Summary of Contents for Image Engineering iQ-Align

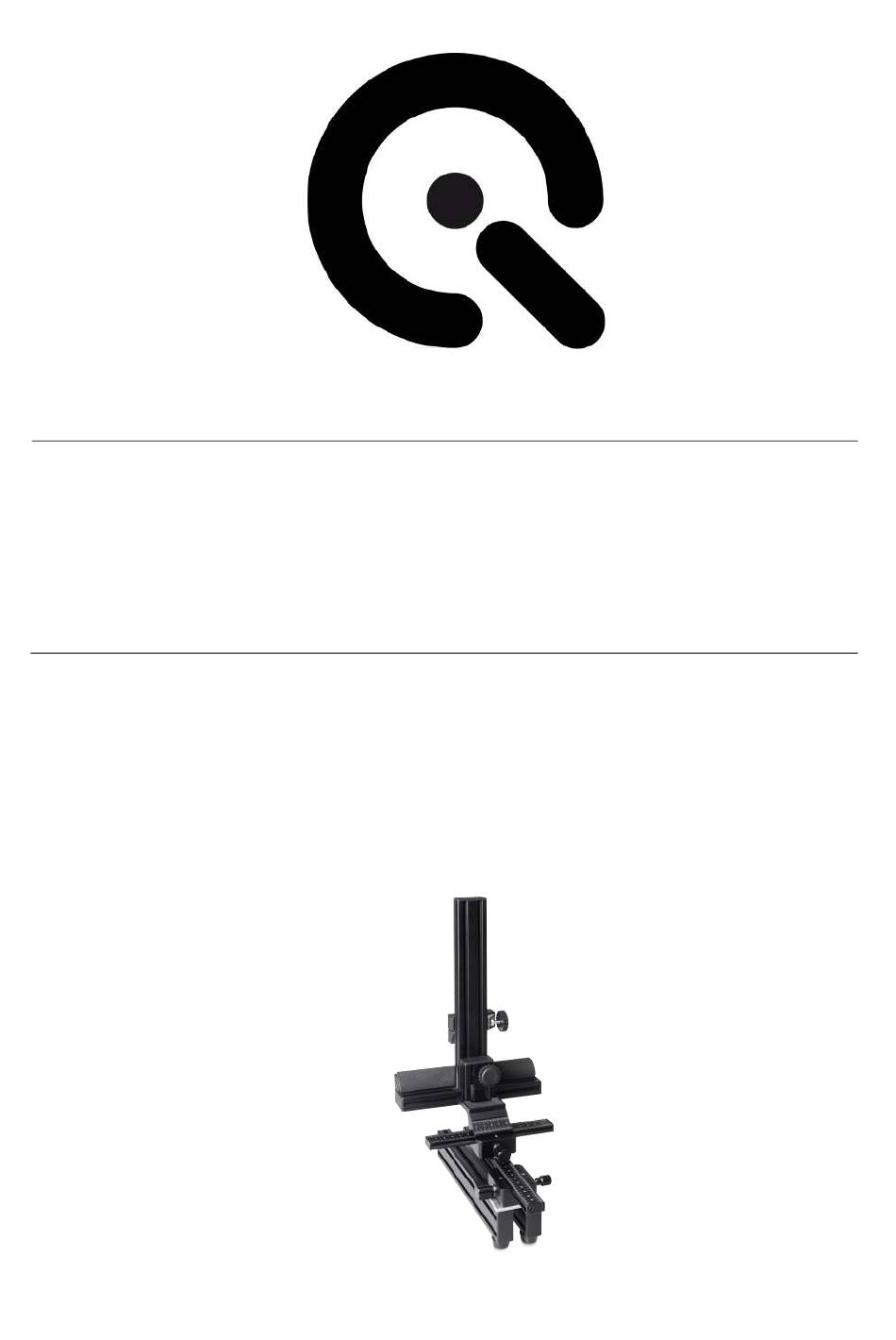

- Page 1 CAL1 / CAL3 User Manual 30. August 2016 Image Engineering GmbH & Co. KG · Im Gleisdreieck 5 · 50169 Kerpen-Horrem · Germany T +49 2273 99991 - 0 · F +49 2273 99991 -10 · www.image-engineering.com...
- Page 2 2.2.2 Assembly instructions for CAL3 ................6 OPERATING INSTRUCTIONS HARDWARE ..............7 Camera positioning ..................... 7 ADDITIONAL INFORMATION ................... 7 Disposal instructions ....................7 TECHNICAL DATA SHEET ....................8 Image Engineering iQ-Align for CAL1 / CAL3 Seite 2 von 8...
- Page 3 If you cannot turn the wheels for the depth and horizontal alignment, unlock the locking wheels. 2 GETTING STARTED 2.1 Scope of delivery iQ-Align, attachment parts (for CAL1 or CAL3), manual Image Engineering iQ-Align for CAL1 / CAL3 Seite 3 von 8...
- Page 4 Assembly instructions for CAL1 iQ-Align mounted to CAL1 1. Unplug CAL1 from power and remove all cables. Lay your CAL1 on the side and unscrew the four feets of the device. Image Engineering iQ-Align for CAL1 / CAL3 Seite 4 von 8...
- Page 5 Getting started 2. Place the forepart for connecting CAL1 with iQ-Align for CAL1 on the bottom side of the device. Now use longer screws M4x14 to fix it together with the feet to CAL1. 3. Rotate CAL1 on its back and mount iQ-Align for CAL1 on the intended position on the front side.
- Page 6 5. Unplug CAL1 from power and remove all cables. Lay your CAL1 on the back. Place iQ- Align for CAL3 on the intended position on the front. 6. Fix iQ-Align for CAL3 with 4 screws (M5x20, DIN7984) to CAL3 behind the front plate. Image Engineering...
- Page 7 Operating instructions hardware 7. CAL3 with iQ-Align for CAL3 is now ready for use. OPERATING INSTRUCTIONS HARDWARE 3.1 Camera positioning Fix the DUT in iQ-Mobilemount. Unlock the locking wheel and adjust the DUT position in X direction. Fix the locking wheel and proceede with the other axes unless your DUT is placed exactly in the center of the diffuser.
- Page 8 Technical data sheet 5 TECHNICAL DATA SHEET See annex for the technical data sheet. It can be downloaded at the website of Image Engineering as well: www.image-engineering.com. Image Engineering iQ-Align for CAL1 / CAL3 Seite 8 von 8...
