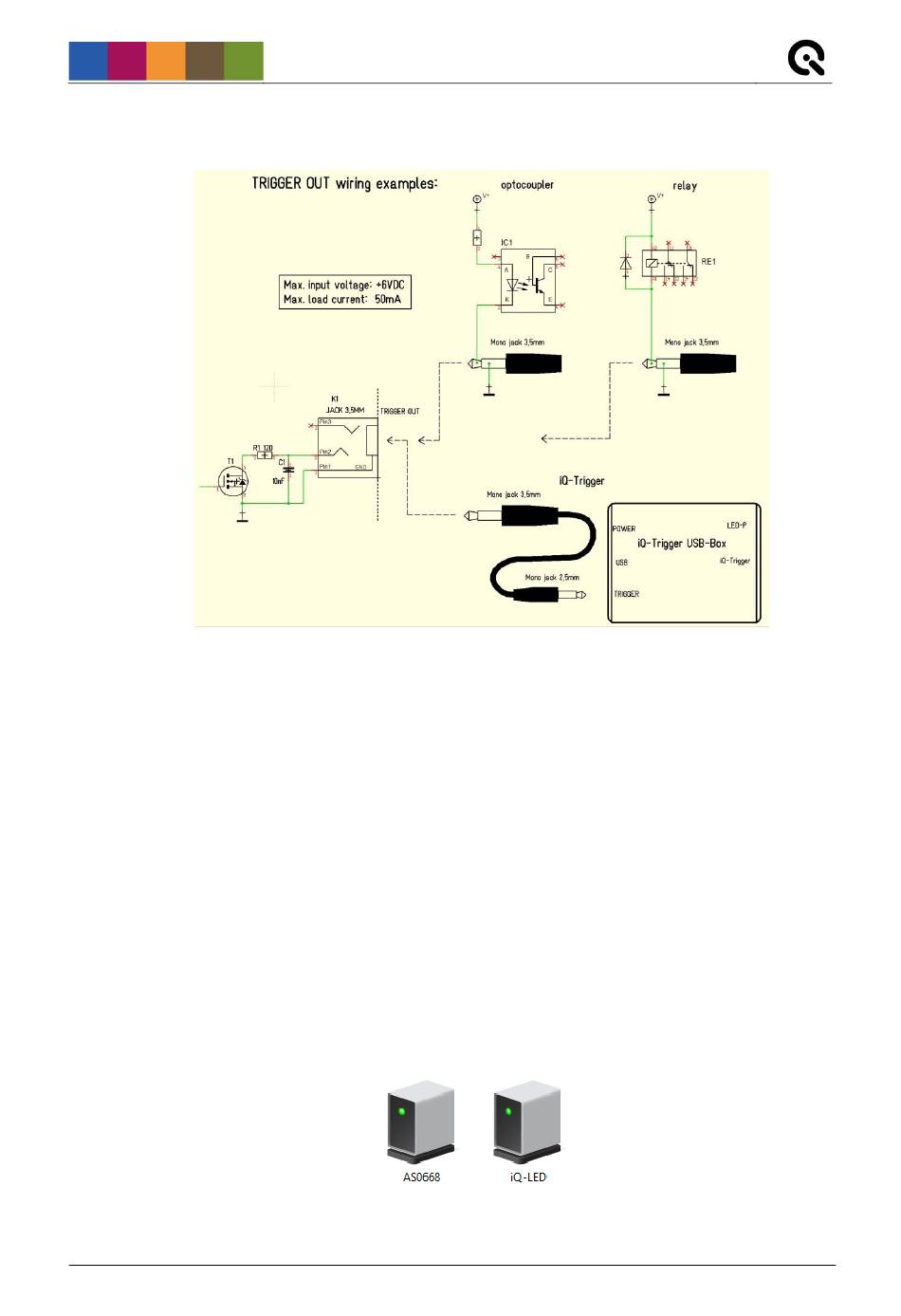

Wiring examples for the trigger output:
The default duration value for the trigger output is 500 ms. This value can be modified with the
iQ-LED API. A signal is send out to the trigger output while changing the illuminats or the
intensity of LED channels. It can be used to synchronize your test setup. For example with an
iQ-Trigger. (See 2.1 optional equipment)
3.2
Connecting the hardware
1. Connect the power cord to the power supply on the back of CAL3.
2. Connect the USB cable to the CAL3 and your PC.
3. Turn on the CAL3; the power switch is located beside the power supply.
4. The system will install the spectrometer and iQ-LED drivers on your PC, this will take a few
seconds.
5. You can check the installation in your hardware manager.
Image Engineering
Operating instructions hardware
Trigger OUT wiring examples
Hardware Manager: active iQ–LED and spectromete
CAL3
Seite 6 von 11
