Hardware Reset

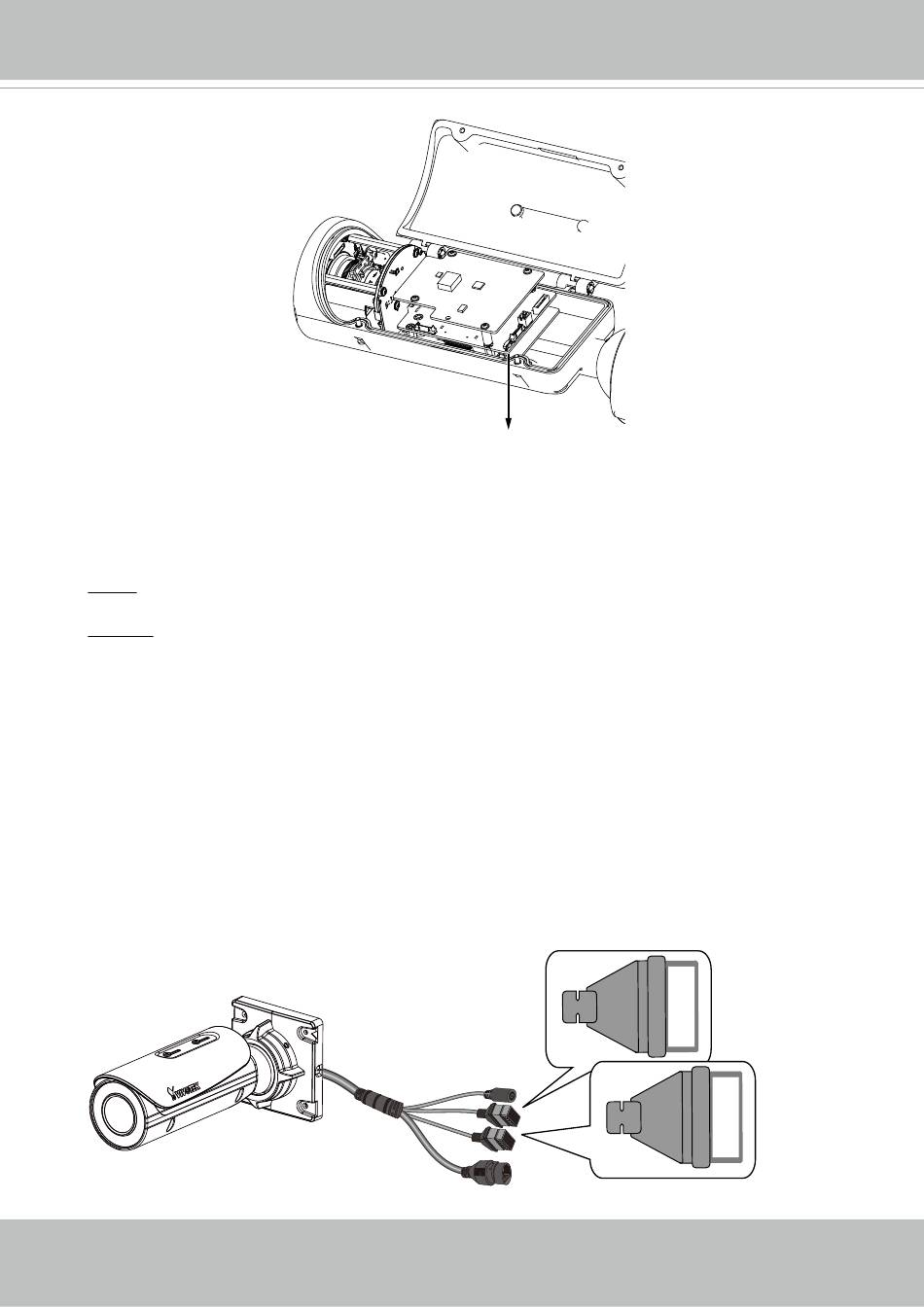

The reset button is used to reset the system or restore the factory default settings.
Sometimes resetting the system can return the camera to normal operation. If the system
problems remain after reset, restore the factory settings and install again.
Reset: Press the recessed reset button. Wait for the Network Camera to reboot.
Restore: Press and hold the reset button until the status LED rapidly blinks. Note that all
settings will be restored to factory default. Upon successful restore, the status LED will
blink green and red during normal operation.
SD/SDHC/SDXC Card Capacity
This network camera is compliant with SD/SDHC/SDXC 16GB / 8GB / 32GB / 64GB and
other preceding standard SD cards.
Connector Pinouts
The DO+ pin is a 12V output signal with a max. load of 50mA. The max. voltage for the
DO- pin is 80VDC.
12 - User's Manual
Reset Button
Au+
Au-
MIC P
MIC N
DO+
DO-
DI+
DI-
