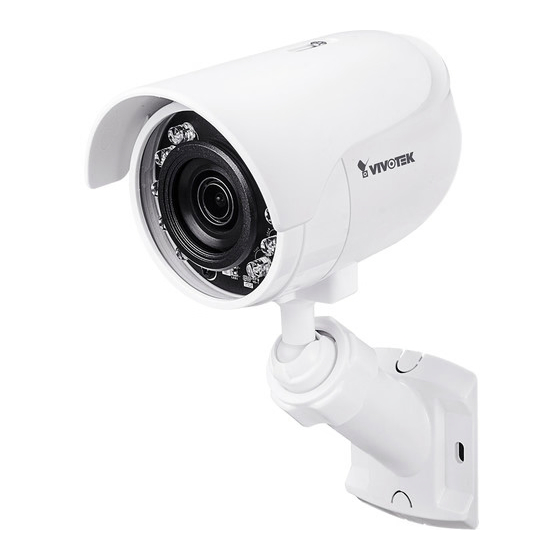

Page 1 IB8360 Bullet Network Camera User ’s Manual 2MP • 12M IR • Smart Stream II • Video Rotation IP66 • UV Protection Rev. 1.0: Rev. 1.0...
Page 2: Table Of Contents
Event > Event settings..........................102 Applications > Motion detection........................116 Applications > Tampering detection ......................119 Applications > Package management - a.k.a., VADP (VIVOTEK Application Development Platform) ..120 Recording > Recording settings ........................123 Local storage > SD card management ......................128 Local storage > Content management ......................129 Appendix ................................
Page 3: Overview
IR-cut filter and built-in IR illuminators effective up to 12 meters, this remarkable camera provides users with superior image quality around the clock. When coupled with VIVOTEK’s Smart Stream II technology, the IB8360 can reduce both bandwidth and storage consumption by up to 50%* while retaining the same superb image quality as a Full HD camera.
Page 4: Read Before Use
Commands of the Network Camera section serves as a helpful reference to customizing existing homepages or integrating with the current web server. Package Contents ■ IB8360 and camera stand ■ Screws and anchors ■ Quick Installation Guide 4 - User's Manual...
Page 5: Symbols And Statements In This Document
VIVOTEK Symbols and Statements in this Document INFORMATION: provides important messages or advices that might help prevent inconvenient or problem situations. NOTE: Notices provide guidance or advices that are related to the functional integrity of the machine. Tips: Tips are useful information that helps enhance or facilitae an installation, function, or process.
Page 6 VIVOTEK Dimension Drawing 98.33 74.98 6 - User's Manual...
Page 7: Hardware Installation
VIVOTEK Hardware Installation 1. Jot down the camera's MAC address for later reference. XXXXXX 0002D10766AD 2. Use a pencil to mark the positions where you will drill the mounting holes. If a cabling hole is preferred, the diameter of the optional cabling hole should be larger than 25mm.
Page 8 VIVOTEK 3. Find an appropriate position. Drill holes on the wall for the included plastic anchors. Install the camera by driving screws through the mounting holes on the bracket. The anchors may not be necessary if you install the camera on a wooden wall or calcium silicate board.
Page 9 VIVOTEK 5. Install a MicroSD card if onboard storage is preferred. The card slot is accessed through a rubber seal. Use a small Phillips screwdriver to open the seal. Please properly fasten the seal and screw after the installation to ensure it is waterproof.
Page 10 VIVOTEK IMPORTANT: Refer to the functional description and LED definitions below when configuring the camera. Reset Button Usage Function LED Behavior Reset - press less than 3 seconds, Off then Red, then White. Restore default - press longer than 7 secs.
Page 11 VIVOTEK 7. Open the Shepherd utility. The utility will search for cameras within the network. 8. Double-click on the camera to open a web console with the camera. You can now start viewing the live stream. Shepherd IEEE 802.3af Browser...
Page 12 VIVOTEK Forceful Password Configuration The first time you log in to the camera, the firmware will prompt for a password configuration for security concerns. Enter the combination of alphabetic and numeric characters to fulfill the password strength. requirement. The default name for the camera administrator is “root”, and can not be changed.
Page 13 VIVOTEK Another prompt will request for the password you configured. Enter the password and then you can start configure your camera and see the live view. User's Manual - 13...
Page 14 VIVOTEK SD/SDHC/SDXC Card Capacity This network camera is compliant with SD/SDHC/SDXC 16GB / 8GB / 32GB / 64GB and other preceding standard SD cards. Internet connection via a router Before setting up the Network Camera over the Internet, make sure you have a router and follow the steps below.
Page 15 For more information with network configuration options (such as that of streaming ports), please refer to Configuration > Network Settings. VIVOTEK also provides the automatic port for- warding feature as an NAT traversal function with the precondition that your router must support the UPnP port forwarding feature.
Page 16: Software Installation
Install the Shepherd utility, a software included in the product CD, helps you set up your Network Camera on the LAN. If your camera comes without the CD, please visit VIVOTEK’s website, and locate the utility in the Downloads > Software page.
Page 17: Ready To Use
VIVOTEK 3. The program will search for all VIVOTEK network devices on the same LAN. 4. After a brief search, the installer window will prompt. Click on the MAC and model name that matches the one printed on the product label. You can then double-click on the address to open a management session with the Network Camera.
Page 18: Accessing The Network Camera
3. Live video will be displayed in your web browser. 4. If it is the first time installing the VIVOTEK network camera, an information bar will prompt as shown below. Follow the instructions to install the required plug-in on your computer.
Page 19 VIVOTEK ► By default, the Network Camera is not password-protected. To prevent unauthorized access, it is highly recommended to set a password for the Network Camera. For more information about how to enable password protection, please refer to Security on page 85.
Page 20 VIVOTEK IMPORTANT: • Currently the Network Camera utilizes a 32-bit ActiveX plugin. You CAN NOT open a management/view session with the camera using a 64-bit IE browser. • If you encounter this problem, try execute the Iexplore.exe program from C:\Windows\ SysWOW64.
Page 21: Using Rtsp Players
VIVOTEK Using RTSP Players To view the streaming media using RTSP players, you can use one of the following players that support RTSP streaming. Quick Time Player VLC media player VLC media player 1. Launch the RTSP player. mpegable Player 2.
Page 22: Using 3Gpp-Compatible Mobile Devices
VIVOTEK Using 3GPP-compatible Mobile Devices To view the streaming media through 3GPP-compatible mobile devices, make sure the Network Camera can be accessed over the Internet. For more information on how to set up the Network Camera over the Internet, please refer to Setup the Network Camera over the Internet on page To utilize this feature, please check the following settings on your Network Camera: 1.
Page 23: Using Vivotek Recording Software
Network Camera to the Channel list. For detailed information about how to use the recording software, please refer to the user’s manual of the software or download it from http://www.vivotek.com. Tips: 1. If you forget the root (administrator) password for the camera, you can restore the camera defaults by pressing the reset button for longer than 7 seconds.
Page 24: Main Page
VIVOTEK Main Page This chapter explains the layout of the main page. It is composed of the following sections: VIVOTEK INC. Logo, Host Name, Camera Control Area, Configuration Area, Menu, and Live Video Window. Resize Buttons VIVOTEK INC. Host Name...
Page 25 VIVOTEK Configuration Area Client Settings: Click this button to access the client setting page. For more information, please refer to Client Settings on page 29. Configuration: Click this button to access the configuration page of the Network Camera. It is suggested that a password be applied to the Network Camera so that only the administrator can configure the Network Camera.
Page 26 VIVOTEK PTZ Panel: This Network Camera supports “digital“ (e-PTZ) pan/tilt/zoom control, which allows roaming a smaller view frame within a large view frame. Please refer to PTZ settiings on page 98 for detailed information. Global View: Click on this item to display the Global View window. The Global View window contains a full view image (the largest frame size of the captured video) and a floating frame (the viewing region of the current video stream).
Page 27 VIVOTEK Video Control Buttons: Depending on the Network Camera model and Network Camera configuration, some buttons may not be available. Snapshot: Click this button to capture and save still images. The captured images will be displayed in a pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP (*.bmp) format.
Page 28 VIVOTEK ■ The following window is displayed when the video mode is set to MJPEG: Video Title Time 2017/03/25 17:08:56 Video (HTTP-V) Title and Time Video 17:08:56 2017/03/25 Video Control Buttons Video Title: The video title can be configured. For more information, please refer to Media > Image on page 52.
Page 29: Client Settings
VIVOTEK Client Settings This chapter explains how to select the stream transmission mode and saving options on the local computer. When completed with the settings on this page, click Save on the page bottom to enable the settings. H.264 protocol options H.264 Protocol Options...
Page 30 VIVOTEK MP4 Saving Options Users can record live video as they are watching it by clicking Start MP4 Recording on the main page. Here, you can specify the storage destination and file name. Folder: Specify a storage destination on your PC for the recorded video files. The location can be changed.
Page 31 VIVOTEK Joystick settings Enable Joystick Connect a joystick to a USB port on your management computer. Supported by the plug-in (Microsoft’s DirectX), once the plug-in for the web console is loaded, it will automatically detect if there is any joystick on the computer. The joystick should work properly without installing any other driver or software.
Page 32 VIVOTEK Buttons Configuration In the Button Configuration window, the left column shows the actions you can assign, and the right column shows the functional buttons and assigned actions. The number of buttons may differ from different joysticks. Please follow the steps below to configure your joystick buttons: 1.
Page 33 VIVOTEK Buttons Configuration Click the Configure Buttons button, a window will prompt as shown below. Please follow the steps below to configure your joystick buttons: 1. Select a button number from the Button # pull-down menu. Tips: If you are not sure of the locations of each button, use the Properties window in the Game Controllers utility.
Page 34: Configuration
Click Configuration on the main page to enter the camera setting pages. Note that only Administrators can access the configuration page. VIVOTEK provides an easy-to-use user interface that helps you set up your network camera with minimal effort. In order to simplify the user interface, detailed information will be hidden unless you click on the function item.
Page 35: System > General Settings
VIVOTEK System > General settings This section explains how to configure the basic settings for the Network Camera, such as the host name and system time. It is composed of the following two columns: System, and System Time. When finished with the settings on this page, click Save at the bottom of the page to enable the settings.
Page 36 VIVOTEK System time Keep current date and time: Select this option to preserve the current date and time of the Network Camera. The Network Camera’s internal real-time clock maintains the date and time even when the power of the system is turned off.
Page 37: System > Homepage Layout
Theme Options (the second tab on this page). The settings will be displayed automatically in this Preview field. The following shows the homepage using the default settings: ■ Hide Powered by VIVOTEK: If you check this item, it will be removed from the homepage. Logo graph Here you can change the logo that is placed at the top of your homepage.
Page 38 VIVOTEK Theme Options Here you can change the color of your homepage layout. There are three types of preset patterns for you to choose from. The new layout will simultaneously appear in the Preview filed. Click Save to enable the settings.
Page 39 VIVOTEK ■ Follow the steps below to set up the customed homepage: 1. Click Custom on the left column. 2. Click the field where you want to change the color on the right column. Color Selector Custom Pattern 3. The palette window will pop up as shown below.
Page 40: System > Logs
VIVOTEK System > Logs This section explains how to configure the Network Camera to send the system log to a remote server as backup. Log server settings Follow the steps below to set up the remote log: 1. Select Enable remote log.
Page 41 You can install the included VAST recording software, which provides an Event Management function group for delivering event messages via emails, GSM short messages, onscreen event panel, or to trigger an alarm, etc. For more information, refer to the VAST User Manual. VIVOTEK Network Cameras Internet 3G cell phone HTTP...
Page 42: System > Parameters
VIVOTEK Access log Access log displays the access time and IP address of all viewers (including operators and administrators) in a chronological order. The access log is stored in the Network Camera’s buffer area and will be overwritten when reaching a certain limit.
Page 43: System > Maintenance
WARNING: Do not power off the Network Camera during the upgrade! Follow the steps below to upgrade the firmware: 1. Download the latest firmware file from the VIVOTEK website. The file is in .pkg file format. 2. Click Browse… and locate the firmware file.
Page 44 VIVOTEK General settings > Restore This feature allows you to restore the Network Camera to factory default settings. Network: Select this option to retain the Network Type settings (please refer to Network Type on page 68). Daylight Saving Time: Select this option to retain the Daylight Saving Time settings (please refer to Import/Export files below on this page).
Page 45 VIVOTEK ® 3. Open the file with Microsoft Notepad and locate your time zone; set the start and end time of DST. When completed, save the file. In the example below, DST begins each year at 2:00 a.m. on the second Sunday in March and ends at 2:00 a.m.
Page 46 VIVOTEK The following message is displayed when attempting to upload an incorrect file format. Export language file: Click to export language strings. VIVOTEK provides nine languages: English, Deutsch, Español, Français, Italiano, 日本語, Português, 簡体中文, and 繁體中文 . Update custom language file: Click Browse… and specify your own custom language file to upload.
Page 47: Media > Image
VIVOTEK Media > Image This section explains how to configure the image settings of the Network Camera. It is composed of the following four columns: General settings, Picture settings, Exposure, Focus, and Privacy mask. The Focus window is available only for models that come with motorized lens.
Page 48 VIVOTEK Video orientation: Flip - vertically reflect the display of the live video; Mirror - horizontally reflect the display of the live video. Select both options if the Network Camera is installed upside-down (e.g., on the ceiling) to correct the image orientation. Please note that if you have preset locations, those locations will be cleared after flip/mirror setting.
Page 49 VIVOTEK IR cut filter This Network Camera can automatically adapts to different lighting conditions. ■ Auto mode The Network Camera automatically switch between day mode and night mode by judging the level of ambient light. ■ Day mode In day mode, the camera streams video in color. In day mode, the camera does not switch to night mode regardless of ambient light conditions.
Page 50 VIVOTEK IR control Turn on built-in IR illuminator in night mode By default, the built-in IR illuminators are turned on when the camera detects low light condition and enters the night mode. Smart IR When enabled, the camera automatically adjust the IR projection to adjacent objects in order to avoid over-exposure in the night mode.
Page 51 VIVOTEK Tips: If there is an object in close proximity, the IR lights reflected back from it can mislead the Smart IR’s calculation of light level. To solve this issue, you can place an “Exposure Exclude” window on an unavoidable object in the Exposure setting window. See page 55 for how to do it.
Page 52 VIVOTEK Image settings On this page, you can tune the White balance and Image adjustment. Sensor Setting 2: For special situations Sensor Setting 1: For normal situations White balance: Adjust the value for the best color temperature. ■ You may follow the steps below to adjust the white balance to the best color temperature.
Page 53 VIVOTEK Noise reduction ■ Enable noise reduction: Check to enable noise reduction in order to reduce noises and flickers in image. This applies to the onboard 3D Noise Reduction feature. Use the pull-down menu to adjust the reduction strength. Note that applying this function to the video channel will consume system computing power.
Page 54 VIVOTEK Exposure On this page, you can configure the Exposure measurement window, Exposure level, Exposure mode, Exposure time, Gain control, and Day/Night mode settings. You can configure two sets of Exposure settings: one for normal situations, the other for special situations, such as the day/night/ schedule mode.
Page 55 VIVOTEK The inclusive window refers to the “weighed window“; the exclusive window refers to “ignored window“. It adopts the weighted averages method to calculate the value. The inclusive windows have a higher priority. You can overlap these windows, and, if you place an exclusive window within a larger inclusive window, the exclusive part of the overlapped windows will be deducted from the inclusive window.
Page 56 VIVOTEK ■ AE Speed Adjustment: This function (Automatic Exposure) applies when you need to monitor fast changing lighting conditions. For example, the camera may need to monitor a highway lane or entrance of a parking area at night where cars passing by with their lights on can bring fast changes in light levels.
Page 57 VIVOTEK Privacy mask Click Privacy Mask to open the settings page. On this page, you can block out sensitive zones to address privacy concerns. ■ To configure privacy mask windows, 1. Click New to add a new window. 2. You can use 4 mouse clicks to create a new masking window, which is recommended to be at least twice the size of the object (height and width) you want to cover.
Page 58: Media > Video
VIVOTEK Media > Video This Network Camera supports multiple streams with frame sizes ranging from 176 x 144 to 1920 x 1080 pixels. The definition of multiple streams: ■ Stream 1: Users can define the "Region of Interest" (viewing region) and the "Output Frame Size"...
Page 59: Media > Video
VIVOTEK Please follow the steps below to configure settings for a stream: 1. Select a stream for which you want to set up the viewing region. 2. Select a Region of Interest from the drop-down list. The floating frame, the same as the one in the Global View window on the home page, will resize accordingly.
Page 60 VIVOTEK Click the stream item to display the detailed information. The maximum frame size will follow your settings in the above Viewing Window sections. This Network Camera offers real-time H.264 and MJPEG compression standards (Dual Codec) for real-time viewing. If the H.264...
Page 61 VIVOTEK ■ Maximum frame rate This limits the maximum refresh frame rate per second. Set the frame rate higher for smoother video quality and for recognizing moving objects in the field of view. If the deault 1080P frame size is selected and the power line frequency is set to 50Hz , the frame rates are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, 12fps, 15fps, and up to 25fps.
Page 62 VIVOTEK ■ Smart stream II ■ Dynamic Intra frame period High quality motion codecs, such as H.264, utilize the redundancies between video frames to deliver video streams at a balance of quality and bit rate. The encoding parameters are summarized and illustrated below. The I-frames are completely self-referential and they are largest in size.
Page 63 VIVOTEK With the H.264 codec in an optimal scenario and when Dynamic Intra frame is combined with the Smart Stream function, an 80% of bandwidth saving can be achieved compared with using H.264 without enabling these bandwidth-saving features. • Smart codec: Smart codec effectively reduces the quality of the whole or the non- interested areas on a screen and therefore reduces the bandwidth consumed.
Page 64 VIVOTEK As the result, the lower screen is constantly displayed in high details, while the upper half is transmitted using a lower-quality format. Although the upper half is transmitted using a lower quality format, you still have an awareness of what is happening on the whole screen.
Page 65 VIVOTEK it rate control ■ B Constrained bit rate: A complex scene generally produces a larger file size, meaning that higher bandwidth will be needed for data transmission. The bandwidth utilization is configurable to match a selected level, resulting in mutable video quality performance. The bit rates...
Page 66 VIVOTEK If the JPEG mode is selected, the Network Camera sends consecutive JPEG images to the client, producing a moving effect similar to a filmstrip. Every single JPEG image transmitted guarantees the same image quality, which in turn comes at the expense of variable bandwidth usage. Because the media contents are a combination of JPEG images, no audio data is transmitted to the client.
Page 67: Network > General Settings
Use fixed IP address: Select this option to manually assign a static IP address to the Network Camera. 1. You can make use of VIVOTEK Installation Wizard 2 on the software CD to easily set up the Network Camera on LAN. Please refer to Software Installation on page 16 for details.
Page 68 VIVOTEK Primary DNS: The primary domain name server that translates hostnames into IP addresses. Secondary DNS: Secondary domain name server that backups the Primary DNS. Primary WINS server: The primary WINS server that maintains the database of computer names and IP addresses.
Page 69 VIVOTEK NOTE: ► If the default ports are already used by other devices connected to the same router, the Network Camera will select other ports for the Network Camera. ► If UPnP is not supported by your router, you will see the following message: Error: Router does not support UPnP port forwarding.
Page 70 VIVOTEK 4. In the Networking Services dialog box, select Universal Plug and Play and click OK. 5. Click Next in the following window. 6. Click Finish. UPnP is enabled. ► How does UPnP work? UPnP networking technology provides automatic IP configuration and dynamic discovery of devices added to a network.
Page 71 VIVOTEK Enable IPv6 Select this option and click Save to enable IPv6 settings. Please note that this only works if your network environment and hardware equipment support ® IPv6. The browser should be Microsoft Internet Explorer 6.5, Mozilla Firefox 3.0 or above.
Page 72 VIVOTEK Please follow the steps below to link to an IPv6 address: 1. Open your web browser. 2. Enter the link-global or link-local IPv6 address in the address bar of your web browser. 3. The format should be: http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/ IPv6 address 4.
Page 73 VIVOTEK User's Manual - 73...
Page 74: Network > Streaming Protocols
VIVOTEK Network > Streaming protocols HTTP To utilize HTTP authentication, make sure that your have set a password for the Network Camera first; please refer to Security > User account on page 85 for details. Authentication: Depending on your network security requirements, the Network Camera provides two types of security settings for an HTTP transaction: basic and digest.
Page 75 VIVOTEK URL command -- http://<ip address>:<http port>/<access name for stream 1, 2, 3> For example, when the Access name for stream 2 is set to video2.mjpg: 1. Launch Mozilla Firefox or Netscape. 2. Type the above URL command in the address bar. Press Enter.
Page 76 VIVOTEK Authentication: Depending on your network security requirements, the Network Camera provides three types of security settings for streaming via RTSP protocol: disable, basic, and digest. basic authentication is selected, the password is sent in plain text format, but there can be digest potential risks of it being intercepted.
Page 77 Unrestricted in scope IMPORTANT: The Multicast metadata port is utilized by VIVOTEK VADP modules to transfer video analytics results, PTZ stream, textual data, and event messages between the camera and the client side running and observing the video analysis. If your client side computer is located outside the local network, you may need to open the associated TCP port on routers and firewall.
Page 78 IP address, to have a fixed host and domain name. Express link Express Link is a free service provided by VIVOTEK server, which allows users to register a domain name for a network device. One URL can only be mapped to one MAC address.
Page 79 DDNS: Dynamic domain name service Enable DDNS: Select this option to enable the DDNS setting. Provider: Select a DDNS provider from the provider drop-down list. VIVOTEK offers Safe100.net, a free dynamic domain name service, to VIVOTEK customers. It is recommended that you register Safe100.net to access VIVOTEK’s Network Cameras from the...
Page 80 4. Select Enable DDNS and click Save to enable the setting. ■ CustomSafe100 VIVOTEK offers documents to establish a CustomSafe100 DDNS server for distributors and system integrators. You can use CustomSafe100 to register a dynamic domain name if your distributor or system integrators offer such services.
Page 81 VIVOTEK Network > QoS (Quality of Service) Quality of Service refers to a resource reservation control mechanism, which guarantees a certain quality to different services on the network. Quality of service guarantees are important if the network capacity is insufficient, especially for real-time streaming multimedia applications. Quality can be defined as, for instance, a maintained level of bit rate, low latency, no packet dropping, etc.
Page 82 VIVOTEK QoS/DSCP (the DiffServ model) DSCP-ECN defines QoS at Layer 3 (Network Layer). The Differentiated Services (DiffServ) model is based on packet marking and router queuing disciplines. The marking is done by adding a field to the IP header, called the DSCP (Differentiated Services Codepoint). This is a 6-bit field that provides 64 different class IDs.
Page 83: Network > Snmp (Simple Network Management Protocol)
VIVOTEK Network > SNMP (Simple Network Management Protocol) This section explains how to use the SNMP on the network camera. The Simple Network Management Protocol is an application layer protocol that facilitates the exchange of management information between network devices. It helps network administrators to remotely manage network devices and find, solve network problems with ease.
Page 84: Network > Ftp
FTP port: The FTP server allows the user to save recorded video clips. You can utilize VIVOTEK's Installation Wizard 2 to upgrade the firmware via FTP server. By default, the FTP port is set to 21. It can also be assigned to another port number between 1025 and 65535.
Page 85: Security > User Accounts
VIVOTEK Security > User accounts This section explains how to enable password protection and create multiple accounts. Account management The administrator account name is “root”, which is permanent and can not be deleted. If you want to add more accounts in the Account management window, please apply the password for the “root”...
Page 86: Security > Https (Hypertext Transfer Protocol Over Ssl/Tls)
VIVOTEK Security > HTTPS (Hypertext Transfer Protocol over SSL/TLS) This section explains how to enable authentication and encrypted communication over SSL (Secure Socket Layer) and TLS (Transport Layer Security). It helps protect streaming data transmission over the Internet on higher security level.
Page 87 VIVOTEK 5. Click Save to preserve your configuration, and your current session with the camera will change to the encrypted connection. 6. If your web session does not automatically change to an encrypted HTTPS session, click Home to return to the main page. Change the URL address from “http://” to “https://“ in the address bar and press Enter on your keyboard.
Page 88 VIVOTEK Create certificate request and install 1. Select the option from the Method pull-down menu. 2. Click Create certificate to proceed. 3. The following information will show up in a pop-up window after clicking Create. Then click Save to generate the certificate request.
Page 89 VIVOTEK 5. Look for a trusted certificate authority, such as Symantec’s VeriSign Authentication Services, that issues digital certificates. Sign in and purchase the SSL certification service. Copy the certificate request from your request prompt and paste it in the CA’s signing request window. Proceed with the rest of the process as CA’s instructions on their webpage.
Page 90 VIVOTEK 7. Open a new edit, paste the certificate contents, and press ENTER at the end of the contents to add an empty line. 8. Convert file format from DOS to UNIX. Open File menu > Conversions > DOS to Unix.
Page 91 VIVOTEK 9. Save the edit using the “.crt” extension, using a file name like “CAcert.crt.” 10. Return to the original firmware session, use the Browse button to locate the crt certificate file, and click Upload to enable the certification. User's Manual - 91...
Page 92 VIVOTEK Note that 11. When the certifice file is successfully loaded, its status will be stated as Active. a certificate must have been created and installed before you can click on the “Save" button for the configuration to take effect.
Page 93: Security > Access List
VIVOTEK Security > Access List This section explains how to control access permission by verifying the client PC’s IP address. General Settings Maximum number of concurrent streaming connection(s) limited to: Simultaneous live viewing for 1~10 clients (including stream 1 to stream 3). The default value is 10. If you modify the value and click Save, all current connections will be disconnected and automatically attempt to re-link (IE Explorer or Quick Time Player).
Page 94 VIVOTEK ■ Refresh: Click this button to refresh all current connections. ■ Add to deny list: You can select entries from the Connection Status list and add them to the Deny List to deny access. Please note that those checked connections will only be disconnected temporarily and will automatically try to re-link again (IE Explore or Quick Time Player).
Page 95 VIVOTEK There are three types of rules: Single: This rule allows the user to add an IP address to the Allowed/Denied list. For example: 192.168.2.1 Network: This rule allows the user to assign a network address and corresponding subnet mask to the Allow/Deny List.
Page 96 Authentication server (usually a RADIUS server): Checks the client certificate and decides whether to accept the end user’s access request. ■ VIVOTEK Network Cameras support two types of EAP methods to perform authentication: EAP- PEAP and EAP-TLS. Please follow the steps below to enable 802.1x settings: 1.
Page 97 VIVOTEK 3. When all settings are complete, move the Network Camera to the protected LAN by connecting it to an 802.1x enabled switch. The devices will then start the authentication automatically. NOTE: ► The authentication process for 802.1x: 1. The Certificate Authority (CA) provides the required signed certificates to the Network Camera (the supplicant) and the RADIUS Server (the authentication server).
Page 98: Ptz > Ptz Settings
VIVOTEK PTZ > PTZ settings This section explains how to control the Network Camera’s Pan/Tilt/Zoom operation. Digital: Control the e-PTZ operation. Within a field of view,it allows users to quickly move the focus to a target area for close-up viewing without physically moving the camera.
Page 99 VIVOTEK Home page in the E-PTZ Mode X2.1 ■ The e-Preset Positions will also be displayed on the home page. Select one from the drop-down list, and the Network Camera will move to the selected position. ■ If you have set up different preset positions for different streams, you can select one of the video streams to display its separate preset positions.
Page 100 VIVOTEK Patrol settings You can select some preset positions for the Network Camera to patrol. Please follow the steps below to set up a patrol schedule: 1. Select the preset locations on the list, and click 2. The selected preset locations will be displayed on the Patrol locations list.
Page 101 VIVOTEK NOTE: ► The Preset Positions will also be displayed on the Home page. Select one from the Go to menu, and the Network Camera will move to the selected preset position. ► Click Patrol: The Network Camera will patrol along the selected positions repeatedly.
Page 102: Event > Event Settings
VIVOTEK Event > Event settings This section explains how to configure the Network Camera to respond to particular situations (event). A typical application is that when a motion is detected, the Network Camera sends buffered images to an FTP server or e-mail address as notifications. Click on Help, there is an illustration shown in the pop-up window explaining that an event can be triggered by many sources, such as motion detection or external digital input devices.
Page 103 VIVOTEK ■ Event name: Enter a name for the event setting. ■ Enable this event: Select this checkbox to enable the event setting. ■ Priority: Select the relative importance of this event (High, Normal, or Low). Events with a higher priority setting will be executed first.
Page 104 VIVOTEK ■ Camera tampering detection This option allows the Network Camera to trigger when the camera detects that is is being tampered with. To enable this function, you need to configure the Tampering Detection option first. Please refer to page 119 for detailed information.
Page 105 VIVOTEK Once the triggers are configured, they will be listed under the VADP option. 3. Action Define the actions to be performed by the Network Camera when a trigger is activated. ■ Backup media if the network is disconnected Select this option to backup media file on SD card if the network is disconnected. This function will only be displayed after you set up a network storage (NAS).
Page 106 VIVOTEK Add server It is necessary to configure the server and media settings so that the Network Camera will know what action to take (such as which server to send the media files to) when a trigger is activated. Click server to open the server setting window.
Page 107 VIVOTEK To verify if the email settings are correctly configured, click Test. The result will be shown in a pop-up window. If successful, you will also receive an email indicating the result. Click Save server to enable the settings. Note that after you configure the first event server, the new event server will automatically display on the Server list.
Page 108 VIVOTEK ■ Passive mode Most firewalls do not accept new connections initiated from external requests. If the FTP server supports passive mode, select this option to enable passive mode FTP and allow data transmission to pass through the firewall. The firmware default has the Passive mode checkbox selected.
Page 109 VIVOTEK Network storage: Select to send the media files to a networked storage when a trigger is activated. Please refer to NAS server on page 126 for details. Note that only one NAS server can be configured. Click Save server to enable the settings.
Page 110 VIVOTEK Click 20170120 to open the directory: The format is: HH (24r) Click to open the file list for that hour 2017/01/20 2017/01/20 Click to go back to the previous Click to delete level of the directory selected items Click to delete all...
Page 111 VIVOTEK Add media Add media Click to open the media setting window. You can specify the type of media that will be sent when a trigger is activated. A total of 5 media settings can be configured. There are three choices of media types available: Snapshot, Video Clip, and System log.
Page 112 VIVOTEK ■ Add date and time suffix to the file name Select this option to add a date/time suffix to the file name. For example: Snapshot_20170513_100341 File name preﬁx Date and time sufﬁx The format is: YYYYMMDD_HHMMSS Click Save media to enable the settings.
Page 113 VIVOTEK ■ Maximum file size Specify the maximum file size allowed. Some users may need to stitch the video clips together when searching and packing up forensic evidence. ■ File name prefix Enter the text that will be appended to the front of the file name.
Page 114 VIVOTEK In the Event settings column, the Servers and Medias you configured will be listed; please make sure the Event -> Status is indicated as ON, in order to enable the event triggering action. When completed, click the Save event button to enable the settings and click Close to exit Event Settings page.
Page 115 Please note that there is a limited number of customized scripts you can upload; if the current amount of customized scripts has reached the limit, an alert message will prompt. If you need more information, please contact VIVOTEK technical support. 20170213...
Page 116: Applications > Motion Detection
VIVOTEK Applications > Motion detection This section explains how to configure the Network Camera to enable motion detection. A total of 5 motion detection windows can be configured. Motion Detection Setting 2: For special situations Motion Detection Setting 1: For normal situations Follow the steps below to enable motion detection: 1.
Page 117 VIVOTEK Photos or videos can be captured instantly and configured to be sent to a remote server (via an Email or FTP server). For more information on how to configure an event setting, please refer to Event settings on page 102.
Page 118 VIVOTEK This motion detection window will also be displayed on the Event Settings page. You can go to Event > Event settings > Trigger to select it as a trigger source. Please refer to page 124 for detailed information. NOTE: ►...
Page 119: Applications > Tampering Detection
VIVOTEK Applications > Tampering detection This section explains how to set up camera tamper detection. With tamper detection, the camera is capable of detecting incidents such as redirection, blocking or defocusing, or even spray paint. Please follow the steps below to set up the camera tamper detection function: 1.
Page 120: Applications > Package Management - A.k.a., Vadp (Vivotek Application Development Platform)
Applications > Package management - a.k.a., VADP (VIVOTEK Application Development Platform) Users can store and execute VIVOTEK's or 3rd-party software modules onto the camera's flash memory or SD card. These software modules can apply in video analysis for intelligent video applications such as license plate recognition, object counting, or as an agent for edge recording, etc.
Page 121 VIVOTEK To start a module, select the checkcircle in front, and click the Start button. If you should need to remove a module, select the checkcircle in front and then click the Stop button. By then the module status will become OFF, and the X button will appear at the end of the row.
Page 122 VIVOTEK On the License page, register and activate the license for using VIVOTEK's VADP modules. Follow the onscreen instruction on VIVOTEK's website for the registration procedure. 122 - User's Manual...
Page 123: Recording > Recording Settings
VIVOTEK Recording > Recording settings This section explains how to configure the recording settings for the Network Camera. Recording Settings Insert your SD card and click here to test NOTE: ► Please remember to format your SD card via the camera’s web console (in the Local storage .
Page 124 VIVOTEK If you enable adaptive recording on a camera, only when an event is triggered on Camera A will the server record the full frame rate streaming data; otherwise, it will only request the I frame data during normal monitoring, thus effectively saves bandwidths and storage space.
Page 125 VIVOTEK 2. Destination You can select the SD card or network storage (NAS) for the recorded video files. If you have not configured a NAS server, see details in the following. NAS server Click Add NAS server to open the server setting window and follow the steps below to configure: 1.
Page 126 VIVOTEK If successful, you will receive a test.txt file on the network storage server. 3. Enter a server name. 4. Click Save to complete the settings and click Close to exit the page. ■ Capacity: You can choose either the entire free space available or limit the reserved space. The recording size limit must be larger than the reserved amount for cyclic recording.
Page 127 VIVOTEK Event f you want to enable recording notification, please click to configure event triggering settings. Please refer to Event > Event settings on page 102 for more details. When completed, select Enable this recording. Click Save to enable the setting and click Close to exit this page.
Page 128: Local Storage > Sd Card Management
VIVOTEK Local storage > SD card management NOTE: • It is recommended to turn OFF the recording activities before you remove an SD card from the camera. • The lifespan of an SD card is limited. Regular replacement of the SD card can be necessary.
Page 129: Local Storage > Content Management
VIVOTEK SD card control ■ Enable cyclic storage: Check this item if you want to enable cyclic recording. When the maximum capacity is reached, the oldest file will be overwritten by the latest one. ■ Enable automatic disk cleanup: Check this item and enter the number of days you wish to retain a file.
Page 130 VIVOTEK Search Results The following is an example of search results. There are four columns: Trigger time, Media type, Trigger type, and Locked. Click to sort the search results in either direction. Numbers of entries displayed on one page Click to open a live view ■...
Page 131 VIVOTEK ■ Lock/Unlock: Select the checkbox in front of a desired search result, then click this button. The selected items will become Locked, which will not be deleted during cyclic recording. You can click again to unlock the selections. For example:...
Page 132: Appendix
VIVOTEK Appendix URL Commands for the Network Camera 1. Overview For some customers who already have their own web site or web control application, the Network Camera/Video Server can be easily integrated through URL syntax. This section specifies the external HTTP-based application programming interface.
Page 133 VIVOTEK 3. General CGI URL Syntax and Parameters CGI parameters are written in lower-case and as one word without any underscores or other separators. When the CGI request includes internal camera parameters, these parameters must be written exactly as they are named in the camera or video server.
Page 134 VIVOTEK 5. Get Server Parameter Values Note: The access right depends on the URL directory. Method: GET/POST Syntax: http://<servername>/cgi-bin/anonymous/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/viewer/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/operator/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>] [&<parameter>…] Where the <parameter> should be <group>[_<name>] or <group>[.<name>]. If you do not specify any parameters, all the parameters on the server will be returned.
Page 135 If you omit this parameter, it will redirect to an empty page. (Note: The return page can be a general HTML file(.htm, .html) or a VIVOTEK server script executable (.vspx) file. It cannot be a CGI commandor have any extra parameters.This parameter must be User's Manual - 135...
Page 136 VIVOTEK placed at the end of the parameter list Return: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: <length>\r\n \r\n <parameter pair> where<parameter pair> is <parameter>=<value>\r\n [<parameter pair>] Only the parameters that you set and are readable will be returned. Example: Set the IP address of server to 192.168.0.123: Request: http://myserver/cgi-bin/admin/setparam.cgi?network_ipaddress=192.168.0.123...
Page 137 VIVOTEK 7. Available parameters on the server Valid values: VALID VALUES DESCRIPTION string[<n>] Text strings shorter than ‘n’ characters. The characters “,’,<,>,& are invalid. string[n~m] Text strings longer than `n’ characters and shorter than `m’ characters. The characters “,’,<,>,& are invalid.
Page 138 VIVOTEK W is the pixel number of width. H is the pixel number of height. Ex: 1920x1080, 2048x1536 available The API is listed in product WebAPIs. non-available The API is not in product WebAPIs. valid The API is listed in product WebAPIs, and is functional.
Page 139 VIVOTEK 7.1system Group: system NAME VALUE SECURITY DESCRIPTION (get/set) hostname string[64] Host name of server (Network Camera, Wireless Network Camera, Video Server, Wireless Video Server). ledoff <boolean> Turn on (0) or turn off (1) all led indicators. date <YYYY/MM/DD>, Current date of system. Set to ‘keep’ to keep keep, date unchanged.
Page 140 VIVOTEK -140: GMT-03:30 Newfoundland -120: GMT-03:00 Brasilia, Buenos Aires, Georgetown, Greenland -80: GMT-02:00 Mid-Atlantic -40: GMT-01:00 Azores, Cape_Verde_IS. 0: GMT Casablanca, Greenwich Mean Time: Dublin, Edinburgh, Lisbon, London 40: GMT 01:00 Amsterdam, Berlin, Rome, Stockholm, Vienna, Madrid, Paris 41: GMT 01:00 Warsaw, Budapest, Bern...
Page 141 VIVOTEK Caledonia 480: GMT 12:00 Aucklan, Wellington, Fiji, Kamchatka, Marshall Is. 520: GMT 13:00 Nuku'Alofa daylight_enable <boolean> Enable automaticdaylight saving time in time zone. daylight_dstactualmode <positive integer> Check if current time is under daylight saving time. (Used internally) daylight_auto_begintime string[19] Display the current daylight saving start time.
Page 142 VIVOTEK user has uploaded. This command can cooperate with other “restoreexceptXYZ” commands. When cooperating with others, the system parameters will be restored to the default value except for a union of the combined results. restoreexceptvadp Restore the system parameters to default <positive integer>...
Page 143 VIVOTEK format:<MODEL-BRAND-VERSION> language_count <positive integer> Number of webpage languages available on the server. language_i<0~(count-1)> string[16] Available language lists. language_i0 : English language_i1 : Deutsch language_i2 : Español language_i3 : Français language_i4 : Italiano language_i5 : 日本語 language_i6 : Português language_i7 : 简体...
Page 144 VIVOTEK 7.2status Group: status NAME VALUE SECURITY DESCRIPTION (get/set) di_i<0~(capability_ndi-1)> <boolean> 0 => Inactive, normal <product dependent> 1 => Active, triggered (capability.ndi > 0) do_i<0~(capability_ndo-1)> <boolean> 0 => Inactive, normal <product dependent> 1 => Active, triggered (capability.ndo > 0) onlinenum_rtsp 0,<positive...
Page 145 VIVOTEK 7.3digital input behavior define Group: di_i<0~(n-1)> for n is the value of "capability_ndi" (capability.ndi > 0) NAME VALUE SECURITY DESCRIPTION (get/set) normalstate high, Indicates open circuit or closed circuit (inactive status) 7.4digital output behavior define Group: do_i<0~(n-1)> for n is the value of "capability_ndo"...
Page 146 VIVOTEK 7.6network Group: network NAME VALUE SECURITY DESCRIPTION (get/set) preprocess <positive integer> An 32-bit integer, each bit can be set separately as follows: Bit 0 => HTTP service; Bit 1=> HTTPS service; Bit 2=> FTP service; Bit 3 => Two way audio and RTSP Streaming service;...
Page 147 VIVOTEK wins1 <ip address> Primary WINS server. wins2 <ip address> Secondary WINS server. 7.6.1 802.1x Subgroup of network: ieee8021x (capability.protocol.ieee8021x > 0) NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean> Enable/disable IEEE 802.1x eapmethod eap-peap, eap-tls Selected EAP method identity_peap string[64]...
Page 148 VIVOTEK 7.6.2 QOS Subgroup of network: qos_cos (capability.protocol.qos.cos > 0) NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean> Enable/disable CoS (IEEE 802.1p) vlanid 1~4095 VLAN ID video Video channel for CoS audio Audio channel for CoS <product dependent> (capability.naudioin > 0)
Page 149 VIVOTEK 7.6.4 FTP Subgroup of network: ftp NAME VALUE SECURITY DESCRIPTION (get/set) port 21, 1025~65535 Local ftp server port. enable <boolean> Enable ftp. 7.6.5 HTTP Subgroup of network: http NAME VALUE SECURITY DESCRIPTION (get/set) port 80, 1025 ~ 65535 HTTP port.
Page 150 VIVOTEK 7.6.7 RTSP Subgroup of network: rtsp (capability.protocol.rtsp > 0) NAME VALUE SECURITY DESCRIPTION (get/set) port 554, 1025 ~ 65535 RTSP port. (capability.protocol.rtsp=1) anonymousviewing <boolean> Enable anoymous streaming viewing. authmode disable, RTSP authentication mode. basic, (capability.protocol.rtsp=1) digest s<0~(capability_nmediast string[32] RTSP access name for stream N, N= 1~ ream-1)>_accessname...
Page 151 VIVOTEK number (httpversion) is equal or greater than 0304a. audioipaddress <ip address> Multicast audio IP address. <product dependent> * We support this parameter when the version number (httpversion) is equal or greater than 0304a. * Only available when capability_naudioin > 0 metadataipaddress <ip address>...
Page 152 VIVOTEK pass password[64] PPPoE account password. 7.7IP Filter Group: ipfilter NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean> Enable access list filtering. admin_enable <boolean> Enable administrator IP address. admin_ip string[43] Administrator IP address. maxconnection 1~10 Maximum number of concurrent streaming connection(s).
Page 153 VIVOTEK 7.8Video input Group: videoin NAME VALUE SECURITY DESCRIPTION (get/set) cmosfreq 50, 60 CMOS frequency. (capability.videoin.type=2) whitebalance auto, Modes of white balance. <product dependent> manual, "auto": Auto white balance "rbgain": Use rgain and bgain to set white rbgain, widerange, balance manually.
Page 154 VIVOTEK 7: EV +0.3 8: EV +0.7 9: EV +1.0 10: EV +1.3 11: EV +1.7 12: EV +2.0 irismode fixed, indoor, Control DC-Iris mode. "outdoor": Auto-setting DC-Iris to get best outdoor <product quality, but easy to meet rolling or flicker effect independent>...
Page 155 VIVOTEK Bit 4 => Support zoom operation; 0(not support), 1(support) Bit 5 => Support focus operation; 0(not support), 1(support)(SD/PZ/IZ series only) text string[64] Enclose caption. imprinttimestamp <boolean> Overlay time stamp on video. minexposure <1~32000>, Minimum exposure time <product dependent> <5~32000>, 1~32000 =>...
Page 156 VIVOTEK "irismode"=fixed * Only available when "capability_image_c<0~(n-1)>_exposure_ra ngetype" is "twovalues". enablepreview <boolean> Usage for UI of exposure settings. Preview settings of video profile. 7.8.1 Video input setting per channel Group: videoin_c<0~(n-1)> for n channel products, and m is stream number n denotes the value of "capability_nvideoin", m denotes the value of "capability_nmediastream"...
Page 157 VIVOTEK ode" !="-" rgain 0~100 Manual set rgain value of gain control setting. 0: Weak <-> 100: Strong * Only available when "rbgain" is listed "capability_image_c<0~(n-1)>_wbm ode". * Only valid when "videoin_c<0~(n-1)>_whitebalance" != auto * Normalized range. bgain 0~100 Manual set bgain value of gain control setting.
Page 158 Iris, and keep adjusting Gain and Shutter speed automatically. "qualitypriority": Automatically adjust the Iris, Gain and Shutter Speed by VIVOTEK quality algorithm. "manual": Manually adjust with variable Shutter, Iris and Gain. * We support this parameter when the version number (httpversion) is equal or greater than 0302a.
Page 159 VIVOTEK "piris_position". "-": not support. (only available when "capability_image_c<0~(n-1)>_sens ortype" is "smartsensor") * Only available when "capability_image_c<0~(n-1)>_iristy pe"=piris piris_position 1~100 Manual set P-Iris. <product 1: Open <-> 100: Close dependent> * Only valid when "piris_mode"=manual or "capability_image_c<0~(n-1)>_sens ortype" is "smartsensor"...
Page 160 VIVOTEK * Only available when "capability_image_c<0~(n-1)>_agc_ mingain" != "-" * Only valid when "piris_mode"=manual or "irismode"=fixed * Normalized range. * Only available when "capability_image_c<0~(n-1)>_expo sure_rangetype" is "twovalues". gainvalue 0~100 Gain value. 0: Low <-> 100: High * Only available when "capability_image_c<0~(n-1)>_agc_...
Page 161 VIVOTEK Bit 3 => Support tilt operation; 0(not support), 1(support) Bit 4 => Support zoom operation; 0(not support), 1(support) Bit 5 => Support focus operation; 0(not support), 1(support)(SD/PZ/IZ series only) text string[64] Enclose caption. imprinttimesta <boolean> Overlay time stamp on video.
Page 162 VIVOTEK etc. 5~8000 => 1/5s ~ 1/8000s etc. * Available value is listed in "capability_image_c<0~(n-1)>_expo * This parameter may also restrict sure_maxrange" image frame rate from sensor due to sensor generates a frame per exposure time. Ex: If this is set to 1/5s...
Page 163 VIVOTEK * We support this parameter when the version number (httpversion) is equal or greater than 0302a. enablepreview <boolean> Usage for UI of exposure settings. Preview settings of video profile. crop_position <coordinate> Crop left-top corner coordinate. (x,y) crop_size <window size>...
Page 164 VIVOTEK or greater than 0301c. s<0~(m-1)>_h 250, 500, 1000, 2000, 3000, 4000 The time interval between two 264_intraperiod I-frames (Intra coded picture). The unit is millisecond (ms). s<0~(m-1)>_h cbr, vbr cbr: Constant bit rate mode. 264_ratecontrol vbr: Fixed quality mode, all frames are mode encoded in the same quality.
Page 165 VIVOTEK * Only valid when "ratecontrolmode"= s<0~(m-1)>_h 1~5, 100 Set the pre-defined quality level: 264_cbr_quant 1: Medium 2: Standard 3: Good 4: Detailed 5: Excellent 100: Use the quality level in "cbr_qpercent" * Only available when "ratecontrolmode"= cbr. * Only available when "capability_smartstream_version"=2.
Page 166 VIVOTEK 4_maxframerate" s<0~(m-1)>_h Indicate H264 profiles 264_profile 0: baseline 1: main profile 2: high profile s<0~(m-1)>_h <boolean> Enable "Dynamic intra frame period". 265_dintraperio * Only available when d_enable "capability_videoin_c<0~(n-1)>_dint raperiod_support" is 1 and h265 is listed in "capability_videoin_codec". * We support this parameter when the version number (httpversion) is equal or greater than 0301c.
Page 167 VIVOTEK 265_qvalue value which is used by encoded library directly. * Only available when h265 is listed in "capability_videoin_codec". * Only valid when "ratecontrolmode"= vbr and s<0~(m-1)>_h265_quant = s<0~(m-1)>_h 1~100 Select customized quality in a 265_qpercent normalized full range. 1: Worst quality...
Page 168 VIVOTEK "capability_smartstream_version"="2 .0" s<0~(m-1)>_h 1~100 Select customized quality in a 265_cbr_qperce normalized full range. 1: Worst quality 100: Best quality * Only available when h265 is listed in "capability_videoin_codec". * Only valid when "ratecontrolmode"= cbr and "quant"= 100. * Only available when "capability_smartstream_version"="2...
Page 169 VIVOTEK * Only available when h265 is listed in "capability_videoin_codec". s<0~(m-1)>_m cbr, vbr cbr: Constant bit rate mode. vbr: Fixed quality mode, all frames are jpeg_ratecontro lmode encoded in the same quality. s<0~(m-1)>_m 1~5, * Only valid when "ratecontrolmode"= jpeg_quant 99, 100 vbr.
Page 170 VIVOTEK frames will be dropped to restrict the bit rate. * Only valid when "ratecontrolmode"= s<0~(m-1)>_m 1~5, 100 Set the pre-defined quality level: jpeg_cbr_quant 1: Medium 2: Standard 3: Good 4: Detailed 5: Excellent 100: Use the quality level in "cbr_qpercent"...
Page 171 VIVOTEK (n-1)>_resolution") are recorded in "capability_videoin_c<0~(n-1)>_mjp eg_maxframerate" s<0~(m-1)>_ra <boolean> Change resolution to fit 4:3 ratio. tiocorrect For PAL: D1/4CIF(720/704x576) -> (768x576) CIF(352x288)->(384x288) For NTSC: D1/4CIF(720/704x480) -> (640x480) CIF(352x240)->(320x240) * Only available when capability_videoin_type is 0 or 1. wdrpro_mode <boolean> Enable WDR pro <product...
Page 172 VIVOTEK eed" is 1 aespeed_speedl 1~100 The speed level of AE converge speed. evel 1~20: level 1 <product 21~40: level 2 dependent> 41~60: level 3 61~80: level 4 81~100: level 5 Level 1~4(low ~ high) The higher speed level meas shorter AE converged time during AE executing.
Page 173 VIVOTEK * Only available when "capability_fisheye" > 0 enablewatermar 0, 1 0: Not to add watermarks on images 1: Add watermarks on images <product dependent> * Only available when "capability_fisheye" > 0 s<0~(m-2)>_fi ‘1O, 1P, 2P, 1R, 4R’ for ceiling/floor Local dewarp mode.
Page 174 VIVOTEK d" is 1. qualitypriority -5,-4,-3,-2,-1,1,2,3,4,5 The differential value of Q between the regions of interest (ROI) and the areas of non-interest (non-ROI) of the display image. If the value is a positive number, the video quality of ROI is better than the non-ROI areas.
Page 175 VIVOTEK 7.8.1.1 Alternative video input profiles per channel In addition to the primary setting of video input, there can be alternative profile video input setting for each channel which might be for different scene of light (daytime or nighttime). Group: videoin_c<0~(n-1)>_profile_i<0~(m-1)> for n channel profucts and m profile n denotes the value of "capability_nvideoin"...
Page 176 VIVOTEK * Available value is listed in * This parameter may also restrict image "capability_image_c frame rate from sensor due to sensor <0~(n-1)>_exposu generates a frame per exposure time. Ex: If re_maxrange" this is set to 1/5s ~ 1/8000s and camera takes 1/5s on the night, then sensor only outputs 5 frame/s.
Page 177 "capability_image_c speed automatically. "qualitypriority": Automatically adjust the <0~(n-1)>_exposu re_modetype") Iris, Gain and Shutter Speed by VIVOTEK quality algorithm. "manual": Manually adjust with variable Shutter, Iris and Gain. * We support this parameter when the version number (httpversion) is equal or greater than...
Page 178 VIVOTEK 0302a. whitebalance auto, Modes of white balance. <product dependent> manual, "auto": Auto white balance rbgain, "rbgain": Use rgain and bgain to set white widerange, balance manually. outdoor, "manual": 2 cases: indoor, a. if "rbgain" is not supported, this means sodiumauto, keep current white balance status.
Page 179 VIVOTEK 0: Low <-> 100: High * Only available when "capability_image_c<0~(n-1)>_agc_maxgain " != "-" * Only valid when "piris_mode"=manual or "irismode"=fixed * Normalized range. * Only available when "capability_image_c<0~(n-1)>_exposure_ra ngetype" is "twovalues". mingain 0~100 Minimum gain value. 0: Low <-> 100: High * Only available when "capability_image_c<0~(n-1)>_agc_mingain...
Page 180 VIVOTEK "indoor": Avoid rolling and flicker effect first. "manual": Manual set P-Iris by "piris_position". "-": not support (only available when "capability_image_c<0~(n-1)>_sensortype" is "smartsensor") * Only available when "capability_image_c<0~(n-1)>_iristype"=piri piris_position 1~100 Manual set P-Iris. <product dependent> 1: Open <-> 100: Close * Only valid when "piris_mode"=manual or...
Page 181 VIVOTEK "capability_image_c<0~(n-1)>_wdrc_mode" is 1 wdrc_strength 1~100 The strength of WDR enhanced. <product dependent> The bigger value means the stronger strength of WDR enhanced. * Only available when "capability_image_c<0~(n-1)>_wdrc_mode" is 1 aespeed_mode <boolean> Turning AE converge speed on or off. ...
Page 182 VIVOTEK <product dependent> * Only available when "capability_image_c<0~(n-1)>_flickerless" is 7.9Time Shift settings Group: timeshift for n channel profucts and m stream n denotes the value of "capability_nvideoin", m denotes the value of "capability_nmediastream" (capability.timeshift > 0) NAME VALUE SECURITY DESCRIPTION...
Page 183 VIVOTEK n"-1>_externalir > 0) extledmode do, irring Turn on an external IR led which is mounted do * Available values (digital output) device or is a IR ring device. are listed in * Only available when "capability_daynight "capability_daynight_c<0~"capability_nvideoi _c<0~(n-1)>_extle n"-1>_externalir" is 1.
Page 184 VIVOTEK 7.11 Image setting per channel Group: image_c<0~(n-1)> for n channel profucts and m profile n denotes the value of "capability_nvideoin" and m denotes the value of "capability_nvideoinprofile" NAME VALUE SECURITY DESCRIPTION (get/set) brightness -5~5,100 -5: Darker <-> 5: Bright <Not recommended to use this>...
Page 185 VIVOTEK "saturationpercent". * This parameter will not be used after the version number (httpversion) is equal or greater than 0400a. sharpness -3~3,100 -3: Softer <-> 3: Sharper <Not recommended to use this> 100: Use " image_c<0~(n-1)>_sharpnesspercent" * Only available when bit 3 of "capability_image_c<0~(n-1)>_basicsetting"...
Page 186 VIVOTEK is 1 gammacurve 0~100 0: Fine-turned gamma curve by Vivotek. <product dependent> 1: Gamma value = 0.01 2: Gamma value = 0.02 3: Gamma value = 0.03 100: Gamma value = 1 * Note: Although we set gamma value to 100 level, but not all gamma values are valid.
Page 187 VIVOTEK 1:enable * Only available when 'eis' is listed in "capability_image_c<0~(n-1)>_is_mode". eis_strength 1~100 Strength of electronic image stabilizer <product dependent> * Only available when 'eis' is listed in "capability_image_c<0~(n-1)>_is_mode". dis_mode <boolean> Digital image stabilizer <product dependent> 0:disable 1:enable * Only available when 'dis' is listed in "capability_image_c<0~(n-1)>_is_mode".
Page 188 VIVOTEK deinterlace_mode spatial,blend Users can choose between two different deinterlacing techniques: Spatical mode provides the best image quality, while Blend mode provides better image quality (than not using the deinterlace function at all). * Only available when "capability_image_c<0~(n-1)>_deinterlace_s upport" is 1.
Page 189 VIVOTEK profile_i<0~(m-1)>_contrast -5~5,100 -5: Less contrast <-> 5: More contrast <Not recommended to use this> 100: Use " image_c<0~(n-1)>_contrastpercent" * Only available when bit 1 of "capability_image_c<0~(n-1)>_basicsetting" is 1. * We replace "profile_i0_contrast" with "profile_i0_contrastpercent ". * This parameter will not be used after the version number (httpversion) is equal or greater than 0400a.
Page 190 * Only available when bit 3 of "capability_image_c<0~(n-1)>_basicsetting" is 1 profile_i<0~(m-1)>_gammacur 0~100 0: Fine-turned gamma curve by Vivotek. 1: Gamma value = 0.01 2: Gamma value = 0.02 3: Gamma value = 0.03 100: Gamma value = 1 * Note: Although we set gamma value to 100 level, but not all gamma values are valid.
Page 191 VIVOTEK <product dependent> "capability_image_c<0~(n-1)>_lowlightmode " is 1 profile_i<0~(m-1)>_dnr_mode <boolean> 3D noise reduction. <product dependent> 0:disable 1:enable * Only available when "capability_image_c<0~(n-1)>_dnr" is 1 profile_i<0~(m-1)>_dnr_stren 1~100 Strength of 3DNR * Only available when <product dependent> "capability_image_c<0~(n-1)>_dnr" is 1 profile_i<0~(m-1)>_defog_mo <boolean> Enable/disable defog mode.
Page 192 VIVOTEK "capability_image_c<0~(n-1)>_scenemode_ support" is 1 profile_i<0~(m-1)>_scene_mo visibility, Value of scene mode noiseless, * Only available when <product dependent> lpcparkinglot, "capability_image_c<0~(n-1)>_scenemode_ lpcstreet support" is 1 <product * Available value is listed in dependent> "capability_image_c<0~(n-1)>_scenemode_ supporttype" 7.12 Exposure window setting per channel Group: exposurewin_c<0~(n-1)>...
Page 193 VIVOTEK ntype". home <0~320,0~240> Left-top corner coordinate of the window. * Only available when qvga is listed in "capability_image_c<0~(n-1)>_exposure_wi ndomain". size <0~320x0~240> Width and height of the window. * Only available when qvga is listed in "capability_image_c<0~(n-1)>_exposure_wi ndomain". homepx <0~W,0~H>...
Page 194 VIVOTEK "capability_image_c<0~(n-1)>_ window. exposure_winmode" "custom": Use inclusive and exclusive window. "blc": Use BLC(Back Light Compensation), and the only exposure window is located at the center of view. "hlc": Use HLC (High Light Compensation), and to perform the masking of bright light area.
Page 195 VIVOTEK sizepx <0~Wx0~ H> Width and height of the window. W: 0~ The current image width -1 * Only available when px is listed in H: 0~ The current image height -1 "capability_image_c<0~(n-1)>_exposure_wi ndomain". homestd <0~9999,0~9999> Left-top corner coordinate of the window.
Page 196 VIVOTEK 7.13 Audio input per channel Group: audioin_c<0~(n-1)> for n channel products (capability.naudioin>0) n denotes the value of "capability_nvideoin" NAME VALUE SECURITY DESCRIPTION (get/set) source micin, linein micin => use built-in microphone input. <Not recommended to use <product linein => use external microphone input.
Page 197 VIVOTEK external microphone (The related bit of "capability_audio_extmic" is equal to 1). mute 0, 1 0: Mute off 1: Mute on gain 0~100 Gain of input. <Not recommended to use (audioin_c<0~(n-1)>_source = linein) this> * Reserved for compatibility, and suggest don't use this since the version number (httpversion) is equal or greater than 0301a.
Page 198 VIVOTEK 5900, * Only available if AMR is supported. 6700, 7400, 7950, 10200, 12200 s0_g711_mode pcmu, Set G.711 companding algorithm. pcma pcmu: µ-law algorithm pcma: A-law algorithm * Only available if G.711 is supported. s0_g726_bitrate 16000, Set G.726 encoded bitrate in bps.
Page 199 VIVOTEK greater than 0301a. profile_i0_begintime hh:mm Begin time of schedule mode. profile_i0_endtime hh:mm End time of schedule mode. profile_i0_alarm_level 1~100 Audio detection alarm level 7.14 Motion detection settings Group: motion_c<0~(n-1)> for n channel products n denotes the value of "capability_nvideoin"...
Page 200 VIVOTEK <Not recommended to use W,0 ~ H, 0 ~ W,0 ~ (4 points: x0,y0,x1,y1,x2,y2,x3,y3) this> H, 0 ~ W,0 ~ H * Only available when W: 0~ The current "capability_motion_wintype" = polygon. image width -1 H: 0~ The current...
Page 201 VIVOTEK * It's recommended to use polygonsd * This parameter will not be used after the version number (httpversion) is equal or greater than 0400a. width 0 ~ 320 Width of motion detection window. <Not recommended to use * Only available when ...
Page 202 VIVOTEK endtime hh:mm End time of schedule mode. win_sensitivity 0 ~ 100 Sensitivity of all motion detection windows. * The value "0" is reserved for compatibility and will not be used after the version number (httpversion) is equal or greater than 0400a.
Page 203 VIVOTEK version number (httpversion) is equal or greater than 0400a. polygon 0 ~ 320,0 ~ 240, 0 Coordinate of polygon window position. <Not recommended to use ~ 320,0 ~ 240, 0 ~ (4 points: x0,y0,x1,y1,x2,y2,x3,y3) this> 320,0 ~ 240, 0 ~...
Page 204 VIVOTEK * Only available when qvga is listed in "capability_motion_windomain". * It's recommended to use polygonsd * This parameter will not be used after the version number (httpversion) is equal or greater than 0400a. height 0 ~ 240 Height of motion detection window.
Page 205 VIVOTEK 7.15 Tampering detection settings Group: tampering_c<0~(n-1)> for n channel products (capability.tampering > 0) n denotes the value of "capability_nvideoin" NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean> Enable or disable tamper detection. threshold 0~100 Threshold of tamper detection. duration 10~600 If tampering value exceeds the "threshold"...
Page 206 VIVOTEK 7.16 DDNS Group: ddns (capability.protocol.ddns > 0) NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean> Enable or disable the dynamic DNS. provider CustomSafe100, Safe100 => safe100.net DyndnsDynamic, DyndnsDynamic => dyndns.org (dynamic) DyndnsCustom, DyndnsCustom => dyndns.org Safe100 CustomSafe100 => Custom server using safe100 method <provider>_hostname...
Page 207 VIVOTEK 7.18 UPnP presentation Group: upnppresentation NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean> Enable or disable the UPnP presentation service. 7.19 UPnP port forwarding Group: upnpportforwarding NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean> Enable or disable the UPnP port forwarding service.
Page 208 VIVOTEK 0: disable 1: Show log of parameter setting set from external. 2. Show log of parameter setting set from external and internal. 7.21 SNMP Group: snmp (capability.protocol.snmp > 0) NAME VALUE SECURITY DESCRIPTION (get/set) <boolean> SNMP v2 enabled. 0 for disable, 1 for enable <boolean>...
Page 209 1 => Default logo logo_link string[128] Hyperlink of the logo http://www.vivotek. logo_powerbyvvtk_hidden <boolean> 0 => display the power by vivotek logo 1 => hide the power by vivotek logo custombutton_manualtrig <boolean> Show or hide manual trigger (VI) button in ger_show homepage 0 ->...
Page 210 VIVOTEK 7.23 Privacy mask Group: privacymask_c<0~(n-1)> for n channel products and m privacy mask window. n denotes the value of "capability_nvideoin" and m denotes the value of "capability_videoin_c<0~(n-1)>_nprivacymask" NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean> Enable privacy mask. win_i<0~(m-1)>_enable <boolean>...
Page 211 VIVOTEK 0 ~ W,0 ~ H "capability_image_c<0~(n-1)>_privacymask W: 0~ The current _wintype" = polygon. image width -1 H: 0~ The current * Only available when px is listed in image height -1 "capability_image_c<0~(n-1)>_privacymask _windomain". win_i<0~(m-1)>_polygo 0 ~ 9999,0 ~ 9999, Coordinate of polygon window position.
Page 212 NAME VALUE SECURITY DESCRIPTION (get/set) api_httpversion <string> The version of VIVOTEK WebAPI with 4 This number start integers plus 1 alphabet, There are composed with 0301a. by "major version", "minor version", "revision","_platform". ex: 0301a_1 Major version Increase the major version when change,...
Page 213 VIVOTEK EX: 0302b_1 => Major version = 03, minor version = 02, revision = b, platform = 1 The 4 integer numbers are WebAPI version, we use short name: [httpversion] for it in this document. The 5th character is model-based version for API bug-fix and it's default to "a".
Page 214 VIVOTEK naudiosetting <positive integer> Number of audio settings per channel. <Not support anymore> * Not support this parameter anymore when the version number (httpversion) is equal or greater than 0301a. * We replace "naudiosetting" with "naudioin". More details, please refer the parameter description of "volume_internal"...
Page 215 VIVOTEK Bit 7 => (only available when bit0 is 1) External or built-in PT; 0(built-in), 1(external) windowless <boolean> Indicate whether to support windowless plug-in. evctrlchannel <boolean> Indicate whether to support HTTP tunnel for event/control transfer. joystick <boolean> Indicate whether to support joystick control.
Page 216 VIVOTEK Bit 0 => 1st stream supports ePTZ or not. Bit 1 => 2nd stream supports ePTZ or not, and so on. For nvideoin >= 2, the definition is different: First all 32 bits are divided into groups for channel.
Page 217 VIVOTEK adaptiverecording <boolean> Indicate whether to support adaptive recording. adaptivestreaming <boolean> Indicate whether to support adaptive streaming. supporttriggertypes seq,boot,motion,net list all the trigger types which are supported in workfail,recnotify,ta the camera: mpering,vi,vadp,di, "seq" = Periodic condition volalarm,temperatu "boot" = System boot re,pir, visignal, "motion"...
Page 218 VIVOTEK protocol_spush_mjpeg <boolean> Indicate whether to support server push MJPEG. protocol_snmp <boolean> Indicate whether to support SNMP. protocol_ipv6 <boolean> Indicate whether to support IPv6. protocol_pppoe <boolean> Indicate whether to support PPPoE. protocol_ieee8021x <boolean> Indicate whether to support IEEE802.1x. protocol_qos_cos <boolean>...
Page 219 VIVOTEK FD8183 supports H.264 and MJPEG, then this is "mjpeg,h264". IP9171 supports H.264, MJPEG and H.265, then this is "mjpeg,h264,h265" videoin_streamcodec A list of <Positive This equals Integer> "capability_videoin_c0_streamcodec". * This is kept for compatibility. videoin_flexiblebitrate <boolean> Indicate whether to support flexible bit rate control.
Page 220 VIVOTEK groups: - (disabled) : UI turns grey and users can't select it. - (unchanged) : UI keeps the status as before and user can't change it. - (hidden) : UI is hidden. - (fixed) : UI is fixed to one selection or value.
Page 221 VIVOTEK audio_intmic <0~Positive Internal (Built-in) Microphone. Integer> 0: Not support 1: Support Bit 0 for CH0, bit 1 for CH1, and so on. audio_extmic <0~Positive External Microphone. Integer> 0: Not support 1: Support Bit 0 for CH0, bit 1 for CH1, and so on.
Page 222 VIVOTEK polygon: The window is a 2D polygon shape. rectangle: The window is a 2D rectangle shape. motion_windomain qvga, px, std, - The domain to set an motion window. qvga: a 320x240 range to represent the whole image. px: Locate a window in the image with pixels.
Page 223 VIVOTEK anual manual. * Only available when "capability_smartstream_support" is 1 smartstream_nwindow_h <positive integer> Maximum number of tracking window of ybrid_autotracking autotracking in hybrid mode. * Only available when "capability_smartstream_support" is 1 smartstream_nwindow_h <positive integer> Maximum number of tracking window of ybrid_manual manual in hybrid mode.
Page 224 VIVOTEK 1: support both /cgi-bin/camctrl/camctrl.cgi and /cgi-bin/viewer/camctrl.cgi 0: support only /cgi-bin/viewer/camctrl.cgi This is equivalent to"capability_camctrl_c0_privilege". * This is kept for compatibility. uart_httptunnel <boolean> Indicate whether to support HTTP tunnel for UART transfer. transmission_mode Indicate transmission mode of the machine: TX = server, Rx = receiver box, Both = DVR.
Page 225 VIVOTEK number (httpversion) is equal or greater than 0305a. wireless_apmode_ssidpref <string> Indicate the prefix of broadcasted SSID when camera is in wireless AP mode. * Only available when "capability_wireless_apmode_enable" is "1". * We support this parameter when the version number (httpversion) is equal or greater than 0305a.
Page 226 VIVOTEK * We replace "capability_image_iristype" with "capability_image_c0_iristype". * Reserved for compatibility, and suggest don't use this since [httpversion] > 0301a image_focusassist <boolean> Indicate whether to support focus assist. <Not recommended to use * We replace "capability_image_ focusassist " this> with "capability_image_c0_ focusassist".
Page 227 VIVOTEK is 1 or "capability_storage_dbenabled" is 1. localstorage_smartsd <boolean> The "Lifetime and Log SD Card" feature allows users to obtain the card's remaining lifetime information. 0: Non-support this feature 1: Support this feature * Only Sony SD card can support this function now.
Page 228 VIVOTEK privilege <boolean> Indicate whether to support “Manage Privilege” of PTZ control in the security page in this video input. 1: support both /cgi-bin/camctrl/camctrl.cgi and /cgi-bin/viewer/camctrl.cgi 0: support only /cgi-bin/viewer/camctrl.cgi rs485 <boolean> An 32-bit integer, each bit can be set separately as follows: Bit 0 =>...
Page 229 VIVOTEK focusmode auto,onetimeauto,spo Focus mode selection: tlight,manual "auto": Camera will automatically adjust the <product dependent> focus position full time to adapt a clear picture. "onetimeauto": Camera will automatically adjust the focus position one time, which follows any PTZ control. "spotlight": Camera will automatically adjust the focus position full time, and to consider a spotlight avoidance situation.
Page 230 VIVOTEK maxpanangle <integer> The upper limit for pan angle. *Only available when bit0 of "capability_camctrl_c<0~(n-1)>_buildinpt" is "1" tiltspeedlv 0, <positive integer> 0/7 The maximum speed level of tilt motion. *Only available when bit1 of "capability_camctrl_c<0~(n-1)>_buildinpt" is "1" mintilt 0, <positive integer> 0/7 The lower limit for tilt position.
Page 231 VIVOTEK focusspeedlv 0, <positive integer> 0/7 The maximum speed level of focus motion. *Only available when the value of "capability_camctrl_c<0~(n-1)>_zoommodule" is "1" minfocus 0, <positive integer> 0/7 The lower limit for focus position. *Only available when the value of "capability_camctrl_c<0~(n-1)>_zoommodule"...
Page 232 VIVOTEK ircutsensitivity_type <string> Indicate the cgi interface of "ircutcontrol_sensitivity". "options": the value of "ircutcontrol_sensitivity" parameter is "low, normal,high". "normalize": the value of "ircutcontrol_sensitivity" parameter is "1~100" "-":not support * Only available when "capability_daynight_c<0~(n-1)>_support" is * We support this parameter when the version number (httpversion) is equal or greater than 0302a.
Page 233 VIVOTEK Group: capability_videoin_c<0~(n-1)> n denotes the value of "capability_nvideoin" PARAMETER VALUE SECURITY DESCRIPTION (get/set) The lens type of this channel. lens_type fisheye, fixed, fisheye: Fisheye lens varifocal, changeable, fixed: Build‐in fixed‐focus lens. motor, - varifocal: Build‐in varifocal lens. <product dependent> changeable: changeable lens. Like box‐type camera, users can install any C‐Mount or CS‐Mount lens as they wish. motor: Lens with motor to support zoom, focus, etc. ‐: N/A * Only available when [httpversion] >= 0301a rotation <boolean>...
Page 234 VIVOTEK rotationaffect When rotation is enabled, some features may <product dependent> become malfunction or be forced to a given value. The affected functions are list here. The format is "Affect API name":"Policy":"Description" "Policy" can be categorized into following groups: - (disabled) : UI turns grey and users can't select - (unchanged) : UI keeps the status as before and user can't change it.
Page 235 VIVOTEK streamcodec <positive integer> Represent supported codec types of each stream. This contains a list of positive integers, split by comma. Each one stands for a stream, and the definition is as following: Bit 0: Support MPEG4. Bit 1: Support MJPEG Bit 2: Support H.264...
Page 236 VIVOTEK maxframerate A list of <Integer> Indicate frame rate that the video source outputs in current video mode. One to one mapping to the resolution in "resolution". * The element number is defined as "nresolution" in this group. * This parameter may be changed when "videoin_c<n>_cmosfreq"=50 or "videoin_c<n>_modulation"=pal. Ex: 30 fps is changed to 25 fps, 60 fps is changed to 50 fps, and so on. mjpeg_maxframerate A list of <Positive Maximum fps that the device can encoded with Integer>...
Page 237 VIVOTEK h264_maxframerate A list of <Positive Maximum fps that the device can encoded with Integer> and "-" H.264 on resolutions in current video mode. "-" means not support. * One to one mapping to the resolution in "resolution". * The element number is defined as "nresolution"...
Page 238 VIVOTEK fisheye_mounttype ceiling, wall, floor Indicate the supported type. <product dependent> <product dependent> wall mount: 180° panoramic view ceiling mount: 360° surround view without blind spots floor mount: 360° surround view without blind spots Only available when "capability_fisheye" > 0 dintraperiod_support <boolean>...
Page 239 VIVOTEK typewallmount 1O, 1P, 1R, 4R Available dewarp types of wall mount. resolutionC1P A list of <WxH> Available resolutions of 1P mode of ceiling and floor mount. resolutionC2P A list of <WxH> Available resolutions of 2P mode of ceiling and floor mount.
Page 240 VIVOTEK eptz 0, <positive integer> 0/7 Indicate this mode whether support eptz. For "nvideoin" = 1, the definition is as following: A 32-bits integer, each bit can be set separately as follows: Bit 0 => 1st stream supports ePTZ or not.
Page 241 VIVOTEK effectivepixel <WxH> The visible area of full scene in this video mode. The unit is pixel in source. * If "effectivepixel"<"capability_videoin_c<0~(n-1) >_maxsize", then the visible area is located at the center of full scene. outputsize <WxH> The output size of source, equal to the captured size by device, in this video mode.
Page 242 VIVOTEK minresolution A list of <Integer> Represent supported minimum resolution of each stream in current video mode. * The element number is defined as "capability_nmediastream". * We support this parameter when the version number (httpversion) is equal or greater than 0304b.
Page 243 VIVOTEK maxfps_h264 A list of <Positive Maximum fps which the device can encoded with Integer> and "-" H.264 on resolutions in this video mode. "-" means not support. * One to one mapping to the resolution in "resolution". * The element number is defined as "nresolution"...
Page 244 VIVOTEK to proper position vertically or not. wdrpro_mode 0, 1, 2 0: Non-support WDR Pro 1: Support WDR Pro 2: Support WDR Pro and WDR Pro II wdrpro_strength 0, 1 0: Non-support tuning strength of...
Page 245 VIVOTEK - (enabled) : UI is checked. - (notsupport) : the affected function is not available. "Affect API name" can be described in hierarchy, such as "exposurewin.mode.blc:disabled:" which means blc exposure window is disabled. API name can be one word as well, such as "exposurelevel:fixed:6"...
Page 246 VIVOTEK exposurelevel:ranged:<x>- - (disabled) : UI turns grey and users <x>, can't select it. exposuremode:fixed:auto - (unchanged) : UI keeps the status as before and user can't change it. <x>: nonnegative integer - (hidden) : UI is hidden. <product dependent>...
Page 247 VIVOTEK > 0. * We support this parameter when the version number (httpversion) is equal or greater than 0306d. dnrtype 2d,3d Description about DNR type. * Only available when "capability_image_c<0~(n-1)>_dnr" > 0. * We support this parameter when the version number (httpversion) is equal or greater than 0308a.
Page 248 VIVOTEK "capability_image_c<0~(n-1)>_is_m ode" is not "-". * We support this parameter when the version number (httpversion) is equal or greater than 0302a. is_affect When Is mode is not "-", some minexposure:hidden:, features may become malfunction or mingain:hidden:, be forced to a given value. The wdrpro:unchanged:, affected functions are list here.
Page 249 VIVOTEK integer or string or NULL. "-" means no feature is affected. * Only available when "capability_image_c<0~(n-1)>_is_m ode" is not "-". * We support this parameter when the version number (httpversion) is equal or greater than 0302a. scenemode_support 0: Non-support scene mode...
Page 250 VIVOTEK "Affect API name" can be described in hierarchy, such as "exposurewin.mode.blc:disabled:" which means blc exposure window is disabled. API name can be one word as well, such as "exposurelevel:fixed:6" which means exposurelevel is fixed to level 6. "Description" can be a nonnegative integer or string or NULL.
Page 251 VIVOTEK - (notsupport) : the affected function is not available. "Affect API name" can be described in hierarchy, such as "exposurewin.mode.blc:disabled:" which means blc exposure window is disabled. API name can be one word as well, such as "exposurelevel:fixed:6" which means exposurelevel is fixed to level 6.
Page 252 VIVOTEK selections or values. - (enabled) : UI is checked. - (notsupport) : the affected function is not available. "Affect API name" can be described in hierarchy, such as "exposurewin.mode.blc:disabled:" which means blc exposure window is disabled. API name can be one word as well, such as "exposurelevel:fixed:6"...
Page 253 VIVOTEK value. - (ranged) : UI is fixed to multiple selections or values. - (enabled) : UI is checked. - (notsupport) : the affected function is not available. "Affect API name" can be described in hierarchy, such as "exposurewin.mode.blc:disabled:" which means blc exposure window is disabled.
Page 254 VIVOTEK lens. sensortype rawsensor, Indicate sensor type. smartsensor, "rawsensor": Raw sensor "smartsensor": Smart sensor "-": N/A * We support this parameter when the version number (httpversion) is equal or greater than 0302a. exposure_mode 0: Non-support exposure control.
Page 255 VIVOTEK * Only available when "capability_image_c<0~(n-1)>_ exposure_mode" is 1 and "capability_image_c<0~(n-1)>_expo sure_rangetype" is "onevalue". * We support this parameter when the version number (httpversion) is equal or greater than 0302a. exposure_gainvaluetype fixed, * One to one mapping to the mode maximum, type in "exposure_modetype".
Page 256 VIVOTEK before and user can't change it. - (hidden) : UI is hidden. - (fixed) : UI is fixed to one selection or value. - (ranged) : UI is fixed to multiple selections or values. - (enabled) : UI is checked.
Page 257 VIVOTEK <x>: nonnegative integer <product dependent> "Policy" can be categorized into following groups: - (disabled) : UI turns grey and users can't select it. - (unchanged) : UI keeps the status as before and user can't change it. - (hidden) : UI is hidden.
Page 258 VIVOTEK e_affect exposurewin.mode.blc:hidd enabled, some features may become en:, malfunction or be forced to a given defog:disabled:, value. The affected functions are list wdrpro:disabled:, here. exposurelevel:hidden:, or others The format is "Affect API name":"Policy":"Description" <x>: nonnegative integer <product dependent> "Policy" can be categorized into...
Page 259 VIVOTEK exposure_modetype" and "capability_image_c<0~(n-1)>_ exposure_mode" is 1. * We support this parameter when the version number (httpversion) is equal or greater than 0302a. exposure_qualitypriority When exposure quality priority mode mode_affect exposurewin.mode.blc:hidd is enabled, some features may become en:, malfunction or be forced to a given defog:disabled:, value.
Page 260 VIVOTEK "Description" can be a nonnegative integer or string or NULL. "-" means no feature is affected. * Only available when qualitypriority is listed in "capability_image_c<0~(n-1)>_ exposure_modetype" and "capability_image_c<0~(n-1)>_ exposure_mode" is 1. * We support this parameter when the version number (httpversion) is equal or greater than 0305a.
Page 261 VIVOTEK "exposurewin.mode.blc:disabled:" which means blc exposure window is disabled. API name can be one word as well, such as "exposurelevel:fixed:6" which means exposurelevel is fixed to level 6. "Description" can be a nonnegative integer or string or NULL. "-" means no feature is affected.
Page 262 VIVOTEK * Only available when "capability_image_c<0~(n-1)>_ exposure_mode" is 1 and hlc is listed in "capability_image_c<0~(n-1)>_ exposure_winmode". exposure_hlcmode_affect When hlc mode is enabled, some or others features may become malfunction or be forced to a given value. The <x>: nonnegative integer affected functions are list here.
Page 263 VIVOTEK "-" means no feature is affected. * Only available when "capability_image_c<0~(n-1)>_ exposure_mode" is 1 and hlc is listed in "capability_image_c<0~(n-1)>_ exposure_winmode". * We support this parameter when the version number (httpversion) is equal or greater than 0304a. exposure_wintype ...
Page 264 VIVOTEK "capability_image_c<0~(n-1)>_ exposure_mode" is 1. A list of <Positive Integer> exposure_ntsc_totalrange Available total range for NTSC analog output. * Only available when "capability_image_c<0~(n-1)>_ exposure_mode" is 1. * We support this parameter when the version number (httpversion) is equal or greater than 0301a. A list of <Positive Integer> exposure_pal_totalrange Available total range for PAL analog output. * Only available when "capability_image_c<0~(n-1)>_ exposure_mode"...
Page 265 VIVOTEK * When "exposure_mode"=0, this value must be set to "-". * Only available when "capability_image_c<0~(n-1)>_ exposure_mode" is 1. privacymask_wintype rectangle, The supported mask window type. polygon, "polygon": The window is a 2D 3Drectangle polygon shape. "rectangle": The window is a 2D rectangle shape.
Page 266 VIVOTEK "Policy" can be categorized into following groups: - (disabled) : UI turns grey and users can't select it. - (unchanged) : UI keeps the status as before and user can't change it. - (hidden) : UI is hidden. - (fixed) : UI is fixed to one selection or value.
Page 267 VIVOTEK _mode"=1, this may be either 0 or 1. defog_supportlevel 0, <positive integer> The value indicate the support strength level of defog. defog_affect When defog is enabled, some features wdrpro:unchanged:, may become malfunction or be forced or others to a given value. The affected functions are list here.
Page 268 VIVOTEK * When "defog" = 0, this value must be "-" aespeed 0: Non-support AE speed 1: Support AE speed aespeedsupportlevel <positive integer> The value indicate the support strength level of aespeed. * Only available when "capability_image_c<0~(n-1)>_aesp eed" is 1.
Page 269 VIVOTEK focuswindomain qvga, px, std, - The domain to set a focus window. "qvga": a 320x240 range to represent the whole image. "px": Locate a window in the image with pixels. "std": A normalized 0~9999 range. "-": Not supported. focuswindow_nwindow 0,<positive integer>...
Page 270 VIVOTEK better image quality (than not using the deinterlace function at all). * Only available when capability_image_c<0~(n-1)>_deinte rlace_support is 1 Group: capability_peripheral_c<0~(n-1)> n denotes the value of "capability_nvideoin" PARAMETER VALUE SECURITY DESCRIPTION (get/set) devicecontrol <boolean> Indicate whether to support the peripheral device control.
Page 271 VIVOTEK 7.27 Event setting Group: event_i<0~2> PARAMETER VALUE SECURITY DESCRIPTION (get/set) name string[40] Identification of this entry. enable 0, 1 Enable or disable this event. priority 0, 1, 2 Indicate the priority of this event: “0”= low priority “1”= normal priority “2”= high priority...
Page 272 VIVOTEK mdwin 0,<positive integer> Indicate the source window id of motion detection. This field is required when trigger condition is “md”. One bit represents one window. The LSB indicates the 1 window. For example, to detect the 1 and 3 windows, set mdwin as 5.
Page 273 VIVOTEK weekday 0~127 Indicate which weekday is scheduled. One bit represents one weekday. bit0 (LSB) = Saturday bit1 = Friday bit2 = Thursday bit3 = Wednesday bit4 = Tuesday bit5 = Monday bit6 = Sunday For example, to detect events on Friday and Sunday, set weekday as 66.
Page 274 VIVOTEK action_goto_name string[40] Specify the preset name that ptz goto on event <product dependent> triggered. * Only available when capability_ptzenabled > action_goto_sync <boolean> Capture media after moving to the location. <product dependent> * Only avaliable when the bit4 of capability_ptzenabled is 1 and the bit7 of capability_ptzenabled is 0, or capability_camctrl_c0_zoommodule >...
Page 275 VIVOTEK email_sslmode <boolean> Enable support SSL. email_port 0~65535 Port to connect to the server. email_username string[64] Username to log in to the server. email_passwd string[64] Password of the user. email_senderemail string[128] Email address of the sender. email_recipientemail string[640] Email address of the recipient.
Page 276 VIVOTEK snapshot_preevent 0~" Indicates the number of pre-event capability_media_snapshot_maxpr images. eevent" snapshot_postevent 0~" Indicates the number of post-event capability_media_snapshot_maxpo images. stevent" videoclip_source 0~"capability_nmediastream"-1 Indicate the source of media stream. 0 means the first stream. 1 means the second stream and etc.
Page 277 VIVOTEK 7.30 Recording Group: recording_i<0~1> PARAMETER VALUE SECURITY DESCRIPTION (get/set) name string[40] Identification of this entry. trigger schedule, The event trigger type networkfail schedule: The event is triggered by schedule networkfail: The event is triggered by the failure of network connection.
Page 278 VIVOTEK notifyserver 0~31 Indicate which notification server is scheduled. One bit represents one application server (server_i0~i4). bit0 (LSB) = server_i0. bit1 = server_i1. bit2 = server_i2. bit3 = server_i3. bit4 = server_i4. For example, enable server_i0, server_i2, and server_i4 as notification servers; the notifyserver value is 21.
Page 279 State or province name in the certificate information. localityname string[128] The locality name in thecertificate information. organizationname string[64] Organization name in the certificate VIVOTEK Inc. information. unit string[64] Organizational unit name in thecertificate VIVOTEK Inc. information. User's Manual - 279...
Page 280 VIVOTEK commonname string[64] Common name in the certificate information. www.vivotek.com validdays 0 ~ 3650 Valid period for the certification. 7.32 Storage management setting Group: disk_i<0~(n-1)> n is the total number of storage devices. (capability.storage.dbenabled > 0) Currently it’s only for local storage (SD, CF card), so n is equal to 1.
Page 281 VIVOTEK maxretentiontime_recordin <boolean> Enable automatic clean up method for video clip g_enabled generated by recording task. The parameter takes effect when autocleanup_enabled is enabled. maxretentiontime_recordin <string> To specify the expired time for automatic clean g_i <0~1>_maxage up, and it only takes effect for video clip generated by recording_i <0~1>.
Page 282 VIVOTEK 7.33 Region of interest Group: roi_c<0~(n-1)> for n channel product and m is the index of video stream which support ePTZ. (capability.eptz > 0 or capability_fisheye = 1) PARAMETER VALUE SECURITY DESCRIPTION (get/set) s<0~(m-1)>_home <W,H> ROI left-top corner coordinate.* If the minimal <product dependent>...
Page 283 VIVOTEK 7.34 ePTZ setting Group: eptz_c<0~(n-1)> for n channel product. (capability.eptz > 0 or capability_fisheye = 1) PARAMETER VALUE SECURITY DESCRIPTION (get/set) osdzoom <boolean> Indicates multiple of zoom in is “on-screen <Not recommended to use display” or not. this> * Reserved for compatibility, and suggest don't use this since [httpversion] >...
Page 284 VIVOTEK Group: eptz_c<0~(n-1)>_s<0~(m-1)> for n channel product and m is the index of video stream which support ePTZ. (capability.eptz > 0 or capability_fisheye = 1) PARAMETER VALUE SECURITY DESCRIPTION (get/set) patrolseq string[120] The patrol sequence of ePTZ. All the patrol position indexes will be separated by ","...
Page 285 (Read only) guid<0~2>_id string[127] The connected seamless streaming ID. (Read only) guid<0~2>_number Number of connected seamless streaming with guid<0~2>_id. (Read only) 7.37 VIVOTEK Application Development Platformsetting Group: vadp NAME VALUE SECURITY DESCRIPTION (get/set) version <string> Indicate the VADP version.
Page 286 Indicate the message that will be show on the running status when mouse over. vvtklicensemec string[40] Indicate the module use VIVOTEK license mechanism Group: vadp_schedule_i<0~(n-1)> for n VADP package number n denotes the value of "capability_vadp_npackage". (Only available when "capability_vadp_npackage" > 0 and the version number of "vadp_version" >= "1.3.2.0")
Page 287 VIVOTEK endtime hh:mm End time of the schedule Group: vadp_event NAME VALUE SECURITY DESCRIPTION (get/set) ntrigger 0,<positive integer> Indicate the number of topics to be transferred to event manager for trigger. triggerlist_i<0~(n-1)>_to string[256] Indicate the event notification with this topic will be transferred to event manager as trigger.
Page 288 VIVOTEK 2: enable PTZ commands with UART tunnel. * Only available when bit7 of capability_ptzenabled is 1 disablemdonptz <boolean> Disable motion detection on PTZ operation. 7.39 camera PTZ control (IZ series) Group: camctrl_c<0~(n-1)> for n channel products (capability_camctrl_c0_zoommodule = 1 and capability_camctrl_c0_buildinpt = 0) n denotes the value of "capability_nvideoin"...
Page 289 VIVOTEK 1: enable PTZ commands with PTZ driver. 2: enable PTZ commands with UART tunnel. * Only available when bit7 of capability_ptzenabled is 1 preset_i<0~(k-1)>_name string[40] Name of the preset location. preset_i<0~(k-1)>_zoom capability_ptz_c<0~(n-1) Zoom position at each preset location. >_minzoom ~ capability_ptz_c<0~(n-1)
Page 290 VIVOTEK >_maxfocus digitalzoom <boolean> Enable/disable digital zoom zoomenhance <boolean> Enable /disable zoom enhancement returnhome <boolean> Enable/disable return home while idle. returnhomeinterval 1~999 While idle over this time interval, idle action will be taken. idleaction_enable <boolean> Enable/disable idle action while idle...
Page 291 VIVOTEK t,manual * Available values are listed in "capability_camctrl_c<0~ (n-1)>_focusmode" preset_i<0~(k-1)>_name string[40] Name of the preset location. preset_i<0~(k-1)>_pan capability_ptz_c<0~(n-1) Pan position at each preset location. >_minpan ~ capability_ptz_c<0~(n-1) >_maxpan preset_i<0~(k-1)>_tilt capability_ptz_c<0~(n-1) Tilt position at each preset location. >_mintilt ~ capability_ptz_c<0~(n-1) >_maxtilt...
Page 292 VIVOTEK >_maxpan axisy capability_ptz_c<0~(n-1) Custom home tilt position. >_mintilt ~ capability_ptz_c<0~(n-1) >_maxtilt axisz capability_ptz_c<0~(n-1) Custom home zoom position. >_minzoom ~ capability_ptz_c<0~(n-1) >_maxzoom axisf capability_ptz_c<0~(n-1) Custom home focus position. >_minfocus ~ capability_ptz_c<0~(n-1) >_maxfocus axisflip <boolean> Custom home flip side. returnhome <boolean>...
Page 293 VIVOTEK "random": the presets of the tour will be recalled randomly. * Only available when "capability_presettourdirection" is 1. * We support this parameter when the version number (httpversion) is equal or greater than 0307a. tour_i<0~19>_checklist string[512] The indexes of preset positions, separated by “,”...
Page 294 VIVOTEK stopbit 2-1.5 , data bit is 5 uartmode rs485, RS485 or RS232. rs232 customdrvcmd_i<0~9> string[128] PTZ command for custom camera. speedlink_i<0~4>_name string[40] Additional PTZ command name. speedlink_i<0~4>_cmd string[40] Additional PTZ command list. ptzdriver 0~19, The PTZ driver is used by this COM port.
Page 295 VIVOTEK uartmode rs485 RS485 mode. 7.43 Lens configuration Group: lens for n channel products n denotes the value of "capability_nvideoin" (capability.image.c<0~(n-1)>.lensconfiguration.support = 1) NAME VALUE SECURITY DESCRIPTION (get/set) selected <string> Current selected lens profile. e.g. lens_selected=lens_default_i0, it means choosen lens configuration is i0 lens of default group.
Page 296 VIVOTEK 7.44 Fisheye info Group: fisheyeinfo (capability.fisheye > 0) NAME VALUE SECURITY DESCRIPTION (get/set) revisedcenteraxis <coordinate> The actual center axis coordinate radius 0, <positive The actual center radius integer> 7.45 Fisheye local dewarp setting Group: fisheyedewarp_c<0~(n-1)> (capability_fisheyelocaldewarp_c<0~(n-1)> > 0) ...
Page 297 VIVOTEK 7.46 PIR behavior define Group: pir (capability.npir > 0) NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean> Enable/disable PIR 7.47 Auto tracking setting Group: autotrack_c<0~(n-1)> (capability_image_c<0~(n-1)>_autotrack_support > 0) n denotes the value of "capability_nvideoin" PARAMETER VALUE SECURITY DESCRIPTION (get/set) objsize_type -1~2 Type of object size.
Page 298 VIVOTEK 7.48 Wireless Group: wireless (capability_network_wireless > 0) PARAMETER VALUE SECURITY DESCRIPTION (get/set) ssid string[32] SSID for wireless lan settings. wlmode Infra, Wireless mode. Adhoc Infra: Infrastructure channel 1~11 A list of WLAN channels. 1~13 Countries apply their own regulations to the 10~11 or allowable channels.
Page 299 VIVOTEK key4 password [26] WEP key4 for encryption. * Only valid when "wireless_encrypt" is "wep" algorithm AES, TKIP Algorithm * Only valid when "wireless_encrypt" is "wpa" or "wpa2" presharedkey password [64] WPA/WPA2PSK mode pre-shared key. * Only valid when "wireless_encrypt" is "wpa" or "wpa2"...
Page 300 VIVOTEK 8. Useful Functions Drive the Digital Output (capability.ndo > 0) Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/setdo.cgi?do1=<state>[&do2=<state>] [&do3=<state>][&do4=<state>] Where state is 0 or 1; “0” means inactive or normal state, while “1” means active or triggered state.
Page 301 VIVOTEK Query Status of the Digital Input(capability.ndi > 0) Note: This request requires Viewer privileges Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/getdi.cgi?[di0][&di1][&di2][&di3] If no parameter is specified, all of the digital input statuses will be returned. Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <length>\r\n \r\n [di0=<state>]\r\n...
Page 302 VIVOTEK Query Status of the Digital Output (capability.ndo > 0) Note: This request requires Viewer privileges Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/getdo.cgi?[do0][&do1][&do2][&do3] If no parameter is specified, all the digital output statuses will be returned. Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <length>\r\n \r\n [do0=<state>]\r\n...
Page 303 VIVOTEK Capture Single Snapshot Note: This request requires Normal User privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/viewer/video.jpg?[channel=<value>][&resolution=<value>] [&quality=<value>][&streamid=<value>] If the user requests a size larger than all stream settings on the server, this request will fail. PARAMETER VALUE DEFA DESCRIPTION channel 0~(n-1) The channel number of the video source.
Page 304 VIVOTEK Account Management Note: This request requires Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/editaccount.cgi? method=<value>&username=<name>[&userpass=<value>][&privilege=<value>] [&privilege=<value>][…][&return=<return page>] PARAMETER VALUE DESCRIPTION method Add an account to the server. When using this method, the“username” field is necessary. It will use the default value of other fields if not specified.
Page 305 VIVOTEK System Logs Note: This request require Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/syslog.cgi Server will return the most up-to-date system log. Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <syslog length>\r\n \r\n <system log information>\r\n User's Manual - 305...
Page 306 VIVOTEK Upgrade Firmware Note: This request requires Administrator privileges. Method: POST Syntax: http://<servername>/cgi-bin/admin/upgrade.cgi Post data: fimage=<file name>[&return=<return page>]\r\n \r\n <multipart encoded form data> Server will accept the file named <file name> to upgradethe firmware and return with <return page> if indicated.
Page 307 VIVOTEK ePTZ Camera Control (capability.eptz > 0 and capability_fisheye = 0) Note: This request requires camctrl privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/camctrl/eCamCtrl.cgi?channel=<value>&stream=<value> [&move=<value>] – Move home, up, down, left, right [&auto=<value>] – Auto pan, patrol [&zoom=<value>] –Zoom in, out [&zooming=<value>&zs=<value>] –Zoom without stopping, used for joystick [&x=<value>&y=<value>&w=<value>&h=<value>&resolution=<value>] - Zoom in, out on a specific area...
Page 308 VIVOTEK http://IPAddr/cgi-bin/camctrl/eCamCtrl.cgi?stream=0&zooming=wide&zs=5 zooming is used to indicate the moving direction, and zs is used to indicate the speed. To stop a continuous movement, you have to use the command as below: http://IPAddr/cgi-bin/camctrl/eCamCtrl.cgi?stream=0&zoom=stop&zs=0 2. [Area zoom]: it means to zoom in on a specific area, here is an example for a directly moving...
Page 309 VIVOTEK <integer> The direction of movement, used for joystick control. <integer> 0 ~ 7 Set the speed of movement, “0” means stop. <integer> x-coordinate clicked by user. It will be the x-coordinate of center after movement. <integer> y-coordinate clicked by user.
Page 310 VIVOTEK ePTZ Recall (capability.eptz > 0 and capability_fisheye = 0) Note: This request requires camctrl privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/camctrl/eRecall.cgi?channel=<value>&stream=<value>& recall=<value>[&return=<return page>] PARAMETER VALUE DESCRIPTION channel <0~(n-1)> Channel of the video source. stream <0~(m-1)> Stream. recall Text string less than 40 One of the present positions to recall.
Page 311 VIVOTEK 8.10 ePTZ Preset Locations(capability.eptz > 0 and capability_fisheye = 0) Note: This request requires Operator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/operator/ePreset.cgi?channel=<value>&stream=<value> [&addpos=<value>][&delpos=<value>][&return=<return page>] PARAMETER VALUE DESCRIPTION channel <0~(n-1)> Channel of the video source. stream <0~(m-1)> Stream. addpos <Text string less than Add one preset location to the preset list.
Page 312 VIVOTEK 8.11 IP Filtering Note: This request requires Administrator access privileges. Method: GET/POST Syntax: <product dependent> http://<servername>/cgi-bin/admin/ipfilter.cgi?type[=<value>] http://<servername>/cgi-bin/admin/ipfilter.cgi?method=add<v4/v6>&ip=<ipaddress>[&index=<value>][&ret urn=<return page>] http://<servername>/cgi-bin/admin/ipfilter.cgi?method=del<v4/v6>&index=<value>[&return=<return page>] PARAMETER VALUE DESCRIPTION type NULL Get IP filter type allow, deny Set IP filter type method addv4 Add IPv4 address into access list.
Page 313 VIVOTEK 8.12 IP Filtering for ONVIF Syntax:<product dependent> http://<servername>/cgi-bin/admin/ipfilter.cgi?type[=<value>] http://<servername>/cgi-bin/admin/ipfilter.cgi?method=add<v4/v6>&ip=<ipaddress>[&index=<value>][&ret urn=<return page>] http://<servername>/cgi-bin/admin/ipfilter.cgi?method=del<v4/v6>&index=<value>[&return=<return page>] PARAMETER VALUE DESCRIPTION type NULL Get IP filter type allow, deny Set IP filter type method addv4 Add IPv4 address into access list. addv6 Add IPv6 address into access list.
Page 314 VIVOTEK 8.13 UART HTTP Tunnel Channel (capability.nuart > 0) Note: This request requires Operator privileges. Method: GET and POST Syntax: http://<servername>/cgi-bin/operator/uartchannel.cgi?[channel=<value>] ------------------------------------------------------------------------- GET /cgi-bin/operator/uartchannel.cgi?[channel=<value>] x-sessioncookie: string[22] accept: application/x-vvtk-tunnelled pragma: no-cache cache-control: no-cache ------------------------------------------------------------------------- POST /cgi-bin/operator/uartchannel.cgi x-sessioncookie: string[22] content-type: application/x-vvtk-tunnelled pragma : no-cache...
Page 315 VIVOTEK 8.14 Event/Control HTTP Tunnel Channel (capability. evctrlchannel > 0) Note: This request requires Administrator privileges. Method: GET and POST Syntax: http://<servername>/cgi-bin/admin/ctrlevent.cgi ------------------------------------------------------------------------- GET /cgi-bin/admin/ctrlevent.cgi x-sessioncookie: string[22] accept: application/x-vvtk-tunnelled pragma: no-cache cache-control: no-cache ------------------------------------------------------------------------- POST /cgi-bin/admin/ ctrlevent.cgi x-sessioncookie: string[22] content-type: application/x-vvtk-tunnelled...
Page 316 VIVOTEK 8.15 Get SDP of Streams Note: This request requires Viewer access privileges. Method: GET/POST Syntax: http://<servername>/<network_rtsp_s<0~m-1>_accessname> “m” is the stream number. “network_accessname_<0~(m-1)>” is the accessname for stream “1” to stream “m”. Please refer to the “subgroup of network: rtsp” for setting the accessname of SDP.
Page 317 VIVOTEK 8.17 Senddata (capability.nuart > 0) Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/viewer/senddata.cgi? [com=<value>][&data=<value>][&flush=<value>] [&wait=<value>] [&read=<value>] PARAMETER VALUE DESCRIPTION 1 ~ <max. com port The target COM/RS485 port number. number> data <hex decimal The <hex decimal data> is a series of digits from 0 ~ 9, A ~ F. Each data>[,<hex decimal...
Page 318 VIVOTEK 8.18 Storage managements (capability.storage.dbenabled > 0) Note: This request requires administrator privileges. Method: GET and POST Syntax: http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=<cmd_type>[&<parameter>=<value>…] The commands usage and their input arguments are as follows. PARAMETER VALUE DESCRIPTION cmd_type <string> Required. Command to be executed, including search, insert, delete, update, and queryStatus.
Page 319 VIVOTEK Indicate if the file is locked or not. 0: file is not locked. 1: file is locked. A locked file would not be removed from UI or cyclic storage. triggerTime <text> Optional. Indicate the event trigger time. (not the file created time) Format is “YYYY-MM-DD HH:MM:SS”...
Page 320 VIVOTEK Command: update PARAMETER VALUE DESCRIPTION label <integer primary key> Required. Identify the designated record. Ex. label=1 isLocked <boolean> Required. Indicate if the file is locked or not. Ex. Update records whose key numbers are 1 and 5 to be locked status.
Page 321 VIVOTEK 8.19 Virtual input (capability.nvi > 0) Note: Change virtual input (manual trigger) status. Method: GET Syntax: http://<servername>/cgi-bin/admin/setvi.cgi?vi0=<value>[&vi1=<value>][&vi2=<value>] [&return=<return page>] PARAMETER VALUE DESCRIPTION vi<num> state[(duration)nstate] Ex: vi0=1 Setting virtual input 0 to trigger state Where "state" is 0, 1. “0”...
Page 322 VIVOTEK Request 2 will not be accepted during the execution time(15 seconds). 8.20 Open Timeshift Stream (capability.timeshift > 0, timeshift_enable=1, timeshift_c<n>_s<m>_allow=1) Note: This request requires Viewer access privileges. Syntax: For HTTP push server (MJPEG): http://<servername>/<network_http_s<m>_accessname>?maxsft=<value>[&tsmode=<value>&reftime=<v alue>&forcechk&minsft=<value>] For RTSP (MP4 and H264), the user needs to input theURL below into an RTSP compatible player.
Page 323 VIVOTEK Return Code Description 400 Bad Request Request is rejected because some parameter values are illegal. 415 Unsupported Media Type Returned, if forcechk appears,when minsft is not achievable or the timeshift feature of the target stream is not enabled. User's Manual - 323...
Page 324 VIVOTEK 8.21 RemoteFocus (capability_image_c<0~(n-1)>_remotefocus=1) Note: This request requires Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/remotefocus.cgi?function=<value>[&direction=<value>] [&position=<value>][&steps=<value>][&iris] PARAMETER VALUE DESCRIPTION 324 - User's Manual...
Page 325 VIVOTEK function zoom, Function type focus, zoom - Move focus motor auto, focus – Move focus motor scan, auto – Perform auto focus scan – Perform focus scan stop, positioning, stop – Stop current operation getstatus positioning – Position the motors getstatus–Information of motors, return value as below:...
Page 326 VIVOTEK steps 1 ~ <motor_max> Motor’s moving steps. It works only if function=zoom | focus and direction=forward | backward. <motor_max> is refer to remote_focus_focus_motor_max or remote_focus_zoom_motor_max which replied from "function=getstatus" iris Open iris or not. It works only if function=auto | scan.
Page 327 VIVOTEK function focus, Function type auto, focus – Move focus motor scan, auto – Perform auto focus stop, scan – Perform focus scan stop – Stop current operation positioning, irisopen, positioning – Position the motors irisenable, resetfocus – reset focus position to default resetfocus, irisopen –...
Page 328 VIVOTEK steps 1 ~ <motor_max> Motor’s moving steps. It works only if function=focus and direction=forward | backward. <motor_max> is refer to remote_focus_focus_motor_max which replied from "function=getstatus" iris Open iris or not. It works only if function=auto | scan. 8.23 Export Files Note: This request requires Administrator privileges.
Page 329 VIVOTEK 8.24 Upload Files Note: This request requires Administrator privileges. Method: POST Syntax: For daylight saving time configuration file: http://<servername>/cgi-bin/admin/upload_dst.cgi Post data: filename =<file name>\r\n \r\n <multipart encoded form data> For language file: http://<servername>/cgi-bin/admin/upload_lan.cgi Post data: filename =<file name>\r\n \r\n <multipart encoded form data>...
Page 330 VIVOTEK 8.25 Update Lens Configuration Note: This request requires Administrator privileges. Method: GET Syntax: For list a name of lens currently used: http://<servername>/cgi-bin/admin/update_lens.cgi?get_currentlens For list all names of lens installed in camera: http://<servername>/cgi-bin/admin/update_lens.cgi?list_lens For choose selected lens configuration: http://<servername>/cgi-bin/admin/update_lens.cgi?choose_lens=<value> You need to reboot manually after you choose another lens configuration.
Page 331 VIVOTEK <multipart encoded form data> Server will accept the file named <file name> to upload the lens profile to camera. 8.26 Media on demand (capability.localstorage.modnum > 0) Media on demand allows users to select and receive/watch/listen to metadata/video/audio contents on demand.
Page 332 VIVOTEK 8.27 Fisheye local dewarp camera control (capability.fisheye > 0 and capability.fisheyelocaldewarp.c0 > 0, only support in 1R mode) Note: This request requires camctrl privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/camctrl/fdCamCtrl.cgi?channel=<value>&stream=<value> [&move=<value>] – Move home, up, down, left, right [&zoom=<value>] – Zoom wide, tele [[&speedpan=<value>][&speedtilt=<value>][&speedzoom=<value>]]...
Page 333 VIVOTEK zoom wide Zoom larger view with current speed. tele Zoom further with current speed. speedpan -5 ~ 5 Set the pan speed of current command. speedtilt -5 ~ 5 Set the tilt speed of current command. speedzoom -5 ~ 5 Set the zoom speed of current command.
Page 334 VIVOTEK 8.28 3D Privacy Mask (capability_image_c<0~(n-1)>_privacymask_wintype = 3Drectangle) n denotes the value of "capability_nvideoin" Note: This request requires admin user privilege Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/setpm3d.cgi?method=<value>&name=<value>&[maskheight=<value>& maskwidth=<value>&videosize=<value>&return=<return page>] PARAMETER VALUE DESCRIPTION method Add a 3D privacy mask at current location delete...
Page 335 VIVOTEK 8.29 Camera Control (capability_camctrl_c<0~(n-1)>_zoommodule = 1) Note: This request requires Viewer privileges. Method: GET/POST Syntax: (for control API) http://<servername>/cgi-bin/camctrl/camctrl.cgi?[channel=<value>][&camid=<value>] [&move=<value>] – Move home, up, down, left, right [&focus=<value>] – Focus operation [&zoom=<value>] – Zoom in, out [&zooming=<value>&zs=<value>] – Zoom without stopping, used for joystick [&vx=<value>&vy=<value>&vs=<value>] –...
Page 336 VIVOTEK speedpan -5 ~ 5 Set the pan speed. speedtilt -5 ~ 5 Set the tilt speed. speedzoom -5 ~ 5 Set the zoom speed. speedfocus -5 ~ 5 Set the focus speed. speedapp -5 ~ 5 Set the auto pan/patrol speed.
Page 337 VIVOTEK * We support this function when the version number of the PTZ control module is equal or greater than 5.0.0.20. getsetpreset Adds a named preset at current position, and return the preset index. * We support this function when the version number of the PTZ control module is equal or greater than 5.0.0.20.
Page 338 VIVOTEK gettiltangle <integer> Get the current tilt angle. *Only available when bit1 of "capability_camctrl_c<0~(n-1)>_buildinpt" is "1" getzoom 0, <positive integer> Get the current zoom position. getratio <decimal> Get the current zoom ratio. getfocus 0, <positive integer> Get the current focus position.
Page 339 VIVOTEK getmaxratio <decimal> Get the maximum ratio of optical zoom. * We support this parameter when the version number (getversion) is equal or greater than 5.0.0.14 getmaxdratio <decimal> Get the maximum ratio of digital zoom. * We support this parameter when the version number (getversion) is equal or greater than 5.0.0.14...
Page 340: Technology License Notice
VIVOTEK 8.31 Preset Locations (capability_camctrl_c<0~(n-1)>_zoommodule = 1) Note: This request requires Operator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/operator/preset.cgi?[channel=<value>] [&addpos=<value>][&delpos=<value>][&return=<return page>] PARAMETER VALUE DESCRIPTION addpos string[30] Add one preset location to the preset list. channel 0~"capability_nvideoin"-1 Channel of the video source. delpos string[30] Delete preset location from preset list.
Page 341 VIVOTEK 8.32 SmartSD (capability_localstorage_smartsd > 0) Note: This request requires Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/smartsd.cgi?function=<value> PARAMETER VALUE DESCRIPTION function getstatus Function type getstauts : Information of smartSD internal status return value as below: smartsd_lifetime_num: Accumulated amount of data that has been written...
Page 342 VIVOTEK 8.33 Connet to AP (capability_network_wireless > 0) Note: This request requires Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/connect_ap.cgi PARAMETER VALUE DESCRIPTION Apply the wireless settings and connect to AP. 8.34 Get wireless information (capability_network_wireless > 0) Note: This request requires Administrator privileges.
Page 343: Electromagnetic Compatibility (Emc)
VIVOTEK 8.35 Get wireless signal strength (capability_network_wireless > Note: This request requires Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/getwlsignalstrength.cgi PARAMETER VALUE DESCRIPTION Get wireless signal strength. 8.36 WPS transaction (capability_network_wireless > 0) Note: This request requires Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/start_wps.cgi...
Page 344 VIVOTEK 8.37 Peripheral control (capability_peripheral_c<0~(n-1)>_ devicecontrol > 0) Note: This request requires Administrator privileges. Method: GET/POST Syntax: (for control API) http://<servername>/cgi-bin/admin/peripheral.cgi?channel=<value>&operation=set [&washer_mode=<value>] – Set washer mode [&washer_status=<value>] – Set washer status [&washer_dwelltime=<value>] – Set washer clean time [&heater_status=<value>] – Set heater status Example: http://myserver/cgi-bin/admin/peripheral.cgi?channel=0&operation=set&washer_mode=wiper&...
Page 345 VIVOTEK *Only available when capability_peripheral_c<0~(n-1)>_washer_supp ort=1 Disable the functionality of washer control system. *Only available when capability_peripheral_c<0~(n-1)>_washer_supp ort=1 washer_dwelltime 15~999 Apply washer washer control system operation time (including the time when spraying and wiper actions take place). *Only available when capability_peripheral_c<0~(n-1)>_washer_supp...
Page 346 VIVOTEK Pragma: no-cache\r\n \r\n supportdevice=washer,heater\r\n washer_status=off\r\n PARAMETER VALUE DESCRIPTION channel 0~"capability_nvideoin"-1 Channel of the video source. supportdevice Get support peripheral device. washer_supportmode Get the support mode of washer control system, its value is the same with "capability_peripheral_ c<0~(n-1)>_washer_mode". *Only available when capability_peripheral_c<0~(n-1)>_washer_supp...
Page 347 VIVOTEK an internal condition.‘trigger’ status will be transfer to ‘auto’ after reach the internal condition. *Only available when capability_peripheral_c<0~(n-1)>_heater_suppo rt=1 <End of document> User's Manual - 347...
Page 348 LED Indicator System power and status indicator Built-in IR illuminators, effective up to 12 IR Illuminators meters with Smart IR, IR LED*10 IB8360: IEEE 802.3af PoE Class 2 Power Input IB8360-W: DC 12V 1.5A 0.1 Lux @ F2.0 (Color) Minimum Illumination 0.01 Lux @ F2.0 (B/W)
Page 349 All specifications are subject to change without notice. Copyright © VIVOTEK INC. All rights reserved. Ver. 4 6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C. | T: +886-2-82455282 | F: +886-2-82455532 | E: sales@vivotek.com | W: www.vivotek.com...
Page 350 VIVOTEK Technology License Notice AMR-NB Standard THIS PRODUCT IS LICENSED UNDER THE AMR-NB STANDARD PATENT LICENSE AGREEMENT. WITH RESPECT TO THE USE OF THIS PRODUCT, THE FOLLOWING LICENSORS’ PATENTS MAY APPLY: TELEFONAKIEBOLAGET ERICSSON AB: US PAT. 6192335; 6275798; 6029125; 6424938; 6058359. NOKIA CORPORATION: US PAT.
Page 351 Trademark Acknowledgments The trademark "VIVOTEK" or any other trademarks, service marks, trade names, distinctive logos, pictures, or designs as designated by VIVOTEK and as used on or in connection with the Product are the sole properties of VIVOTEK ("VIVOTEK Trademarks and Trade Names").
Page 352 VIVOTEK website. To enhance customer satisfaction, your reseller/ distributor will reach us in a timely manner if the issue is not solved with first response. We encourage you to take advantage of the many online resources VIVOTEK offers. •...
Page 353 取扱説明書に従って正しい取り扱いをして下さい Liability VIVOTEK Inc. cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. VIVOTEK Inc. makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for any particular purpose.
