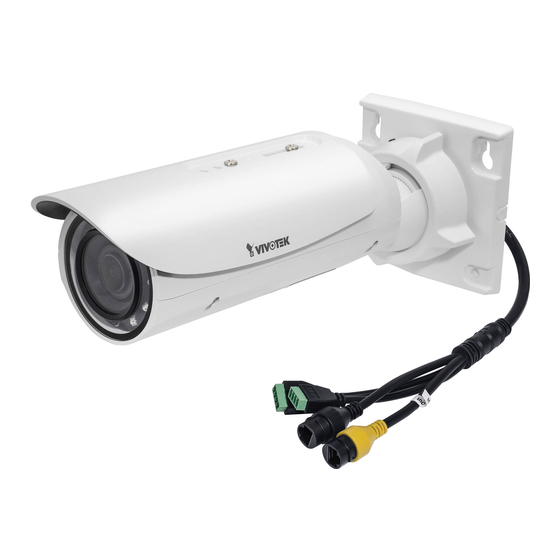

Vivotek IB8367-R User Manual
Vivotek IB8367-R User Manual

Vivotek IB8367-R User Manual

Outdoor • day & night • 30m ir • cable management
Hide thumbs Also See for IB8367-R:
Table of Contents

Advertisement

Quick Links

IB8367/-R
IB8367-T/-RT
IB8338-H/-HR
User's Manual
Outdoor • Day & Night • 30M IR • Cable Management
Bullet
Network Camera
Rev. 1.3

Advertisement

Table of Contents
loading

Summary of Contents for Vivotek IB8367-R

  • Page 1 IB8367/-R IB8367-T/-RT IB8338-H/-HR Bullet Network Camera User’s Manual Outdoor • Day & Night • 30M IR • Cable Management Rev. 1.3...
  • Page 2: Table Of Contents

    Applications > DI and DO ...........................121 Applications > Tampering detection ......................122 Applications > Audio detection ........................123 Applications > VADP (VIVOTEK Application Development Platform) ............125 Recording > Recording settings ........................127 Local storage > SD card management ......................132 2 - User's Manual...
  • Page 3: Overview

    IB8367-T/-RT models are also designed with smart focus system to assit focus adjustment more efficiently. To meet more outdoor applications and ease cable deployment, IB8367-R model is the first network camera designed with embedded extender to allow PoE input and PoE output.
  • Page 4: Read Before Use

    Commands of the Network Camera section serves as a helpful reference to customizing existing homepages or integrating with the current web server. Package Contents ■ IB8367, IB8367-R, IB8367-T, IB8367-RT, IB8338-H, or IB8338-HR. ■ L-type Hex key wrench, dessicant bag, screws ■ Software CD ■...
  • Page 5: Physical Description

    VIVOTEK Physical Description Front Panel Lens IR LEDs Zoom/focus pullers* Reset Button SD/SDHC Card Slot NOTE: * The T and RT models have auto-focus motorized lens. User's Manual - 5...
  • Page 6 MIC P MIC N Ethernet 10/100 RJ45 Plug The second LAN port (PoE out, yellow) is available on the IB8367-R/RT and 8338-HR. The IB8367-R/RT and8338-HR come without the DC connector. WARNING: 1. The yellow LAN port (PoE output) can only be used to connect to another IB8367/8338 camera.
  • Page 7: Repeater Model (Ib8367-R/Rt) Cascade Connections

    Repeater Model (IB8367-R/RT, IB8338-HR) Cascade Connections Each camera consumes up to 14.5W power. Up to 2 IB8367-R/RT and 1 IB8367 can be cascaded in a configuration with a cabling distance of up to 300 meters. The precondition is the use of the AE-FED-0500-120 PoE switch, which can deliver more than 50W of power per port (exceeding the 802.3at specifications).
  • Page 8 VIVOTEK When using an ordinary 802.3at PoE switch, up to 1 IB8367-R/RT and 1 IB8367 can be cascaded in a configuration with a cabling distance of up to 200 meters. Please use quality cables when cabling over an extended distance.
  • Page 9 VIVOTEK DI/DO Diagram Switch Source External BJT transistor power source Relay External device Switch Source BJT transistor Relay External device 1. The DO+ pin provides 5V output, and the max. load is 50mA. 2. The max. voltage for DO- pins is 80VDC (External power).
  • Page 10: Hardware Installation

    VIVOTEK Hardware Installation 1. Attach the included alignment sticker to a preferred location. Drill holes for mounting screws and a cabling hole. 2. Loosen the fastening ring on the mount bracket, and aim the camera at the area of your interest.
  • Page 11 4. Connect the Ethernet and IO wires. 5. Install the "Installation Wizard 2" software utility. 6. The program will search for VIVOTEK Video Receivers, Video Servers or Network Cameras on the same LAN. 7. Double-click on the camera's MAC address to open a browser management session with the camera.
  • Page 12 VIVOTEK 8. Open the top cover using the included stardriver 9. Install an SD card. 10. With a live view displayed on your laptop, adjust the zoom and focus pullers to obtain an optimal image. Check the live view to ensure the image is in focus. Carefully tighten the pullers when done.
  • Page 13 VIVOTEK Hardware Reset Reset Button The reset button is used to reset the system or restore the factory default settings. Sometimes resetting the system can return the camera to normal operation. If the system problems remain after reset, restore the factory settings and install again.
  • Page 14: Network Deployment

    VIVOTEK Network Deployment General Connection (PoE) When using a PoE-enabled switch The Network Camera is PoE-compliant, allowing transmission of power and data via a sin- gle Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE- enabled switch via Ethernet cable.
  • Page 15 VIVOTEK Internet connection via a router Before setting up the Network Camera over the Internet, make sure you have a router and follow the steps below. 1. Connect your Network Camera behind a router, the Internet environment is illustrated below.
  • Page 16 For more information with network configuration options (such as that of streaming ports), please refer to Configuration > Network Settings. VIVOTEK also provides the automatic port forwarding feature as an NAT traversal function with the precondition that your router must support the UPnP port forwarding feature.
  • Page 17: Software Installation

    After your network environment is analyzed, please click Next to continue the program. 3. The program will search for all VIVOTEK network devices on the same LAN. 4. After a brief search, the installer window will prompt. Click on the MAC and model name that matches the one printed on the product label.
  • Page 18: Ready To Use

    VIVOTEK Ready to Use 1. A browser session with the Network Camera should prompt as shown below. 2. You should be able to see live video from your camera. You may also install the 32-channel recording software from the software CD in a deployment consisting of multiple cameras. For its installation details, please refer to its related documents.
  • Page 19: Auto Focus

    VIVOTEK Auto Focus On the web session, visit the Configuration > Image > Focus window. Perform the Auto Focus function for best image. However, if you have cascaded cameras, do this one by one. Do not perform this function simultaneously on multiple cameras because the motorized lens also consume considerable power, and may cause the last camera on the line to hang.
  • Page 20: Accessing The Network Camera

    3. Live video will be displayed in your web browser. 4. If it is the first time installing the VIVOTEK network camera, an information bar will prompt as shown below. Follow the instructions to install the required plug-in on your computer.
  • Page 21 VIVOTEK ► By default, the Network Camera is not password-protected. To prevent unauthorized access, it is highly recommended to set a password for the Network Camera. For more information about how to enable password protection, please refer to Security on page 87.
  • Page 22 VIVOTEK IMPORTANT: • Currently the Network Camera utilizes 32-bit ActiveX plugin. You CAN NOT open a management/view session with the camera using a 64-bit IE browser. • If you encounter this problem, try execute the Iexplore.exe program from C:\Windows\ SysWOW64. A 32-bit version of IE browser will be installed.
  • Page 23: Using Rtsp Players

    VIVOTEK Using RTSP Players To view the streaming media using RTSP players, you can use one of the following players that support RTSP streaming. Quick Time Player VLC media player VLC media player 1. Launch the RTSP player. mpegable Player 2.
  • Page 24: Using 3Gpp-Compatible Mobile Devices

    VIVOTEK Using 3GPP-compatible Mobile Devices To view the streaming media through 3GPP-compatible mobile devices, make sure the Network Camera can be accessed over the Internet. For more information on how to set up the Network Camera over the Internet, please refer to Setup the Network Camera over the Internet on page To utilize this feature, please check the following settings on your Network Camera: 1.
  • Page 25: Using Vivotek Recording Software

    Network Camera to the Channel list. For detailed information about how to use the recording software, please refer to the user’s manual of the software or download it from http://www.vivotek.com. User's Manual - 25...
  • Page 26: Main Page

    VIVOTEK Main Page This chapter explains the layout of the main page. It is composed of the following sections: VIVOTEK INC. Logo, Host Name, Camera Control Area, Configuration Area, Menu, and Live Video Window. Resize Buttons VIVOTEK INC. Host Name...
  • Page 27 VIVOTEK Configuration Area Client Settings: Click this button to access the client setting page. For more information, please refer to Client Settings on page 30. Configuration: Click this button to access the configuration page of the Network Camera. It is suggested that a password be applied to the Network Camera so that only the administrator can configure the Network Camera.
  • Page 28 VIVOTEK PTZ Panel: This Network Camera supports “digital“ (e-PTZ) pan/tilt/zoom control, which allows roaming a smaller view frame within a large view frame. Please refer to PTZ settiings on page 100 for detailed information. Global View: Click on this item to display the Global View window. The Global View window contains a full view image (the largest frame size of the captured video) and a floating frame (the viewing region of the current video stream).
  • Page 29 VIVOTEK Video Control Buttons: Depending on the Network Camera model and Network Camera configuration, some buttons may not be available. Snapshot: Click this button to capture and save still images. The captured images will be displayed in a pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP (*.bmp) format.
  • Page 30 VIVOTEK ■ The following window is displayed when the video mode is set to MJPEG: Video Title Time 2014/07/25 17:08:56 Video (HTTP-V) Title and Time Video 17:08:56 2014/07/25 Video Control Buttons Video Title: The video title can be configured. For more information, please refer to Media > Image on page 53.
  • Page 31: Client Settings

    VIVOTEK Client Settings This chapter explains how to select the stream transmission mode and saving options on the local computer. When completed with the settings on this page, click Save on the page bottom to enable the settings. H.264 Protocol Options H.264 Protocol Options...
  • Page 32: Mp4 Saving Options

    VIVOTEK Two way audio Half duplex: Audio is transmitted from one direction at a time, e.g., from a PC holding a web console with the camera. Full duplex: Audio is transmitted in both directions simultaneously. MP4 Saving Options Users can record live video as they are watching it by clicking Start MP4 Recording on the main page.
  • Page 33: Joystick Settings

    VIVOTEK Joystick settings Enable Joystick Connect a joystick to a USB port on your management computer. Supported by the plug-in (Microsoft’s DirectX), once the plug-in for the web console is loaded, it will automatically detect if there is any joystick on the computer. The joystick should work properly without installing any other driver or software.
  • Page 34 VIVOTEK Buttons Configuration In the Button Configuration window, the left column shows the actions you can assign, and the right column shows the functional buttons and assigned actions. The number of buttons may differ from different joysticks. Please follow the steps below to configure your joystick buttons: 1.
  • Page 35 VIVOTEK Buttons Configuration Click the Configure Buttons button, a window will prompt as shown below. Please follow the steps below to configure your joystick buttons: 1. Select a button number from the Button # pull-down menu. Tips: If you are not sure of the locations of each button, use the Properties window in the Game Controllers utility.
  • Page 36: Configuration

    Click Configuration on the main page to enter the camera setting pages. Note that only Administrators can access the configuration page. VIVOTEK provides an easy-to-use user interface that helps you set up your network camera with minimal effort. In order to simplify the user interface, detailed information will be hidden unless you click on the function item.
  • Page 37: System > General Settings

    VIVOTEK System > General settings This section explains how to configure the basic settings for the Network Camera, such as the host name and system time. It is composed of the following two columns: System, and System Time. When finished with the settings on this page, click Save at the bottom of the page to enable the settings.
  • Page 38 VIVOTEK System time Keep current date and time: Select this option to preserve the current date and time of the Network Camera. The Network Camera’s internal real-time clock maintains the date and time even when the power of the system is turned off.
  • Page 39: System > Homepage Layout

    Theme Options (the second tab on this page). The settings will be displayed automatically in this Preview field. The following shows the homepage using the default settings: ■ Hide Powered by VIVOTEK: If you check this item, it will be removed from the homepage. Logo graph Here you can change the logo that is placed at the top of your homepage.
  • Page 40 VIVOTEK Theme Options Here you can change the color of your homepage layout. There are three types of preset patterns for you to choose from. The new layout will simultaneously appear in the Preview filed. Click Save to enable the settings.
  • Page 41 VIVOTEK ■ Follow the steps below to set up the customed homepage: 1. Click Custom on the left column. 2. Click the field where you want to change the color on the right column. Color Selector Custom Pattern 3. The palette window will pop up as shown below.
  • Page 42: System > Logs

    VIVOTEK System > Logs This section explains how to configure the Network Camera to send the system log to a remote server as backup. Log server settings Follow the steps below to set up the remote log: 1. Select Enable remote log.
  • Page 43 You can install the included ST7501 recording software, which provides an Event Management function group for delivering event messages via emails, GSM short messages, onscreen event panel, or to trigger an alarm, etc. For more information, refer to the ST7501 User Manual. VIVOTEK Network Cameras Internet 3G Cell phone HTTP...
  • Page 44: System > Parameters

    VIVOTEK Access log Access log displays the access time and IP address of all viewers (including operators and administrators) in a chronological order. The access log is stored in the Network Camera’s buffer area and will be overwritten when reaching a certain limit.
  • Page 45: System > Maintenance

    Note: Do not power off the Network Camera during the upgrade! Follow the steps below to upgrade the firmware: 1. Download the latest firmware file from the VIVOTEK website. The file is in .pkg file format. 2. Click Browse… and locate the firmware file.
  • Page 46 VIVOTEK General settings > Restore This feature allows you to restore the Network Camera to factory default settings. Network: Select this option to retain the Network Type settings (please refer to Network Type on page 70). Daylight Saving Time: Select this option to retain the Daylight Saving Time settings (please refer to Import/Export files below on this page).
  • Page 47 VIVOTEK ® 3. Open the file with Microsoft Notepad and locate your time zone; set the start and end time of DST. When completed, save the file. In the example below, DST begins each year at 2:00 a.m. on the second Sunday in March and ends at 2:00 a.m.
  • Page 48 VIVOTEK The following message is displayed when attempting to upload an incorrect file format. Export language file: Click to export language strings. VIVOTEK provides nine languages: English, Deutsch, Español, Français, Italiano, 日本語, Português, 簡体中文, and 繁體中文 . Update custom language file: Click Browse… and specify your own custom language file to upload.
  • Page 49: Media > Image

    VIVOTEK Media > Image This section explains how to configure the image settings of the Network Camera. It is composed of the following four columns: General settings, Picture settings, Exposure, and Privacy mask. The Focus window is available only for the IB8367-T and RT models.
  • Page 50 VIVOTEK Day/Night Settings Switch to B/W in night mode Select this to enable the Network Camera to automatically switch to Black/White during night mode. Turn on external IR illuminator in night mode Select this to turn on the external IR illuminator when the camera detects low light condition and enters the night mode.
  • Page 51 VIVOTEK Smart IR When enabled, the camera automatically adjust the IR projection to adjacent objects in order to avoid over-exposure in the night mode. The Smart IR function is more beneficial when the spot of intrusions or an object of your interest is close to the lens and the IR lights.
  • Page 52 The Network Camera automatically removes the IR cut filter when a Digital Input is triggerred. For example, the digital input can come from a housing that is equipped with IR illumination and control circuits such as VIVOTEK’s AM-214. 52 - User's Manual...
  • Page 53 VIVOTEK ■ Schedule mode The Network Camera switches between day mode and night mode based on a specified schedule. Enter the start and end time for day mode. Note that the time format is [hh:mm] and is expressed in 24-hour clock time. By default, the start and end time of day mode are set to 07:00 and 18:00.
  • Page 54: Image Settings

    VIVOTEK Image settings On this page, you can tune the White balance and Image adjustment. Sensor Setting 1: For normal situations Sensor Setting 2: For special situations White balance: Adjust the value for the best color temperature. ■ You may follow the steps below to adjust the white balance to the best color temperature.
  • Page 55 VIVOTEK Noise reduction ■ Enable noise reduction: Check to enable noise reduction in order to reduce noises and flickers in image. This applies to the onboard 3D Noise Reduction feature. Use the pull-down menu to adjust the reduction strength. Note that applying this function to the video channel will consume system computing power.
  • Page 56 VIVOTEK Exposure On this page, you can set the Exposure measurement window, Exposure level, Exposure mode, Exposure time, Gain control, and Day/Night mode settings. You can configure two sets of Exposure settings: one for normal situations, the other for special situations, such as the day/night/schedule mode.
  • Page 57 VIVOTEK The inclusive window refers to the “weighed window“; the exclusive window refers to “ignored window“. It adopts the weighed averages method to calculate the value. The inclusive windows have a higher priority. You can overlap these windows, and, if you place an exclusive window within a larger inclusive window, the exclusive part of the overlapped windows will be deducted from the inclusive window.
  • Page 58 VIVOTEK You can click Restore to recall the original settings without incorporating the changes. When completed with the settings on this page, click Save to enable the settings. If you want to configure another sensor setting for day/night/schedule mode, please click Profile to open the Profile of exposure settings page as shown below.
  • Page 59 VIVOTEK Focus (IB8367-T and IB8367-RT) Focus here refers to the Remote Focus, is applicable to Network Cameras that are equipped with stepping motor lens. The automated focus adjustment function eliminates the needs to physically adjust camera focus. In an outdoor deployment consisting of a large number of cameras, the auto focus function can be very helpful when these cameras become out of focus after days or weeks of operation.
  • Page 60 VIVOTEK 6. Wait for the scan to complete. After a short while, the clearest image obtained should be displayed and the optimal focus range achieved. Use the arrow marks on the sides to fine-tune the focus if you are not satisfied with the results.
  • Page 61 VIVOTEK Privacy mask Click Privacy Mask to open the settings page. On this page, you can block out sensitive zones to address privacy concerns. 2014/09/09 17:08:56 ■ To set the privacy mask windows, follow the steps below: 1. Click New to add a new window.
  • Page 62: Media > Video

    VIVOTEK Media > Video Stream settings This Network Camera supports multiple streams with frame sizes ranging from 176 x 144 to 1920 x 1080 pixels. The definition of multiple streams: ■ Stream 1: Users can define the "Region of Interest" (viewing region) and the "Output Frame Size"...
  • Page 63: Media > Video

    VIVOTEK Please follow the steps below to set up those settings for a stream: 1. Select a stream for which you want to set up the viewing region. 2. Select a Region of Interest from the drop-down list. The floating frame, the same as the one in the Gloabl View window on the home page, will resize accordingly.
  • Page 64 VIVOTEK Click the stream item to display the detailed information. The maximum frame size will follow your settings in the above Viewing Window sections. This Network Camera offers real-time H.264 and MJPEG compression standards (Dual Codec) for real-time viewing. If the H.264...
  • Page 65 VIVOTEK The frame rate will decrease if you select a higher resolution. ■ Intra frame period Determine how often for firmware to plant an I frame. The shorter the duration, the more likely you will get better video quality, but at the cost of higher network bandwidth consumption. Select the intra frame period from the following durations: 1/4 second, 1/2 second, 1 second, 2 seconds, 3 seconds, and 4 seconds.
  • Page 66 VIVOTEK • Smart stream: Smart stream applies to streams #1 to #2. Smart stream effectively reduces the quality of the whole or the non-interested areas on a screen and therefore reduces the bandwidth consumed. You can manually specify the video quality for the foreground and the background areas.
  • Page 67 VIVOTEK As the result, the lower screen is constantly displayed in high details, while the upper half is transmitted using a lower-quality format. Although the upper half is transmitted using a lower quality format, you still have an awareness of what is happening on the whole screen.
  • Page 68 VIVOTEK JPEG mode is selected, the Network Camera sends consecutive JPEG images to the client, producing a moving effect similar to a filmstrip. Every single JPEG image transmitted guarantees the same image quality, which in turn comes at the expense of variable bandwidth usage. Because the media contents are a combination of JPEG images, no audio data is transmitted to the client.
  • Page 69: Media > Audio

    VIVOTEK Media > Audio Audio Settings Mute: Select this option to disable audio transmission from the Network Camera to all clients. Note that if muted, no audio data will be transmitted even if audio transmission is enabled on the Client Settings page.
  • Page 70: Network > General Settings

    Use fixed IP address: Select this option to manually assign a static IP address to the Network Camera. 1. You can make use of VIVOTEK Installation Wizard 2 on the software CD to easily set up the Network Camera on LAN. Please refer to Software Installation on page 16 for details.
  • Page 71 VIVOTEK Primary DNS: The primary domain name server that translates hostnames into IP addresses. Secondary DNS: Secondary domain name server that backups the Primary DNS. Primary WINS server: The primary WINS server that maintains the database of computer names and IP addresses.
  • Page 72 VIVOTEK NOTE: ► If the default ports are already used by other devices connected to the same router, the Network Camera will select other ports for the Network Camera. is not supported by your router, you will see the following message: ►...
  • Page 73 VIVOTEK 4. In the Networking Services dialog box, select Universal Plug and Play and click OK. 5. Click Next in the following window. 6. Click Finish. UPnP is enabled. ► How does UPnP work? UPnP networking technology provides automatic IP configuration and dynamic discovery of devices added to a network.
  • Page 74 VIVOTEK Enable IPv6 Select this option and click Save to enable IPv6 settings. Please note that this only works if your network environment and hardware equipment support ® IPv6. The browser should be Microsoft Internet Explorer 6.5, Mozilla Firefox 3.0 or above.
  • Page 75 VIVOTEK Please follow the steps below to link to an IPv6 address: 1. Open your web browser. 2. Enter the link-global or link-local IPv6 address in the address bar of your web browser. 3. The format should be: http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/ IPv6 address 4.
  • Page 76 VIVOTEK Port HTTPS port: By default, the HTTPS port is set to 443. It can also be assigned to another port number between 1025 and 65535. Two way audio port: By default, the two way audio port is set to 5060. Also, it can also be assigned to another port number between 1025 and 65535.
  • Page 77 To stop talking, click again. FTP port: The FTP server allows the user to save recorded video clips. You can utilize VIVOTEK's Installation Wizard 2 to upgrade the firmware via FTP server. By default, the FTP port is set to 21.
  • Page 78: Network > Streaming Protocols

    VIVOTEK Network > Streaming protocols HTTP streaming To utilize HTTP authentication, make sure that your have set a password for the Network Camera first; please refer to Security > User account on page 87 for details. Authentication: Depending on your network security requirements, the Network Camera provides two types of security settings for an HTTP transaction: basic and digest.
  • Page 79: Rtsp Streaming

    VIVOTEK URL command -- http://<ip address>:<http port>/<access name for stream 1, 2, or 3> For example, when the Access name for stream 2 is set to video2.mjpg: 1. Launch Mozilla Firefox or Netscape. 2. Type the above URL command in the address bar. Press Enter.
  • Page 80 VIVOTEK Authentication: Depending on your network security requirements, the Network Camera provides three types of security settings for streaming via RTSP protocol: disable, basic, and digest. basic authentication is selected, the password is sent in plain text format, but there can be potential risks of it being intercepted.
  • Page 81 Unrestricted in scope IMPORTANT: The Multicast metadata port is utilized by VIVOTEK VADP modules to transfer video analytics results, PTZ stream, textual data, and event messages between the camera and the client side running and observing the video analysis. If your client side computer is located outside the local network, you may need to open the associated TCP port on routers and firewall.
  • Page 82 IP address, to have a fixed host and domain name. Express link Express Link is a free service provided by VIVOTEK server, which allows users to register a domain name for a network device. One URL can only be mapped to one MAC address.
  • Page 83 DDNS: Dynamic domain name service Enable DDNS: Select this option to enable the DDNS setting. Provider: Select a DDNS provider from the provider drop-down list. VIVOTEK offers Safe100.net, a free dynamic domain name service, to VIVOTEK customers. It is recommended that you register Safe100.net to access VIVOTEK’s Network Cameras from the...
  • Page 84 4. Select Enable DDNS and click Save to enable the setting. ■ CustomSafe100 VIVOTEK offers documents to establish a CustomSafe100 DDNS server for distributors and system integrators. You can use CustomSafe100 to register a dynamic domain name if your distributor or system integrators offer such services.
  • Page 85 VIVOTEK Network > QoS (Quality of Service) Quality of Service refers to a resource reservation control mechanism, which guarantees a certain quality to different services on the network. Quality of service guarantees are important if the network capacity is insufficient, especially for real-time streaming multimedia applications. Quality can be defined as, for instance, a maintained level of bit rate, low latency, no packet dropping, etc.
  • Page 86 VIVOTEK QoS/DSCP (the DiffServ model) DSCP-ECN defines QoS at Layer 3 (Network Layer). The Differentiated Services (DiffServ) model is based on packet marking and router queuing disciplines. The marking is done by adding a field to the IP header, called the DSCP (Differentiated Services Codepoint). This is a 6-bit field that provides 64 different class IDs.
  • Page 87: Network > Snmp (Simple Network Management Protocol)

    VIVOTEK Network > SNMP (Simple Network Management Protocol) This section explains how to use the SNMP on the network camera. The Simple Network Management Protocol is an application layer protocol that facilitates the exchange of management information between network devices. It helps network administrators to remotely manage network devices and find, solve network problems with ease.
  • Page 88: Security > User Accounts

    VIVOTEK Security > User accounts This section explains how to enable password protection and create multiple accounts. Root Password The administrator account name is “root”, which is permanent and can not be deleted. If you want to add more accounts in the Manage User column, please apply the password for the “root”...
  • Page 89: Security > Https (Hypertext Transfer Protocol Over Ssl)

    VIVOTEK Security > HTTPS (Hypertext Transfer Protocol over SSL) This section explains how to enable authentication and encrypted communication over SSL (Secure Socket Layer). It helps protect streaming data transmission over the Internet on higher security level. Create and Install Certificate Method Before using HTTPS for communication with the Network Camera, a Certificate must be created first.
  • Page 90 VIVOTEK 5. Click Save to preserve your configuration, and your current session with the camera will change to the encrypted connection. 6. If your web session does not automatically change to an encrypted HTTPS session, click Home to return to the main page. Change the URL address from “http://” to “https://“ in the address bar and press Enter on your keyboard.
  • Page 91 VIVOTEK Create certificate request and install 1. Select the option from the Method pull-down menu. 2. Click Create certificate to proceed. 3. The following information will show up in a pop-up window after clicking Create. Then click Save to generate the certificate request.
  • Page 92 VIVOTEK 5. Look for a trusted certificate authority, such as Symantec’s VeriSign Authentication Services, that issues digital certificates. Sign in and purchase the SSL certification service. Copy the certificate request from your request prompt and paste it in the CA’s signing request window. Proceed with the rest of the process as CA’s instructions on their webpage.
  • Page 93 VIVOTEK 7. Open a new edit, paste the certificate contents, and press ENTER at the end of the contents to add an empty line. 8. Convert file format from DOS to UNIX. Open File menu > Conversions > DOS to Unix.
  • Page 94 VIVOTEK 9. Save the edit using the “.crt” extension, using a file name like “CAcert.crt.” 10. Return to the original firmware session, use the Browse button to locate the crt certificate file, and click Upload to enable the certification. 94 - User's Manual...
  • Page 95 VIVOTEK Note that 11. When the certifice file is successfully loaded, its status will be stated as Active. a certificate must have been created and installed before you can click on the “Save" button for the configuration to take effect.
  • Page 96: Security > Access List

    VIVOTEK Security > Access List This section explains how to control access permission by verifying the client PC’s IP address. General Settings Maximum number of concurrent streaming connection(s) limited to: Simultaneous live viewing for 1~10 clients (including stream 1 to stream 3). The default value is 10. If you modify the value and click Save, all current connections will be disconnected and automatically attempt to re-link (IE Explorer or Quick Time Player).
  • Page 97 VIVOTEK ■ Refresh: Click this button to refresh all current connections. ■ Add to deny list: You can select entries from the Connection Status list and add them to the Deny List to deny access. Please note that those checked connections will only be disconnected temporarily and will automatically try to re-link again (IE Explore or Quick Time Player).
  • Page 98 VIVOTEK There are three types of rules: Single: This rule allows the user to add an IP address to the Allowed/Denied list. For example: 192.168.2.1 Network: This rule allows the user to assign a network address and corresponding subnet mask to the Allow/Deny List.
  • Page 99 Authentication server (usually a RADIUS server): Checks the client certificate and decides whether to accept the end user’s access request. ■ VIVOTEK Network Cameras support two types of EAP methods to perform authentication: EAP- PEAP and EAP-TLS. Please follow the steps below to enable 802.1x settings: 1.
  • Page 100 VIVOTEK 3. When all settings are complete, move the Network Camera to the protected LAN by connecting it to an 802.1x enabled switch. The devices will then start the authentication automatically. NOTE: ► The authentication process for 802.1x: 1. The Certificate Authority (CA) provides the required signed certificates to the Network Camera (the supplicant) and the RADIUS Server (the authentication server).
  • Page 101: Ptz > Ptz Settings

    VIVOTEK PTZ > PTZ settings This section explains how to control the Network Camera’s Pan/Tilt/Zoom operation. There are two ways to enable the camera control function: Digital: Control the e-PTZ operation. Within a field of view,it allows users to quickly move the focus to a target area for close-up viewing without physically moving the camera.
  • Page 102 VIVOTEK Home page in the E-PTZ Mode x3.3 ■ The e-Preset Positions will also be displayed on the home page. Select one from the drop-down list, and the Network Camera will move to the selected position. ■ If you have set up different preset positions for different streams, you can select one of the video streams to display its separate preset positions.
  • Page 103 VIVOTEK Patrol settings You can select some preset positions for the Network Camera to patrol. Please follow the steps below to set up a patrol schedule: 1. Select the preset locations on the list, and click 2. The selected preset locations will be displayed on the Patrol locations list.
  • Page 104 VIVOTEK NOTE: ► The Preset Positions will also be displayed on the Home page. Select one from the Go to menu, and the Network Camera will move to the selected preset position. ► Click Patrol: The Network Camera will patrol along the selected positions repeatedly.
  • Page 105: Event > Event Settings

    VIVOTEK Event > Event settings This section explains how to configure the Network Camera to respond to particular situations (event). A typical application is that when a motion is detected, the Network Camera sends buffered images to an FTP server or e-mail address as notifications. Click on Help, there is an illustration shown in the pop-up window explaining that an event can be triggered by many sources, such as motion detection or external digital input devices.
  • Page 106 VIVOTEK ■ Event name: Enter a name for the event setting. ■ Enable this event: Select this option to enable the event setting. ■ Priority: Select the relative importance of this event (High, Normal, or Low). Events with a higher priority setting will be executed first.
  • Page 107 VIVOTEK ■ Audio detection A preset threshold can be configured with an external microphone as the trigger to system event. The triggering condition can be an input exceeding or falling below a threshold. Audio detection can take place as a complement to motion detection or as a method to detect activities not covered by the camera's view.
  • Page 108 VIVOTEK Once the triggers are configured, they will be listed under the VADP option. 3. Action Define the actions to be performed by the Network Camera when a trigger is activated. ■ Trigger digital output for seconds Select this option to turn on the external digital output device when a trigger is activated. Specify the length of the trigger interval in the text box.
  • Page 109 VIVOTEK Add server It is necessary to configure the server and media settings so that the Network Camera will know what action to take (such as which server to send the media files to) when a trigger is activated. Click server to open the server setting window.
  • Page 110 VIVOTEK To verify if the email settings are correctly configured, click Test. The result will be shown in a pop-up window. If successful, you will also receive an email indicating the result. Click Save server to enable the settings. Note that after you configure the first event server, the new event server will automatically display on the Server list.
  • Page 111 VIVOTEK ■ Passive mode Most firewalls do not accept new connections initiated from external requests. If the FTP server supports passive mode, select this option to enable passive mode FTP and allow data transmission to pass through the firewall. The firmware default has the Passive mode checkbox selected.
  • Page 112 VIVOTEK Network storage: Select to send the media files to a networked storage when a trigger is activated. Please refer to NAS server on page 130 for details. Note that only one NAS server can be configured. Click Save server to enable the settings.
  • Page 113 VIVOTEK Click 20140120 to open the directory: The format is: HH (24r) Click to open the file list for that hour 2014/01/20 2014/01/20 Click to go back to the previous Click to delete level of the directory selected items Click to delete all...
  • Page 114 VIVOTEK Add media Add media Click to open the media setting window. You can specify the type of media that will be sent when a trigger is activated. A total of 5 media settings can be configured. There are three choices of media types available: Snapshot, Video Clip, and System log.
  • Page 115 VIVOTEK ■ Add date and time suffix to the file name Select this option to add a date/time suffix to the file name. For example: Snapshot_20101213_100341 File name prefix Date and time suffix The format is: YYYYMMDD_HHMMSS Click Save media to enable the settings.
  • Page 116 VIVOTEK ■ Maximum file size Specify the maximum file size allowed. Some users may need to stitch the video clips together when searching and packing up forensic evidence. ■ File name prefix Enter the text that will be appended to the front of the file name.
  • Page 117 VIVOTEK In the Event settings column, the Servers and Medias you configured will be listed; please make sure the Event -> Status is indicated as ON, in order to enable the event triggering action. When completed, click the Save event button to enable the settings and click Close to exit Event Settings page.
  • Page 118 Please note that there is a limited number of customized scripts you can upload; if the current amount of customized scripts has reached the limit, an alert message will prompt. If you need more information, please contact VIVOTEK technical support. 20130213...
  • Page 119: Applications > Motion Detection

    VIVOTEK Applications > Motion detection This section explains how to configure the Network Camera to enable motion detection. A total of three motion detection windows can be configured. 2010/12/10 17:08:56 2014/07/20 Motion Detection Setting 1: For normal situations hallway Motion Detection Setting 2:...
  • Page 120 VIVOTEK A green bar indicates that even though motions have been detected, the event has not been triggered because the image variations still fall under the preset threshold. Percentage = 30% If you want to configure other motion detection settings for day/night/schedule mode (e.g., for a different lighting condition), please click Profile to open the Motion Detection Profile Settings page as shown below.
  • Page 121 VIVOTEK NOTE: ► How does motion detection work? There are two motion detection parameters: Sensitivity and Percentage. In the illustration above, frame A and frame B are two sequential images. Pixel differences between the two frames are detected and highlighted in gray (frame C) and will be compared with the sensitivity setting. Sensitivity is a value that expresses the sensitivity to moving objects.
  • Page 122: Applications > Di And Do

    VIVOTEK Applications > DI and DO Digital input: Select High or Low as the Normal status for the digital input. Connect the digital input pin of the Network Camera to an external device to detect the current connection status. Digital output: Select Grounded or Open to define the normal status for the digital output. Connect the digital output pin of the Network Camera to an external device to determine the current status.
  • Page 123: Applications > Tampering Detection

    VIVOTEK Applications > Tampering detection This section explains how to set up camera tamper detection. With tamper detection, the camera is capable of detecting incidents such as redirection, blocking or defocusing, or even spray paint. Please follow the steps below to set up the camera tamper detection function: 1.
  • Page 124: Applications > Audio Detection

    VIVOTEK Applications > Audio detection Audio detection, along with video motion detection, is applicable in the following scenarios: 1. Detection of activities not covered by camera view, e.g., a loud input by gun shots or breaking a door/window. 2. A usually noisy environment, such as a factory, suddenly becomes quiet due to a breakdown of machines.
  • Page 125 VIVOTEK You can use the Profile window to configure a different Audio detection setting. For example, a place can be noisy in the day time and become very quiet in the night. 1. Click on the Enable this profile checkbox. Once the Audio detection window is opened, the current sound input will be interactively indicated by a fluctuating yellow wave diagram.
  • Page 126: Applications > Vadp (Vivotek Application Development Platform)

    Applications > VADP (VIVOTEK Application Development Platform) Users can store and execute VIVOTEK's or 3rd-party software modules onto the camera's flash memory or SD card. These software modules can apply in video analysis for intelligent video applications such as license plate recognition, object counting, or as an agent for edge recording, etc.
  • Page 127 VIVOTEK To start a module, select the checkcircle in front, and click the Start button. If you should need to remove a module, select the checkcircle in front and then click the Stop button. By then the module status will become OFF, and the X button will appear at the end of the row.
  • Page 128: Recording > Recording Settings

    VIVOTEK Recording > Recording settings This section explains how to configure the recording settings for the Network Camera. Recording Settings Insert your SD card and click here to test NOTE: ► Please remember to format your SD card via the camera’s web console (in the Local storage .
  • Page 129 VIVOTEK If you enable adaptive recording on a camera, only when an event is triggered on Camera A will the server record the full frame rate streaming data; otherwise, it will only request the I frame data during normal monitoring, thus effectively saves bandwidths and storage space.
  • Page 130 VIVOTEK 2. Destination You can select the SD card or network storage (NAS) for the recorded video files. If you have not configured a NAS server, see details in the following. NAS server Click Add NAS server to open the server setting window and follow the steps below to set up: 1.
  • Page 131 VIVOTEK If successful, you will receive a test.txt file on the network storage server. 3. Enter a server name. 4. Click Save to complete the settings and click Close to exit the page. ■ Capacity: You can choose either the entire free space available or limit the reserved space. The recording size limit must be larger than the reserved amount for cyclic recording.
  • Page 132 VIVOTEK Event f you want to enable recording notification, please click to configure event triggering settings. Please refer to Event > Event settings on page 104 for more details. When completed, select Enable this recording. Click Save to enable the setting and click Close to exit this page.
  • Page 133: Local Storage > Sd Card Management

    VIVOTEK Local storage > SD card management This section explains how to manage the local storage on the Network Camera. Here you can view SD card status, and implement SD card control. SD card staus This column shows the status and reserved space of your SD card. Please remember to format the SD card when using for the first time.
  • Page 134: Local Storage > Content Management

    VIVOTEK Local storage > Content management This section explains how to manage the content of recorded videos on the Network Camera. Here you can search and view the records and view the searched results. Searching and Viewing the Records This column allows the user to set up search criteria for recorded data. If you do not select any criteria and click Search button, all recorded data will be listed in the Search Results column.
  • Page 135: Search Results

    VIVOTEK Search Results The following is an example of search results. There are four columns: Trigger time, Media type, Trigger type, and Locked. Click to sort the search results in either direction. Enter a key word to filter the Numbers of entries displayed...
  • Page 136 VIVOTEK ■ Lock/Unlock: Select the desired search results, then click this button. The selected items will become Locked, which will not be deleted during cyclic recording. You can click again to unlock the selections. For example: Click to switch pages ■...
  • Page 137: Appendix

    VIVOTEK Appendix URL Commands for the Network Camera 1. Overview For some customers who already have their own web site or web control application, the Network Camera/Video Server can be easily integrated through URL syntax. This section specifies the external HTTP-based application programming interface.
  • Page 138: General Cgi Url Syntax And Parameters

    VIVOTEK 3. General CGI URL Syntax and Parameters When the CGI request includes internal camera parameters, these parameters must be written exactly as they are named in the camera or video server. The CGIs are organized in functionally-related directories under the cgi-bin directory. The file extension .cgi is required.
  • Page 139: Security Level

    VIVOTEK 4. Security Level SECURITY SUB-DIRECTORY DESCRIPTION LEVEL anonymous Unprotected. 1 [view] anonymous, viewer, 1. Can view, listen, talk to camera. dido, camctrl 2. Can control DI/DO, PTZ of the camera. 4 [operator] anonymous, viewer, Operator access rights can modify most of the camera’s...
  • Page 140: Get Server Parameter Values

    VIVOTEK 5. Get Server Parameter Values Note: The access right depends on the URL directory. Method: GET/POST Syntax: http://<servername>/cgi-bin/anonymous/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/viewer/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/operator/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>] [&<parameter>…] Where the <parameter> should be <group>[_<name>]. If you do not specify any parameters, all the parameters on the server will be returned.
  • Page 141 VIVOTEK Response: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: 33\r\n \r\n network_ipaddress=192.168.0.123\r\n User's Manual - 141...
  • Page 142: Set Server Parameter Values

    VIVOTEK 6. Set Server Parameter Values Note: The access right depends on the URL directory. Method: GET/POST Syntax: http://<servername>/cgi-bin/anonymous/setparam.cgi? <parameter>=<value> [&<parameter>=<value>…][&return=<return page>] http://<servername>/cgi-bin/viewer/setparam.cgi? <parameter>=<value> [&<parameter>=<value>…][&return=<return page>] http://<servername>/cgi-bin/operator/setparam.cgi? <parameter>=<value> [&<parameter>=<value>…][&return=<return page>] http://<servername>/cgi-bin/admin/setparam.cgi? <parameter>=<value> [&<parameter>=<value>…][&return=<return page>] PARAMETER VALUE DESCRIPTION <group>_<name> value to assigned Assign <value>...
  • Page 143 VIVOTEK Example: Set the IP address of server to 192.168.0.123: Request: http://myserver/cgi-bin/admin/setparam.cgi?network_ipaddress=192.168.0.123 Response: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: 33\r\n \r\n network_ipaddress=192.168.0.123\r\n User's Manual - 143...
  • Page 144: Available Parameters On The Server

    VIVOTEK 7. Available parameters on the server This chapter defines all the parameters which can be configured or retrieved from VIVOTEK network camera or video server. The general format of description is listed in the table below Valid values: VALID VALUES DESCRIPTION string[<n>]...
  • Page 145 VIVOTEK 7.1 system Group: system NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) hostname string[64] Mega-Pixel Host name of server. Network Camera ledoff <boolean> Turn on (0) or turn off (1) all led indicators. date <YYYY/MM/ <current Current date of system. Set to DD>,...
  • Page 146 VIVOTEK America, Central Time, Mexico City, Saskatchewan -200: GMT-05:00 Eastern Time, New York, Toronto -201: GMT-05:00 Bogota, Lima, Quito, Indiana -180: GMT-04:30 Caracas -160: GMT-04:00 Atlantic Time, Canada, La Paz, Santiago -140: GMT-03:30 Newfoundland -120: GMT-03:00 Brasilia, Buenos Aires, Georgetown, Greenland...
  • Page 147 VIVOTEK Tbilisi, Yerevan 180: GMT 04:30 Kabul 200: GMT 05:00 Ekaterinburg, Islamabad, Karachi, Tashkent 220: GMT 05:30 Calcutta, Chennai, Mumbai, New Delhi 230: GMT 05:45 Kathmandu 240: GMT 06:00 Almaty, Novosibirsk, Astana, Dhaka, Sri Jayawardenepura 260: GMT 06:30 Rangoon 280: GMT 07:00 Bangkok,...
  • Page 148 VIVOTEK daylight_timezones string List time zone index which support daylight saving time. updateinterval 0 to Disable automatic time 3600, adjustment, otherwise, it 86400, indicates the seconds between 604800, NTP automatic update 2592000 intervals. restore Restore the system <positive parameters to default values integer>...
  • Page 149 VIVOTEK restoreexceptlang Restore the system <positive parameters to default values integer> except the custom language file the user has uploaded. This command can cooperate with other “restoreexceptXYZ” commands. When cooperating with others, the system parameters will be restored to the default value except for a union of the combined results.
  • Page 150 VIVOTEK 7.1.1 system.info Subgroup of system: info (The fields in this group are unchangeable.) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) modelname string[40] IB8367 Internal model name of the server extendedmodelname string[40] IB8367 ODM specific model name of server (eg. DCS-5610). If it is not an ODM model, this field will be equal to “modelname”...
  • Page 151 VIVOTEK 7.2 status Group: status NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) di_i<0~(ndi-1)> <boolean> 0 => Inactive, normal 1 => Active, triggered do_i<0~(ndo-1)> <boolean> 0 => Inactive, normal 1 => Active, triggered daynight day, night Current status of day, night. onlinenum_rtsp...
  • Page 152 VIVOTEK 7.5 PIR detection behavior define Group: pir NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable/disable PIR detection 7.6 security Group: security NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) privilege_do view, operator, operator Indicate which privileges and admin above can control digital output (capability.ndo >...
  • Page 153 VIVOTEK 7.7 network Group: network NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) preprocess <positive NULL An 32-bit integer, each bit can be set separately as integer> follows: Bit 0 => HTTP service; Bit 1=> HTTPS service; Bit 2=> FTP service; Bit 3 => Two way audio and RTSP Streaming service;...
  • Page 154 VIVOTEK dns1 <ip <blank> Primary DNS server. address> dns2 <ip <blank> Secondary DNS server. address> wins1 <ip <blank> Primary WINS server. address> wins2 <ip <blank> Secondary WINS server. address> 7.7.1 802.1x Subgroup of network: ieee8021x NAME VALUE DEFAULT SECURITY DESCRIPTION...
  • Page 155 VIVOTEK 7.7.2 QOS Subgroup of network: qos_cos NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable/disable CoS (IEEE 802.1p) vlanid 1~4095 VLAN ID video Video channel for CoS audio Audio channel for CoS eventalarm Event/alarm channel for CoS management Management channel for CoS...
  • Page 156 VIVOTEK 7.7.4 FTP Subgroup of network: ftp NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) port 21, 1025~65535 Local ftp server port. 7.7.5 HTTP Subgroup of network: http NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) port 80, 1025 ~ HTTP port. 65535 alternateport...
  • Page 157 VIVOTEK 7.7.7 RTSP Subgroup of network: rtsp NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) port 554, 1025 ~ RTSP port. 65535 anonymousviewing <boolean> Enable anoymous streaming viewing. authmode disable, disable RTSP authentication mode. basic, digest s0_accessname string[32] live.sdp RTSP access name for stream1.
  • Page 158 VIVOTEK 7.7.8 RTP port Subgroup of network: rtp NAME VALUE DEFAULT SECURIT DESCRIPTION (get/set) videoport 1025 ~ 65535 5556 Video channel port for RTP. audioport 1025 ~ 65535 5558 Audio channel port for RTP. metadataport 1025 ~ 65535 6556 Metadata channel port for RTP.
  • Page 159: Video Input

    VIVOTEK address: <ip address / network mask> Range address:<start ip address - end ip address> ipv6list_i<0~9> String[43] IPv6 address list. <blank> 7.9 video input Group: videoin NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) cmosfreq 50, 60 CMOS frequency. whitebalance auto, auto “auto”...
  • Page 160 VIVOTEK 7. 9.1 video input setting per channel Group: videoin_c<0~(n-1)> for n channel products, and m is stream number NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) whitebalance auto, auto “auto” indicates auto white manual, balance. rbgain “manual” indicates keep current value.
  • Page 161 VIVOTEK operation; 0(not support), 1(support) Bit 3 => Support tilt operation; 0(not support), 1(support) Bit 4 => Support zoom operation; 0(not support), 1(support) Bit 5 => Support focus operation; 0(not support), 1(support) text string[64] <blank> Enclose caption. imprinttimestamp <boolean> Overlay time stamp on video.
  • Page 162 VIVOTEK s<0~(m-1)>_h264_quant 1~5,99, 100 Quality of video when choosing vbr in “ratecontrolmode”. 1 = worst quality, 5 = best quality. 100: Use the quality level in "qpercent" 99: Use the quality level in "qvalue" s<0~(m-1)>_h264_qpercent 1~100 Set quality by percentage.
  • Page 163 VIVOTEK 100: Use the quality level in "qpercent" 99: Use the quality level in "qvalue" s<0~(m-1)>_mjpeg_maxfram 1~30 Set maximum frame rate in fps (for JPEG). s<0~(m-1)>_mjpeg_qvalue 10~200 Manual video quality level input. (s<0~(m-1)>_mjpeg_quant = s<0~(m-1)>_mjpeg_qpercent 1~100 Set quality by percentage.
  • Page 164 VIVOTEK 7.9.1.1 Alternative video input profiles per channel In addition to the primary setting of video input, there can be alternative profile video input setting for each channel which might be for different scene of light (daytime or nighttime). Group: videoin_profile_i<0~(m-1)>...
  • Page 165 VIVOTEK 7.10 IR cut control Group: ircutcontrol NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) mode auto, auto Set IR cut control mode day, night, schedule <boolean> Enable/disable Smart IR daymodebegintime 00:00~23:59 07:00 Day mode begin time daymodeendtime 00:00~23:59 18:00 Day mod end time disableirled <boolean>...
  • Page 166 VIVOTEK sharpness -3 ~ 3, 100 Adjust sharpness of image according to mode settings. sharpnesspercent 0~100 Adjust sharpness of image by percentage. Softer 0 <-> 100 Sharper gammacurve 0~100 Gamma curve. dnr_mode 3D noise reduction. 0: off 1: on dnr_strength...
  • Page 167 VIVOTEK according to mode settings. profile_i0_sharpness -3~3,100 Adjust sharpness of image according to mode settings. profile_i0_sharpnessperce 0~100 Adjust sharpness value of percentage when sharpness=100 profile_i0_gammacurve 0~100 Gamma curve profile_i0_dnr_mode 3D noise reduction. 0: off 1: on profile_i0_dnr_strength 1~100 3D noise reduction strength.
  • Page 168 VIVOTEK profile_i0_enable <boolean> Enable/disable this profile setting profile_i0_policy day, night The mode which the profile night, is applied to. schedule profile_i0_begintime hh:mm 18:00 Begin time of schedule mode. profile_i0_endtime hh:mm 06:00 End time of schedule mode. profile_i0_alarm_level 1~100 Audio detection alarm level...
  • Page 169: Motion Detection Settings

    VIVOTEK 7.13 Time Shift settings Group: timeshift, c for n channel products, m is stream number NAME VALUE DEFAUL SECURIT DESCRIPTION (get/set) enable <boolean> Enable time shift streaming. c<0~(n-1)>_s<0~( <boolean> <product Enable time shift streaming for m-1)>_allow dependen specific stream.
  • Page 170 VIVOTEK i<0~(m-1)>_policy day, night The mode which the night, profile is applied to. schedule i<0~(m-1)>_begintime hh:mm 18:00 Begin time of schedule mode. i<0~(m-1)>_endtime hh:mm 06:00 End time of schedule mode. i<0~(m-1)>_win_i<0~2>_enable <boolean> Enable motion window. i<0~(m-1)>_win_i<0~2>_name string[14] <blank> Name of motion window.
  • Page 171 VIVOTEK 7.16 DDNS Group: ddns NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable or disable the dynamic DNS. provider Safe100, DyndnsDy Safe100 => safe100.net DyndnsDynamic, namic DyndnsDynamic => dyndns.org DyndnsCustom, (dynamic) CustomSafe100, DyndnsCustom => dyndns.org PeanutHull (custom) CustomSafe100 =>...
  • Page 172: System Log

    VIVOTEK supported under this network environment. string[64] <blank> The URL to connect to this camera by express link. 7.17 UPnP presentation Group: upnppresentation NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable or disable the UPnP presentation service. 7.18 UPnP port forwarding...
  • Page 173 VIVOTEK 5: LOG_NOTICE 6: LOG_INFO 7: LOG_DEBUG setparamlevel Show log of parameter setting. 0: disable 1: Show log of parameter setting set from external. 2. Show log of parameter setting set from external and internal. 7.20 SNMP Group: snmp NAME...
  • Page 174 Hyperlink of the logo vivotek.co logo_powerbyvvtk_hidden <boolean> 0 => display the power by vivotek logo 1 => hide the power by vivotek logo theme_option 1~3: One of the default themes. 4: Custom definition. theme_color_font string[7] #ffffff Font color...
  • Page 175: Privacy Mask

    VIVOTEK 7.22 Privacy mask Group: privacymask_c<0~(n-1)> for n channel product NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable privacy mask. win_i<0~4>_enable <boolean> Enable privacy mask window. win_i<0~4>_name string[16] <blank> Name of the privacy mask window. win_i<0~4>_left 0 ~ 320 Left coordinate of window position.
  • Page 176 VIVOTEK 0/99 Number of virtual inputs <positive (manual trigger) integer> 0/99 Number of digital outputs. <positive integer> 0/99 naudioin Number of audio inputs. <positive integer> 0/99 naudioout Number of audio outputs. <positive integer> 0/99 nvideoin <positive Number of video inputs.
  • Page 177 VIVOTEK Bit 3 => Support tilt operation; 0(not support), 1(support) Bit 4 => Support zoom operation; 0(not support), 1(support) Bit 5 => Support focus operation; 0(not support), 1(support) Bit 6 => Support iris operation; 0(not support), 1(support) Bit 7 => External or built-in PT;...
  • Page 178 VIVOTEK integer> 0/99 protocol_https < boolean > 1 Indicate whether to support HTTP over SSL. 0/99 protocol_rtsp < boolean > 1 Indicate whether to support RTSP. 0/99 protocol_sip <boolean> Indicate whether to support SIP. 0/99 protocol_maxconnection <positive The maximum allowed integer>...
  • Page 179 VIVOTEK 2 => CMOS videoin_codec <string> mjpeg, 0/99 Available codec of a device. h264 The sequence is not limited. videoin_c0_streamcodec <Positive 6,6,6 0/99 This equals Integer> "capability_videoin_c0_stre amcodec". videoin_c0_flexiblebitrate 0, 1 0/99 Support flexible bit rate control or not. videoin_c0_resolution <a list of...
  • Page 180 VIVOTEK videoin_c0_h264_maxframe <a list of 0/99 Available maximum codec rate available frame list. maximum codec frame rate separated commas> timeshift 0/99 <boolean> Indicate whether to support time shift caching stream. 0/99 audio_aec <boolean> Indicate whether to support acoustic echo cancellation.
  • Page 181 VIVOTEK “Manage Privilege” of PTZ control in the Security page. 1: support both /cgi-bin/camctrl/camctrl.cgi /cgi-bin/viewer/camctrl.cgi 0: support only /cgi-bin/viewer/camctrl.cgi transmission_mode 0/99 Indicate transmission mode of the machine: TX = server, Rx Both = receiver box, Both = DVR. 0/99 network_wire <boolean>...
  • Page 182 VIVOTEK 0/99 iris <boolean> Indicate whether to support iris control. tampering <boolean> 0/99 Indicate whether to support tampering detection. 0/99 temperature <boolean> Indicate whether to support temperature detection. 0/99 version_onvifdaemon <string> 1.8.0.6 Indicate ONVIF daemon version 0/99 version_onvifevent <string> 1.3.0.7...
  • Page 183 VIVOTEK adaptive recording. adaptivestreaming <boolean> 1 0/99 Indicate whether to support adaptive streaming. remotecamctrl_master 0/99 Indicate whether to support <positive remote auxiliary camera integer> (master side), this value means supporting max number of auxiliary camera. remotecamctrl_slave <boolean> 0/99 Indicate whether to support remote camera control (slave side).
  • Page 184 VIVOTEK smartstream_nwindow_ 0/99 number of <positive Maximum manual tracking window of manual integer> smartstream_nwindow_ <positive 0/99 number of Maximum hybrid_autotracking tracking window of integer> autotracking in hybrid mode smartstream_nwindow_ 0/99 number of <positive Maximum hybrid_ manual tracking window of manual integer>...
  • Page 185 VIVOTEK * Note: For some cameras, this value may be varied depending on mounted lens. 0/99 focusassist 0, 1 0: Non-support focus assistance 1: Support focus assistance 0/99 remotefocus 0, 1 0: Non-support remote focus 1: Support remote focus 7.24 WebAPI: Information for a channel Group: capability_videoin_c<n>, n = channel index from 0 to "capability_nvideoin"-1...
  • Page 186 VIVOTEK maxframerate A list of 0/99 Indicate how many frame rate image <Integer> sensor outputs in current video mode. One to one mapping to the resolution in "resolution". mjpeg_ maxframerate A list of 0/99 Maximum fps that the device can <Positive...
  • Page 187 VIVOTEK 7.25 WebAPI: Information for a mode Group: capability_videoin_c<n>_mode<m>, n = channel index from 0 to "capability_nvideoin"-1, m = mode index from 0 to "capability_videoin_c<n>_nmode"-1 PARAMETER VALUE DEFAULT SECURITY DESCRIPTION (get/set) effectivepixel <WxH> 0/99 The visible area of full scene in this video mode.
  • Page 188 VIVOTEK maxfps_h264 A list of 0/99 Maximum fps which the device can <Positive encoded with H.264 on resolutions Integer> and in this video mode. "-" "-" means not support. * One to one mapping to the resolution in "resolution". 30, 30, 30,...
  • Page 189: Event Setting

    VIVOTEK 7.27 Event setting Group: event_i<0~2> PARAMETER VALUE Default SECURITY DESCRIPTION (get/set) name string[40] NULL Identification of this entry. enable 0, 1 Enable or disable this event. priority 0, 1, 2 Indicate the priority of this event: “0” = low priority “1”...
  • Page 190 VIVOTEK mdwin Indicate the source window id of motion detection. This field is required when trigger condition is “md”. One bit represents one window. The LSB indicates the 1 window. For example, to detect the 1 and 3 windows, set mdwin as 5.
  • Page 191 VIVOTEK action_cf_folder string[128] NULL Path to store media. action_cf_media NULL, 0~4 NULL Index of the attached media. action_cf_datefolder <boolean> Enable this to create folders by date, time, and hour automatically. action_cf_backup <boolean> Enable the capability of backing up recorded files to the SD card when network is lost.
  • Page 192 VIVOTEK ftp_address string[128] NULL FTP server address. ftp_username string[64] NULL Username to log in to the server. ftp_passwd string[64] NULL Password of the user. ftp_port 0~65535 Port to connect to the server. ftp_location string[128] NULL Location to upload or store the media.
  • Page 193 VIVOTEK 7.29 Media setting for event action Group: media_i<0~4> (media_freespace is used internally.) PARAMETER VALUE DEFAULT SECURITY DESCRIPTION (get/set) name string[40] NULL Identification of this entry type snapshot, snapshot Media type to send to the server or systemlog, store on the server.
  • Page 194 VIVOTEK 7.30 Recording Group: recording_i<0~1> PARAMETER VALUE DEFAULT SECURITY DESCRIPTION (get/set) name string[40] NULL Identification of this entry. enable 0, 1 Enable or disable this recording. priority 0, 1, 2 Indicate the priority of this recording: “0” indicates low priority.
  • Page 195 VIVOTEK weekday 0~127 Indicate which weekday is scheduled. One bit represents one weekday. bit0 (LSB) = Saturday bit1 = Friday bit2 = Thursday bit3 = Wednesday bit4 = Tuesday bit5 = Monday bit6 = Sunday For example, to detect events on...
  • Page 196 VIVOTEK adaptive_preevent Indicate when is the adaptive recording started before the event trigger point (seconds) adaptive_postevent 0~10 Indicate when is the adaptive recording stopped after the event trigger point (seconds) Unit: Mega bytes. maxsize 100~2000 When this condition is reached, recording file is truncated.
  • Page 197: Region Of Interest

    VIVOTEK localityname string[128] Asia The locality name in the certificate information. organizationname string[64] VIVOTEK Organization name in the Inc. certificate information. unit string[64] VIVOTEK Organizational unit name in the Inc. certificate information. commonname string[64] www.vivotek Common name in the certificate .com...
  • Page 198: Eptz Setting

    VIVOTEK 7.34 ePTZ setting Group: eptz_c<0~(n-1)> for n channel product. PARAMETER VALUE Default SECURITY DESCRIPTION (get/set) osdzoom <boolean> Indicates multiple of zoom in is “on-screen display” or not smooth <boolean> Enable the ePTZ "move smoothly" feature tiltspeed -5 ~ 5 Tilt speed (It should be set by eCamCtrl.cgi...
  • Page 199 VIVOTEK preset_i<0~19>_size <window size> <blank> Width and height of the preset. (It should be set by ePreset.cgi rather than by setparam.cgi.) 7.35 Exposure window setting per channel Group: exposurewin_c<0~(n-1)> for n channel products NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) mode...
  • Page 200 VIVOTEK custom: Use inclusive and exclusive window. blc: Use BLC. i<0~(m-1)>_win_i<0~9 <boolean> Enable or disable the >_enable window. i<0~(m-1)>_win_i<0~9 0: Indicate exclusive. >_policy 1: Indicate inclusive. i<0~(m-1)>_win_i<0~9 <coordinate> 110,90 Left-top corner >_home coordinate of the window. i<0~(m-1)>_win_i<0~9 <window size> 100x75 Width and height of >_size...
  • Page 201 VIVOTEK 7.37 VIVOTEK Application Development Platform setting Group: vadp NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) version <string> 1.2.1.0 Indicate the VADP version. resource_total_memory <integer> <product Indicate total dependent> available memory size for VADP modules. resource_total_storage <integer> <product Indicate total size of dependent>...
  • Page 202 VIVOTEK Group: vadp_module_i<0~(n-1)> NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Indicate if the module is enabled or not. If yes, also add the index of this module to the module_order. name <blank> Module name string[40] <blank> Define the URL string...
  • Page 203: Drive The Digital Output

    VIVOTEK 8. Useful Functions 8.1 Drive the Digital Output Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/setdo.cgi?do1=<state>[&do2=<state>] [&do3=<state>][&do4=<state>] Where state is 0 or 1; “0” means inactive or normal state, while “1” means active or triggered state. PARAMETER...
  • Page 204: Query Status Of The Digital Output

    VIVOTEK [di3=<state>]\r\n where <state> can be 0 or 1. Example: Query the status of digital input 1 . Request: http://myserver/cgi-bin/dido/getdi.cgi?di1 Response: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: 7\r\n \r\n di1=1\r\n 8.3 Query Status of the Digital Output Note: This request requires Viewer privileges...
  • Page 205: Capture Single Snapshot

    VIVOTEK Content-Type: text/plain\r\n Content-Length: 7\r\n \r\n do1=1\r\n 8.4 Capture Single Snapshot Note: This request requires Normal User privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/viewer/video.jpg?[channel=<value>][&resolution=<value>] [&quality=<value>][&streamid=<value>] If the user requests a size larger than all stream settings on the server, this request will fail.
  • Page 206: Account Management

    VIVOTEK 8.5 Account Management Note: This request requires Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/editaccount.cgi? method=<value>&username=<name>[&userpass=<value>][&privilege=<value>] [&privilege=<value>][…][&return=<return page>] PARAMETER VALUE DESCRIPTION method Add an account to the server. When using this method, the “username” field is necessary. It will use the default value of other fields if not specified.
  • Page 207: System Logs

    VIVOTEK 8.6 System Logs Note: This request require Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/syslog.cgi Server will return the most up-to-date system log. Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <syslog length>\r\n \r\n <system log information>\r\n 8.7 Upgrade Firmware Note: This request requires Administrator privileges.
  • Page 208 VIVOTEK 8.8 ePTZ Camera Control Note: This request requires camctrl privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/camctrl/eCamCtrl.cgi?channel=<value>&stream=<value> [&move=<value>] – Move home, up, down, left, right [&auto=<value>] – Auto pan, patrol [&zoom=<value>] – Zoom in, out [&zooming=<value>&zs=<value>] – Zoom without stopping, used for joystick [&vx=<value>&vy=<value>&vs=<value>]...
  • Page 209 VIVOTEK tele Zoom further with current speed. zooming wide or tele Zoom without stopping for larger view or further view with zs speed, used for joystick control. 0 ~ 6 Set the speed of zooming, “0” means stop. <integer> The direction of movement, used for joystick control.
  • Page 210 VIVOTEK 8.9 ePTZ Recall Note: This request requires camctrl privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/camctrl/eRecall.cgi?channel=<value>&stream=<value>& recall=<value>[&return=<return page>] PARAMETER VALUE DESCRIPTION channel <0~(n-1)> Channel of the video source. stream <0~(m-1)> Stream. recall Text string less than One of the present positions to recall.
  • Page 211 VIVOTEK relative path according to the current path. 8.11 IP Filtering Note: This request requires Administrator access privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/ipfilter.cgi? method=<value>&[start=<ipaddress>&end=<ipaddress>][&index=<value>] [&return=<return page>] PARAMETER VALUE DESCRIPTION method addallow Add allowed IP address range to the server. Start and end parameters must be specified.
  • Page 212 VIVOTEK 8.11.1 IP Filtering for ONVIF Syntax: <product dependent> http://<servername>/cgi-bin/admin/ipfilter.cgi?type[=<value>] http://<servername>/cgi-bin/admin/ipfilter.cgi?method=add<v4/v6>&ip=<ipaddress>[&index=<valu e>][&return=<return page>] http://<servername>/cgi-bin/admin/ipfilter.cgi?method=del<v4/v6>&index=<value>[&return=<return page>] PARAMETER VALUE DESCRIPTION type NULL Get IP filter type allow, deny Set IP filter type method addv4 Add IPv4 address into access list. addv6 Add IPv6 address into access list.
  • Page 213 VIVOTEK 8.12 Event/Control HTTP Tunnel Channel Note: This request requires Administrator privileges. Method: GET and POST Syntax: http://<servername>/cgi-bin/admin/ctrlevent.cgi ------------------------------------------------------------------------- GET /cgi-bin/admin/ctrlevent.cgi x-sessioncookie: string[22] accept: application/x-vvtk-tunnelled pragma: no-cache cache-control: no-cache ------------------------------------------------------------------------- POST /cgi-bin/admin/ ctrlevent.cgi x-sessioncookie: string[22] content-type: application/x-vvtk-tunnelled pragma : no-cache...
  • Page 214 VIVOTEK 8.13 Get SDP of Streams Note: This request requires Viewer access privileges. Method: GET Syntax: http://<servername>/<network_rtsp_s<0~m-1>_accessname> “m” is the stream number. “network_accessname_<0~(m-1)>” is the accessname for stream “1” to stream “m”. Please refer to the “subgroup of network: rtsp” for setting the accessname of SDP.
  • Page 215 VIVOTEK 8.15 Storage managements Note: This request requires administrator privileges. Method: GET and POST Syntax: http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=<cmd_type>[&<parameter>=<value>…] The commands usage and their input arguments are as follows. PARAMETER VALUE DESCRIPTION cmd_type <string> Required. Command to be executed, including search, insert, delete, update, and queryStatus.
  • Page 216 VIVOTEK Indicate if the file is locked or not. 0: file is not locked. 1: file is locked. A locked file would not be removed from UI or cyclic storage. triggerTime <text> Optional. Indicate the event trigger time. (not the file created time) Format is “YYYY-MM-DD HH:MM:SS”...
  • Page 217 VIVOTEK PARAMETER VALUE DESCRIPTION label <integer primary key> Required. Identify the designated record. Ex. label=1 isLocked <boolean> Required. Indicate if the file is locked or not. Ex. Update records whose key numbers are 1 and 5 to be locked status.
  • Page 218 VIVOTEK Element name Type Description label <Integer Primary Key> A unique integer. triggerType <Text> Indicate the event trigger type. mediaType <Text> Indicate the file media type. destPath <Text> Indicate the file location in camera. resolution <Text> Indicate the media file resolution.
  • Page 219 VIVOTEK </i0> <i1> <label>2</label> <triggerType>di</triggerType> <mediaType>snapshot</mediaType> <destPath>/mnt/auto/NCMF/123/123.jpg</destPath> <resolution>800x600</resolution> <isLocked>0</isLocked> <triggerTime>2009-01-24 12:01:00</triggerTime> <backup>0</backup> </i1> </stormgr> Ex. Local storage status in XML format. <?xml version="1.0" encoding="ISO-8859-1" ?> <stormgr version="0.0.0.1"> <disk> <i0> <name>SDcard</name> <status>ready</status> <totalSize>7824444</totalSize> <freeSize>7824388</freeSize> <usedSize>56</usedSize> </i0> </disk> </stormgr> Ex. Local storage status in javascript format.
  • Page 220 VIVOTEK Ex. Query local storage status and call for javascript format return message. http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=queryStatus&retType=javascript There are two cgi commands for download and composing jpegs to avi format. For download single selected file, you can use “/cgi-bin/admin/downloadMedias.cgi”. Just assign the request file path to this cgi.
  • Page 221 VIVOTEK 8.16 Virtual input Note: Change virtual input (manual trigger) status. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/setvi.cgi?vi0=<value>[&vi1=<value>][&vi2=<value>] [&return=<return page>] PARAMETER VALUE DESCRIPTION vi<num> state[(duration)nstate] Ex: vi0=1 Setting virtual input 0 to trigger state Where "state" is 0, 1. “0” Ex: vi0=0(200)1 means inactive or Setting virtual input 0 to normal state, waiting 200 normal state while “1”...
  • Page 222 VIVOTEK Examples: 1. setvi.cgi?vi0=0(15000)1 2. setvi.cgi?vi0=1 Request 2 will not be accepted during the execution time(15 seconds). 8.17 Open Timeshift Stream (timeshift_enable=1, timeshift_c<n>_s<m>_allow=1) Note: This request requires Viewer access privileges. Syntax: For HTTP push server (MJPEG): http://<servername>/<network_http_s<m>_accessname>?maxsft=<value>[&tsmode=<value>&reftim e=<value>&forcechk&minsft=<value>] For RTSP (MP4 and H264), the user needs to input the URL below into an RTSP compatible player.
  • Page 223 VIVOTEK forcechk Check if the requested stream enables timeshift, feature and if minsft is achievable. If false, return “415 Unsupported Media Type”. minsft <positive How many seconds of cached stream client can accept integer> at least. (Used by forcechk) Return Code...
  • Page 224 VIVOTEK <product dependent> input setting. 1 = worst quality, 5 = best quality. <product dependent> mjpeg_qvalue 10~200 Manual video quality level input. 2~97 <product (This must be present if <product dependent> dependent> mjpeg_quant is equal to 0, 99) <product dependent>...
  • Page 225 VIVOTEK h264_quant 0, 1~5 Quality of video when choosing 99, 1~5 vbr in “h264_ratecontrolmode”. <product dependent> 0,99 is the customized manual input setting. 1 = worst quality, 5 = best quality. <product dependent> h264_qvalue 0~51 Manual video quality level input.
  • Page 226 VIVOTEK 8.19 Export Files Note: This request requires Administrator privileges. Method: GET Syntax: For daylight saving time configuration file: http://<servername>/cgi-bin/admin/exportDst.cgi For language file: http://<servername>/cgi-bin/admin/export_language.cgi?currentlanguage=<value> PARAMETER VALUE DESCRIPTION currentlanguage 0~20 Available language lists. Please refer to: system_info_language_i0 ~ system_info_language_i19 For setting backup file: http://<servername>/cgi-bin/admin/export_backup.cgi?backup...
  • Page 227 VIVOTEK filename =<file name>\r\n \r\n <multipart encoded form data> For setting backup file: http://<servername>/cgi-bin/admin/upload_backup.cgi Post data: filename =<file name>\r\n \r\n <multipart encoded form data> Server will accept the file named <file name> to upload this one to camera. 8.21 Media on demand Media on demand allows users to select and receive/watch/listen to metadata/video/audio contents on demand.
  • Page 228 VIVOTEK Play recordings for length seconds which start from stime rtsp://10.10.1.2/mod.sdp?stime=20110312_040400.000&lengt h=120 Play recordings for length seconds which ends at etime rtsp://10.10.1.2/mod.sdp?etime=20110312_040400.000&lengt h=120 Play file file rtsp://10.10.1.2/mod.sdp?filename=/mnt/link0/ <End of document> 228 - User's Manual...
  • Page 229: Technical Specifications

    AM-311 AM-411 AM-711 Pole Mount Adaptor Corner Mount Adaptor Junction Box All specifications are subject to change without notice. Copyright © VIVOTEK INC. All rights reserved. Distributed by: Ver. 6 VIVOTEK INC. VIVOTEK USA VIVOTEK Europe 6F, No.192, Lien-Cheng Rd., Chung-Ho,...
  • Page 230: Technology License Notice

    VIVOTEK Technology License Notice AMR-NB Standard THIS PRODUCT IS LICENSED UNDER THE AMR-NB STANDARD PATENT LICENSE AGREEMENT. WITH RESPECT TO THE USE OF THIS PRODUCT, THE FOLLOWING LICENSORS’ PATENTS MAY APPLY: TELEFONAKIEBOLAGET ERICSSON AB: US PAT. 6192335; 6275798; 6029125; 6424938; 6058359. NOKIA CORPORATION: US PAT.
  • Page 231: Electromagnetic Compatibility (Emc)

    取扱説明書に従って正しい取り扱いをして下さい Liability VIVOTEK Inc. cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. VIVOTEK Inc. makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for any particular purpose.
