- Page 1 USERS GUIDE IPX-TC3 Series IPX-TC3-C ● IPX-TC3-CF ● IPX-TC3-C Pro ● IPX-TC3-CF Pro IPX-TC3-DF Pro ● IPX-TC3-WP-C ● IPX-TC3-WP-F 10G 4K60 4:4:4 IP Distribution Manual Number: 190121...
- Page 2 ⚫ Power outlet: To prevent electric shock, be sure the electrical plug used on the product power cord matches the electrical outlet used to supply power to the Aurora product. Use only the power adapter and power connection cables designed for this unit.
-
Page 3: Table Of Contents
User Guide TABLE OF CONTENTS PACKAGE CONTENTS ......................4 OPTIONAL ACCESSORIES ...................... 5 INTRODUCTION ........................10 About ..............................10 Documentation ............................ 10 Features ............................... 11 IPX-TC3 & IPX-TC3 Pro Front ......................12 IPX-TC3-C, IPX-TC3-CF, IPX-TC3-DF Rear ..................14 IPX-TC3-WP-C & IPX-TC3-WP-F Front ..................... 15 IPX-TC3-WP-C &... - Page 4 User Guide HDMI ..............................31 CAT5e/6/6A ............................31 RS-232 ..............................32 IR (Infrared) ............................33 APPENDIX 1 Troubleshooting ................... 34 APPENDIX 2 Firmware Update ..................36 APPENDIX 3 Protocol ......................36 APPENDIX 4 Recommended Cabling ................37 APPENDIX 5 Recommended Network Switches .............. 38 5.1 Switch Speed ..........................
-
Page 5: Package Contents
User Guide PACKAGE CONTENTS Please make sure the following items are included within your package. Contact your dealer if any items are missing or damaged. Go to www.auroramm.com for latest manual and firmware. Box Versions IPX-TC3-C • 1 qty IPX-TC3-C 10G RJ-45 Copper Transceiver Unit. •... -
Page 6: Optional Accessories
User Guide OPTIONAL ACCESSORIES • IPX-RK3-1 (1RU Rack mount holds 2 units) Includes 4 Rails and 1 Blank • IPX-RK3-5 (5RU Rack mount holds 12 units) Includes 24 rails and 4 Blanks • IPX-RK3-BK-K (Blank Plate for Rack Mounts) & IPX-RK3-MT-K (For IPX-TC3 use in rack mounts) •... - Page 7 User Guide • IPE-DTE-1 (IPX-TC3 2 Channel Dante/AES67 Option Card) • IPE-DTE-2 (IPX-TC3 8 Channel Dante/AES67 Option Card) • IPX-ReAX-1 (IPX-TC3 ReAX Control System Option Card) • RXS-1 (ReAX Linux Server with IPBaseT Manager Pro)
- Page 8 User Guide • DXB-8/DXB-8i (8 Button Wall Plate) • PS0081-1 (48V 24 Watt PoE Injector) Available in -US, -AU, - EU, and -UK worldwide models. • PS0094-2 (48V 25 Watt Wall Supply) Available in -US, -AU, - EU, and -UK worldwide models. •...
- Page 9 User Guide • RS-232 Adaptor (3.5mm TRS to FEMALE DB9 2-TX 3-RX) CA0052-F2T3R • RS-232 Adaptor (3.5mm TRS to FEMALE DB9 3-TX 2-RX) CA0052-F3T2R • RS-232 Adaptor (3.5mm TRS to MALE DB9 2-TX 3-RX) CA0052-M2T3R • RS-232 Adaptor (3.5mm TRS to MALE DB9 3-TX 2-RX) CA0052-M3T2R •...
- Page 10 User Guide • IPX-SFP-10G20 10G SFP+ Single Mode Dual Module 1310nm 20KM • IPX-SFP-PPC-1 SFP+ 10G Passive Patch Cable 1M (3ft) • IPX-SFP-OM3DXLC-1 OM3 Fiber 50/125 Multi-mode LC Patch Cable 1M...
-
Page 11: Introduction
INTRODUCTION About The IPX Series provides one of the most advanced IP Streaming solutions on the market utilizing Aurora’s IPBaseT™ technology, which synergizes various IP/AV standards to work together as one. It is the industry’s first 4K2K transceiver with zero compression (4K60 4:2:0, 4K30 4:4:4), lossless compression (4K60 4:4:4), and zero frame latency based on BlueRiver NT™/NT+ platform. -
Page 12: Features
User Guide Features Configure as Transmitter (Encoder) or Receiver (Decoder) ◆ 4K60 4:4:4 Over 10G Fiber or Copper ◆ Zero Compression & Zero Frame Latency (22us) for 4K60 4:2:0 and below ◆ 1.3:1 Lossless Compression & Zero Frame Latency (100us) for 4K60 4:4:4 ◆... -
Page 13: Ipx-Tc3 & Ipx-Tc3 Pro Front
User Guide IPX-TC3 & IPX-TC3 Pro Front LEDs • Power/Status – Power will light green when unit is on or in standby. Status will blink at a normal pace during regular operation and slower pace when in standby. • Encoder/Decoder – Encoder (transmit) or Decoder (receiver) will be lit when set accordingly. - Page 14 User Guide Special Functions • Factory Default – Press & hold Select and Up together for 4 Seconds. Note: Default Settings - 9600 baud rate; default IP 192.168.1.100; autosense off.
-
Page 15: Ipx-Tc3-C, Ipx-Tc3-Cf, Ipx-Tc3-Df Rear
User Guide IPX-TC3-C, IPX-TC3-CF, IPX-TC3-DF Rear Rear • 48VDC – 48 Volt isolated power input. • 10G SFP+ – Multi-mode or single mode SFP+ 10G modules for the IPBaseT connectivity. • 10G – RJ-45 10G network connection for the IPBaseT connectivity. Unit can be powered with 10G PoE+ or PoH+ injector. -

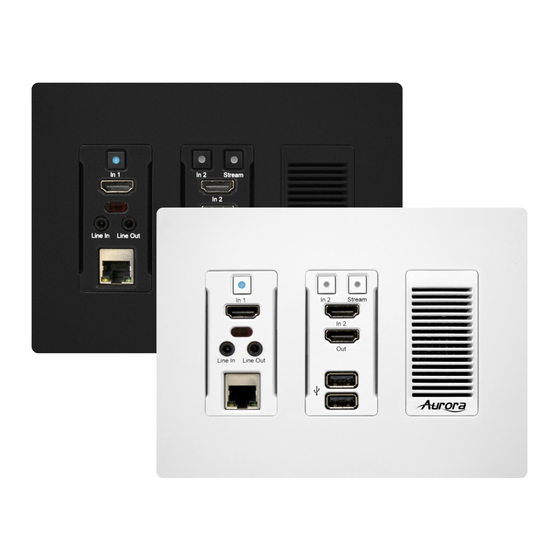

Page 16: Ipx-Tc3-Wp-C & Ipx-Tc3-Wp-F Front
User Guide IPX-TC3-WP-C & IPX-TC3-WP-F Front Buttons • HDMI 1 – Selects HDMI Input 1 (Lights Red, Green, or Blue). • HDMI 2 – Selects HDMI Input 2 (Lights Red, Green, or Blue). • Remote Stream – Selects remote stream assigned when set as decoder (Lights Red, Green, or Blue). -
Page 17: Ipx-Tc3-Wp-C & Ipx-Tc3-Wp-F Rear
User Guide IPX-TC3-WP-C & IPX-TC3-WP-F Rear Rear • 48VDC – 48 Volt isolated power input. • SFP+ – For multi-mode or single mode SFP+ 10G modules (IPX-TCW3-F) for the IPBaseT zero compression/latency connectivity. • 10G – RJ-45 10G network connections (IPX-TCW3-C) for the IPBaseT zero compression/latency connectivity. -
Page 18: Understanding The Basics
User Guide UNDERSTANDING THE BASICS Direct Connection with No Ethernet Switch The IPX Series is designed to automatically tunnel the video, audio, USB, RS-232, and IR if they are connected without an Ethernet switch or connected server (RXS-1). 10GbE Ethernet Switch It is important to use a non-blocking IGMP 10GbE switch with IGMP snooping. -
Page 19: Network Infrastructure
Linux server, which mitigates all communications to all the IPX units (devices and wall plates). The RXS-1 serves up Aurora’s IPBaseT Manager Pro to any regular or mobile web browser. ReAX is a Javascript based IP control system as well allowing full room/building automation or if desired a 3 party control systems can be utilized with the available API. -
Page 20: Controlling The Ipx With Multiple Servers For Redundancy
User Guide Controlling the IPX with Multiple Servers for Redundancy Multiple RXS-1 servers can run on the same network for redundancy. It is important only one communicates at any given time or incomplete commands may occur between units communicating simultaneously. IPBaseT Manager will only connect to one server at a time but it is important for every PC running IPBaseT Manager they all point to the same server at the same time. -
Page 21: Videowall Capabilities Ipx-Tc3 Pro
User Guide denominator, which is 2-channel audio, but in cases where you must have surround sound then a down- mixer for the 2-channel destination must be used. In some cases, a custom EDID could be created, as the audio and video are mismatched between the destinations. -
Page 22: Hardware Installation
User Guide HARDWARE INSTALLATION Network Setup 1. Connect a 10GbE network switch and make certain IGMP Snooping features are enabled. 2. Connect fiber or UTP CAT cable accordingly to the network switch and to the IPX units. 3. Connect the RXS-1 Server to the network switch and power on. Follow instructions for the RXS-1 to set the IP address for remote control. -
Page 23: Decoder Setup
You will then be able to change settings, save EDID, route, and more. If a control system is to be used, make certain it is connected to the same network and follows the Aurora IPX API protocol. - Page 24 User Guide Important: • Take note of the MAC Address of every unit. It can be found on the underside or rear of the unit. The MAC Address is how you will identify the unit relative to its location. • Make certain all units are using the latest firmware.
-
Page 25: Applications
User Guide APPLICATIONS Example 1: IPX-TC3-WP Configured as Transmitter to IPX-TC3 Configured Receiver When the IPX Series is connected point to point, no configuration is required, as the units will auto identify and make a tunnel between both ends for the video, audio, RS-232, IR, USB, and Ethernet. With the copper version a maximum distance of 100m (328ft) can be achieved. -
Page 26: Example 2: Ipx Multi-Room
User Guide Example 2: IPX Multi-Room The IPX Series is perfect for multi-room applications with its flexibility. A nearly unlimited number of rooms can share video, audio, data, and control in real-time. The scalability is only limited by the size of the network switch and infrastructure. -
Page 27: Example 3: Matrix - Multiple Ipx To Multiple Ipx
User Guide Example 3: Matrix - Multiple IPX to Multiple IPX The IPX can take the place of any typical card cage matrix system, adding flexibility and performance never seen before. Even features like seamless switching is no longer a premium. -
Page 28: Example 4: Video-Wall
User Guide Example 4: Video-Wall The IPX-TC3-PRO is capable of 4K 8x8 video-walls. It is important to read Understanding the Basics section of this manual when specifying videowall usage. -
Page 29: Example 5: Kvm Utilizing Usb 2.0
User Guide Example 5: KVM utilizing USB 2.0 Command & Control and NOC centers are perfect for the IPX Series, especially with the advanced break- away switching and USB 2.0 running at a full 480Mbps. With the IPX it is no longer just keyboard and mouse but full USB peripheral routing as well. -
Page 30: Software
Linux web server based software preloaded onto the RXS-1 ReAX server. The Pro version is enterprise class and has additional features like statistics, alerts, multi-user log-on and more. IPBaseT Manager is available at the Aurora customer portal for free on www.auroramm.com The IPBaseT Manager Pro is available through an authorized dealer as the RXS-1. - Page 31 Pro Version • Linux Based ReAX RXS-1 Server • Unlimited Users • Statistics • Email Alerts • Videowall Multiview Configurations For full detail of the IPBaseT Manager software tool and setup, the manual can be found at the Aurora website www.auroramm.com...
-
Page 32: Connector Pin Definition
User Guide CONNECTOR PIN DEFINITION HDMI Pin 1 TMDS Data2+ Pin 8 TMDS Data0 Shield Pin 15 Pin 2 TMDS Data2 Shield Pin 9 TMDS Data0– Pin 16 Pin 3 TMDS Data2– Pin 10 TMDS Clock+ Pin 17 DDC/CEC Ground Pin 4 TMDS Data1+ Pin 11 TMDS Clock Shield... - Page 33 User Guide RS-232 The RS-232 is a 3.5mm TRS connector. Tip is TX (output), ring is RX (input), and Sleeve is ground. To simplify connections Aurora offers pre-molded RS-232 cables in null and none nulled in male and female DB9.
-
Page 34: Ir (Infrared)
User Guide IR (Infrared) It will autosense a TS or a TRS connector to determine if an IR emitter (TS) or IR receiver (TRS) is inserted. The IR receiver must be with carrier inverted to work. The tip is signal, ring is 5V, and sleeve is ground. -
Page 35: Appendix 1 Troubleshooting
User Guide APPENDIX 1 Troubleshooting It is advisable to make certain all units are using the latest firmware before troubleshooting. Why IPBaseT Manager cannot find any devices? • Check the IP Address of the RXS-1 server and make certain it is connected on the same network. •... - Page 36 User Guide Audio not working • Make certain correct audio path is selected. The IPX can choose between analog input and HDMI. • Verify correct EDID usage. If EDID has 5.1 surround sound listed and display cannot do 5.1 there will be no audio.
-
Page 37: Appendix 2
You must be signed up to the Customer Portal in order to download firmware with instructions on how to update. APPENDIX 3 Protocol For the latest protocol please go www.auroramm.com You must be signed up to the Customer Portal in order to download IPX protocol. The protocol is only available to authorized Aurora dealers. -
Page 38: Appendix 4 Recommended Cabling
For the copper, unshielded cable is preferred for optimal performance. While any properly made cable will work with the IPX series the models below have been tested by Aurora with the IPX at full bandwidth and distance. Fiber with copper for remote power... -
Page 39: Appendix 5 Recommended Network Switches
Below are some models that have been tested with the IPX Series. For a more complete listing, the IPX Series Network Switch Recommendations and Configuration guide can be found on the Aurora website. www.auroramm.com 5.1 Switch Speed The IPX Series requires the switch to be a 10 GbE. -
Page 40: 5.3 Ethernet Switch Configuration
The end results are a noticeably shorter video switching time. Aurora recommends to always enable the FASTLEAVE option when available. With FASTLEAVE option, seamless switching is possible for 4K video sources. Without FASTLEAVE option, 'seamless' switching is limited to 1080P 60 Hz video signals. -
Page 41: 5.4 Ethernet Switch Models
User Guide 5.4 Ethernet Switch Models The IPX Series Network Switch Recommendations and Configuration guide can be found on the Aurora website. www.auroramm.com... -
Page 42: Appendix 6
User Guide APPENDIX 6 Technical Specifications Model Name IPX-TC3 & IPX-TC3-WP Technical Compression Zero (4K30 4:4:4/4K60 4:2:0), 1.3:1(4K60 4:4:4) Latency Zero Frame Latency (100us without Scaling, 3ms with Scaling) HDMI Inputs HDMI Outputs Audio Analog Stereo Line In/Out (3.5mm TRS Tip is Left, Ring is Right, Sleeve is Ground) 10G Fiber Ethernet SFP+ (Single Mode or Multi-Mode) 10G Copper Ethernet... -
Page 43: Appendix 7 Warranty
Limited 5 Year Warranty Aurora Multimedia Corp. (“Manufacturer”) warrants that this product is free of defects in both materials and workmanship for a period of 5 years as defined herein for parts and labor from date of purchase. This Limited Warranty covers products purchased in the year of 2019 and after. - Page 44 User Guide Aurora Multimedia Corp. 205 Commercial Court Morganville, NJ 07751 Phone: 732591-5800 Fax: 732-591-6801...
