2nd EDITION
• The model no.SA8001/K1G was added in this service manual.
• SA8001/K1G 仕向けを追加しました。
POWER ON/OFF
POWER ON/OFF
POWER ON/OFF
POWER ON/OFF
SECTION 1
1. TECHNICAL SPEC I FI CA TIONS AND UPDATE DISC ....................................................... 1-1
2. SERVICE HINTS AND TOOLS .......................................................................................... 1-2
3. WARNING AND LASER SAFETY IN STRUC TIONS .......................................................... 1-3
4. TAKING THE DISC OUT OF EMERGENCY ..................................................................... 1-4
5. UPDATA FIRMWARE ......................................................................................................... 1-5
6. SERVICE MODE ................................................................................................................ 1-6
7. BLOCK DIAGRAM ............................................................................................................. 1-7
8. SCHEMATIC DIAGRAM ..................................................................................................... 1-9
9. PARTS LOCATION ........................................................................................................... 1-15
10. MICROPROCESSOR AND IC DATA ................................................................................ 1-21
11. EXPLODED VIEW AND PARTS LIST .............................................................................. 1-25
12. ELECTRICAL PARTS LIST ............................................................................................. 1-29
SECTION 2 (MECHA LOADER AND MECHA TRAVERSE)
1. EXPLODED VIEW AND PARTS LIST ................................................................................ 2-2
SECTION 3 (SUPER AUDIO CD PWB MODULE)
1. IC DATA .............................................................................................................................. 3-2
2. BLOCK DI A GRAM ........................................................................................................... 3-23
3. SCHEMATIC DIAGRAM ................................................................................................... 3-25
4. PARTS LOCATION ........................................................................................................... 3-37
5. ELECTRICAL PARTS LIST .............................................................................................. 3-41
Please use this service manual with referring to the user guide ( D.F.U. ) without fail.

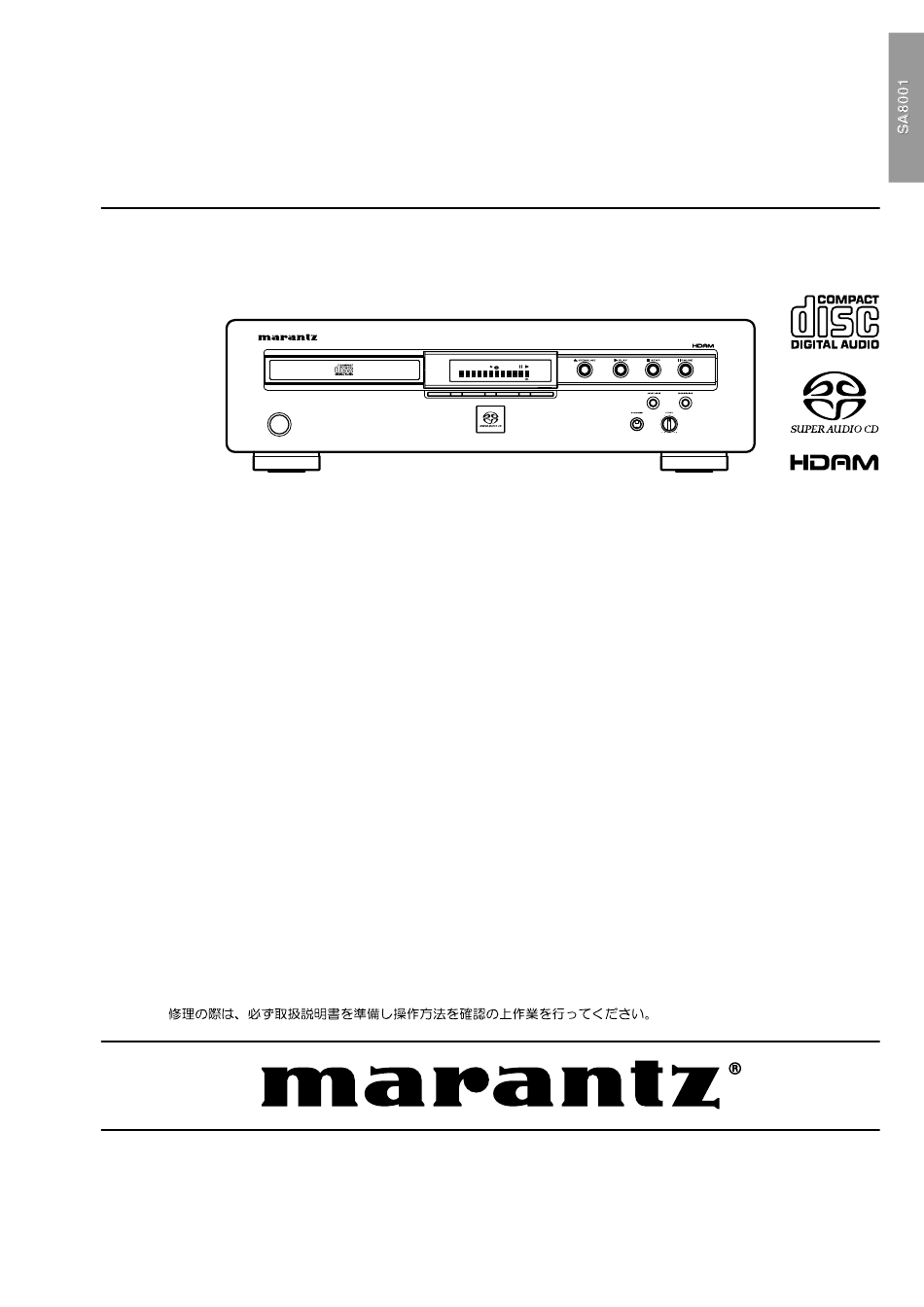

SUPER AUDIO CD PLAYER SA8001
RNDM TRK
RNDM TRK
A ÐB
A ÐB
PROG
PROG
ALL
ALL
1
1
TEXT
TEXT
1
1
2
2
3 4
3 4
5 6
5 6
7 8
7 8
9 10 11 12 13 14 15 16 17 18 19 20
9 10 11 12 13 14 15 16 17 18 19 20
D I S P L A Y O F F
T E X T
TABLE OF CONTENTS
SA8001
SA8001 /
Super Audio CD Player
AMS
AMS
TOTAL SING
TOTAL SING
REMAIN
REMAIN
SACD
SACD
STEREO
STEREO
T I M E
S O U N D M O D E
F N/K1G/F S/U1B
PAGE
Part no. 90M29AK855020
First Issue 2006.06
MZ
Advertisement
Related Manuals for Marantz SA8001/K1G
Summary of Contents for Marantz SA8001/K1G
- Page 1 Service SA8001 / F N/K1G/F S/U1B Manual Super Audio CD Player 2nd EDITION • The model no.SA8001/K1G was added in this service manual. • SA8001/K1G 仕向けを追加しました。 SUPER AUDIO CD PLAYER SA8001 RNDM TRK RNDM TRK A ÐB A ÐB PROG...
- Page 2 Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent. ORDERING PARTS : Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specifi ed.
- Page 3 1. TECHNICAL SPECIFICATIONS AND UPDATE DISC Super Audio CD Audio Characteristics Analog output Channels 2channels 2channels Frequency range 2Hz — 100kHz 2Hz — 20kHz Frequency characteristics 2Hz — 50kHz (-3dB) 2Hz — 20kHz Dynamic range 112dB 100dB THD (1kHz) 0.0010% 0.0020% Wow &...
- Page 4 2. SERVICE HINTS AND TOOLS SERVICE HINTS SERVICE TOOLS Audio signals disc 4822 397 30184 Disc without errors (SBC444)+ Disc with DO errors, black spots and fingerprints (SBC444A) 4822 397 30245 Disc (65 min 1kHz) without no pause 4822 397 30155 Max.
- Page 5 3. WARNING AND LASER SAFETY INSTRUCTIONS WARNING WAARSCHUWING All ICs and many other semi-conductors are Alle IC’s en vele andere halfgeleiders zijn susceptible to electrostatic discharges (ESD). gevoelig voor elektrostatische ontladingen Careless handling during repair can reduce (ESD). life drastically. Onzorgvuldig behandelen tijdens reparatie When repairing, make sure that you are kan de levensduur drastisch doen...
- Page 6 4. TAKING THE DISC OUT OF EMERGENCY 1. To open the stucked tray, insert a pin into the eject pinhole and push the eject lever. 2. Use a pin φ6mm or less. This picture shows the unit upside down. The eject lever is pointed by the arrow. The lever is thin so aim the narrow area carefully.
- Page 7 ファームウエアのアップデート方法 5. UPDATE FIRMWARE Have UPDATE DISC. (90M-SA7001DVR) 必要な物 : UPDATE DISC. (90M-SA7001DVR) Attention : Don't tur n off the unit until disc tray opens 注意 書き換え中は、ディスクトレーが自動的にオープンする automatically during the updating. When the turn off the unit まで絶対にセットの電源を切らないで下さい。途中で電源を切 halfway, The unit can't be operated any more. ると通常の動作も出来なくなります。...
- Page 8 6. SERVICE MODE The error code is indicated when a problem DISC is inserted fi rst. Press the POWER button While pressing PLAY and OPEN/CLOSE button "SA8400" is displayed Press< > Version of Backend(IC731) µ-PRO is displayed "B/E VXX.XX" is displayed Press<...
- Page 9 7. BLOCK DIAGRAM SERVO BLOCK MAIN BLOCK COAX M11L16161SA-45T EM636165TS-7 IC503 IC402 DIG. OUT PART SDRAM(16M) TURNTABLE D-RAM(16M) RFAC DIGITAL I/O LRCK CXD1881AR AD6062 CXD2753R photo DAPC IC501 IC401 IC403 DARD Laser RF-AMP, AGC, EQ RF-AMP DACL control LASER POWER CONT. PSP DECORD DAC PART CXD1885Q...
- Page 10 8. SCHEMATIC DIAGRAM (PP16) POWER SUPPLY, DIFFERENCIAL CURRENT LPF R101 +12V JF02 Q623 DAC, AUDIO PWB SA7001 F Q618 2SC2240 25FMN-BTRK JL02 WF05 R102 2SA970 GR,BL TPF245 SA7001 N,S GR,BL 00MWG28AK201- R103 Q607 SA7001KI SA7001KI/SA8001 EARTH PP16 632010003007M 2SK170 Q615 R104 Q612 Q613...
- Page 11 (PR16) HEADPHONE PWB +12VA 00MWG28AK203- GOLD C903 R907 R951 220u/25 1.5k PR16 632010005003M Q903 2SC2120-Y SILVER TPE2 R952 R919 A-GND 4.7K D901 A-GND 1SS133T-77 Q901 R915 R903 R911 100k A-GND TPF2K3 C905 Q909 47u/25 R921 R925 2SC2878 NJM4560D TPF2K2 4.7k 4.7k R917 TPF2K4...
- Page 12 PY16 632010007009M ( PY16) FRONT PWB 00MWG28AK301- VX01 -VFT CH2163B G[2] COM23 COM2 G[1] COM24 COM1 XY01 4MHz VFL1 VDISP1 S[38] CST4.00MGW RY24 SEG35 S[37] TPZ331 OSC0 SEG34 S[36] OSC1 SEG33 TPZ321 FRES S[35] XRESET SEG32 +3.3VF FCEN S[34] QY01 SEG31 TPZ322 FCLK...
- Page 13 9. PARTS LOCATION PH16 B FH01 GH01 JH01 JH02 RH01 RH02 SH01 PY16 A CY01 RY01 RY41 CY02 RY02 RY42 CY03 RY03 SY01 CY04 RY04 SY02 CY05 RY05 SY03 CY06 RY06 SY04 CY07 RY09 SY05 CY08 RY10 SY06 CY09 RY13 SY07 DY02 RY14...
- Page 14 PP16 B C351 CD61 D655 C601 CD62 D656 C602 CD63 D657 C603 CD64 D658 C604 CD65 D659 C605 CD66 D660 C606 CD67 D661 C609 CD68 D662 C610 CD69 D663 C611 CD70 D801 C612 CF51 D802 C613 CF52 D803 C614 CF53 D804 C616 CF54...
- Page 15 PP16 B PR16 B C901 Q910 R925 J605 Q655 QT01 R647 RD22 C902 R901 R926 J606 Q656 QY61 R651 RD23 C903 R902 R930 J801 Q657 QY62 R652 RD24 C904 R903 R951 J901 Q658 QY63 R653 RD25 C905 R904 R952 JF01 Q659 R101 R654...
- Page 16 QD61 : CS4397 10. MICROPROCESSOR AND IC DATA PCM MODE QY01 : ML9207-01 Reset VREF Voltage Reference See Description M4(AD0/CS) FILT+ Reference Filter See Description M3(AD1/CDIN) FILT- Reference Ground See Description M2(SCL/CCLK) CMOUT Common ModeS Voltage COM22 See Description M0(SDA/CDOUT) AOUTL- Differential Output COM21...
- Page 17 QD61 : CS4397 QD61 : CS4397 Reference Filter - FILT+ Control Port / Hardware Mode Select - C/H Pin 27, Output Function: Pin 16, Input Positive reference for internal sampling circuits. External Function: capacitors are required from FILT+ to analog ground, as shown in SCLK SERIAL INTERFACE DE-EMPHASIS...
- Page 18 11. EXPLODED VIEW AND PARTS LIST 1-25 1-26...
- Page 19 646010012000S TERMINAL EW-2560T-LH-W(WHITE) J608 646010011007S TERMINAL EW-2560T-LH-R(RED) L001 1010100080038 TRANSF. # POWER TRANSFORMER 100V FOR SA8001 L001 1010100080038 TRANSF. # POWER TRANSFORMER 100V FOR SA8001 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 1-27...
- Page 20 TOP COVER GL SLIT LESS 101D /U1B 00M14AJ257020 LID TOP COVER BL SLIT LESS J051 605010002002S CORD TWIN SHIELDED WIRE WITH RCA PLUGS J082 605010003005S CORD 030320/1 (HK03-017-03) NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 1-28...
- Page 21 12. ELECTRICAL PARTS LIST NOTE ON SAFETY FOR FUSIBLE RESISTOR : PARTS INFORMATION RESISTORS The suppliers and their type numbers of fusible resistors 1) 00MGD05 × × × 140, Carbon film fixed resistor, ±5% 1/4W are as follows; 2) 00MGD05 × × × 160, Carbon film fixed resistor, ±5% 1/6W 1.
- Page 22 ! RA2-50V221MH4#8-T2 PP16 CY52 1340100755080 ELECT. CAP. ! RA2-50V221MH4#8-T2 PP16 CY63 1340100745050 ELECT. CAP. RA2-50V101MG3#8-T2 PP16 D601 00D2760401905 DIODE 1SS133T77 PP16 D602 00D2760401905 DIODE 1SS133T77 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 1-30...
- Page 23 TOTX179L TOSLINK TRANSCEIVER PP16 L801 1190100014090 COIL BL02RN2R1N1A FERRITE BEAD PP16 L802 1190100014090 COIL BL02RN2R1N1A FERRITE BEAD PP16 L803 1190100014090 COIL BL02RN2R1N1A FERRITE BEAD NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 1-31...
- Page 24 QD21 00D2690223907 TRS. KRC111S-RTK +2125 PP16 QD22 00D2690223907 TRS. KRC111S-RTK +2125 PP16 QD23 211050004401S TRS. 2SA970 (GR) OR (BL) PP16 QD24 00D2730253918 TRS. 2SC2878(A/B)TPE2 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 1-32...
- Page 25 R656 00D2412396944 RES. RD14B2E121JT(5) PP16 R657 00D2412396944 RES. RD14B2E121JT(5) PP16 R658 00D2412395987 RES. RD14B2E680JT(5) PP16 R659 00D2412397998 RES. RD14B2E561JT(5) PP16 R660 00D2412402919 RES. RD14B2E333JT(5) NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 1-33...
- Page 26 RN63 00D2412400911 RES. RD14B2E472JT(5) PP16 RN64 00D2412400911 RES. RD14B2E472JT(5) PP16 RT01 00D2412396928 RES. RD14B2E101JT(5) PP16 RT02 00D2412395903 RES. RD14B2E330JT(5) PP16 RT03 00D2412395990 RES. RD14B2E750JT(5) NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 1-34...
- Page 27 00D2412400911 RES. RD14B2E472JT(5) PR16 R926 00D2412400911 RES. RD14B2E472JT(5) PR16 R930 679010001000S VAR. RES. RK09L12B0 PR16 R951 00D2412396928 RES. RD14B2E101JT(5) PR16 R952 00D2412396928 RES. RD14B2E101JT(5) NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 1-35...
- Page 28 PY16 SY12 662010001408S SW SKHVBF F0052759M PY16 VX01 172010001004M DISPLAY CH2163C PY16 XY01 142010002402S FILTER CSTLF4M00G55-A0 PY16 ZY01 2620100010060 PHOTO UNIT RPM6936-V4 (IR SENSOR) NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 1-36...
- Page 29 Mecha Loader and Mecha Traverse Super Audio CD / DVD Player : DV9600 Super Audio CD Player : SA-11S1 SA-15S1 SA7001 SA7001KI SA8001 SA8400 TABLE OF CONTENTS SECTION 2 PAGE MECHA LOADER AND MECHA TRAVERSE 1 EXPLODED VIEW AND PARTS LIST ..................2-2...
- Page 30 90M-YU001350R FFC FFC-0.5-24 L=80 9KA 2P70 6 TAPE TAPE W10X45 (NITTO NO.156) CUSHION CUSHION L 6X3Xt4 9KC 2G07 6 CUSHION CUSHION R 6X3Xt2 9KC 2G07 7 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
-
Page 32: Table Of Contents
Super Audio CD PWB Module Super Audio CD Player : SA7001 SA7001KI SA8001 TABLE OF CONTENTS SECTION 3 PAGE SUPER AUDIO CD PWB MODULE 1. IC DATA ............................3-2 2. BLOCK DIAGRAM ........................3-23 3. SCHEMATIC DIAGRAM......................3-25 4. PARTS LOCATION ........................3-37 5. -
Page 33: Ic Data
1. IC DATA IC401: CXD2753R... - Page 34 IC401: CXD2753R No. Pin Name I/O Functions 1 VSC It fi xed to ground.( for Core) 2 XMSLAT Latch input for mCOM serial communication. 3 MSCK Shift clock input for mCOM serial communication. 4 MSDATI Data input for mCOM serial communication. 5 VDC +2.5V Power for Core.
- Page 35 IC401: CXD2753R No. Pin Name I/O Functions 63 ZDFL O Lch zero-data detection fl ag (at the time of mcom setup). It will be set to "H" if non-sound data continues 300 msecs. 64 DSAL O DSD data output terminal for Lch speaker. 65 ZDFR O Rch zero-data detection fl...
- Page 36 IC401: CXD2753R No. Pin Name I/O Functions 123 WCK Operation clock for PSP physical disc mark detection. 124 WAVDD +2.5V Power. A/D Power supply for PSP physical disc mark detection. 125 WAVDD +2.5V Power. A/D Power supply for PSP physical disc mark detection. 126 WARFI Ai Analog RF signal input terminal for PSP physical disc mark detection.
- Page 37 IC402: 16M SDRAM (EM636165TS-7 etc) Terminal Function Pin No. Pin Name Symbol Function Power Supply/Ground Power and ground for the input buffer and the core logic Data Input/Output Data input/output are mutiplexed on the same pin Data Input/Output Data input/output are mutiplexed on the same pin Data Output Power/Ground Isolated power supply and ground for the output buffer Data Input/Output...
- Page 38 IC501: CDX1881AR MEVO MLPF MIRR LDON CXD1881AR RFAC CDPD DVDPD COLD DVDLD ATON ATOP RFSIN CD_E RFDC CD_F...
- Page 39 IC501: CDX1881AR HOLDEN FCCR b7-0 AGC HOLD CDR b6 FBCR b6-0 RFCR b3 CGR b1 OUTPUT INHIBIT PROGRAMMABLE DVDRFP INPUT EQUALIZER FULL WAVE BIAS FILTER CHARGE DVDRFN RECTIFIER DIFFERENTIATOR PUMP RFSIN SIGR b7-4 RFCR b5-4 INPUT IMP SEL SIGR b3 AGCO 49 RX INPUT...
- Page 40 IC501: CDX1881AR Power Supply Pins Name I/O Function Power for RF and serial port Power for servo GND for RF and serial port GND for servo Power for output buffer Reference Power for servo output Input Pins Name I/O Function DVDRFP, DVDRFN RF signal input RFSIN...
- Page 41 IC502: CXD1885Q DRAM I/F PWM.FG VREFL TEST0 VREFH TEST1 TEST2 TEST3 TEST4 TEST5 TEST6 TEST7 TEST8 TEST9 TEST10 TEST11 TEST12 TEST13 TEST14 TEST15 LPF2 MODSEL0 LPF1 MODSEL1 VCOI MODSEL2 VFBC GIO0 GIO1 JMOUT GIO2 JMREF GIO3 IREF GIO4 TLC1 GIO5 TLC0 GIO6 GIO7...
- Page 42 IC502: CXD1885Q 16/4M DRAM ECC Core Memory Data manager Slicer Demodulation Video MPEG I/F CD-DSP (DDCD) Data-PLL VSTEM Serial ASP Serial I/F VSTEM Serial I/F Command CD-ROM DSP CLK/Mode Header Dec. Spindle Audio I/F Audio JTAG CMD/ MCU I/F Mecha Direction Data reg.
- Page 43 IC502: CXD1885Q Terminal Name I/O A/D Classifi cation Function PU PD SMT 38 DVSS VDD & GND Digital Ground. 39 VDT5 VSTEM A/V MPEG data output 5. 40 VDT4 VSTEM A/V MPEG data output 4. 41 VDT3 VSTEM A/V MPEG data output 3. 42 VDT2 VSTEM A/V MPEG data output 2.
- Page 44 IC502: CXD1885Q Terminal Name I/O A/D Classifi cation Function PU PD SMT 102 VREFH Max Reference Voltage input for ADC. (Internal Reference Voltage mode, it will be an output state) 103 VREFL Min Reference Voltage input for ADC. (Internal Reference Voltage mode, it will be an output state) 104 AVDD18 VDD &...
- Page 45 IC502: CXD1885Q Terminal Name I/O A/D Classifi cation Function PU PD SMT 164 TEST5 TEST/Monitor TEST I/O 5. 165 TEST6 TEST/Monitor TEST I/O 6. 166 TEST7 TEST/Monitor TEST I/O 7. 167 TEST8 TEST/Monitor TEST I/O 8. 168 TEST9 TEST/Monitor TEST I/O 9. 169 TEST10 TEST/Monitor TEST I/O 10.
- Page 46 IC503: M11L16161SA-45T I/O0 I/O15 I/O1 I/O14 I/O2 I/O13 I/O3 I/O12 I/O4 I/O11 I/O5 I/O10 I/O6 I/O9 I/O7 I/O8 CASL CASR PIN DESCRIPTIONS PIN NO. PIN NAME TYPE DESCRIPTION (SOJ Package) Address Input Row Address:A0~A9 17~20,23~28 A0~A9 Input Column Address:A0~A9 Input Row Address Strobe Input Column Address Strobe/Upper Byte Control...
- Page 47 IC508: FAN8042 IN1+ DO1+ IN1- DO1- OUT1 DO2+ IN2+ DO2- IN2- DO3+ FAN8042 OUT2 DO3- IN3+ DO4+ DO4- IN3- OUT3 DO5+ IN4+ DO5- 3-16...
- Page 48 IC508: FAN8042 No. Pin Name I/O Pin Function Description 1 IN1+ CH1 op-amp input (+) 2 IN1- CH1 op-amp input (-) 3 OUT1 O CH1 op-amp output 4 IN2+ CH2 op-amp input (+) 5 IN2- CH2 op-amp input (-) 6 GND Ground 7 GND Ground...
- Page 49 IC508: FAN8042 Internal Block Diagram OPOUT2 SVCC OPIN2+ OPIN1- OPIN1+ OPOUT1 VREF OPIN2- PVCC1 POWER SAVE IN1+ DO1+ 40 K DO1- IN1- 10 K DO2+ OUT1 10 K IN2+ DO2- 10 K IN2- DO3+ 10 K 10 K 10 K 10 K OUT2 DO3-...
- Page 50 IC731: M30624FGNGP No. Pin Port Function I/O Initial Mode Action Note Description (USER1:H/USER2:H) 1 P94/DA1/TB4IN MULT_LED MULTI SURROUND(LED L=ON) 2 P93/DA0/TB3IN DSCS1 CHIP SELECT for FRONT DAC 3 P92/TB2IN/SOUT3 SOUT3 DSDO CONTOROL SERIAL DATA for ALL CS4379 control data 4 P91/TB1IN/SIN3 USER1 MODEL SELECT 1 5 P90/TB0IN/CLK3...
- Page 51 IC731: M30624FGNGP No. Pin Port Function I/O Initial Mode Action Note Description (USER1:H/USER2:H) 19 P81/TA4IN/U~ FS_SW DAC SYSTEM F78CLK SWITCH CD:Fix to Low SIGNAL(384fs/192fs) SACD:Fix to High 20 P80/TA4OUT/U TA4OUT TRAY CONTROL PWM SIGNAL 21 P77/TA3IN SELDSD SELECT for DSD SIGNAL(PLD) 22 P76/TA3OUT SMUTE MUTING for CXD2753R...
- Page 52 IC731: M30624FGNGP No. Pin Port Function I/O Initial Mode Action Note Description (USER1:H/USER2:H) 70 P20/A0(/D0/?) ADRRES LINE 71 P17/D15/INT5~ ICLK IIC CLK FOR EE_ROM(AT24C04N) 72 P16/D14/INT4~ IDAT IIC DATA FOR EE_ROM(AT24C04N) 73 P15/D13/INT3~ OPN_SW TRAY OPEN DETECT SW 74 P14/D12 CLS_SW TRAY CLOSE DETECT SW 75 P13/D11...
- Page 53 IC733: S-80843C N.C. IC734: TC74VHC74FT IC736: TC74VHC157FT IC737: AT24C04 Pin Configurations Function Pin Name A0 - A2 Address lnputs Sedrial Data Sedrial Clock lnput Write Protect No Connect TRASISTORS DTA114EK DTA Series DTC Series DTC114EK VIEW 10kohm 10kohm 10kohm 10kohm DTA114EK DTC114EK 3-22...
-
Page 54: Block Diagram
2. BLOCK DIAGRAM EM636165TS-7 M11L16161SA-45T IC503 IC402 SDRAM(16M) D-RAM(16M) TURNTABLE RFAC LRCK CXD1881AR photo AD6062 CXD2753R DAPC IC501 IC403 IC401 DARD Laser RF-AMP, AGC, EQ RF-AMP DACL control LASER POWER CONT. PSP DECORD DSALF DSD MULTI- CXD1885Q CHANNL DSAC EPM33128 IC502 DECODER IC404... -
Page 55: Schematic Diagram
3. SCHEMATIC DIAGRAM Super Audio CD MODULE UNIT - 1/6 RFAC C540 +5V_A2 CK1000P C521 CK0.1 CX241 MNTR TPI501 24P-FFCs FB503 FBMJ2125HM330-T 24P-FFC-BASE(FLZ-SM1 C522 +3.3V_A1 C513-516 C517-520 DV D CK4700P RF P TPF1 2200P SDEN SDEN TPF2 SDAT VS[VC] DVDRFN SDATA TPF3 C513... - Page 56 Super Audio CD MODULE UNIT - 2/6 RFAC TPF44 OPEN OPE N CX201 CX202 DRVIRQ R634 DRVIRQ DRVRST. R635 DRVRST MNTR TPF45 TPF50 TPF54 DRVTX. R636 TO 4/6 DRVTX R555 DRVRX R637 DRVRX DRVCLK R638 DRVCLK DRVRDY. R639 DRVRDY R554 TPF46 BCK.
- Page 57 Super Audio CD MODULE UNIT - 3/6 FROM 1/6 C636 CK0.01 +8V_M1 R678 FROM 2/6 C633 CK1000P DO5- IN4+ R673 R677 DO5+ OUT3 FROM 2/6 SLED DO4- IN3- R674 FROM 2/6 DO4+ IN3+ SLD- C634 DO3- OUT2 100P [MOTOR DRIVER] IC508 R672 R675...
- Page 58 Super Audio CD MODULE UNIT - 4/6 FROM 2/6 FROM 2/6 TO 6/6 FROM 2/6 TO 6/6 VESTEM Command I/F IC502(CDX1885Q) IC401(CDX2753R) MCU I/F IC502(CDXC1885Q) IC401(CDX2753R) IC502(CDX1885Q) to PLD TO 6/6 IC404 (EPM3128A) +3.3V_BD C747 22/6.3(MVB) CX131 +3.3V_BD 13P FFC CONN.BASE TPF194 C741 CK0.1Z...
- Page 59 Super Audio CD MODULE UNIT - 5/6 +3.3V_B3 C441 22/6.3(MVB) C437 CK0.1Z VDT0_CO R [PLD] C467 VDT1_CO R CK0.1Z VDT2_CO R VDT3_CO R VDT4_CO R IC404 VDT5_CO R VDT6_CO R VDT7_CO R EPM3128A XSHD2 C438 R448 CK0.1Z SDEF VEFG_CO R R447 XSHD_COR HARMONY-8LI...
- Page 60 Super Audio CD MODULE UNIT - 6/6 +5V_A1 (1/2) IC403 R425 C406 AD8062 +2.5V_B2 CK0.01 TPI231 22/6.3(MVB) C410 R433 2.2K R426 C414 IC403 (2/2) AD8062 +3.3V_B2 +2.5V_BD C409 22/6.3(MVB) C426 C429 CK0.1Z CK0.1Z C430 22/6.3(MVB) RA401 C461 22X4 22/6.3(MVB ) DQ 7 DQ 6 DQ 5...
-
Page 61: Parts Location
4. PARTS LOCATION Super Audio CD MODULE UNIT C406 G4 C624 E1 R505 E2 R624 C4 C413 F4 C631 D1 R506 E2 R625 C4 C414 G4 C632 D1 R508 F3 R626 C4 C415 F4 C633 D2 R509 F3 R627 C4 C416 F4 C634 D2 R510 E3... - Page 62 C403 E5 C630 D1 IC70 R773 F5 C404 E5 C636 D2 IC70 R774 F5 C405 F4 C637 C4 IC70 RA40 F5 C407 E4 C638 B4 IC70 RA40 F5 C408 F4 C705 G2 IC73 RA50 C4 C409 G4 C706 G2 IC73 RA50 B4 C410 G4 C707 G2...
-
Page 63: Electrical Parts List
1U-3648A C-608 00D2544464951 00D2544464951 ELECT CAP. CE67C0J220MT(MV-B) +REF NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 3-41 3-42... - Page 64 CK73F1E104ZT +1608 1U-3648A C-745 00D2544464951 00D2544464951 ELECT CAP. CE67C0J220MT(MV-B) +REF 1U-3648A C-746 00D2570512903 CER. CAP. CK73F1E104ZT +1608 1U-3648A C-747 00D2544464951 00D2544464951 ELECT CAP. CE67C0J220MT(MV-B) +REF NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 3-43...
- Page 65 00D2472009983 CHIP RES. RM73B--103JT +1608 1U-3648A R-419 00D2472009983 CHIP RES. RM73B--103JT +1608 1U-3648A R-420 00D2472009983 CHIP RES. RM73B--103JT +1608 1U-3648A R-421 00D2472009983 CHIP RES. RM73B--103JT +1608 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 3-44...
- Page 66 00D2472007943 CHIP RES. RM73B--102JT +1608 1U-3648A R-545 00D2472019960 CHIP RES. RM73B--123FT +1608 1U-3648A R-549 00D2472018903 CHIP RES. RM73B--0R0KT +1608 1U-3648A R-550 00D2472018903 CHIP RES. RM73B--0R0KT +1608 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 3-45...
- Page 67 00D2472003947 CHIP RES. RM73B--220JT +1608 1U-3648A R-629 00D2472003947 CHIP RES. RM73B--220JT +1608 1U-3648A R-630 00D2472003947 CHIP RES. RM73B--220JT +1608 1U-3648A R-631 00D2472003947 CHIP RES. RM73B--220JT +1608 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 3-46...
- Page 68 00D2472009983 CHIP RES. RM73B--103JT +1608 1U-3648A R-740 00D2472002964 CHIP RES. RM73B--100JT +1608 1U-3648A R-743 00D2472009925 CHIP RES. RM73B--562JT +1608 1U-3648A R-744 00D2472010969 CHIP RES. RM73B--223JT +1608 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 3-47...
- Page 69 00D2720166905 TRS. 2SB798(DL/DK)-T1 +C 1U-3648A TR513 00D2730384900 00D2730384900 TRS. 2SC2412KT96(S) +C 1U-3648A X-401 00D3990901902 00D3990901902 X'TAL XTAL(33.8688/HC-49) +REF 1U-3648A X-731 00D3990887903 00D3990887903 X'TAL CSTCE16MOV53-R0 +2125 NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS. 3-48...
