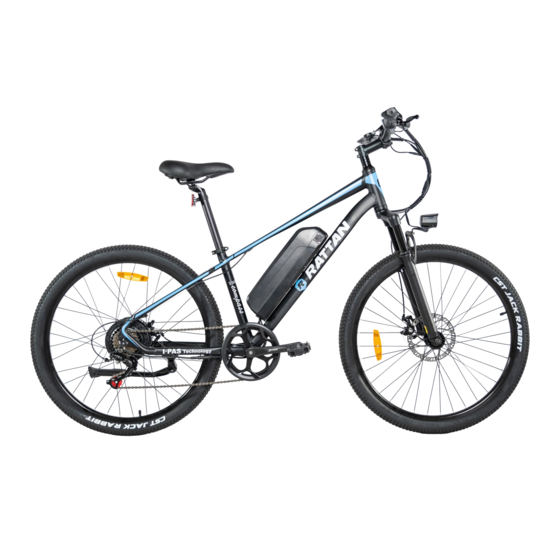

RATTAN COMPASS User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
COMPASS
USER MANUAL
www.rattanebike.com

Advertisement

loading

Related Manuals for RATTAN COMPASS

Summary of Contents for RATTAN COMPASS

  • Page 1 COMPASS USER MANUAL www.rattanebike.com...
  • Page 2 Thanks for your Compass Ebike purchase We really appreciate your business cooperation with us and we wish you a good time with the ebike. Please feel free to contact us if there is any questions about the bike. Contact details Email: info@rattanebike.com...
  • Page 3 Contents...
  • Page 4 Rattan Ebike LLC assumes no liability for any harm, injury, or death of the rider. Congratulations on your purchase of a new Rattan Ebike! The bike comes 85% assembled and here is the guide helps you get familiar with your new bike in unboxing. The bike may need adjustments in this process as shipping can sometimes be bumpy.

  • Page 5: Front Fork

    MAINPARTS INTRODUCTION Compass Ebike Power adapter Charger cable Tool User manual ASSEMBLY INSTRTUCTIONS Front fork: 1. Loosen the hub screws to make enough space for the fork. 2. The two feet of the front fork must be aligned with the hub screws position before the fork can be installed.
  • Page 6 Handlebar: 1.Tighten the screws on the stem 2.Loosen the screws on the handlebar, 3.Hold the handlebar in the middle of the joint, tighten the screws. Headlight: 1.Unscrew the screw for headlight 2.Place the headlight at a right position, then tighten the screw.
  • Page 7 Pedal: 1.“L” indicates the left side, “R”indicates the right side. 2.Make sure tighten the screws connect the pedals and cranks. 3. Twist to left when install the left side and twist to right when install the right one. Battery: 1. place the battery on the bike 2.
  • Page 8 ADJUSTMENT Seat post: 1.Search a comfortable height of saddle by sitting on the saddle with your feet on the ground. 2.The height of the Saddle should not be pulled higher than the safety tick marks on the Saddle Post. 3.Then please lock the seat post clamp tightly. Brake: 1.Make sure the brake disc is in the middle of two brake pads.
  • Page 9 Derailleur: 1.Adjust the screw on the shifting wire when it is hard to switch the shifter. 2.Loose screw 1 slightly when the shifter can`t switch to the 7th gear; on the contrary, if it can`t gear down to the 1st level, loose screw 2 slightly and try again. Loosen screw 1 and 2 to make the derailleur move slightly away from the rim in case of the chain rubs the tire.

  • Page 10: Preparing To Ride

    PREPARING TO RIDE Serial number: There is a serial number attached on head-tube or on the bottom axis connecting the pedals as shown in the following picture. Please take a picture ahead once you received the bike. You may be asked for a picture of your bike ’...
  • Page 11 check: Make sure all components are tightened. Adjust the height of the handlebar and the seat post. DO NOT raise it above the safety line. Make sure the brakes can cut off the power supply to the motor, and whether it is sensitive and reliable. Make sure the front and rear axle nuts are tightened.
  • Page 12 RIDING GUIDANCE Three modes: Pedal Mode: This mode does not require any power. It allows the E-bike to work as other regular bike. You will be automatically switched to this mode when the battery dies while riding. Electric Mode: Turn on the display and press the throttle slowly to get started.
  • Page 13 1. Material&Dimension 1) Material Caser and Cover and Press button: ABS, LCD window: PMMA 2) Outside and mounting dimensions(mm) 3) Press button outside and mounting dimensions(mm) 4)Installation ●Install the display in the middle of handlebar, then adjust to suitable angle, install the press button to left side of handlebar.
  • Page 14 ●Power off the device, connect the device to controller. ●Power on Overview of GD06 1) 5s protocol: Equipped with independent press buttons 2) Speed： Real-time SPEED 3) kmh/mile： Kmh/MPH according to habit 4) Battery level： Indicates the battery level in real time 5) Head light control：...
  • Page 15 7) Assist level： From 0 to 5, press button to change assist level, 0-no assist, default value 8) Distance： ODO/Trip/Driving duration 9) Error code： Please refer to appendix table 1 for definition 10) 6km mode： In this mode, it will display “WALK” on the screen 11)Parameter setting：...
  • Page 16 4. Press button definition GD06 uses independent press button, in total three buttons: MODE DOWN 5.Operation instructions 1) Power ON/OFF When the power is off, Long press （ MODE ） during 3seconds, screen will display all contents and start to normal working mode, and controller will be turned on When the power is on, Long press （...
  • Page 17 4)Assist level Short press (UP)or (DOWN) to change assist level,default value is level 1 5) Head light control Long press(UP) for 3 seconds turn on/off the head light. 6) 6km mode When the bike is stopped, long press(DOWN) , will enter 6km/h mode, the speed will be 4.5~7.5km/h according to different road conditions, “WALK”...
  • Page 18 2) P02-kmh/MPH： Short press(UP) /(DOWN) to Switch kmh/MPH. 3) P03-Working voltage： short press (UP)/ (DOWN)to switch 48V. 4) P04-Auto shutdown time: short press(UP) /(DOWN) to switch from 0 to 60, it is the time(in minutes) to shut down the screen automatically if no operation 0 means never shut down, Default value is 10 minutes 5) P05-Number of Assist levels：...
  • Page 19 11) P11-assist sensitivity setting：short press(UP) / (DOWN)to switch from 1 to 24. 12) P12-assist starting power setting:short press(UP) /(DOWN) to switch from 0 to 3. 13) P13-Assist magnetic disc types short press (UP)/(DOWN)to switch from 5->6->8->10->12 ,different numbers of magnets. 14) P14-Current limit for the controller ：...
  • Page 20 7.Specifications 1) Power supply: 24V,36V,48V 2) Rated current: 10mA 3) Max current: 30mA 4) Leakage current after power off: <1uA 5) Current supply to controller:50mA 6) Working Temperature：-10~60ȭ 7) Storage temperature：-20~70℃ 8. Error code definition When an error appears, GD06 will notice users by different codes, please refer to table 1 for different codes:...
  • Page 21 9. Notices Power on and power off must keep an interval of at least 3 seconds, please don’t press “MODE ” button frequently when it is powered off.When the temperature is under -10ȭ, the s creen will be a little darker than normal, when the temperature increases, the screen can go back to normal 10.

  • Page 22: Operating Safety

    OPERATING SAFETY 1.This Ebike will power off when braking. It ensures safety of riding. 2.Do not carry people on the rear seat. The weight limit of the rear seat is 25kg. 3.Do not ride exceed the speed limit set by the local traffic laws.

  • Page 23: Troubleshooting

    TROUBLESHOOTING The battery cannot be charged, the display shows an abnormal battery power. Use a multimeter to check if the battery still have voltage. Check if the charger indicator is normal. (Red light means charging, green light means fully charged) The battery case is damaged, stop using the battery and contact us.
  • Page 24 The tires got flat or could not be inflated. The tires will not be filled with air. Ride the bike after inflating the tires. (The pumping range is 17-18 psi) Please check if there is an hole at inner tube and if there is something sharp punctured the inner-tube.
  • Page 25 I need to return the bike, what should I do? We only accept returns with original package. Any returns without original package will not be accepted. Bike won’t turn on Make sure the battery has been fully charged. Make sure the key on battery turned to ON position.

  • Page 26: Maintaining Your Bike

    √ Any merchandise with electrical components is not recommended to be exposed to water and the warranty of the Rattan does not cover water damage. So please try not to store or use the bike in wet condition.
  • Page 27 √ Clean the brake regularly. Motor Maintenance √ Do not try to disassemble the motor. √ If there is any problems with the motor, contact Rattan with a video. Tire Maintenance √ Check regularly to prevent air leak. √ Check spokes regularly.

  • Page 28: Warranty And Disclaimer

    Warranty & Disclaimer The main parts of the warranty provisions Warranty Performance Component Remark period failure Natural  sealing off. Except damaged caused Front fork handle bar 1year Fracture key by riders  parts crack.. Internal gear  break. Bearing ...
  • Page 29 We will replace any parts deemed to have been damaged during shipping. Shipping damage must be reported to Rattan Ebike within 14 days of shipment arrival. This applies to all products including bikes and accessories. You will NOT be refunded as compensation for your time or efforts replacing damaged parts.
  • Page 30 Rattan Ebike should be operated in accordance with the Rattan Ebike manual provided with the bike. The warranty will be activated automatically from the date of shipment in a period of one year when Rattan Ebike used accordance with user manual.
  • Page 31 We will replace any parts deemed to have been damaged during shipping. Shipping damage must be reported to Rattan Ebike within 14 days of shipment arrival. This applies to all products including bikes and accessories. You will NOT be refunded as compensation for your time or efforts replacing damaged parts.
  • Page 32 Thanks for shopping with us. Let’s keep riding to keep our planet clean and green...
