Summary of Contents for NS BIKES DEFINE

  • Page 2 10 GEOMETRY IMPERIAL 11 EXPLODED VIEW 12 REPLACEMENTS 14 SPARE PARTS 14 SUSPENSION SETTINGS 14 REAR WHEEL MOUNTING 14 INSTRUCTION: GENERAL INFO 15 TIGHTENING TORQUE 16 MAINTENANCE & PERIODICAL SAFETY CHECKS 17 NS BIKES WARRANTY 18 PROOF OF PURCHASE – WARRANTY CARD...
  • Page 4 WARNINGS AND IMPORTANT INFORMATION ATTENTION: Please read this manual carefully. It contains important safety information! WARNING: Extreme riding is a very dangerous sport; it requires an amazing amount of skill. By engaging in this type of activity, you are accepting the risk of possible injury or even death. Even the best bike will not help you land a clean trick if you lack the skills.
  • Page 5 GENERAL RIDING INFORMATION Riding a bicycle can be dangerous. You must keep this in mind and be cautious at all times. See and be seen. Use lights and reflective clothing in low light conditions. Always wear a helmet when riding. It can save your life. Always conduct a pre-ride check (detailed information can be found further in this manual).

  • Page 6: Frame Information

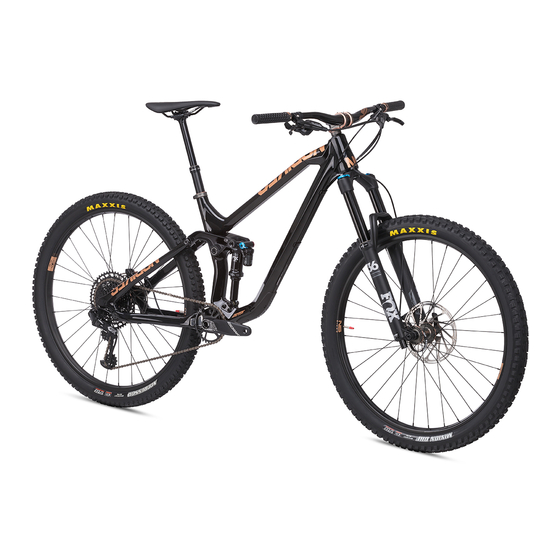

    FRAME INFORMATION The beautiful lines of this bike were conceived by the guys who made the eurobike gold award winning rondo ruut. Very progressive geometry and kinematics, this bike simply blows everyone away after the first minutes they get on it. The define features unique semi-internal cable routing - a solution that is elegant and easy to service.
  • Page 7 FLIP-CHIP SETTING REACH +4mm SEAT TUBE ANGLE +0,5˚ HEAD TUBE ANGLE +0,5˚ BB drop +5mm LOW POSITION HIGH POSITION FLIP-CHIP FLIP-CHIP FLIP CHIPS SETTING FLIP HIGH...
  • Page 8 HEADSET SETTING SHORT/LONG SHORT/LONG 450mm/460mm 480mm/490mm REACH EFFECTIVE 610mm/620mm 646mm/656mm TOP TUBE WHEELBASE 1225mm/1235mm 1259mm/1269mm REACH 460mm/470mm 490mm/500mm EFFECTIVE 643mm/653mm TOP TUBE 606mm/616mm 1250mm/1260mm WHEELBASE 1217mm/1227mm...
  • Page 9 TECHNICAL SHEET / SPECS DEFINE 150 DEFINE 130 rear wheel travel: 155mm rear wheel travel: 130mm recommended fork travel: 150-160mm recommended fork travel: 140-150mm frame material: carbon fibre frame material: carbon fibre rear shock: 205x65mm rear shock: 185x55mm mounting hardware: 20 x 8 mm, trunion...
  • Page 10 GEOMETRY METRIC DEFINE 150 based on fork travel 160mm EFFECTIVE TOP TUBE flip-chip set on LOW M: 610mm/620mm | L: 646mm/656mm REACH M: 450mm/460mm | L: 480mm/490mm SEAT TUBE M: 432mm | L: 483mm SEAT TUBE EFFECTIVE ANGLE HEAD TUBE ANGLE 75,5˚...
  • Page 11 GEOMETRY IMPERIAL DEFINE 150 based on fork travel 160mm EFFECTIVE TOP TUBE flip-chip set on LOW M: 24.0in/24.4in | L: 25.4in/25.8in REACH M: 17.7in/18.1in | L: 18.9in/19.3in SEAT TUBE M: 17.0in | L: 19.0in SEAT TUBE EFFECTIVE ANGLE HEAD TUBE ANGLE 75,5˚...

  • Page 12: Exploded View

    EXPLODED VIEW Nr PART CODE Nr PART CODE hanger + bolt SP-140 13 downtube protector + bolts SP-184 axle 148x12 (176L) SP-142 14 SS clevis bolt SP-076C horst link bolt SP-076C SP-156 SS clevis washer horst link outter washer SP-156 SS clevis c-clip SP-077 horst link c-clip...
  • Page 13 REPLACEMENTS CODE axle 148x12 (176L) SP-142 hanger SP-140 shock mount 130/150 SP-151 / SP-152 shock mount bolts (3 pcs. Ti) SP-154 removable cableguides SP-183 CODE bearings SP-150...
  • Page 14 REPLACEMENTS Nr KIT CODE Horst link hardware SP-156 rocker arm bolts SP-075 downtube protector + bolts SP-184 CODE main pivot axle & bolt SP-153 SS clevis hardware SP-077 SS clevis bolts (2 pcs) SP-076C alloy Trunion bolts SP-163...

  • Page 15: Suspension Settings

    REPLACEMENTS SPARE PARTS ACCESORIES: - ChainStay Slapper protector - seatpost clamp SUSPENSION SETTINGS Suspension settings are a matter of personal preference. Some riders like it plush, some like it firm. However here are some suggestions of shock settings that you can use as basic guidelines. Typically, the Defina should run with about 20% to 30% sag.

  • Page 16: Tightening Torque

    TIGHTENING TORQUE Correct tightening forces on fasteners, nuts, bolts, screws on your bicycle are crucial. Too little force, and the fastener may not hold securely. Too much force, and the fastener can strip threads, stretch, deform or break. Either way, incorrect tightening force can result in component failure, which can cause you to loose control and fall.
  • Page 17 MAINTENANCE & PERIODICAL SAFETY CHECKS DO NOT RIDE THE BICYCLE IF IT YOU SEE ANY DEFECTS. Take care of your frame and you will enjoy it for a longer time. Before every ride you should always make a pre-ride check. It should include the following points: clean the frame (note that high-pressure washing may cause damage to some components on the bicycle so it should be avoided if possible) and examine it CAREFULLY for any indications of potential failures including cracks, corrosion, dents, paint peeling and any other indications of potential problems, inappropriate use or abuse.
  • Page 18 1. 7ANNA Group Sp. z o.o. (hereinafter on referred to as 7ANNA), manufacturer of NS BIKES, warrants all its new bicycles against defects in materials and workmanship for a period of 2 years, paints and decals for a period of 1 year (excluding natural wear and mechanical damage).
  • Page 19 PROOF OF PRUCHASE - WARRANTY CARD FRAME MODEL: FRAME SERIAL NUMBER: SHOCK SERIAL NUMBER (IF ANY): PRICE: DATE OF PURCHASE: I cetrify that I am acquainted with the actual specification of the bicycle (this can be slightly di erent that that published by the distributor) BUYER’S SIGNATURE: DEALER’S SIGNATURE: DEALER’S STAMP...

This manual is also suitable for:

Define 150Define 130
