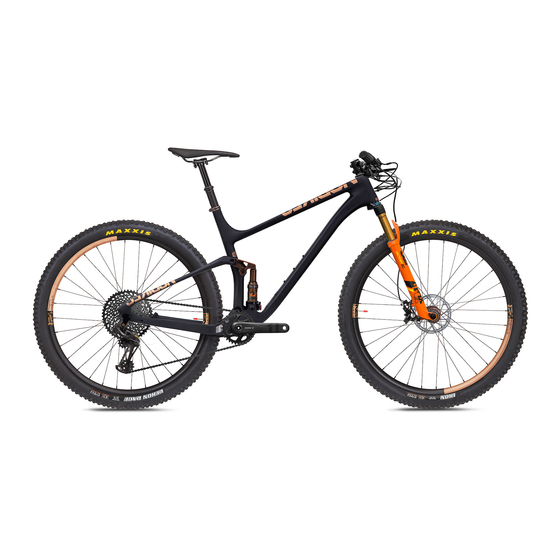

NS BIKES SYNONYM RC Tech Manual
  1. Manuals
  2. Brands
  3. NS BIKES Manuals
  4. Bicycle
  5. SYNONYM RC
  6. Tech manual

NS BIKES SYNONYM RC Tech Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SYNONYM RC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NS BIKES SYNONYM RC

Summary of Contents for NS BIKES SYNONYM RC

  • Page 3 9 GEOMETRY IMPERIAL 10 EXPLODED VIEW 11 REPLACEMENTS 13 SPARE PARTS 13 SUSPENSION SETTINGS 13 REAR WHEEL MOUNTING 14 INSTRUCTION: GENERAL INFO 15 TIGHTENING TORQUE 16 MAINTENANCE & PERIODICAL SAFETY CHECKS 17 NS BIKES WARRANTY 18 PROOF OF PRUCHASE - WARRANTY CARD...
  • Page 4 WARNINGS AND IMPORTANT INFORMATION ATTENTION: Please read this manual carefully. It contains important safety information! WARNING: Extreme riding is a very dangerous sport; it requires an amazing amount of skill. By engaging in this type of activity, you are accepting the risk of possible injury or even death. Even the best bike will not help you land a clean trick if you lack the skills.
  • Page 5 GENERAL RIDING INFORMATION Riding a bicycle can be dangerous. You must keep this in mind and be cautious at all times. See and be seen. Use lights and reflective clothing in low light conditions. Always wear a helmet when riding. It can save your life. Always conduct a pre-ride check (detailed information can be found further in this manual).

  • Page 6: Frame Information

    FRAME INFORMATION Before you say: “wtf?! Is ns making an xc bike??” - stop. This is not just another xc bike. This is something completely di erent! The geometry of the synonym is miles away from any bike that you can find on the market.
  • Page 7 TECHNICAL SHEET / SPECS SYNONYM RC SYNONYM TR frame material: superlite carbon fibre (RC1) frame material: carbon fibre carbon fibre (RC2) rear wheel travel: 120mm rear wheel travel: 100MM recommended fork travel: 100-120mm recommended fork travel: 100-120mm rear shock: 165x42,5mm...
  • Page 8 GEOMETRY METRIC SYNONYM RC basen on fork travel 100mm EFFECTIVE TOP TUBE S: 579mm | M: 612mm | L: 640mm | XL: 664mm REACH S: 445mm | M: 475mm | L: 500mm | XL: 520mm SEAT TUBE S: 410mm | M: 440mm | L: 490mm | XL: 540mm...
  • Page 9 GEOMETRY IMPERIAL SYNONYM RC basen on fork travel 100mm EFFECTIVE TOP TUBE S: 22.8in | M: 24.1in | L: 25.2in | XL: 26.1in REACH S: 17.5in | M: 18.7in | L: 19.7in | XL: 20.5in SEAT TUBE S: 16.1in | M: 17.3in | L: 19.3in | XL: 21.3in...

  • Page 10: Exploded View

    EXPLODED VIEW PART CODE hanger SP-140 hanger bolt SP-140 axle SP-079 main pivot axle SP-178 main pivot washer SP-178 main pivot bearing #6901 (ø 24* 12*6) ø main pivot spacer SP-178 rocker pivot axle SP-180 rocker pivot washer SP-180 rocker pivot / SS yoke bearing #6900 (ø22*ø10*6) rocker pivot spacer SP-180 seatstay yoke bolt...
  • Page 11 REPLACEMENTS CODE 174L (148x12) SP-079 hanger SP-140 internal routing SP-175 CODE main pivot axle & bolt SP-178 seatstay yoke parts SP-179...
  • Page 12 REPLACEMENTS CODE bearing kit SP-176 CODE shock mount bolts SP-177 rocker arm bolts SP-180...

  • Page 13: Spare Parts

    SPARE PARTS PARTS: ACCESORIES: - SP-079: NS axle 148x12 174L - SP-145: ChainStay Slapper protector - SP-140: Derailleur hanger (w/bolt) - SP-175: Internal routing - SP-176: Bearing kit - SP-177: Shock mount bolts (3pcs) - SP-178: Main pivot axle & bolt - SP-179: Seatstay yoke parts - SP-180: Arm bolts (main side bolts) - SP-181 Rocker arm (black)
  • Page 14 INSTRUCTION: GENERAL INFO Fork: The SYNONYM is designed to work with a single crown xc/trail forks with up to 120mm of travel. Use of di erent style of forks or forks with longer travel may result in frame failure, possible injury or even death.

  • Page 15: Tightening Torque

    TIGHTENING TORQUE Correct tightening forces on fasteners, nuts, bolts, screws on your bicycle are crucial. Too little force, and the fastener may not hold securely. Too much force, and the fastener can strip threads, stretch, deform or break. Either way, incorrect tightening force can result in component failure, which can cause you to loose control and fall.
  • Page 16 MAINTENANCE & PERIODICAL SAFETY CHECKS DO NOT RIDE THE BICYCLE IF IT YOU SEE ANY DEFECTS. Take care of your frame and you will enjoy it for a longer time. Before every ride you should always make a pre-ride check. It should include the following points: clean the frame (note that high-pressure washing may cause damage to some components on the bicycle so it should be avoided if possible) and examine it CAREFULLY for any indications of potential failures including cracks, corrosion, dents, paint peeling and any other indications of potential problems, inappropriate use or abuse.
  • Page 17 NS BIKES WARRANTY 1. 7ANNA sp. z o.o. sp. k. (hereinafter on referred to as 7ANNA), manufacturer of NS Bikes, warrants all new full suspension frames for a period of 3 years. 2. If any defects are noticed in the product, the Customer must stop using it immediately and should report this to the dealer that sold it within 14 days.
  • Page 18 PROOF OF PRUCHASE - WARRANTY CARD FRAME MODEL: FRAME SERIAL NUMBER: SHOCK SERIAL NUMBER (IF ANY): PRICE: DATE OF PURCHASE: I cetrify that I am acquainted with the actual specification of the bicycle (this can be slightly di erent that that published by the distributor) BUYER’S SIGNATURE: DEALER’S SIGNATURE: DEALER’S STAMP...

This manual is also suitable for:

Synonym tr
