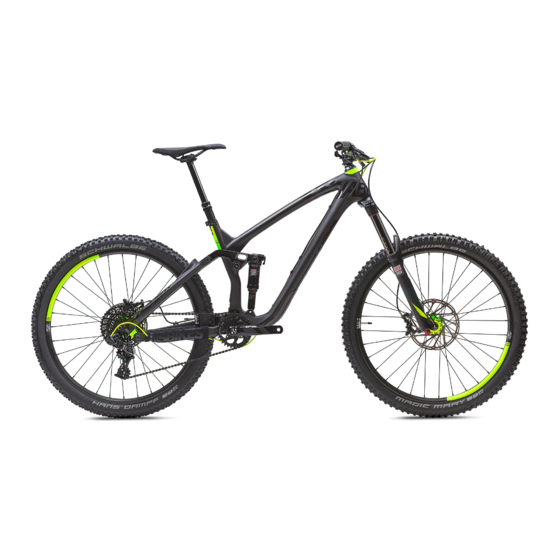

Summary of Contents for NS BIKES SNABB Series

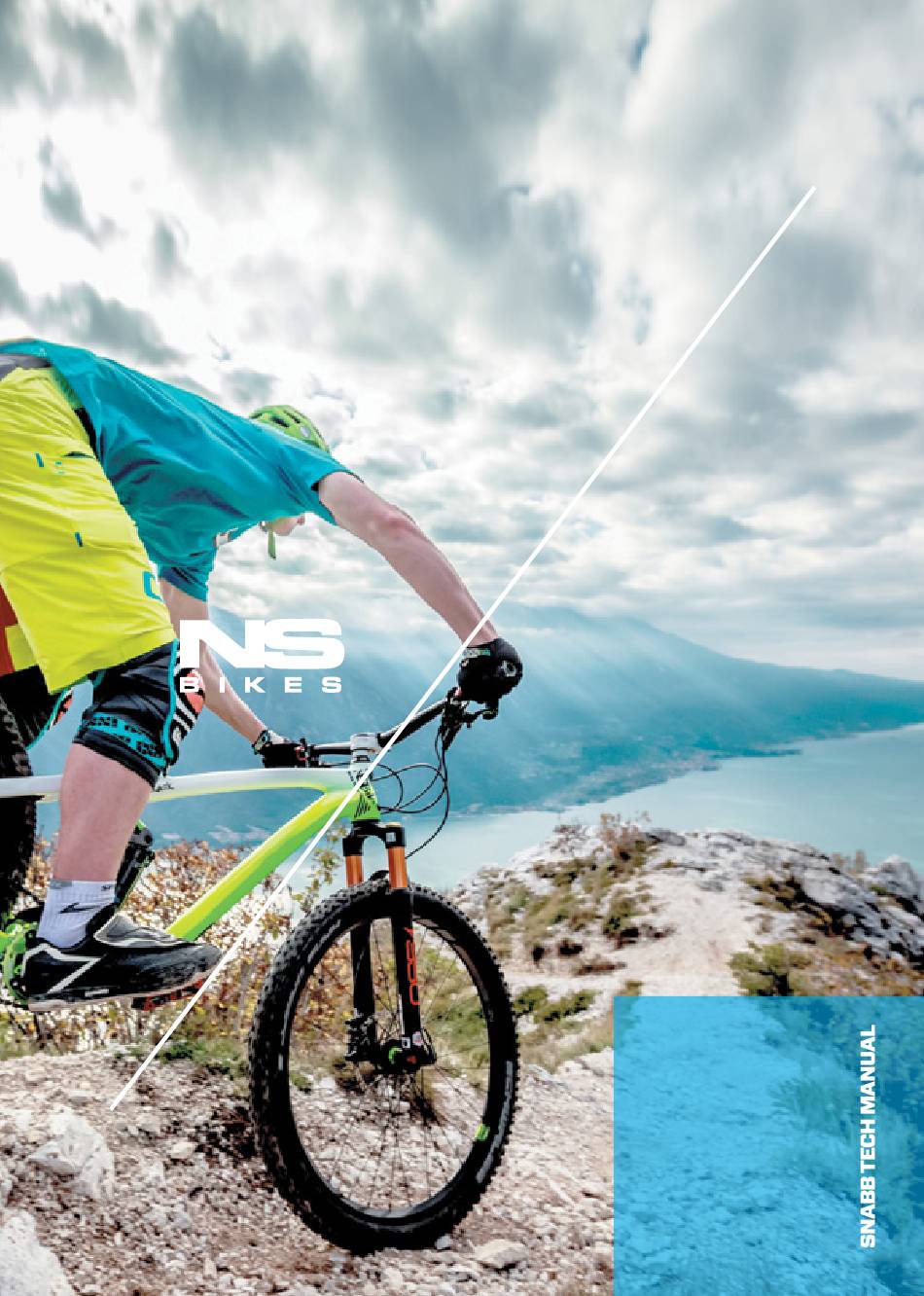

  • Page 1 Snabb...
  • Page 3 Frame size recommendations Geometry Exploded view Replacements Suspension settings Rear wheel mounting Instruction: general info Tightening torque Accessories External cable routing Internal cable routing Maintenance & periodical safety checks Box contents NS BIKES warranty Proof of purchase – warranty card...
  • Page 4 Snabb WARNINGS AND IMPORTANT INFORMATION ATTENTION: Please read this manual carefully. It contains important safety information! WARNING: Extreme riding is a very dangerous sport; it requires an amazing amount of skill. By engaging in this type of activity, you are accepting the risk of possible injury or even death. Even the best bike will not help you land a clean trick if you lack the skills.
  • Page 5 Snabb GENERAL RIDING INFORMATION Riding a bicycle can be dangerous. You must keep this in mind and be cautious at all times. See and be seen. Use lights and reflective clothing in low light conditions. Always wear a helmet when riding. It can save your life. Always conduct a pre-ride check (detailed information can be found further in this manual).

  • Page 6: Frame Information

    “patents” and “systems” was not on our list. So here it is - beautiful, light, strong and fast. We took into ac- count that NS Bikes customers are usually tough, aggressive riders and expect our products to hold up to seasons of abuse.
  • Page 7 Snabb SNABB T SNABB E...
  • Page 8 EFFECTIVE TOP TUBE S: 579mm / M: 603mm / L: 631mm Snabb REACH S: 420mm / M: 445mm / L: 470mm GEOMETRY METRIC EFFECTIVE TOP TUBE S: 579mm / M: 603mm / L: 631mm SNABB E based on fork travel 160mm REACH S: 420mm / M: 445mm / L: 470mm SEAT TUBE...
  • Page 9 EFFECTIVE TOP TUBE S: 22.8" / M: 23.7" / L:24.8" Snabb REACH S: 16.5” / M: 17.5” / L: 18.5” EFFECTIVE TOP TUBE GEOMETRY IMPERIAL S: 22.8" / M: 23.7" / L:24.8" SNABB E based on fork travel 160mm REACH S: 16.5”...

  • Page 10: Exploded View

    Snabb EXPLODED VIEW Seat stay Rocker arm Front triangle Chain stay Frame main parts Kit 7 Kit 6 Dropout parts...
  • Page 11 Snabb Kit 4 Kit 4 Kit 4 Kit 3 Kit 4 #608 #608 Kit 3 #6902 #6902 Kit 5 #608-8x22x7 Kit 5 #6902-15x28x7 Rear triangle parts Kit 5 Kit 4 Kit 4 Kit 3 #608 Kit 4 Kit 2 #608 Kit 3 #6902 Kit 2...

  • Page 12: Suspension Settings

    Snabb REPLACEMENTS ACCESORIES: PARTS: - Snabb Rocker arm (2 sides) - Neoprene CS protector - Snabb Kit1: Shock bolts & nuts (2 sets) - Protective self-adhesive foil - seatpost clamp - Snabb Kit2: Rocker bolts & C-clips (2 sets) - removable cableguides - Snabb Kit3: Clevis bolts (2pcs - set for 1 link) - Snabb Kit4: Bearing hardware (4pcs - set for 1 link) - Snabb Kit5: Main pivot axle &...

  • Page 13: Tightening Torque

    Snabb Brake compatibility: The frame is disk brake compatible and it comes with an post-mount type mount and will fit directly 160mm rotor, and up to 200mm maximum rotor with brake caliper adapter. Seatpost & seatclamp: The frame works with 31.6mm seatposts. Cable routing for internal type dropper-posts avaible. Do not extend the seat post above the minimum insertion mark.

  • Page 14: Internal Cable Routing

    Snabb EXTERNAL CABLE ROUTING Cables should be attached on the upper side of the down tube. From here the brake cable should go on the non-drive chain- stay and up to the caliper, the rear derailleur cable should go on along the chainstay directly to the derailleur. INTERNAL CABLE ROUTING The Snabb frame has an option of running the cables inside the frame.
  • Page 15 Snabb Make sure derailleur cable exits the downtube on the drive-side, and the brake cable exits from the downtube on the nondrive side. Use included cable housing to protect this area. Adjust the position of the cable housing protector so it enters the DT & use a zip-tie on the chain stays.
  • Page 16 Snabb MAINTENANCE & PERIODICAL SAFETY CHECKS DO NOT RIDE THE BICYCLE IF IT YOU SEE ANY DEFECTS. Take care of your frame and you will enjoy it for a longer time. Before every ride you should always make a pre-ride check. It should include the following points: clean the frame (note that high-pressure washing may cause damage to some compo- nents on the bicycle so it should be avoided if possible) and examine it CAREFULLY for any indications of potential failures including cracks, corrosion, dents, paint peeling and any other indications of potential problems, inappropriate use or abuse.

  • Page 17: Box Contents

    Snabb BOX CONTENTS: - SNABB frame - NS thru axle - seatpost clamp - neoprene CS protector - self-adhesive protective foil for down tube - tech manual SŁAWEK ŁUKASIK NS TEAM RIDER GARDA ITALY...
  • Page 18 Snabb NS BIKES WARRANTY 1. 7ANNA sp. z o.o. sp. k. (hereinafter on referred to as 7ANNA), manufacturer of NS Bikes, warrants all new full suspension frames for a period of 3 years. 2. If any defects are noticed in the product, the Customer must stop using it immediately and should report this to the dealer that sold it within 14 days.
  • Page 19 Snabb Frame model : ....................PROOF OF PURCHASE - WARRANTY CARD Frame serial number : ....................Shock serial number (if any) : ....................Price : ....................Date of purchase : ....................Dealer’s stamp I certify that I am acquainted with the actual specification of the bicycle (this can be slightly different than that published by the distributor).
  • Page 20 Snabb...
