PS Engineering PMA6000 Series Pilot's Manual And Operation Manual

Audio control panel with monaural intercom and optional marker beacon
Hide thumbs Also See for PMA6000 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
9800 Martel Road
Lenoir City, TN 37772
www.ps-engineering.com
PMA6000
-
Series
PMA6000
-
Series
PMA6000M, PMA6000M-C
Audio Control Panel
with Monaural Intercom
and optional Marker Beacon
Pilot's Guide
and
Operation Manual
FAA-TSO C50c, C35d
US Patent 4,941,187: 5,903,277: 6,160,496: 6,493,459
202-066-0002
Revision 3
August 2007
PMA6000 –Mono Pilot Guide
202-066-0002
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMA6000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PS Engineering PMA6000 Series

Summary of Contents for PS Engineering PMA6000 Series

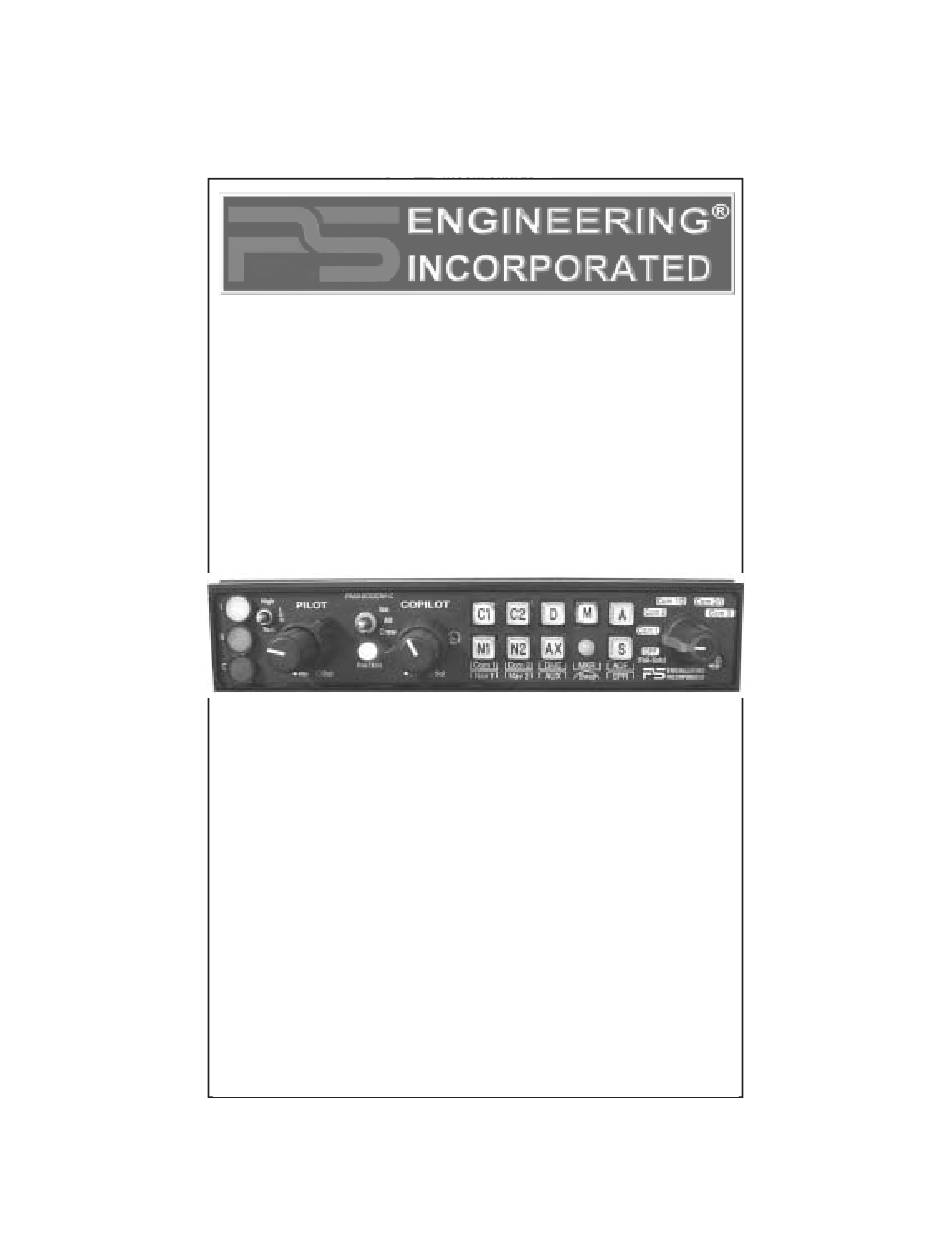

  • Page 1 9800 Martel Road Lenoir City, TN 37772 www.ps-engineering.com PMA6000 Series PMA6000 Series PMA6000M, PMA6000M-C Audio Control Panel with Monaural Intercom and optional Marker Beacon Pilot’s Guide Operation Manual FAA-TSO C50c, C35d US Patent 4,941,187: 5,903,277: 6,160,496: 6,493,459 202-066-0002 Revision 3 August 2007 PMA6000 –Mono Pilot Guide 202-066-0002...

  • Page 2: Operation

    OPERATION GENERAL INFORMATION SCOPE This section provides detailed operating instructions for the PS Engineering PMA6000C, and PMA6000M-C, Audio Selector Panel/Intercom Systems. Please read it carefully before using the equipment so that you can take full advantage of its capa- bilities. This guide is divided into four sections covering the basic op- erating areas of the PMA6000 systems.

  • Page 3: Mic Selector Switch (Fail Safe Operation)

    beled Nl (Nav 1), N2 (Nav 2), D (DME), M (Marker), A (ADF), AX (auxiliary), and S (Speaker) are "latched" type switches. When one of these buttons is pressed, it will stay in the "in" position. Press the switch again and it will be in the "out"...
  • Page 4 (PTT), will be heard over the aircraft radio. Turning the rotary switch to the C 2 position will place pilot and copilot on Com 2. The PMA6000-Series has an automatic selector mode. Audio from the selected transceiver is automatically heard in the headsets and speaker (when selected).

  • Page 5: Split Mode

    Split mode, particu- larly on adjacent frequencies. PS Engineering makes no warranty about the suitability of Split Mode in all aircraft conditions. Note: In all PMA6000-series, Split Mode turns off all other (Nav, ADF, etc.) selected audio to pilot and copilot.
  • Page 6 copilot volume control adjusts the loudness of the intercom and music in the copilot headset only. The passenger volume is factory set at a comfortable level. This is a service adjustment that can be accessed by the avionics technician. Many general aviation headsets have a built-in volume control, so volume can be reduced “locally.”...
  • Page 7 rotating the S control knob clockwise until you no longer hear the engine noise in the headphones. When the micro- phone is positioned properly near your lips, normal speech lev- els should open the channel. When you have stopped talking, there is a delay of about ½...

  • Page 8: Entertainment Input

    rupting the Crew and also may listen to Entertainment 2. Any- time the PMA6000 is in either the C 2, C 1, or T 1, ("Split Mode") the pilot and copilot do not have any intercom function. The passengers will maintain in- tercommunications.
  • Page 9 Internal Recorder System (Option 1, only) The recorder function is automatic. Pressing the momentary switch will cause the last message to play (incoming radio and transmit sidetone). This will be heard in the pilot headset only. To hear older messages, push the playback button repeatedly to “back up”...

  • Page 10: Warranty And Service

    PS Engineering, Inc. warrants this product to be free from defect in material and workmanship for a period of one (1) year from the date of purchase from PS Engineering Dealer.
  • Page 11 Lenoir City, TN 37772 (865) 988-9800 FAX (865) 988-6619 Email: support@ps-engineering.com Note: PS Engineering will not be responsible for units shipped using US Mail. Units that are received without an RMA num- ber, or a detailed description of the problem and a contact phone number will be refused.
  • Page 12 Commercial use is strictly prohibited. For further information contact the Publications Manager at PS Engineering, Inc., 9800 Martel Road, Lenoir City, TN 37772. Phone (865) 988-9800 202-066-0002...
