- Page 1 Surge Protective Devices STCCAT6P0EI...
- Page 2 Safety Information Important Information Read these instructions carefully and look at the equipment to become familiar with the device before trying to install, operate, service or maintain it. The following special messages may appear throughout this bulletin or on the equipment to warn of potential hazards or to call attention to information that clarifies or simplifies a procedure.

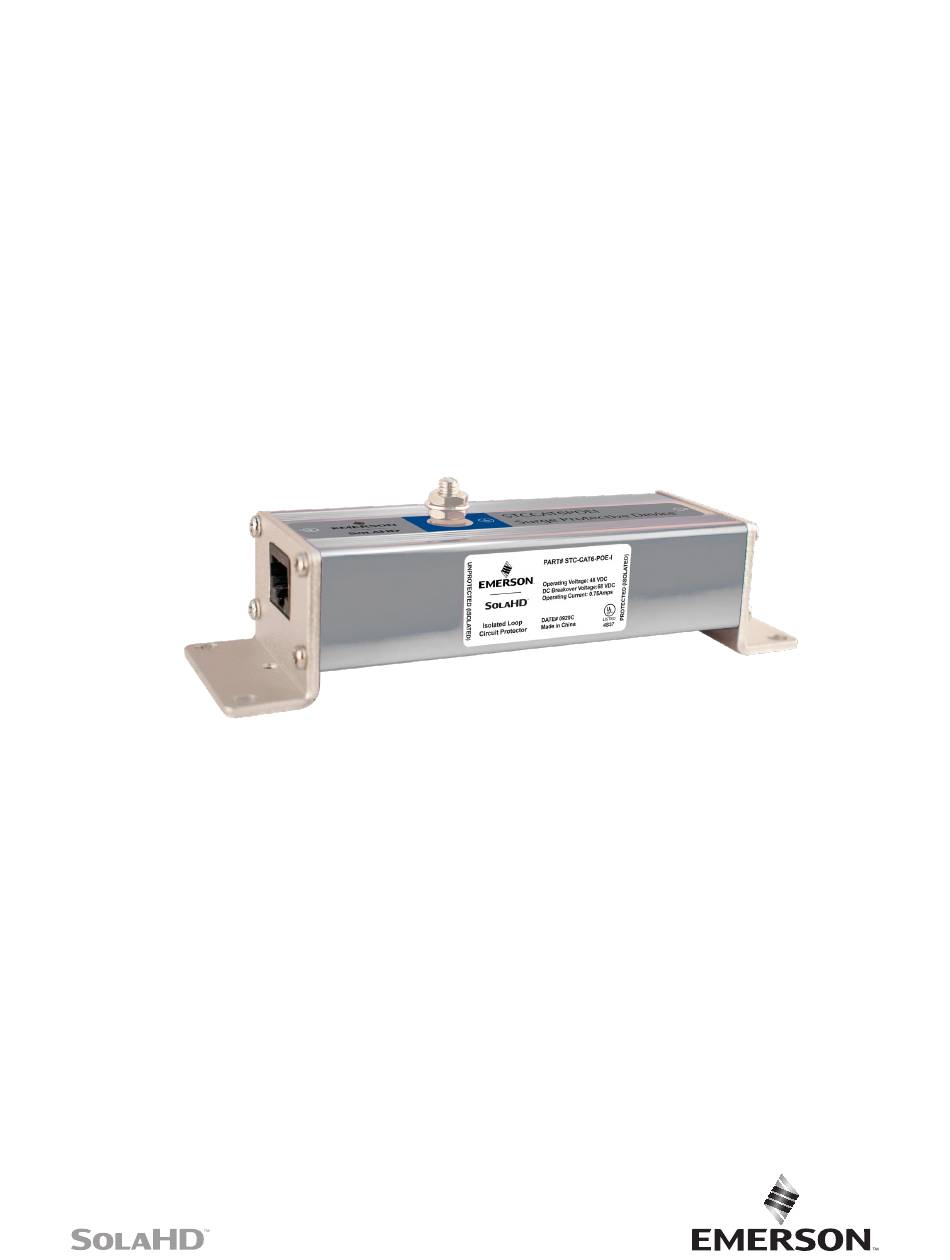

- Page 3 STCCAT6P0EI Introduction The SolaHD STCCATCAT6P0EI is designed for use with Category 6 Power-Over-Ethernet transmission line applications. It limits surges and transients at computers and video equipment. The STCCATCAT6P0EI is available with an isolated ground option to be used at the equipment end in order to help prevent circulating ground currents.
- Page 4 STCCAT6P0EI Installation 1. Turn off power to circuit prior to installation. 2. Mount the SPD as close as possible to the equipment. #6 hardware is recommended. 3. Connect a #10 ground wire using a 10-32 ring terminal (not provided) to the SPD ground stud. Connect the opposite end of the wire to a “building approved ground”.
- Page 5 STCCAT6P0EI General Technical Specifications STCCAT6P0EI Operating Voltage up to 57 VDC Clamping Voltage 68 VDC 0.75 Amp Per Pin Operating Current* Peak Surge Current 10 kA (8 x 20 µs) Per Pair Insertion Loss < 0.1 dB Topology Two Port Series All Lines (1-8) Protected (L-L) and (L-G) Modes of Protection...
- Page 6 STCCAT6P0EI Dimensions (in. / mm.) Page: 4...
- Page 7 STCCAT6P0EI Technical Support Website: www.solahd.com Technical Support E-Mail: solahd.technicalservices@emerson.com Toll-Free: (800) 377-4384 USA: (847) 268-6651 Warranty Please refer to the “Terms & Conditions of Sale” document. While every precaution has been taken to ensure accuracy and completeness in this manual, Appleton Grp LLC d/b/a Appleton Group assumes no responsibility, and disclaims all liability for damages resulting from use of this information or for any errors or omissions.
- Page 8 The Emerson logo is a trademark and service mark of Emerson Electric Co. Appleton Grp LLC d/b/a Appleton Group. SolaHD is a registered trademark of Appleton Grp LLC. All other marks are the property of their respective owners. © 2020 Emerson Electric Co. All rights reserved. United States...
