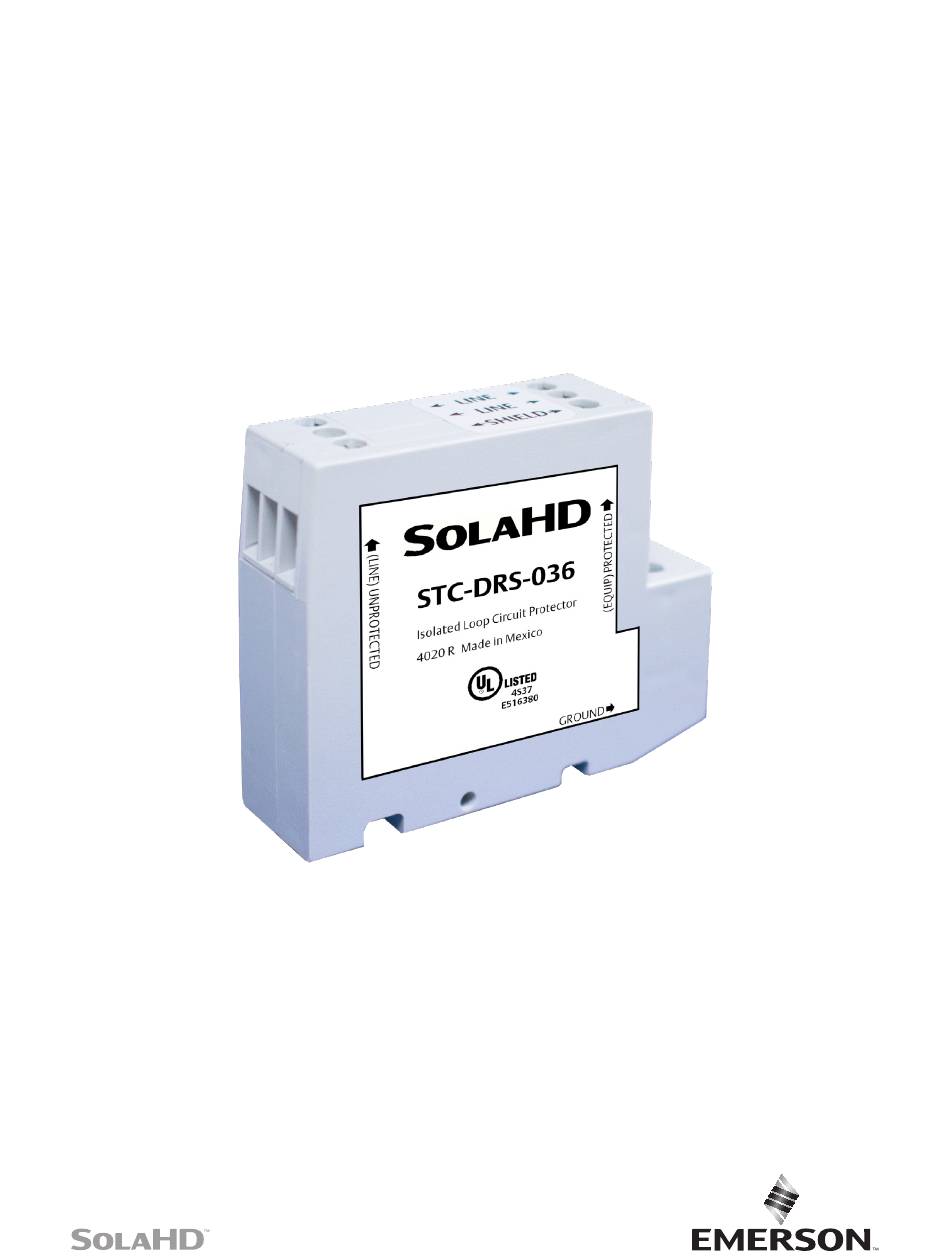

- Page 1 Surge Protective Devices STC-DRS Series DIN Rail Protection...
- Page 2 Safety Information Important Information Read these instructions carefully and look at the equipment to become familiar with the device before trying to install, operate, service or maintain it. The following special messages may appear throughout this bulletin or on the equipment to warn of potential hazards or to call attention to information that clarifies or simplifies a procedure.

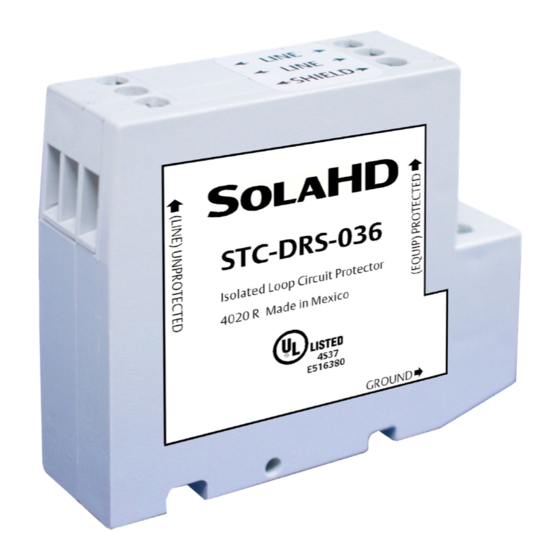

- Page 3 STC-DRS Series Introduction The STCDRS036 is a DIN Rail mountable, single pair surge suppression module implementing three stage hybrid technology. This module addresses over-voltage transients with gas tubes and silicon avalanche components. In addition, sneak currents are mitigated with resetable fuses (PTCs). The PTCs increase resistance several orders of magnitude when over-currents exceed operating limits.
- Page 4 STC-DRS Series NOTICE HAZARD OF MIS-INSTALLATION • Only install this protective device in indoor applications and on communication loop circuits which have been isolated from the public switch telephone network (PSTN). • Do not expose the communication loop to contact with the electric light or power conductors. •...
- Page 5 STC-DRS Series 2.35 [59.7] Field Side (Line) 2.95 [74.9] 2.25 [57.2] Load Side (Load) Ground [27.9] [20.3] Wire Size Range = 22-12 AWG Terminal Torque Rating = 0.8 Nm (7 in-lb) Ordering Information MODEL APPLICATION STCDRS036 0-36 VDC Page: 3...
- Page 6 STC-DRS Series Technical Support Website: www.solahd.com Technical Support E-Mail: solahd.technicalservices@emerson.com Toll-Free: (800) 377-4384 USA: (847) 268-6651 Warranty Please refer to the “Terms & Conditions of Sale” document. While every precaution has been taken to ensure accuracy and completeness in this manual, Appleton Grp LLC d/b/a Appleton Group assumes no responsibility, and disclaims all liability for damages resulting from use of this information or for any errors or omissions.
- Page 7 Notes Page: 5...
- Page 8 The Emerson logo is a trademark and service mark of Emerson Electric Co. Appleton Grp LLC d/b/a Appleton Group. SolaHD is a registered trademark of Appleton Grp LLC. All other marks are the property of their respective owners. © 2020 Emerson Electric Co. All rights reserved. United States...
