4. Installation

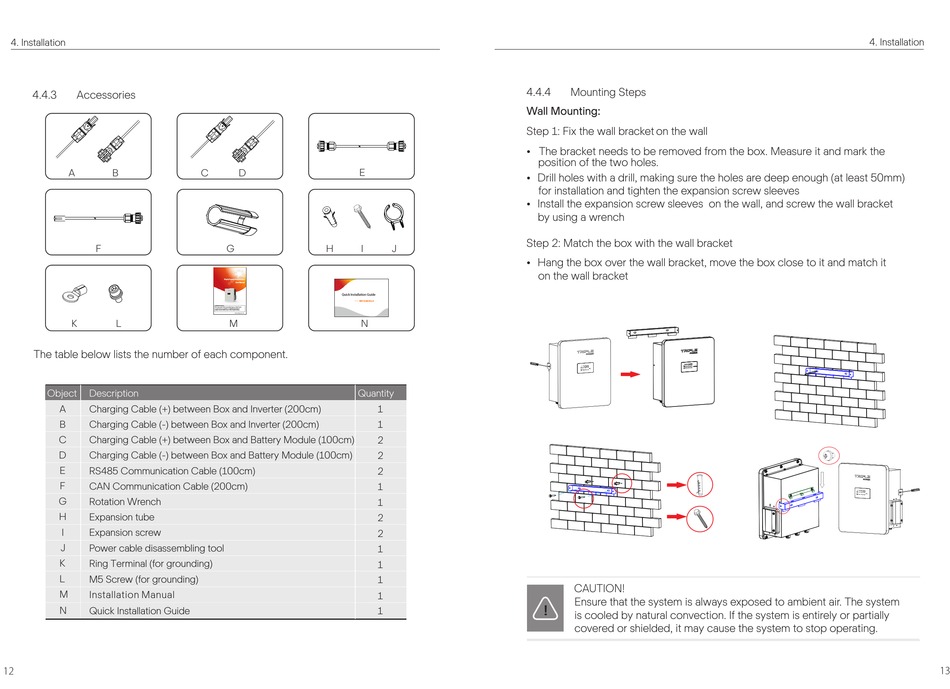

4.4.3

Accessories

A B
F
K L
The table below lists the number of each component.
Object Description
A Charging Cable (+) between Box and Inverter
(200cm)
B Charging Cable (-) between Box and Inverter
(200cm)
C
Charging Cable (+) between Box and Battery Module (100cm)
D Charging Cable (-) between Box and Battery Module (100cm)
E RS485 Communication Cable (100cm)
F CAN Communication Cable (200cm)
G Rotation Wrench
H
Expansion tube
I Expansion screw
J
Power cable disassembling tool
K Ring Terminal (for grounding)
L M5 Screw (for grounding)
M Installation Manual
N Quick Installation Guide
12
C D E
G H I
Triple Powe r Parallel Box
User Manual
Quick Installation Guide
—— BMS Parallel Box-II
Copyright Declaration
The copyr ight of this manual belongs to SolaX Power
Co.,Ltd.. Any cor poration or individual should not
plagiar ize, par titially copy or fully copy(including
M N
Quantity
1
1
2
2
2
1
1
2
2
1
1
1
1
1
4.4.4

Mounting Steps

Wall Mounting:
Step 1: Fix the wall bracket on the wall
The bracket needs to be removed from the box. Measure it and mark the
Ÿ
position of the two holes.
Drill holes with a drill, making sure the holes are deep enough (at least 50mm)
Ÿ
for installation and tighten the expansion screw sleeves
Install the expansion screw sleeves on the wall, and screw the wall bracket
Ÿ
by using a wrench
Step 2: Match the box with the wall bracket
J
Hang the box over the wall bracket, move the box close to it and match it
Ÿ
on the wall bracket
CAUTION!
Ensure that the system is always exposed to ambient air. The system
is cooled by natural convection. If the system is entirely or partially
covered or shielded, it may cause the system to stop operating.
4. Installation
13
