SolaX Power Solax Box 3.0 Quick Installation Manual

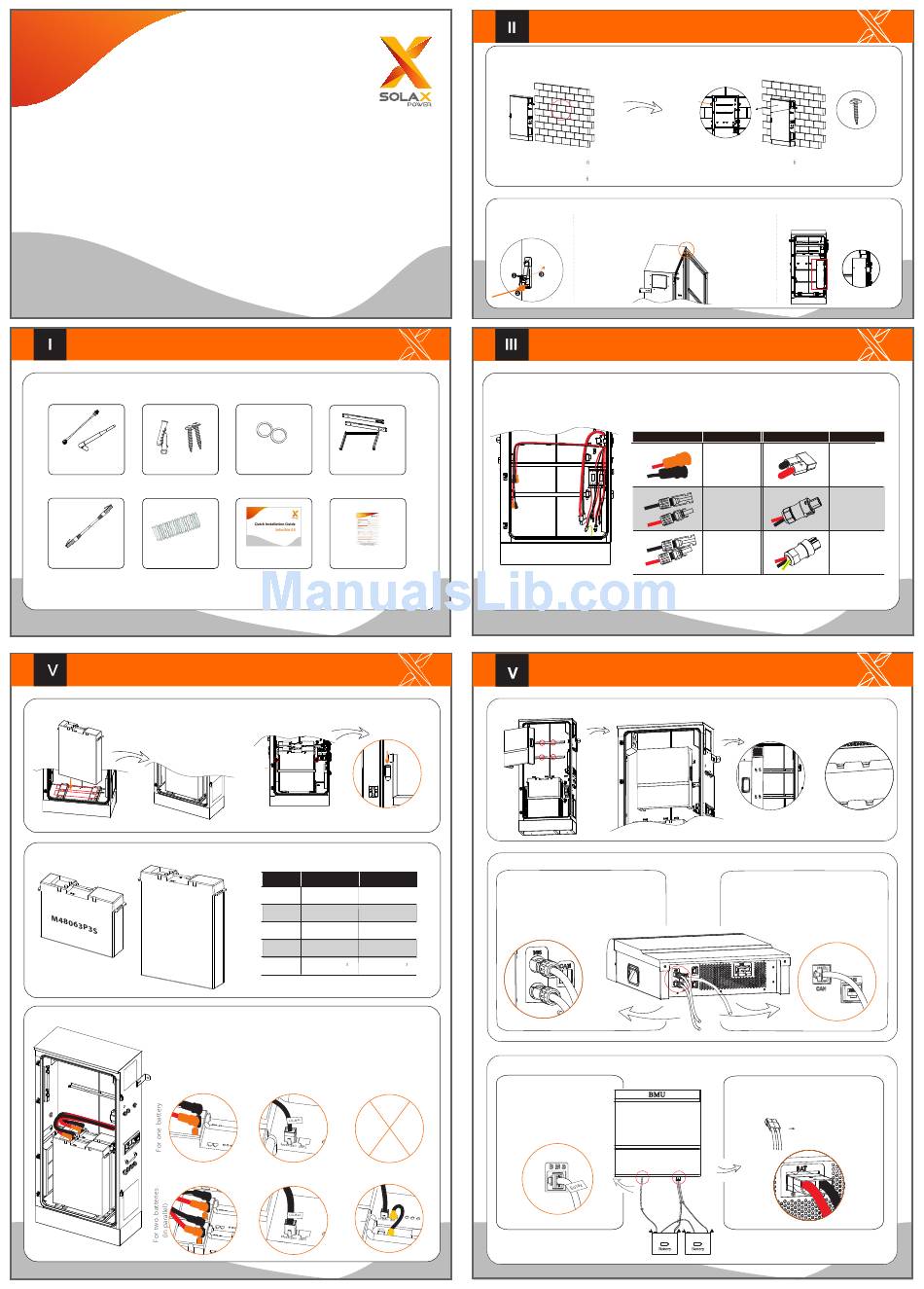

Quick Installation Guide

Packing List
item③
item④
item①
item②
Wi-Fi connector x1 Expansion tubes x2
Wi-Fi antenna x1 Expansion screws x2
item⑨
item⑩
BMS cable x1 Corrugated Tubing x1
Battery Installation
I
- Place the battery into the Solax Box 3.0.
Solax Box 3.0 can be equipped with two models of batteries respectively.
M 4 8 1 2
6 P 3 S
- Connect LG connectors
into the jacks on the battery.
Solax Box 3.0
item⑤
item⑥
item⑦
item⑧
Bracket x2
M6 washers x2 Battery Guard x1
Quick Installation Guide x1 Warranty card x1
- Install the battery guard.
item⑧
Battary
M48063P3S M48126P3S
Nominal
63Ah 126Ah
Capacity
Nominal
51.8V 51.8V
Voltage
Nominal
3.262kWh 6.524kWh
Energy
Maximum
63A 63A
Current
Dimension
445*110*338.8mm 445*110*586.6mm
- Find BMS cable in Solax - Find intra-rack network
Box 3.0 packaging.
cable in battery packaging.
- Insert the "LG-Bat" side of - Insert it into "CAN2" ports
the "BMS" cable into the "CAN/
on the batteries respectively.
RS485" port on the battery
(The "Solax" side is to be related
to BMU in chapter V).
item⑨
item⑨
Box Installation
- Place Solax Box 3.0 against the ground.
- Drill holes withφ10 drill.
- Depth: at least 50mm
Notes:
-
Affix the empty box on the wall rst before proceeding any installation. It will be too dangerous to move as the box tting with batteries and inverter will
overweigh box-handle's bearing limit.
-
Clean or replace the ventilation lters every three months.
- Insert the key. - If the space is too narrow to fully open the door, you are
- Open the door.
able to remove the door. Please note that the door can only
be removed when opened 30 degrees or more.
- Dismantle the ground wire before removing the door.
Connectors inside the Box
- Overview of connectors inside the Solax Box 3.0.
(Wiring of the connectors inside the box has been completed upon delivery.)
Connectors
BMU Installation
- Match the BMU with bracket.
- Connection between BMU and SK-TL (Wiring of BMU side).
BUS Connection:
- Find BUS Connectors in BMU Packaging.
- Connect BUS connectors to "BUS" port on the
BMU (The other side is to be related to SK-TL in
chapter VI).
- Connection between BMU and Battery (Wiring of BMU side).
Communication:
- Find the BMS cable which has
been connected to the Battery
(chapter IV ).
- Insert the "Solax" side of BMS
cable into the "BMS" port on the
BMU.
item⑨
- Tighten the expansion tubes.
- Pass the expansion screws though the M6 washers,
then screw the expansion screws.
item④
item③
- Remove the safety bezel.
30°
Application Connectors Application
LG Connectors
BAT Connector
X 2 pairs
Pv1-
EPS Connector
Pv1+
Pv2-
Pv2+ AC Connector
Communication:
- Find CAN connector in BMU Packaging.
- Insert one side of the connector into "CAN"
port on the BMU (The other side is to be related
to SK-TL in chapter VI).
Battery Power Supply:
- Find BAT Connector inside the box (chapter III).
- Insert BAT connector into "BAT" port on the
BMU.
BAT Connector
item⑤
