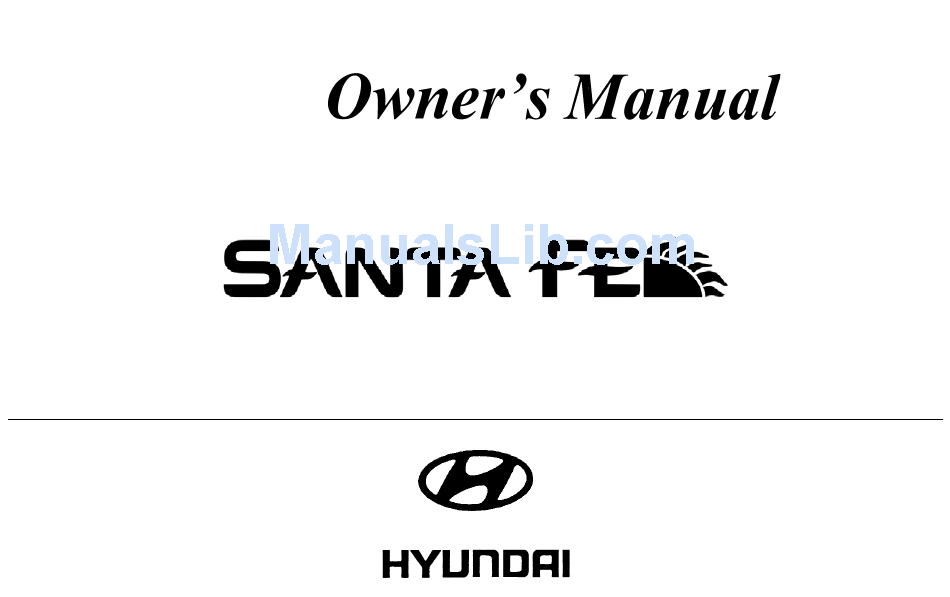

  • Page 1 2005...

  • Page 2: Warranties For Your Hyundai Vehicle

    A020A01A-AAT RESPONSIBILITY FOR MAINTENANCE The maintenance requirements for your new Hyundai are found in Section 5. As the owner, it is your responsibility to see that all maintenance operations specified by the manufacturer are carried out at the appropriate intervals.

  • Page 3: Specifications

    Specifications A030A01O-A All information in this Owner's Manual is current at the time of publication. However, Hyundai reserves the right to make changes at any time so that our policy of continual product improvement may be carried out. This manual applies to all Hyundai models and includes descriptions and explanations of optional as well as standard equipment.
  • Page 4 Your Owner's Manual will introduce you to the features and operation of your new Hyundai. It is suggested that you read it carefully because the information it contains can contribute greatly to the satisfaction you receive from your new car.
  • Page 5 Your Hyundai should not be modified in any way. Such modifications may adversely affect the performance, safety or durability of your Hyundai and may, in addition, violate conditions of the limited warranties covering the vehicle. Certain modifications may also be in violation of regulations established by the U.S. Department of Transportation and other federal or state agencies.
  • Page 6 A090A01A-AAT SAFETY AND VEHICLE DAMAGE WARNING This manual includes information titled as WARNING, CAUTION and NOTE. These titles indicate the following: WARNING: This indicates that a condition may result in harm, serious injury or death to you or other persons if the warning is not heeded.
  • Page 7 Hyundai Warranty. 3. How can you tell if you are purchasing Hyundai Genuine Parts? Look for the Hyundai Genuine Parts Logo on the package (see below). Hyundai Genuine Parts exported to the United States are packaged with labels written only in English.

  • Page 8: Table Of Contents

    TABLE OF CONTENTS FEATURES OF YOUR HYUNDAI DRIVING YOUR HYUNDAI WHAT TO DO IN AN EMERGENCY CORROSION PREVENTION & APPEARANCE CARE VEHICLE MAINTENANCE REQUIREMENTS SECTION DO-IT-YOURSELF MAINTENANCE EMISSION CONTROL SYSTEMS CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS...

  • Page 9: Instruments And Controls

    INSTRUMENTS AND CONTROLS B250A04O-AAT B250A01O-A...
  • Page 10 1. Multi-Function Light Switch 2. Instrument Cluster 3. Horn and Driver's Airbag 4. Trip Switch / Trip Computer Switch (If installed) 5. Ignition Switch 6. Windshield Wiper/Washer Switch 7. Hazard Warning Light Switch 8. Digital Clock 9. Passenger Airbag OFF Indicator Light 10.Rear Window Defroster Switch 11.Audio System (If installed) 12.Passenger's Airbag...

  • Page 11: Indicator Symbols On The Instrument Cluster

    YOUR VEHICLE AT A GLANCE B255A03O-AAT INDICATOR SYMBOLS ON THE INSTRUMENT CLUSTER SRS (Airbag) Service Reminder Indicator (SRI) Turn Signal Indicator Lights Seat Belt Reminder Light and Chime High Beam Indicator Light Front Fog Indicator Light (If installed) Low Oil Pressure Warning Light Parking Brake/Low Brake Fluid Level Warning Light Charging System Warning Light...

  • Page 12: Features Of Your Hyundai

    FEATURES OF YOUR HYUNDAI Fuel Recommendations ... 1-2 Breaking in Your New Hyundai ... 1-3 Keys ... 1-3 Door Locks ... 1-4 Theft-Alarm System ... 1-8 Power Windows ... 1-11 Seats ... 1-12 Seat Belts... 1-19 Child Restraint System ... 1-26 Advanced Supplemental Restraint (AIRBAG) System (SRS) ...

  • Page 13: Fuel Recommendations

    B010D01A-AAT Do Not Use Methanol Fuels containing methanol (wood alcohol) should not be used in your Hyundai. This type of fuel can reduce vehicle performance and damage components of the fuel system. CAUTION: Your Hyundai's New Vehicle Limited War-...

  • Page 14: Gasolines For Cleaner Air

    Emission Control System. B010F01A-AAT Operation in Foreign Countries If you are going to drive your Hyundai in another country, be sure to: o Observe all regulations regarding registra- tion and insurance.

  • Page 15: Illuminated Ignition Switch

    B030B01HR A code number is stamped on the number plate that came with the keys to your Hyundai. This key number plate should not be left with the keys but kept in a safe place, not in the vehicle. The key number should also be recorded in a place where it can be found in an emergency.
  • Page 16 "LOCK" position so that the red mark on the switch is not visible, then close the door. FEATURES OF YOUR HYUNDAI NOTE: o When pushing the lock switch of the driver's door to the "LOCK"...
  • Page 17 FEATURES OF YOUR HYUNDAI B040D01O-AAT Locking From the Inside (Driver's side) LOCK UNLOCK HSM362 To lock the door from the inside, simply close the door and push the lock switch to the "LOCK" position. NOTE: o When pushing the lock switch of the driver's door to the "LOCK"...
  • Page 18 B040E04A-AAT Child-Protector Rear Door Lock HSM170-1 Your Hyundai is equipped with left and right side "child-protector" rear door locks. When the lock mechanism is engaged, the rear door cannot be opened from the inside. Its use is recommended whenever there are small children in the rear seat.

  • Page 19: Theft-Alarm System

    FEATURES OF YOUR HYUNDAI B070F02O-AAT KEYLESS ENTRY SYSTEM (If installed) NOTE: This device complies with Part 15 of the FCC rules. Operation is subject to the fol- lowing two conditions: (1) This device may not cause harmful in- terference, and (2) this device must accept...
  • Page 20 CAUTION: Avoid trying to start the engine while the system is armed. FEATURES OF YOUR HYUNDAI B075D01JM-AAT Disarmed Stage The system will be disarmed by using the transmitter or the ignition key.

  • Page 21: Replacing The Battery

    FEATURES OF YOUR HYUNDAI B075E01O-AAT Panic Warning PANIC B075B01O 1. Push the "PANIC" button on the transmitter. 2. At the same time, the siren will sound and the turn signal lights will blink for 30 seconds. 3. To turn off the system, push the "PANIC"...

  • Page 22: Power Windows

    If the front doors are opened during this 30 second period, the power windows can no longer be operated without the ignition key turned to the "ON" position. FEATURES OF YOUR HYUNDAI Close Open HSM050 WARNING:...

  • Page 23: Adjustable Front Seats

    FEATURES OF YOUR HYUNDAI SEATS B080A01A-AAT ADJUSTABLE FRONT SEATS WARNING: Never attempt to adjust the seat while the vehicle is moving. This could result in loss of control or an accident which may cause death, serious injury, or property damage.
  • Page 24 This should only be done when the seat is not occupied. FEATURES OF YOUR HYUNDAI WARNING: B080D01JM o For maximum effectiveness in case of an...
  • Page 25 FEATURES OF YOUR HYUNDAI B080E02A-AAT Lumbar Support Control (Driver's seat only) B080E01O To adjust the lumbar support, turn the handle on the inboard side of the seat. To increase the amount of lumbar support, pull the lever for- ward. To decrease it, push the lever toward the rear.

  • Page 26: Adjusting Seat Forward And Rearward

    Move the rear portion of the control knob up or down to raise or lower the rear part of the seat cushion. FEATURES OF YOUR HYUNDAI B090D02Y-AAT Adjusting Seatback Angle B090D01O...
  • Page 27 FEATURES OF YOUR HYUNDAI WARNING: To minimize the risk of personal injury in the event of a collision or a sudden stop, both the driver's and passenger's seatback should remain in an upright position while the car is in motion. The protection pro-...

  • Page 28: Rear Seat

    CAUTION: When reclining the seatback, you should adjust the seatback folding lever while standing. FEATURES OF YOUR HYUNDAI B085B02O-AAT Folding Rear Seatback and Seat Cushion For convenience, the seatbacks and seat cush- ions may be folded down and up.
  • Page 29 FEATURES OF YOUR HYUNDAI Buckle clips HSM293-A NOTE: o Before folding the seatback, place the rear seat belt buckles in the buckle clips on the seatback. This will prevent the seat belt buckles from becoming cov- ered by the seat cushion when it is returned to the seating position.

  • Page 30: Seat Belt Precautions

    REAR SEAT WARNING B080P01O For the safety of all passengers, luggage or other cargo should not be piled higher than the top of the seatback. FEATURES OF YOUR HYUNDAI SEAT BELTS B150A01S-AAT SEAT BELT PRECAUTIONS WARNING: All occupants of the vehicle must wear their seat belts at all times.
  • Page 31 FEATURES OF YOUR HYUNDAI WARNING: Every person in your vehicle needs to be properly restrained at all times, including infants and children. In a collision, an unre- strained child can become a "missile" in- side the car. The force required to hold a child on your lap could be so great that you could not hold the child.

  • Page 32: Care Of Seat Belts

    Entire in-use seat belt assembly or assemblies should be replaced if the vehicle has been involved in an accident. This should be done even if no damage is visible. Additional ques- tions concerning seat belt operation should be directed to your Hyundai Dealer.
  • Page 33 FEATURES OF YOUR HYUNDAI B170A04Y-AAT HEIGHT ADJUSTABLE FRONT SEAT SHOULDER BELT B170A01E You can adjust the height of the shoulder belt anchor to one of the 4 positions for maximum comfort and safety. If the height of the adjusting seat belt is too near your neck, you will not be getting the most effective protection.
  • Page 34 Although a combination retractor is also installed in the front passenger seat position, Hyundai strongly recommends that children always be seated in the rear seat. NEVER place any infant restraint system in the front seat of the vehicle.
  • Page 35 FEATURES OF YOUR HYUNDAI B200A01A-AAT Adjusting Your Seat Belt B200A01L WARNING: You should place the lap belt portion as low as possible and snugly across your hips, not on your waist. If the lap belt is located too high on your waist, it may increase the chance of injury in the event of a collision.
  • Page 36 If there is a sudden stop or impact, the belt will lock into position. It will also lock if you try to lean forward too quickly. FEATURES OF YOUR HYUNDAI WARNING: o When using the rear seat center belt, you must lock all metal tabs and buckles.

  • Page 37: Child Restraint System

    FEATURES OF YOUR HYUNDAI WARNING: B220D03O o In case of unlocking metal tab (a) and the buckle (b), place metal (a) in the seat belt clip not to make noise while driving. o Lock the metal tab (a) and the buckle (b)
  • Page 38 If the seat belt will not properly fit the child, Hyundai recommends the use of an approved booster seat in the rear seat in order to raise the child's seating height so that the seat belt will properly fit the child.

  • Page 39: Using A Child Restraint System

    FEATURES OF YOUR HYUNDAI B230B01E-AAT Using a Child Restraint System For small children and babies, the use of a child seat or infant seat is required. This child seat or infant seat should be of appropriate size for the child and should be installed in accordance with the manufacturer's instructions.

  • Page 40: Securing The Child Restraint Seat With The "Isofix" System

    The im- proper increased load may cause the anchorage points or tether anchor to break, causing serious injury or death. FEATURES OF YOUR HYUNDAI B230D03E-AAT Securing the Child Restraint Seat with the "ISOFIX" system B230F01O...
  • Page 41 FEATURES OF YOUR HYUNDAI WARNING: o Do not install a child restraint seat at the center of the rear seat using the vehicle's ISOFIX anchors. The ISOFIX anchors are only provided for the left and right out- board rear seating positions. Do not...
  • Page 42 If the seat belt does not operate as de- scribed, have the system checked imme- diately by your authorized Hyundai dealer. WARNING: o If the retractor is not in the Automatic Locking mode, the child restraint sys- tem can move when your vehicle turns or stops abruptly.
  • Page 43 FEATURES OF YOUR HYUNDAI B180C01O-AAT Pre-Tensioner Seat Belt Your Hyundai vehicle is equipped with driver's and front passenger's pre-tensioner seat belts. The purpose of the pre-tensioner is to make sure that the seat belts fit tightly against the occupant's body in certain frontal collisions.
  • Page 44 Do not attempt to inspect or replace the pre-tensioner seat belts yourself. This must be done by an authorized Hyundai dealer. o Do not strike the pre-tensioner seat belt assemblies.

  • Page 45: Advanced Supplemental Restraint (Airbag) System (Srs)

    RESTRAINT (AIRBAG) SYSTEM (SRS) B240A01O-AAT Driver's Airbag B240A01O Your Hyundai is equipped with an advanced Supplemental Restraint (Airbag) System. The indications of the system's presence are the letters "SRS AIRBAG" embossed on the airbag pad cover in the steering wheel and the passenger's side front panel pad above the glove box.
  • Page 46 If you are considering modification of your vehicle due to a disability, please contact the Hyundai Customer Assis- tance Center at 1-800-633-5151. WARNING: o As its name implies, the SRS is designed...
  • Page 47 If the airbags deploy, they must be re- placed by an authorized Hyundai dealer. o Do not tamper with or disconnect SRS wiring or other components of the SRS system.
  • Page 48 Further opening of the covers then allows full inflation of the airbags. FEATURES OF YOUR HYUNDAI B240B03L A fully inflated airbag, in combination with a properly worn seat belt, slows the driver's or the passenger's forward motion, reducing the risk of head and chest injury.
  • Page 49 SRS is not working properly. If this occurs, have your vehicle immedi- ately inspected by your Hyundai dealer. o Before you replace a fuse or disconnect a battery terminal, turn the ignition key to the "LOCK"...

  • Page 50: Occupant Classification System

    FEATURES OF YOUR HYUNDAI *2) Do not allow children to ride in the front passenger seat. When a larger child who has outgrown a child restraint system sits in...
  • Page 51 FEATURES OF YOUR HYUNDAI B990A03O o Excessively recline the front passenger seatback. B990A02O o Sit with hips shifted towards the front of the seat. B990A07O - Lean on on the center console. - Sit on one side of the front passenger seat.
  • Page 52 6 seconds when the ignition key is turned to the "ON" position, or if it illuminates while the vehicle is being driven, have an authorized Hyundai dealer inspect the occupant classification system and the SRS airbag system as soon as possible.
  • Page 53 BAG OFF" indicator. B990B04Y-AAT Side Impact Airbag B990B02Y Your Hyundai is equipped with a side impact airbag in each front seat. The purpose of the airbag is to provide the vehicle's driver and/or the front passenger with additional protection than that offered by the seat belt alone. The side...

  • Page 54: Srs Care

    If the SRS SRI (Service Reminder Indicator) does not illuminate, or continu- ously remains on, have your vehicle imme- diately inspected by your Hyundai dealer o Any work on the SRS system, such as removing, installing, repairing, or any work on the steering wheel or front seats must be performed by a qualified Hyundai technician.
  • Page 55 Hyundai dealer. o Do not replace the bumper or the bumper guard with the one other than the Hyundai genuine parts. Otherwise, it can ad- versely affect SRS performance and lead to unexpected injury.

  • Page 56: Adding Equipment To Or Modifying Your Airbag-Equipped Vehicle

    Adding Equipment to or Modifying Your Airbag-Equipped Vehicle. If you modify your vehicle by changing your vehicle's frame, bumper system, front end or side sheet metal or ride height, this may affect the operation of your vehicle's airbag system. FEATURES OF YOUR HYUNDAI...

  • Page 57: Instrument Cluster And Indicator Lights

    FEATURES OF YOUR HYUNDAI INSTRUMENT CLUSTER AND INDICATOR LIGHTS B260A01O-AAT B260A01O-A...
  • Page 58 19.Odometer / Trip Odometer / Trip Computer (If installed) 20.High Beam Indicator Light 21.Front Fog Indicator Light (If installed) 22.Supplemental Restraint System (Airbag) Service Reminder Indicator (SRI) 23.Cruise Indicator Light (If installed) 24.Cruise SET Indicator Light (If installed) FEATURES OF YOUR HYUNDAI...

  • Page 59: Seat Belt Reminder Light/Chime

    If the light stays on with the engine running, turn the engine off imme- diately. In any instance where the oil light stays on when the engine is running, the engine should be checked by a Hyundai dealer before the car is driven again.

  • Page 60: Charging System Warning Light

    After adding fluid, if no other trouble is found, the car should be immediately and care- fully driven to a Hyundai dealer for inspection. If further trouble is experienced, the vehicle should not be driven at all but taken to a dealer by a professional towing service or some other safe method.
  • Page 61 If it illuminates while driving, or does not illuminate when the ignition key is turned to the "ON" position, take your car to your nearest authorized Hyundai dealer and have the system checked. B260P02Y-GAT...

  • Page 62: Parking Start Warning Sound

    "ON" position, but should go out after three seconds. If the TCS or TCS-OFF indicator stays on, take your car to your autho- rized Hyundai dealer and have the system checked. See section 2 for more information about the TCS.

  • Page 63: Instrument Cluster

    Then open the hood and, after the engine has cooled, check the coolant level and the water pump drive belt. If you suspect cooling system trouble, have your cool- ing system checked by a Hyundai dealer as soon as possible.

  • Page 64: Odometer/Trip Odometer

    B300A01A-AAT SPEEDOMETER B300A01O-A Your Hyundai's speedometer is calibrated in miles per hour (on the outer scale) and kilome- ters per hour (on the inner scale). FEATURES OF YOUR HYUNDAI B310B01O-AAT ODOMETER/TRIP ODOMETER...
  • Page 65 FEATURES OF YOUR HYUNDAI B310B01O-E 1. Odometer The odometer records the total driving distance in miles, and is useful for keeping a record for maintenance intervals. It is normal for a new vehicle to have the odometer indicating less than 30 miles.

  • Page 66: Trip Computer

    LCD. FEATURES OF YOUR HYUNDAI Trip Computer Switch o The trip computer switch is used to zero the multi-functional display mode.
  • Page 67 FEATURES OF YOUR HYUNDAI 1. Distance to Empty Distance to empty symbol Distance to empty Odometer B400B01O-A o This mode provides the estimated distance to empty from the current fuel level in the fuel tank. o The trip computer may not register additional fuel if less than 6.34 U.S.

  • Page 68: Multi-Function Light Switch

    If either turn signal indicator light blinks more rapidly than usual, goes on but does not blink, or does not go on at all, there is a malfunction in the system. Check for a burned- out fuse or bulb or see your Hyundai dealer.

  • Page 69: Lane Change Signal

    FEATURES OF YOUR HYUNDAI B340B01A-AAT Lane Change Signal B340B01O To indicate a lane change, move the lever up or down to a point where it begins flashing. The lever will automatically return to the center position when released. B340C03A-AAT Headlight Switch...

  • Page 70: Headlight Flasher

    NOTE: Switch on car light manually in foggy, cloudy and rainy conditions. FEATURES OF YOUR HYUNDAI Auto light sensor HSM2095 NOTE: o Never place anything over sensor lo- cated on the instrument panel, this will ensure better auto light system control.

  • Page 71: Windshield Wiper/Washer Switch

    FEATURES OF YOUR HYUNDAI WINDSHIELD WIPER AND WASHER SWITCH B350A01A-AAT B350A01O-A The windshield wiper switch has three posi- tions: 1. Intermittent wiper operation 2. Low-speed operation 3. High-speed operation NOTE: To prevent damage to the wiper system, do not attempt to wipe away heavy accumula- tions of snow or ice.
  • Page 72 FEATURES OF YOUR HYUNDAI NOTE: Do not operate the washer continuously for more than 15 seconds or when the fluid reservoir is empty;...

  • Page 73: Front Fog Light Switch

    FEATURES OF YOUR HYUNDAI FRONT FOG LIGHT SWITCH B360A04A-AAT (If installed) B360A01O-A To turn on the front fog lights, push the switch. They will light when the headlight switch is in the second position and the ignition key is in the "ON"...

  • Page 74: Digital Clock

    Pressing "R" between 10 : 30 and 11 : 29 changes the readout to 11 : 00. Pressing "R" between 11 : 30 and 12 : 29 changes the readout to 12 : 00. FEATURES OF YOUR HYUNDAI ELECTRIC AZIMUTH COMPASS B990C01O-AAT (With sunroof) (If installed) B990C01O It displays 8 azimuth according to the vehicle’s...
  • Page 75 FEATURES OF YOUR HYUNDAI Correcting Azimuth Indicator It is needed to correct the error between a current azimuth to terrestrial magnetism sen- sor and the displayed azimuth in the vehicle position. How to correct azimuth indicator 1. If you push and hold the "M (MODE)" switch for less than 4.5 seconds, the azimuth indi-...

  • Page 76: Instrument Panel Light Control (Rheostat)

    2. If you don't correct the terrestrial deviation angle within 30 seconds. The Counter Line Map for Terrestrial Deviation Angle Correction B990C02O-A FEATURES OF YOUR HYUNDAI INSTRUMENT PANEL LIGHT CONTROL (RHEOSTAT) B410A01A-AAT B410A01O The instrument panel lights can be made brighter or dimmer by turning the instrument panel light control knob.

  • Page 77: Cigarette Lighter

    Do not hold the cigarette lighter pressed in. This can damage the heating element and create a fire hazard. If it is necessary to replace the cigarette lighter, use only a genuine Hyundai replacement or its approved equivalent. POWER OUTLETS B500D010O-AAT...

  • Page 78: Drink Holder

    The rear ashtray may be opened by pulling it out by its top edge.To clean ashtray, the plastic receptacle should be removed, by pressing the tab and pulling out. FEATURES OF YOUR HYUNDAI DRINK HOLDER B450A01JM-AAT Front Drink Holder B450A01O The front drink holder is located on the main console.
  • Page 79 FEATURES OF YOUR HYUNDAI B450B02O-AAT Rear Drink Holder B450B01O The rear drink holder is located on the rear main console and may be used for holding cups. The rear drink holder can be used by pushing and pulling it at its top edge.

  • Page 80: Sunroof

    SUNROOF B460A01Y-AAT (If installed) Sun Shade B460A01O Your HYUNDAI is equipped with a sliding sun- shade which you can manually adjust to let in light with the sunroof closed, or to block sunlight. WARNING: Never adjust the sunshade while driving.

  • Page 81: Tilting The Sunroof

    FEATURES OF YOUR HYUNDAI B460C01O-AAT Tilting the Sunroof HSM2023 The sunroof is moved to its fully tilt up position by pushing the " " switch and to stop at the desired position, push in any switches. To tilt down, press and hold the "...

  • Page 82: Interior Light

    Push in the map light switch to turn the light on or off. This light is convenient as a map light at night or as a personal light for the driver and the passenger. FEATURES OF YOUR HYUNDAI B490A03Y-AAT Interior Light B490A01O The interior courtesy light has three buttons.

  • Page 83: Glove Box

    FEATURES OF YOUR HYUNDAI o ON In the "ON" position, the light stays on at all times. CAUTION Do not leave this button pressed for an extended period of time when the vehicle is not running. o OFF In the "OFF" position, the light stays off at all times even though a door is open.

  • Page 84: Outside Rearview Mirror

    To avoid the possibility of injury in case of an accident or a sudden stop, the center console box lid should be kept closed when the car is in motion. FEATURES OF YOUR HYUNDAI OUTSIDE REARVIEW MIRROR B510A01A-AAT Manual Type...
  • Page 85 FEATURES OF YOUR HYUNDAI CAUTION: If the mirror control is jammed with ice, do not attempt to break it free using the control handle or by manipulating the face of the mirror. Use an approved spray de-icer (not radiator antifreeze) to release the frozen mechanism or move the vehicle to a warm place and allow the ice to melt.

  • Page 86: Outside Rearview Mirror Heater

    Push the switch again to turn the heater off. The outside rearview mirror heater automatically turns itself off after 20 minutes. FEATURES OF YOUR HYUNDAI B510C02A-AAT FOLDING THE OUTSIDE REARVIEW MIRRORS B510C01O To fold the outside rearview mirrors, push them toward the rear.

  • Page 87: Homelink Mirror

    MIRROR B520A01A-AAT Manual Type B520A01O Your Hyundai is equipped with a day/night inside rearview mirror. The "night" position is selected by flipping the tab at the bottom of the mirror toward you. In the "night" position, the glare of headlights of cars behind you is reduced.
  • Page 88 April 1, 1982), as these doors can increase the risk of serious injury or death. Call 1-800-355-3515 or visit www.homelink.com for more information. FEATURES OF YOUR HYUNDAI NOTE: If programming a garage door opener or gate, it is advised to unplug the device during the "cycling"...

  • Page 89: Operating Homelink

    FEATURES OF YOUR HYUNDAI 1. When programming the buttons for the first time, press and hold the two outside HomeLink buttons ( ), releasing when the indicator light begins to flash (approxi- mately 20 seconds). This procedure erases the factory-set default codes. Do not per- form this step when programming additional transmitters.

  • Page 90: Reprogramming A Single Homelink Button

    4. The HomeLink indicator light will flash slowly at first, then rapidly, indicating successful programming. Release both buttons. FEATURES OF YOUR HYUNDAI Gate Operator Programming & Cana- dian Programming During programming, your handheld transmit- ter may automatically stop transmitting.

  • Page 91: Parking Brake

    FEATURES OF YOUR HYUNDAI PARKING BRAKE B530A01A-AAT B530A01O Always engage the parking brake before leav- ing the vehicle. This also turns on the parking brake indicator light when the key is in the "ON" or "START" position. Before driving away, be sure that the parking brake is fully released and the indicator light is off.

  • Page 92: Tail Gate Window

    In the "ON" position, the light stays on at all times. o In the "OFF" position, the light stays off at all times. FEATURES OF YOUR HYUNDAI B640A01S-AAT CARGO SECURITY SCREEN (If installed) B640A01O...
  • Page 93 FEATURES OF YOUR HYUNDAI B650A01S-AAT Stowage Precautions 1. Do not place objects on the cargo security screen. Such objects may be thrown about inside the vehicle and possibly injure vehicle occupants during an accident or when brak- ing. 2. For better fuel economy, do not carry unnec- essary weight.

  • Page 94: High-Mounted Rear Stop Light

    ROOF RACK B630A02O-AAT (If installed) HSM2173 If your Hyundai has a roof rack, you can load things on top of your vehicle. Crossrails and fixing components to adapt the roof rack on your vehicle may be obtained from an authorized Hyundai dealer.

  • Page 95: Auto Fuel Cut Switch

    " light will illuminate. o Gasoline vapors are dangerous. Before refueling, always stop the engine and never allow sparks or open flames near the filler area. If you need to replace the filler cap, use a genuine Hyundai re- placement part.

  • Page 96: Hood Release

    Do not smoke or try to light cigarettes around a gas station. Automotive fuels are flammable. FEATURES OF YOUR HYUNDAI HOOD RELEASE B570A01L-GAT B570A01O 1. Pull the release lever to unlatch the hood.

  • Page 97: Floor Mat Anchor

    Ticket holder Vanity mirror B580A01O Your Hyundai is equipped with sun visors to give the driver and front passenger either frontal or sideward shade. To reduce glare or to shut out direct rays of the sun, turn the sun visor down.

  • Page 98: Steering Wheel Tilt Lever

    SUN VISOR EXTENDER B580C01O Your vehicle is equipped with sun visor extend- ers that may be used when the visor is in the side glass position. FEATURES OF YOUR HYUNDAI STEERING WHEEL TILT LEVER B600A02Y-AAT B600A01O To adjust the steering wheel: 1.

  • Page 99: Front Door Edge Warning Light

    FEATURES OF YOUR HYUNDAI FRONT DOOR EDGE WARNING LIGHT B620A01S-AAT B620A01O A red light comes on when the front door is opened. The purpose of this light is to assist when you get in or out and also to warn passing vehicles.

  • Page 100: Cruise Control

    4. Remove your foot from the accelerator pedal and the desired speed will automatically be maintained. FEATURES OF YOUR HYUNDAI 5. To momently increase speed, temporarily depress the accelerator pedal enough for the vehicle to exceed the preset speed.
  • Page 101 FEATURES OF YOUR HYUNDAI B660C03O-AAT To cancel the cruise speed B660C01O To disengage the cruise control system, push the "CANCEL" switch. Additionally, the following actions will disengage the system: o Depress the brake pedal. o Shift the selector lever to "N" position.
  • Page 102 During normal cruise control operation, when the "SET" switch is activated or reactivated after applying the brakes, the cruise control will energize after ap- proximately 3 seconds. This delay is normal. FEATURES OF YOUR HYUNDAI...

  • Page 103: Heating And Cooling Control

    FEATURES OF YOUR HYUNDAI HEATING AND COOLING CONTROL B710A01O-GAT (If installed) 1. Side Ventilator 2. Side Defroster Nozzle 3. Windshield Defroster Nozzle 4. Center Ventilator B710B02O-AAT Center Ventilator The center ventilators are located in the middle of the instrument panel. To change the direction of the air flow, move the knob in the center of the vent up-and-down and side-to-side.

  • Page 104: Heating And Ventilation

    "1" and "4" position. 1 being the lowest fan speed and 4 being the highest fan speed. FEATURES OF YOUR HYUNDAI B670C02O-AAT Air Intake Control Switch B670C02O This is used to select fresh outside air or recirculate inside air.
  • Page 105 FEATURES OF YOUR HYUNDAI With the " " mode selected, air enters the vehicle from outside and is heated or cooled according to the other functions selected. With the " " mode selected, air from within the passenger compartment is drawn through the heating system and heated or cooled ac- cording to the other functions selected.

  • Page 106: Floor-Level

    If the "Floor" mode is selected, the "Fresh" mode will be activated. FEATURES OF YOUR HYUNDAI HSM2125 Floor-Defrost Level Air is discharged through the windshield de- froster nozzle, the floor vents, side defroster nozzle and side ventilator.
  • Page 107 FEATURES OF YOUR HYUNDAI HSM2126 Defrost-Level Air is discharged through the windshield de- froster nozzle, side defroster nozzle and side ventilator. If the "Defrost" mode is selected, the A/C will turn on automatically and "Fresh" mode will be ac- tivated to improve windshield defrosting.

  • Page 108: Heating Controls

    Temperature Control Cool Warm B670E01O This control is used to adjust the degree of heating or cooling desired. FEATURES OF YOUR HYUNDAI HEATING CONTROLS B690A01O-AAT B690A01O-1 For normal heating operation, set the air flow control to the floor ( ) position. (The "Fresh"...

  • Page 109: Bi-Level Heating

    FEATURES OF YOUR HYUNDAI BI-LEVEL HEATING B700A02A-AAT B700A01O-1 Your Hyundai is equipped with bi-level heating controls. This makes it possible to have cooler air from the dashboard vents and warmer air from the floor outlets at the same time. To use...
  • Page 110 For greater cooling, turn the fan control to one of the higher speeds or temporarily select the recirculate ( ) position on the air intake control switch. FEATURES OF YOUR HYUNDAI B740C02O-AAT De-Humidified Heating B740C01O-1 For dehumidified heating: o Set the air flow control to the face ( ) position.

  • Page 111: Operation Tips

    FEATURES OF YOUR HYUNDAI B730A01L-AAT Operation Tips o To keep dust or unpleasant fumes from entering the car through the ventilation sys- tem, temporarily set the air intake control switch to the position. Be sure to return the control switch to position when the irritation has passed to keep fresh air in the vehicle.
  • Page 112 ) position. (The o Set the temperature control to warm. o Set the fan speed control to position "3" or "4". ) or defrost level ( FEATURES OF YOUR HYUNDAI Full automatic A/C B720B02O-1 ) position. (The ), it may cause fog to form...

  • Page 113: Automatic Heating And Cooling Control System

    FEATURES OF YOUR HYUNDAI AUTOMATIC HEATING AND COOLING CONTROL SYSTEM B970A01Y-AAT (If installed) Your Hyundai is equipped with an automatic heating and cooling control system controlled by simply setting the desired temperature. B970B01O-AAT Heating and Cooling Controls 1. Temperature Control Button 2.
  • Page 114 "LO" by pushing on the button. Each push of the button will cause the temperature to decrease by 1°F(0.5°C). FEATURES OF YOUR HYUNDAI NOTE: o If the battery has been discharged or disconnected, the temperature mode will reset to Fahrenheit degree.

  • Page 115: Air Intake Control Switch

    FEATURES OF YOUR HYUNDAI B995A01O-GAT AMBIENT TEMPERATURE SWITCH B995A01O Pressing the "AMB" button displays the ambient temperature on display window. B980A01Y-AAT MANUAL OPERATION The heating and cooling system can be con- trolled manually as well as by pushing buttons other than the "AUTO" button. At this state, the system sequentially works according to the order of buttons selected.
  • Page 116 Heating and Cooling System Off B980D01O Press the "OFF" button to stop the operation of the heating and cooling system. FEATURES OF YOUR HYUNDAI B980E01O-AAT Air Flow Control HSM218 This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, or windshield.
  • Page 117 FEATURES OF YOUR HYUNDAI HSM2122 Face-Level When selecting the "Face-Level", the indicator light will come on, causing air to be discharged through the face level vents. HSM2123 Bi-Level When selecting the "Bi-Level", the indicator light will come on and the air will be discharged through the face vents and the floor vents.

  • Page 118: Defrost Switch

    To assist in defrosting, the air conditioning will operate if ambient temperature is higher than 32°F(0°C) and automatically turns off if the ambient temperature drops below 32°F(0°C). FEATURES OF YOUR HYUNDAI B740D01Y-AAT Operation Tips o If the interior of the car is hot when you first get in, open the windows for a few minutes to expel the hot air.

  • Page 119: Air Conditioner Filter

    FEATURES OF YOUR HYUNDAI AIR CONDITIONER FILTER B760A06A-GAT (FOR EVAPORATOR AND BLOWER UNIT) (If installed) Blower Outside air Inside of a vehicle Inside air Filter Evaporator core B760A01Y The air conditioner filter is located in front of the evaporator unit behind the glove box.

  • Page 120: Stereo Sound System

    These long, low frequency radio waves can follow the curvature of the earth rather than travelling straight out into the atmosphere. In addition, they curve around obstructions so that they can provide better signal coverage. FEATURES OF YOUR HYUNDAI FM radio station Mountains Unobstructed area...
  • Page 121 FEATURES OF YOUR HYUNDAI B750A04L o Fading - As your car moves away from the radio station, the signal will weaken and sound will begin to fade. When this occurs, we suggest that you select another stronger station. o Flutter/Static - Weak FM signals or large...

  • Page 122: Audio System

    FEATURES OF YOUR HYUNDAI AUDIO SYSTEM H260A01O-AAT STEREO RADIO OPERATION (H260) (If installed) 3. BASS/TREBLE Control Knob 4. SCAN Button 6. BAND Selector 7. PRESET Button 5. TUNE/SEEK Select Button 1. POWER ON-OFF/VOLUME/BALANCE Control Knob 2. FADER Control Knob H260A01O...
  • Page 123 FEATURES OF YOUR HYUNDAI H260B04O-AAT 1. POWER ON-OFF Control Knob The radio unit may be operated when the ignition key is in the "ACC" or "ON" position. Press the knob to switch the power on. The LCD shows the radio frequency in the radio mode or the CD track indicator in the CD mode.

  • Page 124: How To Preset Stations

    Do not place beverages close to the audio system. The audio system mecha- nism may be damaged if you spill them. o Do not impact on the audio system, or the audio system mechanism could be damaged. FEATURES OF YOUR HYUNDAI...
  • Page 125 FEATURES OF YOUR HYUNDAI H260B01O-AAT COMPACT DISC PLAYER OPERATION (H260) (If installed) 4. SCAN Button 1. Playing CD 3. TRACK UP/DOWN 6. EJECT Button 2. FF/REW Button 5. REPEAT Button H260A01O...

  • Page 126: Repeat Button

    6. EJECT Button When the EJECT button is pressed with a CD loaded, the CD will eject. FEATURES OF YOUR HYUNDAI NOTE: o If the CD does not operate properly or if the ER2 fault code is displayed, use one of two methods to reset the CD deck function.
  • Page 127 FEATURES OF YOUR HYUNDAI o This equipment is designed to be used only in a 12 volt DC battery system with negative ground. o This unit is made of precision parts. Do not attempt to disassemble or adjust any parts.

  • Page 128: Audio Fault Code

    AUDIO FAULT CODE If you see any error indication in the display while using the system CD mode, find the cause in the chart below. If you cannot clear the error indication, take the car to your Hyundai dealer. INDICATION...
  • Page 129 FEATURES OF YOUR HYUNDAI D285A01O-AAT STEREO RADIO OPERATION (D-285) (If installed) 1. POWER ON•OFF, VOLUME Control Knob 3. RADIO STATION Control Knob 7. AUTO EQUALIZER 2. BAND Select Button 6. AUDIO Knob (Bass/Treble/Balance/Fade) 5. PRESET STATION Select Button 4. SEEK/SCAN Button...
  • Page 130 4. Press AUTO EQ to choose the bass and treble equalization that best suits the type of station you are listening to. FEATURES OF YOUR HYUNDAI 5. Press and hold one of the six numbered pushbuttons. The radio will produce one beep.

  • Page 131: Adjusting The Speakers (Balance/Fade)

    FEATURES OF YOUR HYUNDAI Adjusting the Speakers (Balance/Fade) To adjust the balance between the right and left speakers, push and release the AUDIO knob until BAL appears on the display. Turn the knob clockwise to move the sound to the right speak- ers and counterclockwise to move the sound to the left speakers.
  • Page 132 D285C01O-AAT CASSETTE TAPE PLAYER OPERATION (D-285) (If installed) 2. REVERSE Button 3. FORWARD Button 5. DOLBY Button 4. SIDE Button 8. TAPE EJECT Button 7. TAPE/CD Select Button 6. BAND Select Button FEATURES OF YOUR HYUNDAI 1. SEEK Button HSM324...
  • Page 133 FEATURES OF YOUR HYUNDAI D285D02O-AAT Playing a Cassette Tape Your tape player is built to work best with tapes that are up to 30 to 45 minutes long on each side. Tapes longer than that are so thin they may not work well in this player.

  • Page 134: Index

    If they aren't they may not operate properly or may cause failure of the tape player. FEATURES OF YOUR HYUNDAI Your tape player should be cleaned regularly after every 59 hours of use. Your radio may display CLEAN to indicate that you have used your tape player needs to be cleaned.
  • Page 135 FEATURES OF YOUR HYUNDAI 3. Press and hold the TAPE/CD select button for five seconds. READY will appear on the display and a cassette symbol will flash for five second. 4. Insert the scrubbing action cleaning cas- sette. 5. Eject the cleaning cassette after the manufacturer's recommended cleaning time.
  • Page 136 D285E01O-AAT COMPACT DISC PLAYER OPERATION (D-285) (If installed) 7. CD EJECT Button 2. REVERSE Button 4. RANDOM Button 3. FORWARD Button 6. TAPE/CD Select Button 5. BAND Select Button FEATURES OF YOUR HYUNDAI 1. SEEK/SCAN Button HSM324...
  • Page 137 FEATURES OF YOUR HYUNDAI D285F02O-AAT Playing a Compact Disc Insert a disc partway into the slot. Label side up. The player will pull it in and the disc should begin playing. The display will show the CD symbol. You can inset a compact disc with the ignition off.
  • Page 138 So, before adding sound equipment, check with your dealer and be sure to check federal rules covering mobile radio and telephone units. FEATURES OF YOUR HYUNDAI CAUTION: o Do not insert warped or poor quality discs into the CD player as damage to the unit may occur.
  • Page 139 FEATURES OF YOUR HYUNDAI D295A01O-AAT STEREO RADIO OPERATION (D-295) (If installed) 1. POWER ON•OFF, VOLUME Control Knob 3. RADIO STATION Control Knob 7. AUTO EQUALIZER 5. PRESET STATION Select Button 2. BAND Select Button 6. AUDIO Knob (BASS/MID/TREB) 4. SEEK/SCAN Button...

  • Page 140: Preset Scan

    6. Repeat the above steps for each pushbutton. FEATURES OF YOUR HYUNDAI PRESET SCAN Press and hold either SEEK/SCAN arrow for more than four seconds, PRESET SCAN will appear on the display.

  • Page 141: Adjusting The Speakers

    FEATURES OF YOUR HYUNDAI Press the AUDIO knob until MID appears on the display. Turn the knob to increase or decrease mid. When you use this control, the radio's tone setting will switch to custom mode. To set the mid to the middle position, select MID and press and hold the AUDIO knob.
  • Page 142 COMPACT DISC PLAYER OPERATION (D-295) (If installed) 4. FORWARD Button 3. REVERSE Button 5. REPEAT Button 11. Song List Mode 6. RANDOM Button 1. LOAD Button 7. AUTO EQUALIZER 9. Playing CD FEATURES OF YOUR HYUNDAI 2. CD EJECT Button 8. SEEK/SCAN Button HSM325...

  • Page 143: Load Button

    FEATURES OF YOUR HYUNDAI D295D03O-AAT 1. LOAD Button This compact disc playing will accommodate up to six discs. To insert one disc do the following: 1. Turn the ignition on. 2. Press and release the LOAD Button. 3. Wait for the light, located to the right of the slot, to turn green.
  • Page 144 To use random, do the following: FEATURES OF YOUR HYUNDAI o Press and release the RDM button to play the tracks on all of the discs that are loaded, in random order.

  • Page 145: Using Song List Mode

    FEATURES OF YOUR HYUNDAI SCAN Press and hold either SEEK SCAN arrow for more than two seconds until SCAN appears on the display and you hear a beep. Use SEEK SCAN to listen to each track for a few seconds.
  • Page 146 These can cause disc scratching to oc- cur or trouble in the compact disc player. o Avoid using CD-Recordable or CD- Rewritable to ensure proper operation. When using the compact disc player, genuine CDs are recommended. FEATURES OF YOUR HYUNDAI...

  • Page 147: Care Of Discs

    FEATURES OF YOUR HYUNDAI CARE OF DISCS B850A02F-AAT Proper Handling B850A01L Handle your disc as shown. Do not drop the disc. Hold the disc so you will not leave finger- prints on the surface. If the surface is scratched, it may cause the pickup to skip signal tracks. Do not affix tape, paper, or gummed labels on the disc.
  • Page 148 Head Cotton applicator B860A02L FEATURES OF YOUR HYUNDAI o The playback head, capstan and pinch roll- ers will develop a coating of tape residue that can result in deterioration of sound quality, such as a wavering sound. They should be...

  • Page 149: Antenna

    FEATURES OF YOUR HYUNDAI B860A03L NOTE: Look at a tape before you insert it. If the tape is loose, tighten it by turning one of the hubs with a pencil or your finger. If the label is peeling off, do not put it in the drive mechanism.
  • Page 150 FEATURES OF YOUR HYUNDAI B885B01O 2. Before entering an automatic car wash, remove by turning the antenna counter- clockwise to prevent damage to the mi- cro antenna. To install the antenna, turn the antenna clockwise.

  • Page 151: Driving Your Hyundai

    DRIVING YOUR HYUNDAI Engine Exhaust Can Be Dangerous! ... 2-2 Risk of Rollover ... 2-3 Before Starting the Engine ... 2-3 Key Positions ... 2-4 Starting ... 2-5 Automatic Transaxle ... 2-6, 2-9 Anti-Lock Brake System (ABS) ... 2-12 Brake Traction Control System (BTCS) ... 2-13 Full Traction Control System (FTCS) ...

  • Page 152: Engine Exhaust Can Be Dangerous

    Hyundai dealer. o Do not run the engine in an enclosed area.

  • Page 153: Risk Of Rollover

    In a collision, an unbelted person is significantly more likely to be seriously injured or killed than a person wearing a seatbelt. DRIVING YOUR HYUNDAI BEFORE STARTING THE ENGINE C020A01HP-AAT Before you start the engine, you should always: 1. Look around the vehicle to be sure there are no flat tires, puddles of oil, water or other indications of possible trouble.

  • Page 154: To Start The Engine

    If you nevertheless de- cide to equip your vehicle with any tire/ wheel combination not recommended by Hyundai for off-road driving, you should not use these tires for highway driving. TO START THE ENGINE C030A01L-AAT COMBINATION IGNITION SWITCH o Place the shift lever in "P"...

  • Page 155: Starting

    2. Simultaneously push and turn the ignition key counterclockwise from the "ACC" posi- tion to the "LOCK" position. 3. The key can be removed in the "LOCK" position. DRIVING YOUR HYUNDAI STARTING C050A01A-AAT C050A01E-1 WARNING: Never run the engine in a closed or poorly ventilated area any longer than is needed to move your car in or out of the area.

  • Page 156: Normal Conditions

    TRANSAXLE (4 SPEED A/T) C090A01O-GAT (If installed) HSM3022 The highly efficient Hyundai automatic transaxle has four forward speeds and one reverse speed. The individual speeds are selected au- tomatically, depending on the position of the speed selector lever. The selector lever has 2 gates;...

  • Page 157: Sports Mode

    C090E01O-AAT o D(Drive): Use for normal driving. The transaxle will auto- matically shift through a four gear sequence. DRIVING YOUR HYUNDAI C090F01JM-GAT Sports Mode C090F01O Whether the vehicle is stationary or in motion, sports mode is selected by pushing the selector lever from the "D"...
  • Page 158 DRIVING YOUR HYUNDAI CAUTION: o In sports mode, The driver must execute shifts in accordance with prevailing road conditions, taking care to keep the en- gine speed below the red zone. For en- gine protection, upward shifts are made automatically when the engine rpm reaches the red zone.
  • Page 159 TRANSAXLE (5 SPEED A/T) C095A01O-AAT (If installed) HSM3022 The highly efficient Hyundai automatic transaxle has five forward speeds and one reverse speed. The individual speeds are selected automati- cally, depending on the position of the speed selector lever. The selector lever has 2 gates;...
  • Page 160 DRIVING YOUR HYUNDAI C090C01A-AAT o R(Reverse): Use for backing up the vehicle. Bring the car to a complete stop before shifting the selector lever to "R" position. C090D02A-AAT o N (Neutral): In the "N" position, the transaxle is in neutral, which means that no gears are engaged.
  • Page 161 It is always possible to shift from "R", "N", "D" position to "P" position. The vehicle must be fully stopped to avoid transaxle damage. DRIVING YOUR HYUNDAI C090I03L-GAT CAUTION: o Shift into "R" and "P" position only when the vehicle has completely stopped.

  • Page 162: Anti-Lock Brake System (Abs)

    DRIVING YOUR HYUNDAI C090N03O-AAT Good Driving Practices o Never move the gear selector lever from "P" or "N" to any other position with the accelera- tor pedal depressed. o Never move the gear selector lever into "P" when the vehicle is in motion.

  • Page 163: Brake Traction Control Sys- Tem (Btcs)

    Driving Hints TCS does not actively apply brakes. Be sure to decelerate the car sufficiently before entering curves. DRIVING YOUR HYUNDAI CAUTION: When the TCS indicator blinks, SLIP func- tion has been activated. It also means that the road is slippery or your car is accelerat- ing excessively.

  • Page 164: Full Traction Control System (Ftcs)

    DRIVING YOUR HYUNDAI C300B01O-AAT TCS ON Mode When the TCS is operating, the TCS indicator in the instrument cluster will blink. NOTE: 1) The TCS mode will automatically be turned ON after the engine is turned off and restarted. 2) When the traction control system is op- erating properly, you can feel a slight pulsation in the vehicle.
  • Page 165 4) When moving out of the mud or fresh snow, pressing the accelerator pedal may not cause the engine speed to in- crease due to TCS operation. DRIVING YOUR HYUNDAI C310D01JM-AAT Indicators and Warning The indicators should illuminate when the igni- tion key is turned to ON or START but should go out after approximately three seconds.

  • Page 166: Full-Time 4Wd Operation

    DRIVING YOUR HYUNDAI FULL-TIME 4WD OPERATION C350A03O-AAT (If installed) Engine power can be delivered to all wheels. Full-time 4WD is useful when good traction is required, such as, when driving on slippery, wet or snow-covered roads and when moving out of mud.
  • Page 167 If you nevertheless de- cide to equip your vehicle with any tire/ wheel combination not recommended by Hyundai for off-road driving, you should not use these tires for highway driving. (8) The full-time 4WD vehicle cannot be towed by an ordinary tow truck. Make sure that the vehicle is towed with all four wheels raised off the ground.
  • Page 168 DRIVING YOUR HYUNDAI o In rare cases when it's unavoidable that a 4WD vehicle is to be inspected on a 2WD roll tester, strictly follow the proce- dures. 1. Check the tire pressures recom- mended for your vehicle. 2. Place the front wheels on the roll tester as shown in the illustration.

  • Page 169: Limited-Slip Differential

    If the braking action does not return to normal, stop as soon as it is safe to do so and call your Hyundai dealer for assistance. DRIVING YOUR HYUNDAI o Don't coast down hills with the car out of gear.

  • Page 170: Driving For Economy

    (see Section 5 for details). o Keep your car clean. For maximum service, your Hyundai should be kept clean and free of corrosive materials. It is especially impor- tant that mud, dirt, ice, etc. not be allowed to accumulate on the underside of the car.

  • Page 171: Smooth Cornering

    Remember, your Hyundai does not require extended warm-up. As soon as the engine is running smoothly, you can drive away. In very cold weather, however, give your en- gine a slightly longer warm-up period. o Don't "lug" or "over-rev" the engine. Lugging is driving too slowly in too high a gear result- ing in the engine bucking.
  • Page 172 Winter puts additional burdens on the battery system. Visually inspect the battery and cables as described in Section 6. The level of charge in your battery can be checked by your Hyundai dealer or a service station. C160E01A-AAT Change to "Winter Weight" Oil if...
  • Page 173 DRIVING YOUR HYUNDAI HIGHER SPEED MOTORING C170A01A-AAT Pre-Trip Inspections 1. Tires: Adjust the tire inflation pressures to specifica- tion.

  • Page 174: Trailer Or Vehicle Towing

    Since laws vary from State to State the require- ments for towing trailers, cars, or other types of vehicles or apparatus may differ. Ask your Hyundai dealer for further details before towing. CAUTION: Do not do any towing with your car during its first 1,200 miles (2,000 km) in order to allow the engine to properly break in.
  • Page 175 This can be verified by checking the total weight of the loaded trailer and then checking the load on the tongue. DRIVING YOUR HYUNDAI NOTE: 1. Never load the trailer with more weight in the back than in the front. About 60% of...
  • Page 176 DRIVING YOUR HYUNDAI Lbs. (kg) Maximum Towable Weight Engine Trailer Tongue Type A 1700(771) 170(77.1) 2.4(2WD) Type B 1200(544) 120(54.4) Type A 3200(1452) 320(145.2) 2.7(2WD) Type B 2700(1225) 270(122.5) With Type A 2700(1225) 270(122.5) 2.7(4WD) Brake Type B 2200(998) 220(99.8)

  • Page 177: Vehicle Load Limit

    3. Select a lower gear when going uphill. 4. While in stop and go traffic, place the gear selector in park or neutral and idle the engine at a higher speed. DRIVING YOUR HYUNDAI VEHICLE LOAD LIMIT C190F01JM-AAT Tire and Loading Information Label...
  • Page 178 DRIVING YOUR HYUNDAI Steps for Determining Correct Load Limit (1)Locate the statement "The combined weight of occupants and cargo should never exceed XXX pounds'' on your vehicle's placard. (2)Determine the combined weight of the driver and passengers that will be riding in your vehicle.
  • Page 179 172 lbs (78 kg) x 5 (390 kg) 540 lbs Available Cargo Weight (245 kg) DRIVING YOUR HYUNDAI Refer to your vehicle's tire and loading information label for specific informa- tion about your vehicle's capacity weight and seating positions. The combined...
  • Page 180 DRIVING YOUR HYUNDAI C190G02JM-AAT Compliance Label C190G01JM The compliance label is located on the driver's side of the center pillar outer panel. The label shows the size of your original tires and the inflation pressures needed to obtain the gross weight capacity of your vehicle.
  • Page 181 Do not leave an unsecured child restraint in your vehicle. o When you carry something inside the vehicle, secure it. o Do not drive with a seat folded down unless necessary. DRIVING YOUR HYUNDAI...
  • Page 182 WHAT TO DO IN AN EMERGENCY If the Engine will not Start ... 3-2 Jump Starting ... 3-3 If the Engine Overheats ... 3-4 Spare Tire ... 3-5 If You Have a Flat Tire ... 3-6 Changing a Flat Tire ... 3-6 If Your Vehicle Must be Towed ...

  • Page 183: What To Do In An Emergency

    Reconnect any that may be disconnected or loose. 3. Check the fuel line in the engine compart- ment. 4. If the engine still does not start, call a Hyundai dealer or seek other qualified assistance. D010D01A-AAT If Engine Stalls While Driving 1.

  • Page 184: Jump Starting

    2,000 rpm for several minutes. 6. Carefully remove the jumper cables in the reverse order of attachment. If you do not know why your battery became discharged (because the lights were left on, etc.), have the charging system checked by your Hyundai dealer.

  • Page 185: If The Engine Overheats

    If overheating happens again, call a Hyundai dealer for assistance. CAUTION: Serious loss of coolant indicates there is a leak in the cooling system and this should be checked as soon as possible by a Hyundai dealer.

  • Page 186: Spare Tire

    SPARE TIRE D040A01O-GAT The following instructions for the FULL SIZE spare tire should be observed: Check inflation pressure as soon as practical after installing the spare tire, and adjust to the specified pressure. The tire pressure should be periodically checked and maintained at the speci- fied pressure while the tire is stored.

  • Page 187: If You Have A Flat Tire

    WHAT TO DO IN AN EMERGENCY D040B03O 4. Lift up the hanger and separate it from the holder, then lower the hanger and remove the spare tire. To reinstall the spare tire 1. Set the spare tire on the center of the hanger, and then raise the hanger and hook it onto the holder.
  • Page 188 If you nevertheless decide to equip your vehicle with any tire/wheel com- bination not recommended by Hyundai for off-road driving, you should not use these tires for high- way driving. D060B02O-AAT 1. Obtain Spare Tire and Tool...

  • Page 189: Raising The Car

    WHAT TO DO IN AN EMERGENCY D060D01A-AAT 3. Loosen Wheel Nuts HSM4018 The wheel nuts should be loosened slightly before raising the car. To loosen the nuts, turn the wrench handle coun- terclockwise. When doing this, be sure that the socket is seated completely over the nut so it cannot slip off.
  • Page 190 Raise the car high enough so that the fully inflated spare tire can be installed. To do this, you will need more ground clearance than is required to remove the flat tire. WARNING: Do not get under the car when it is supported by the jack! This is very dangerous as the vehicle could fall and cause serious injury or death.
  • Page 191 WHAT TO DO IN AN EMERGENCY WARNING: If there is, remove it. If there is not good contact on the mounting sur- face between the wheel and hub, the wheel nuts could come loose and cause the loss of a wheel. Loss of a wheel may result in loss of control of the vehicle.
  • Page 192 HSM4019 Then position the wrench as shown in the drawing and tighten the wheel nuts. Be sure the socket is seated com- pletely over the nut. Do not stand on the wrench handle or use an extension pipe over the wrench handle. Go around the wheel tightening every other nut until they are all tight.

  • Page 193: If Your Vehicle Must Be Towed

    TOWED D080A01O-GAT If your vehicle has to be towed, it should be done by your Hyundai dealer or a commercial tow truck service. This will help assure that your vehicle is not damaged in towing. Also, profes- sionals are generally aware of local laws gov- erning towing.
  • Page 194 1) If the vehicle is being towed with the rear wheels on the ground, be sure the parking brake is released. NOTE: Before towing, check the level of the auto- matic transaxle fluid. If it is below the "HOT" range on the dipstick, add fluid. If you cannot add fluid, a towing dolly must be used.

  • Page 195: Emergency Towing

    WHAT TO DO IN AN EMERGENCY CAUTION: o The 4WD vehicle should never be towed with the wheels on the ground. This can cause serious damage to the transaxle or the 4WD system. o When towing the vehicle, take care not to cause damage to the bumper or under- body of the vehicle.

  • Page 196: If You Lose Your Keys

    IF YOU LOSE YOUR KEYS D120A01A-AAT If you lose your keys, many Hyundai dealers can make you a new key if you have your key number. If you lock the keys inside your car and you cannot obtain a new key, many Hyundai dealers can use special tools to open the door for you.

  • Page 197: Corrosion Prevention & Appearance Care

    CORROSION PREVENTION & APPEARANCE CARE Corrosion Protection ... 4-2 To Help Prevent Corrosion ... 4-2 Washing and Waxing ... 4-3 Cleaning the Interior ... 4-5...

  • Page 198: Corrosion Protection

    By using the most advanced design and con- struction practices to combat corrosion, Hyundai produces cars of the highest quality. However, this is only part of the job. To achieve the long-term corrosion resistance your Hyundai can deliver, the owner's cooperation and assistance is also required.

  • Page 199: Keep Your Garage Dry

    Use a good quality car-washing solution and follow the manufacturer's directions on the package. These are available at your Hyundai dealer or auto parts outlet. Don't use strong household detergents, gasoline, strong solvents or abra- sive cleaning powders as these may damage the finish.

  • Page 200: Polishing And Waxing

    To protect the paintwork of the car against corrosion, you must clean your Hyundai (at least once a month). Give special attention to the removal of salt, mud and other sub- stances on the underside of the splashboards of the car.

  • Page 201: Cleaning The Interior

    Maintaining Bumpers Special precautions must be observed to pre- serve the appearance of the bumpers on your Hyundai. They are: o Be careful not to spill battery electrolyte or hydraulic brake fluid on the bumpers. If you do, wash it off immediately with clear water.

  • Page 202: Any Questions

    However, when cleaning the in- side of the rear window be careful not to damage the rear window defroster wiring. ANY QUESTIONS? E050A01A-AAT If you have any questions about the care of your car, consult your Hyundai dealer.
  • Page 203 VEHICLE MAINTENANCE REQUIREMENTS Maintenance Intervals ... 5-2 Scheduled Maintenance ... 5-4 Maintenance under Severe Usage Conditions ... 5-6 Explanation of Scheduled Maintenance Items ... 5-7...

  • Page 204: Vehicle Maintenance Requirements

    F010A01A-AAT Service Requirements To ensure that you receive the greatest number of miles of satisfying operation from your Hyundai, certain maintenance procedures must be per- formed. Although careful design and engineer- ing have reduced these to a minimum, those that are required are of the utmost importance.

  • Page 205: Do-It-Yourself Maintenance

    F010D02A-AAT General Checks These are the regular checks you should per- form when you drive your Hyundai or you fill the fuel tank. A list of these items will be found on page 6-5. F010E01A-AAT Do-It-Yourself Maintenance If you are mechanically inclined, own a few tools...

  • Page 206: Scheduled Maintenance

    VEHICLE MAINTENANCE REQUIREMENTS SCHEDULED MAINTENANCE F030A01A-AAT The following maintenance services must be performed to ensure good emission control and performance. Keep receipts for all vehicle emission services to protect your warranty. Where both mileage and time are shown, the frequency of service is determined by whichever occurs first. F030B02O-AAT R :Replace I : Inspect and, after Inspection, clean, adjust, repair or replace if necessary.
  • Page 207 F030C08O-AAT R : Replace I : Inspect and, after inspection, clean, adjust, repair or replace if necessary MILES X 1000 DESCRIPTION KILOMETERS X 1000 MONTHS GENERAL ITEMS DRIVE BELT 2.7 V6 (ALT, P/STR'G, A/CON) 3.5 V6 (ALT, P/STR'G, A/CON) COOLANT TIMING BELT AUTOMATIC TRANSAXLE FLUID BRAKE FLUID...

  • Page 208: Maintenance Under Severe Usage Conditions

    VEHICLE MAINTENANCE REQUIREMENTS MAINTENANCE UNDER SEVERE USAGE CONDITIONS F040A05O-AAT The following items must be serviced more frequently on cars normally used under severe driving conditions. Refer to the chart below for the appropriate maintenance intervals. R : Replace I : Inspect and, after inspection, clean, adjust, repair or replace if necessary MAINTENANCE ITEM ENGINE OIL AND FILTER AIR CLEANER FILTER...

  • Page 209: Explanation Of Scheduled Maintenance Items

    EXPLANATION OF SCHEDULED MAINTENANCE ITEMS F060M01A-AAT o Engine Oil and Filter The engine oil and filter should be changed at the intervals specified in the maintenance sched- ule. If the car is being driven in severe condi- tions, more frequent oil and filter changes are required.
  • Page 210 Use HYUNDAI GENUINE ATF SP III, DIAMOND ATF SP III, SK ATF SP III or other brands approved by Hyundai Motor Co., when adding or changing fluid. Using the wrong ATF may result in damage to the ATM.
  • Page 211 F070G02A-AAT o Brake Fluid Check brake fluid level in the brake fluid reser- voir. The level should be between "MIN" and "MAX" marks on the side of the reservoir. Use only hydraulic brake fluid conforming to DOT 3 or DOT 4. F070H01B-AAT o Rear Brake Pads and Linings/ Parking Brake...

  • Page 212: Do-It-Yourself Maintenance

    DO-IT-YOURSELF MAINTENANCE Engine Compartment ... 6-2 General Checks ... 6-4 Checking the Engine Oil ... 6-5 Changing the Oil and Filter ... 6-6 Checking and Changing the Engine Coolant ... 6-8 Spark Plugs ... 6-10 Changing the Air Cleaner Filter ... 6-11 Checking the Transaxle Fluid (Automatic) ...
  • Page 213 DO-IT-YOURSELF MAINTENANCE G010B01O-AAT (2.7 V6) 1. Coolant reservoir cap 2. Brake fluid reservoir 3. Air cleaner 4. Fuse and Relay box 5. Windshield washer fluid reservoir 6. Power steering fluid reservoir 7. Engine oil level dipstick 8. Radiator cap CAUTION: When inspecting or servicing the engine, you should handle tools and other heavy objects carefully so that the plastic cover of...
  • Page 214 G010C01O-AAT (3.5 V6) 1. Coolant reservoir cap 2. Engine oil filler cap 3. Brake fluid reservoir 4. Air cleaner 5. Fuse and Relay box 6. Windshield washer fluid reservoir 7. Power steering fluid reservoir 8. Radiator cap DO-IT-YOURSELF MAINTENANCE CAUTION: When inspecting or servicing the engine, you should handle tools and other heavy objects carefully so that the plastic cover of...

  • Page 215: General Checks

    Seat control condition and operation o Seat belt condition and operation o Sunvisor operation If you notice anything that does not operate correctly or appears to be functioning correctly, inspect it carefully and seek assistance from your Hyundai dealer if service is needed.

  • Page 216: Checking The Engine Oil

    CHECKING THE ENGINE OIL G030A01A-AAT Engine oil is essential to the performance and service of the engine. It is suggested that you check the oil level at least once a week in normal use and more often if you are on a trip or driving in severe conditions.

  • Page 217: Adding Oil

    DO-IT-YOURSELF MAINTENANCE G030D01O-AAT Adding Oil 2.7 V6 G030D02O 3.5 V6 G030D03O If the oil level is close to or below the "L" mark, add oil until it reaches the "F" mark. To add oil: 1. Remove the oil filler cap by turning it counter- clockwise.
  • Page 218 The engine oil and filter should be changed at those intervals specified in the maintenance schedule in Section 5. If the car is being driven in severe conditions, more frequent oil and filter changes are required. The procedure for changing the oil and filter is as follows: 1.

  • Page 219: Checking And Changing The Engine Coolant

    DO-IT-YOURSELF MAINTENANCE PROPOSITION 65 WARNING: Used engine oil may cause irritation or cancer of the skin if left in contact with the skin for prolonged periods of time. Used engine oil contains chemicals that have caused cancer in laboratory animals. Al- ways protect your skin by washing your hands thoroughly with soap and warm water as soon as possible after handling...

  • Page 220: To Check The Coolant Level

    "L" and "F". If the level is low, inspect for coolant leaks and recheck the fluid level frequently. If the level drops again, visit your Hyundai dealer for an inspection and diagnosis of the reason. G050D02A-AAT...

  • Page 221: Spark Plugs

    When spark plugs are replaced, always use spark plugs recommended by Hyundai. The use of other spark plugs can result in loss of perfor- mance, radio interference or engine damage.

  • Page 222: Changing The Air Cleaner Filter

    If the wipers continue to streak or smear the glass, replace them with genuine Hyundai re- placement parts or their equivalent. CAUTION: o Do not operate the wipers on dry glass.

  • Page 223: Filling The Washer Reservoir

    DO-IT-YOURSELF MAINTENANCE HHR5049 2. Raise the wiper blade lightly and pull up it. To install the wiper blade HHR5050 1. Put a new wiper blade onto the wiper arm and lower the wiper blade at the level of the wiper arm as shown in the drawing.

  • Page 224: Checking The Transaxle Fluid (Automatic)

    CAUTION: Use of aftermarket ATF additives may cause damage to the automatic transaxle. Only use HYUNDAI GENUINE ATF SP III, DIA- MOND ATF SP III, SK ATF SP III or other brands approved by Hyundai Motor Co., If you are having your vehicle serviced at a facility other than a Hyundai dealer, verify ATF is used for your vehicle.
  • Page 225 DO-IT-YOURSELF MAINTENANCE G110C01O-AAT Transaxle Fluid Capacity The fluid capacity of the automatic transaxle is 8.98 U.S. quarts (8.5 liters). WARNING: The transaxle fluid level should be checked when the engine is at normal operating temperature. This means that the engine, radiator, exhaust system etc., are very hot so you should exercise great care not to burn yourself during this procedure.

  • Page 226: Checking The Brakes

    Because brakes are essential to the safe operation of the car, it is suggested that they be checked and inspected by your Hyundai dealer. The brakes should be checked and inspected for wear at those intervals specified in the vehicle mainte- nance schedule in Section 5.

  • Page 227: Air Conditioning Care

    2. If the air coming out of the in-dash vents is not cold, have the air conditioning system inspected by your Hyundai dealer. CAUTION: Running the air conditioning system for extended periods of time with a low refrig- erant level may damage the compressor.

  • Page 228: Changing The Air Conditioner Filter

    Pressing with your finger, you should not be able to deflect this belt anymore than 1/3 of an inch. If the belt is too loose, have it adjusted by your Hyundai dealer. CHANGING THE AIR CONDITIONER FILTER...

  • Page 229: Checking The Free-Play

    Use very light finger pressure and be sensitive to changes in resistance that mark the limits of the free-play. If the free-play is greater than specified, have it inspected by your Hyundai dealer and adjusted or repaired if necessary.

  • Page 230: Brake Pedal

    This is the brake pedal free-play. The free-play should be within the limits speci- fied in the illustration above. If it is not, have it inspected by your Hyundai dealer and adjusted or repaired if necessary. CHECKING BRAKE PEDAL...

  • Page 231: Checking And Replacing Fuses

    If this ever happens, have a Hyundai dealer determine the cause, repair the system and replace the fusible link. The fusible links are located in a relay box in the engine compartment for easy inspection.
  • Page 232 The fuse should be a snug fit. If it is not, have the fuse clip repaired or replaced by a Hyundai dealer. If you do not have a spare fuse, you may be...

  • Page 233: Checking The Battery

    Hyundai dealer for diagnosis and repair. Never replace a fuse with anything except a fuse with the same or a lower amperage rating.

  • Page 234: Checking Electric Cooling Fans

    G210B03A-AAT Checking the Battery Keep the battery clean. Any evidence of corro- sion around the battery posts or terminals should be removed using a solution of house- hold baking soda and warm water. After the battery terminals are dry, cover them with a light coating of grease.

  • Page 235: Headlight Aiming Adjustment

    YOUR HYUNDAI If you desire additional information about main- taining and servicing your Hyundai, you may purchase a factory Shop Manual at your Hyundai dealer's parts department. This is the same manual used by dealership technicians and while it is highly technical it can be useful in obtaining a better understanding of your car and how it works.

  • Page 236: Specification

    7. Adjust each cut-off line of the low beam to the parallel line with a phillips screwdriver - VERTICAL AIMING. WARNING: Horizontal aiming should be adjusted by an authorized Hyundai dealer. G290B01O-AAT Adjustment After Headlight Assembly Replacement Vertical line Horizontal line "P"...

  • Page 237: Replacement Of Light Bulbs

    DO-IT-YOURSELF MAINTENANCE REPLACEMENT OF LIGHT BULBS G260A02A-AAT Before attempting to replace a light bulb, be sure the switch is turned to the "OFF" position. The next paragraph shows how to reach the light bulbs so they may be changed. Be sure to replace the burned-out bulb with one of the same number and wattage rating.
  • Page 238 6. Turn the plastic cover counterclockwise and remove it. HSM329 7. Disconnect the connector from the bulb base in the back of the headlight. HSM330 8. Push the bulb spring to remove the headlight bulb. DO-IT-YOURSELF MAINTENANCE HSM331 9. Remove the protective cap from the re- placement bulb and install the new bulb by matching the plastic base with the headlight hole.
  • Page 239 DO-IT-YOURSELF MAINTENANCE HSM332 12.To replace the front turn signal light bulb, remove from the bulb holder and install the new bulb. Do not touch the glass of the new bulb. G270A03O WARNING: This halogen bulb contains gas under pres- sure and if impacted could shatter, result- ing in flying fragments.
  • Page 240 1. Open the tail gate. 2. Remove the mounting screws of the rear combination light as shown with a phillips screwdriver. G270B03O 3. To replace the rear combination light, take it out from the bulb holder by turning it coun- terclockwise.

  • Page 241: Front Side Marker Light

    DO-IT-YOURSELF MAINTENANCE G270E01O-AAT Front Side Marker Light HSM334 1. Remove the cover with a phillips screw- driver. HSM335 2. Disconnect the connector. HSM336 3. Replace with a new bulb. G270G01O-AAT Interior Light HSM343 1. Remove the cover with a flat-head screw- driver.
  • Page 242 HSM344 2. Replace with a new bulb. G270H01O-AAT Glove Box Illuminated Light HSM366 1. Open the glove box. 2. Remove the cover with a flat-head screw- driver. DO-IT-YOURSELF MAINTENANCE G270E02L 3. Disconnect the connector. HTB284 4. Replace with a new bulb.

  • Page 243: Bulb Wattage

    DO-IT-YOURSELF MAINTENANCE BULB WATTAGE G280A03O-AAT Part Name Glove Box Illuminated Light Headlight (Low/High) Turn Signal Light/Front Position Light With sunroof Map Light Without sunroof Interior Light Front Fog Light (If installed) Side Marker Light Wattage Socket type S8.5/8.5 Front Door Edge Warning Light (If installed) 55/60 P43t Luggage Compartment Light...

  • Page 244: Fuse Panel Description

    FUSE PANEL DESCRIPTION G200C02O-AAT Engine Compartment G200C01O NOTE: Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label. FUSE DESCRIPTION RATING...

  • Page 245: Inner Panel

    DO-IT-YOURSELF MAINTENANCE G200E01O-AAT Inner Panel G200E01O-A FUSE FUSE PROTECTED COMPONENTS RATING Cigarette lighter & Power outlet Audio, Power outside mirror Digital clock, Rear power outlet Cruise control Head lamp relay Seat warmer Rear wiper motor control Rear window defogger, Power outside mirror A/C control, Sunroof controller, Electrical chrome mirror (Not used) Room lamp, Door warning switch, Door lamp, Manual A/C control, Homelink controller...

  • Page 246: Emission Control Systems

    EMISSION CONTROL SYSTEMS Emission Control System ... 7-2 EGR System ... 7-3 Catalytic Converter ... 7-3...

  • Page 247: Emission Control System

    In order to assure the proper function of the emission control systems, it is recommended that you have your car inspected and main- tained by an authorized Hyundai dealer in ac- cordance with the maintenance schedule in this manual. Caution for the Inspection and Maintenance...

  • Page 248: Egr System

    CATALYTIC CONVERTER H020A01A-AAT Catalytic Converter H020A01O All Hyundai vehicles are equipped with a mono- lith type three-way catalytic converter to re- duce the carbon monoxide, hydrocarbons and nitrogen oxides contained in the exhaust gas. Exhaust gases passing through the catalytic converter cause it to operate at a very high temperature.
  • Page 249 EMISSION CONTROL SYSTEMS WARNING: o Do not stop your Hyundai over any com- bustible material such as grass, paper, leaves or rags. These materials might contact the hot catalytic converter and a fire might result.

  • Page 250: Consumer Information, Reporting Safety Defects

    Tire Traction ... 8-10 When to Replace Tires ... 8-10 Tire Maintenance ... 8-11 Spare Tire and Tools ... 8-11 Warranties for Your Hyundai Vehicle ... 8-12 Consumer Information ... 8-12 Reporting Safety Defects ... 8-15 Binding Arbitration of Warranty Claims ... 8-15...

  • Page 251: Vehicle Identification Number (Vin)

    TIRES I020A02A-AAT TIRE INFORMATION The tires supplied on your new Hyundai are chosen to provide the best perfor- mance for normal driving. If you ever have questions about your tire warranty and where to obtain ser-...

  • Page 252: Recommended Inflation Pressures

    I030A01JM-AAT RECOMMENDED INFLATION PRES- SURES I030A01O Tire label located on the driver's side of the center pillar outer panel gives the cold tire pressures recommended for your vehicle with the original tire size, the number of people that can be in your vehicle and vehicle capacity weight.

  • Page 253: Checking Tire Inflation Pressure

    CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS o Check the pressure of your spare tire each time you check the pres- sure of other tires. o Never overload your vehicle. Be especially careful about overload- ing if you equip your vehicle with a luggage rack.
  • Page 254 1. Manufacturer or Brand name o Manufacturer or Brand name is shown. 2. Tire size (example: P225/70R16 101T) o The "P" indicates the tire is de- signed for passenger vehicles. o Three-digit number (225): This num- ber gives the width in millimeters of the tire from sidewall edge to sidewall edge.

  • Page 255: Tire Terminology And Definitions

    CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS 6. Maximum load rating This number indicates the maximum load in kilograms and pounds that can be carried by the tire. When replacing the tires on the vehicle, always use a tire that has the same load rating as the factory installed tire.

  • Page 256: Maximum Loaded Vehicle Weight

    Intended Outboard Sidewall: The side of an asymmetrical tire, that must al- ways face outward when mounted on a vehicle. Kilopascal (kPa): The metric unit for air pressure. Load Index: An assigned number rang- ing from 1 to 279 that corresponds to the load carrying capacity of a tire.

  • Page 257: All-Season Tires

    I040B01JM-AAT ALL SEASON TIRES Hyundai specifies all season tires on some models to provide good perfor- mance for use all year round, including snowy and icy road conditions. All sea- son tires are identified by ALL SEASON and/or M+S (Mud and Snow) on the tire sidewall.

  • Page 258: Tire Chains

    (12,000 km). If you notice that tires are wearing unevenly between ro- tations, have the car checked by a Hyundai dealer so the cause may be corrected. After rotating, adjust the tire pressures and be sure to check wheel nut torque.

  • Page 259: Tire Traction

    If you replace radial tires with bias- ply tires, they must be installed in sets of four. o Wheels that do not meet Hyundai's dimensional specifications may fit poorly and result in damage to the vehicle, including broken...

  • Page 260: Tire Maintenance

    Additionally, a tire shoud always be rebalanced if it is removed from the wheel. SPARE TIRE AND TOOLS I100A02E-AAT D060B01O Your Hyundai is delivered with the fol- lowing: Spare tire and wheel Wheel nut wrench, Wrench bar Jack...

  • Page 261: Shop Manual

    CONSUMER INFORMATION, REPORTING SAFETY DEFECTS & BINDING ARBITRATION OF WARRANTY CLAIMS I110A01A-AAT SHOP MANUAL A Hyundai Shop Manual is available from your authorized Hyundai dealer. It's written for pro- fessional technicians, but is simple enough for most mechanically-inclined owners to under- stand.
  • Page 262 I130B04A-AAT Tire Quality Grading Department of Transportation quality grades - All passenger vehicle tires must conform to Federal Safety Stan- dards in addition to these grades. These quality grades are molded on the sidewall. Treadwear - The treadwear grade is a comparative rating based on the wear rate of the tire when tested under con- trolled conditions on a specified gov-...
  • Page 263 For example : Treadwear 200 Traction AA Tempera- ture A I130D03A-AAT Hyundai motor vehicles are designed and manu- factured to meet or exceed all applicable safety standards. For your safety, however, we strongly urge you to read and follow all directions in this Owner's Manual, particularly the information under the headings "NOTE", "CAUTION"...

  • Page 264: Reporting Safety Defects

    You will not be responsible for paying filing and hearing fees above $275.00. All other arbitration costs shall be borne by Hyundai Motor America. You are not responsible to pay any of the costs Hyundai incurs. This Binding Arbitration Agreement shall not deprive you of any remedies avail- able to you under applicable law.

  • Page 270: Index

    INDEX...
  • Page 271 Fluid ... 6-15 Pedal clearance ... 6-29 Pedal free-play ... 6-19 Practices ... 2-19 Breaking-In your New Hyundai ... 1-3 Care of Cassette Tapes ... 1-135 Care of Discs ... 1-135 Cargo Security Screen ... 1-81 Catalytic Converter ... 7-3 Center Console Box ...
  • Page 272 Corrosion protection Cleaning the interior ... 4-5 Protecting your Hyundai from corrosion ... 4-2 Washing and waxing ... 4-3 Cruise Control ... 1-89 Defrosting / Defogging ... 1-101 Door Central door locks ... 1-7 Door locks ... 1-4 Front door edge warning light ... 1-88 Locking, unlocking front door with a key ...
  • Page 273 INDEX General Checks ... 6-4 Glove Box ... 1-72 Hazard Warning System ... 1-62 Heating and Cooling Control ... 1-92 Heating and Ventilation Air flow control ... 1-94 Air intake control switch ... 1-93 Bi-level heating ... 1-98 Defrosting / Defogging ... 1-101 Fan speed control (Blower control) ...
  • Page 274 Rear Seat Adjusting seatback angle ... 1-17 Folding rear seatback and seat cushion ... 1-17 Rear Window Defroster Switch ... 1-62 Reporting Safety Defects ... 8-15 Risk of Rollover ... 2-3 Roof Rack ... 1-83 Seat Front ... 1-12 Rear ... 1-17 Seat warmer ...
  • Page 275 INDEX Transaxle Automatic ... 2-6, 2-19 Automatic transaxle fluid checking ... 6-13 Trip Computer ... 1-55 Vehicle Identification Number ... 8-2 Vehicle Load Limit ... 2-37 Vehicle Specifications Engine ... 9-3 Lubrication chart ... 9-4 Measurement ... 9-2 Warning and Indicator Lights ... 1-48 Windows Power ...
  • Page 276 A000A01A-AAT This Owner's Manual should be considered a part of the car and remain with it when it is sold for the use of the next owner. ORIGINAL OWNER ADDRESS CITY DELIVERY DATE DEALER NAME ADDRESS CITY OWNER'S I.D. STATE ZIP CODE (Date Sold to Original Retail purchaser) DEALER NO.
  • Page 277 Apply the parking brake, with the engine running, shift the selector lever through all ranges and return to “N” (Neutral) position. Then check the level of fluid on the dipstick. Use only HYUNDAI GENUINE ATF SP III, DIAMOND ATF SP III, SK ATF SP III or other brands approved by Hyundai Motor Co.,...

This manual is also suitable for:

Santa fe 2005

Table of Contents

Save PDF
