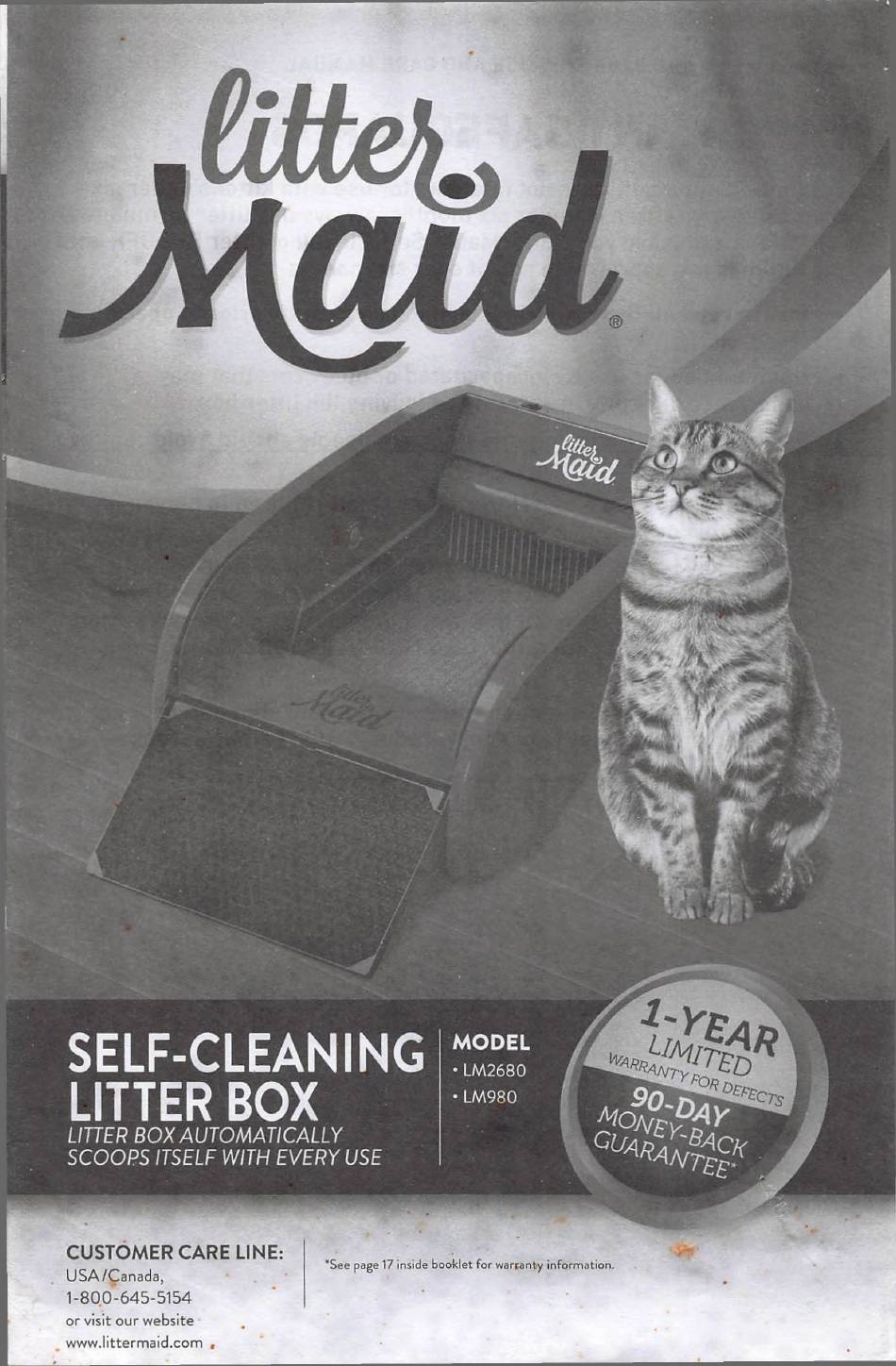

- Page 1 SELF-CLEANING LITTER BOX UTTER BOX AUTOMATICALLY SCOOPS ITSELF WITH EVERY USE CUSTOMER CARE LINE ： *See page 17 inside booklet for warranty information. USA/Canada, 645-5154 or visit our website www.littermaid.com «...
- Page 2 Clumping litter is not intended for use with kittens under six ： months. If your kitten is under six months, always use litter formulated for kittens and leave your LitterMaid® Self-Cleaning Utter Box OFF until the kitten is the appropriate age of over six months. •...
- Page 3 WELCOME TO THE FAMILY! Thank you for purchasing a LitterMaid® Self-Cleaning Litter Box! This Use & Care manual will provide useful information on operating and maintaining your litter box, finding accessories and troubleshooting for common issues. In addition to this Use & Care manual, our website also provides expanded information on a number of topics.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Page Section Gelling to Know Your LilterMaid® Litter Box ： • Litter Box Parts • Control Panel • Accessories Selecting Litter Acclimating Your Cat How to Use • Getting Started • Preparing the Waste Receptacle • Filling the Litter Tray •... -
Page 5: Litter Box Parts

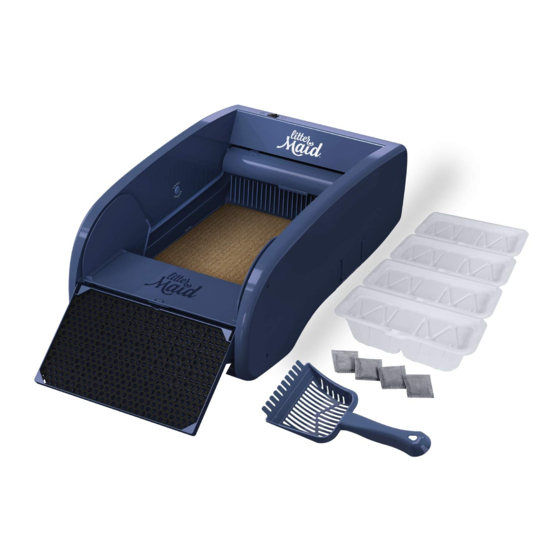

GETTING TO KNOW YOUR LITTERMAID® LITTER BOX Product may vary slightly from what is illustrated. UTTER BOX PARTS 1. LED Indicator Light 6. Motion Sensors (both sides) Indicates the current mode of litter Activate the cleaning cycle. box (see MODE INDICATOR GHT for 니... -
Page 6: Control Panel
CONTROL PANEL Green POWER Indicator Light Mode Light Litter box is in NORMAL operation mode. Constant light Litter box has activated CLEANING mode. Intermittent blinking (blinks once every second) Red Indicator Light Mode Light Litter box has stalled and is in BLOCK Intermittent banking (blinks mode. -
Page 7: Accessories
ACCESSORIES 1. AC Adapter Plug AC adapter into household outlet and connect DC jack to connection in back of litter box. 2. Scoop & Rake Cleaner Use to clean the automatic rake, assist in measuring the litter level and for daily spot maintenance. -
Page 8: Selecting Litter
Some cats are finicky when it comes to their litter box area. In some cases, your cat may need to get used to its LitterMaid® Self-Cleaning Litter Box, which means you will need to acclimate your cat before removing your old box. -
Page 9: How To Use
1. Unpack all parts and accessories listed in the LITTER BOX PARTS section of this Use & Care manual. If applicable, remove any stickers. 2. Find a location for your LitterMaid® Self-Cleaning Litter Box in a clean, dry place. Notes For optimal performance, do not place your LitterMaid Self-Cleaning Litter Box in a moist environment or in direct sunlight. -
Page 10: Filling The Litter Tray
FILLING LITTER TRAY 1. Fill your box so the litter level is between the MIN and MAX fill lines on either side of the litter box (C). 2. Use the scoop & rake cleaner to evenly distribute litter in the litter tray. To measure litter at the center of the box, insert ：... -
Page 11: Care & Cleaning
Rake will stop and reverse direction if the safety bar touches any Note ： object behind the rake as it cycles. Important If the rake encounters a blockage, it will attempt to complete ： its cleaning cycle five times. If unsuccessful, the rake will return to the home position and the LED light will blink quickly to indicate FAULT mode (see TROUBLESHOOTING for more details). -
Page 12: Weekly Cleaning
WEEKLY CLEANING Paw Cleaning Ramp The paw cleaning ramp is designed to remove Note ： litter from your cat's paws as it exits the litter box. 1. Grasp the ramp on either side near the attachment points and lift up gently. 2. -
Page 13: Rake Removal & Cleaning
Rake Removal & Cleaning The rake is removable for thorough cleaning. For quick cleaning, you can Note ： simply use the teeth on the scoop & rake cleaner to clean between the teeth of the rake. 1. To remove the rake for cleaning, move the ON/OFF/CLEAN switch to CLEAN position. -
Page 14: Litter Tray Cleaning
Litter Tray Cleaning Note It is not necessary to clean the tray each time you refill. Litter tray ： cleaning is recommended once a month. 1. To remove the litter tray for cleaning, check to make sure the rake is in home position. -
Page 15: Troubleshooting
TROUBLESHOOTING 상 See FAQ on littermaid.com Problem Possible Cause Solution Litter box is in FAULT Turn the ON/OFF/CLEAN Red indicator light blinks twice mode. The rake has switch to OFF and unpl 니 quickly every enco ntered a blockage - nit. - Page 16 Problem Possible Cause Solution Litter tray surface Clean litter tray as Waste clumps stick may need cleaning. instructed in THOROUGH to the CLEANING. litter tray. Litter box is not Check to be sure that Mode indicator receiving power. the unit is plugged into light does not a working outlet.
-
Page 17: Need Help
NEED HELP? For service, repair or any questions regarding your appliance, call 1-800-645-5154 「visit www.littermaid.com. Do not return the product 〇 to the place of purchase. Do not mail the product back to the manufacturer or bring it to a service center. - Page 18 Spectrum Brands Pet LLC 3001 Commerce St., Blacksburg, VA 24060 Made in China 17-30860 ®/TM/© 2018 Spectrum Brands, Inc. or one of its affiliates...
