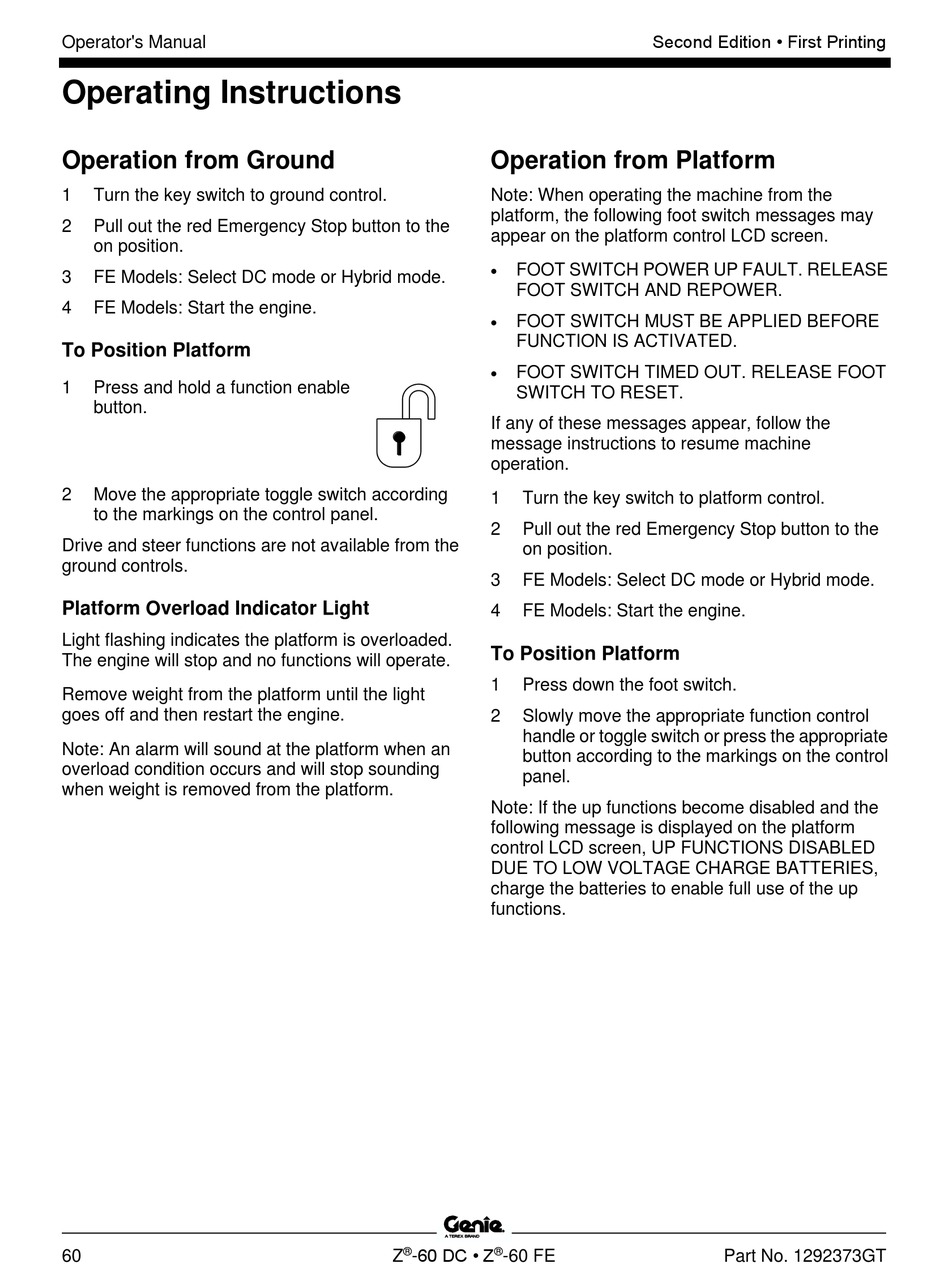

Operator's Manual
Operating Instructions
Operation from Ground
1 Turn the key switch to ground control.
2 Pull out the red Emergency Stop button to the
on position.
3 FE Models: Select DC mode or Hybrid mode.
4 FE Models: Start the engine.
To Position Platform
1 Press and hold a function enable
button.
2 Move the appropriate toggle switch according
to the markings on the control panel.
Drive and steer functions are not available from the
ground controls.
Platform Overload Indicator Light
Light flashing indicates the platform is overloaded.
The engine will stop and no functions will operate.
Remove weight from the platform until the light
goes off and then restart the engine.
Note: An alarm will sound at the platform when an
overload condition occurs and will stop sounding
when weight is removed from the platform.
60
Operation from Platform
Note: When operating the machine from the
platform, the following foot switch messages may
appear on the platform control LCD screen.

FOOT SWITCH POWER UP FAULT. RELEASE
FOOT SWITCH AND REPOWER.

FOOT SWITCH MUST BE APPLIED BEFORE
FUNCTION IS ACTIVATED.

FOOT SWITCH TIMED OUT. RELEASE FOOT
SWITCH TO RESET.
If any of these messages appear, follow the
message instructions to resume machine
operation.
1 Turn the key switch to platform control.
2 Pull out the red Emergency Stop button to the
on position.
3 FE Models: Select DC mode or Hybrid mode.
4 FE Models: Start the engine.
To Position Platform
1 Press down the foot switch.
2 Slowly move the appropriate function control
handle or toggle switch or press the appropriate
button according to the markings on the control
panel.
Note: If the up functions become disabled and the
following message is displayed on the platform
control LCD screen, UP FUNCTIONS DISABLED
DUE TO LOW VOLTAGE CHARGE BATTERIES,
charge the batteries to enable full use of the up
functions.
