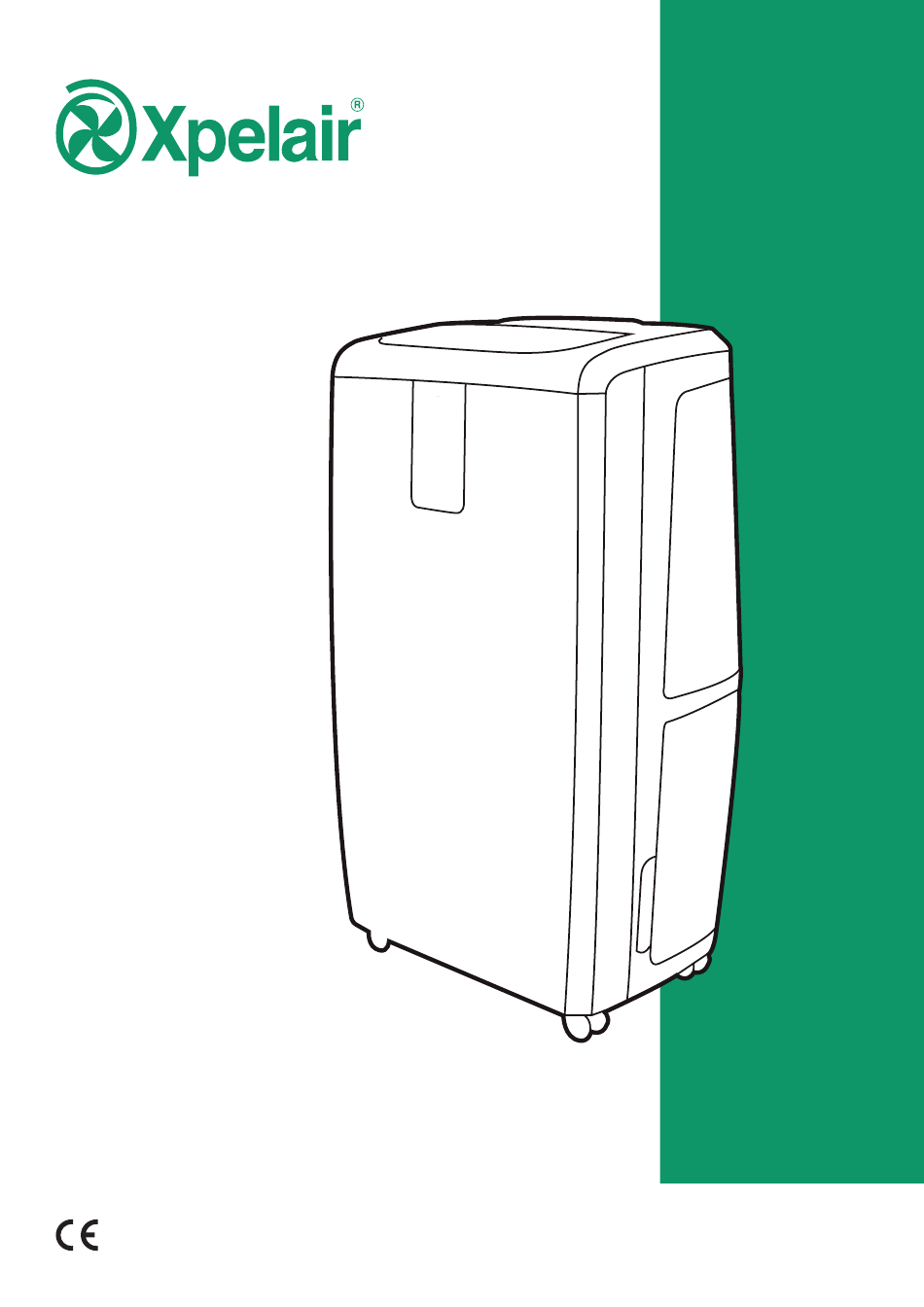

Instruction Manual
XPDH16T / 20T
Models:
For domestic household use only.
These products fully comply with all current European Safety Standard requirements
for Dehumidifiers and are fully compliant with the Low Voltage Directive 2014/35/EU,
the EMC Directive 2014/30/EU and the RoHS Directive 2015/863/EU.
XPDH20UKIM ISSUE: 1 Series: A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Xpelair XPDH16T
Summary of Contents for Xpelair XPDH16T
- Page 1 Instruction Manual XPDH16T / 20T Models: For domestic household use only. These products fully comply with all current European Safety Standard requirements for Dehumidifiers and are fully compliant with the Low Voltage Directive 2014/35/EU, XPDH20UKIM ISSUE: 1 Series: A the EMC Directive 2014/30/EU and the RoHS Directive 2015/863/EU.
- Page 2 NB These symbols on your device mean: • This appliance is filled with Propane gas R290. Follow strictly the manufacturer’s instruction concerning use and repairs! • Before using this appliance, you must carefully read the entire instruction manual. • Do not install, operate or store the device in a room with a floor area smaller than 7m for 16L/20L models.
- Page 3 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND / OR DAMAGE AND MAY INVALIDATE YOUR GUARANTEE Please read the operating instructions carefully before using your dehumidifier for the first time and keep them in a safe place.
- Page 4 Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it • has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
- Page 5 IMPORTANT: Do not use this unit where the ambient temperature is lower than 5 C, otherwise the • evaporating coil will ice up heavily and this will affect the performance of the product and potentially cause a malfunction. NEVER drop or insert any object into any openings. •...
- Page 6 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children If an extension Where the power may be left unattended lead may become cable may be damaged overload On a slope or Where there is risk Where it may be uneven surface...
-
Page 7: Specification
Specification Model no. XPDH16T XPDH20T Max Dehumidification capacity at 30°C, 80% 16L/day 20L/day Max Dehumidification capacity at 21°C, 59% 6.8L/day 8L/day Max Dehumidification capacity at 10°C, 59% 1.66L/day 2.8L/day Working range 5 ~ 32°C Water tank Size (WxDxH) 310 x 236 x 553 mm N.W. -
Page 8: How It Works
Quick start/ First time operation 1. Before switching on for first time please ensure unit has settled for 12 hours. 2. Please remove ‘carbon filter’ from its bag and locate between the anti- dust filter and air inlet on the body of the product (make sure carbon filter is lined up properly with guide locators on the air inlet). -
Page 9: Where To Position
Where To Position Excess moisture will travel throughout your home, in the same way that cooking smells waft to every room in the house. For this reason, the dehumidifier should be positioned, so that it can draw this moist air towards it from all over the home. -
Page 10: Control Panel
Control Panel TEMP AIR CLEAN TIMER 1. Humidity setting button 9. High ventilation indicator 2. Working mode indicator (continuous working, 10. Speed/Ventilation selection button humidity 40%, 50%, 60%, 70%) 11. Low fan speed setting 3. Humidity/Temperature display 12. Power indicator 4. -
Page 11: Operation
Operation 1. Plug the unit into a correct mains socket. (Please refer to the rating label at the rear of the unit for correct voltage/frequency.) 2. Press ON/OFF button to turn on the unit. The compressor will start to work. 3. -
Page 12: Continuous Drainage
Drainage While the water tank is full, the compressor will stop for self-protection and the water tank full indicator light will turn red. To move the water tank, pull it out squarely from the unit. After emptying the water tank, place the water tank carefully back into its location into space. The tank must be properly located in order for the ‘water full’... -
Page 13: Maintenance
Maintenance Always unplug the unit from the mains before carrying out any maintenance or cleaning of the unit. CLEANING THE BODY Use a soft damp cloth to wipe the unit clean. Don’t ever use volatile chemicals, gasoline, detergents, chemically treated clothes, or other cleansing solutions. -
Page 14: Troubleshooting
Troubleshooting THE UNIT DOES NOT OPERATE: • Is the unit plugged in? • Is the house electricity on? • Is the room temperature below 5°C or above 32°C? If so, then it is out of the working range of the unit. •... - Page 15 If you are a consumer and you experience a problem with your Xpelair product, which is found to be defective due to faulty materials or workmanship within the guarantee period, this Xpelair guarantee will cover repair or - at the discretion of Xpelair –...
-
Page 16: Terms And Conditions
You must provide to Xpelair or its authorised agents on request the original receipt as proof of purchase and - if required by Xpelair - proof of delivery. If you are unable to provide this documentation, you will be required to pay for any repair work required.
