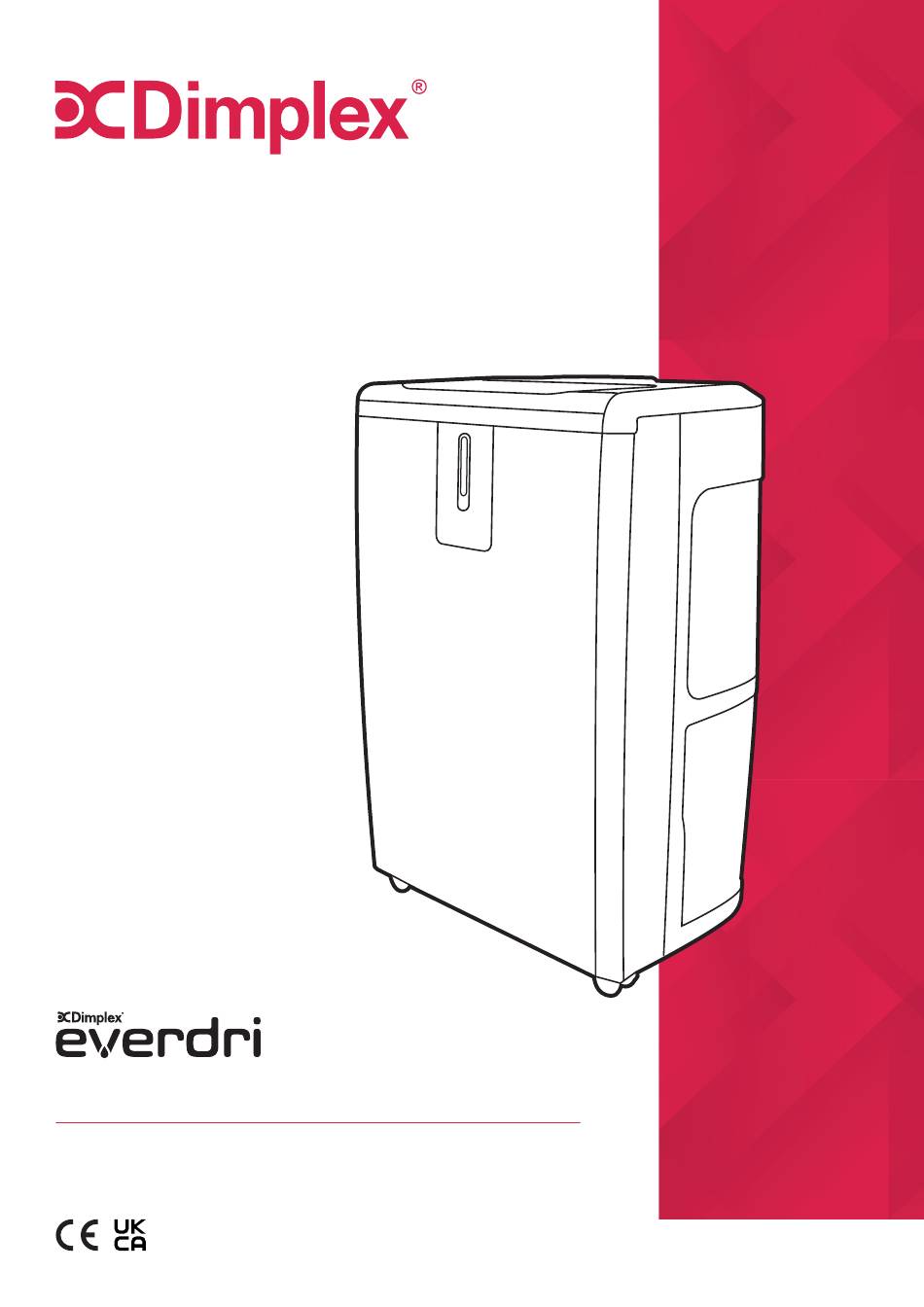

INSTRUCTION MANUAL
Models: 10/14 E and EL
For domestic household use only.
These products fully comply with all current European Safety Standard requirements
for Dehumidifiers and are fully compliant with the Low Voltage Directive 2014/35/EU,
the EMC Directive 2014/30/EU and the RoHS Directive 2015/863/EU.
08/80070/0
ISSUE: 5
Series: A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Xpelair everdri 10 E
Summary of Contents for Xpelair everdri 10 E
- Page 1 INSTRUCTION MANUAL Models: 10/14 E and EL For domestic household use only. These products fully comply with all current European Safety Standard requirements for Dehumidifiers and are fully compliant with the Low Voltage Directive 2014/35/EU, 08/80070/0 ISSUE: 5 Series: A the EMC Directive 2014/30/EU and the RoHS Directive 2015/863/EU.
- Page 2 NB These symbols on your device mean: • This appliance is filled with Propane gas R290. Follow strictly the manufacturer’s instruction concerning use and repairs! • Before using this appliance, you must carefully read the entire instruction manual. • Do not install, operate or store the device in a room with a floor area smaller than for 10L models, and 7m for 14L models.
- Page 3 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/OR DAMAGE AND MAY INVALIDATE YOUR GUARANTEE Please read the operating instructions carefully before using your dehumidifier for the first time and keep them in a safe place.
- Page 4 DO NOT cover cord with carpeting, throw rugs, runners, or similar coverings. • DO NOT route cord under furniture or appliances. Take care to position the cord away • from traffic areas and where it will not be a tripping hazard. DO NOT COVER.
- Page 5 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children If an extension Where the power may be left unattended lead may become cable may be overload damaged On a slope or Where there is risk Where it may be uneven surface...
-
Page 6: Specification
Specification Model no. Max Dehumidification capacity at 30°C, 80% 10L/day 14L/day Max Dehumidification capacity at 21°C, 59% 3.3L/day 4.7L/day Max Dehumidification capacity at 10°C, 59% 1.5L/day 1.5L/day Working range 5 ~ 32°C Water tank 2.5 L Size (WxDxH) 300 x 204 x 459 mm N.W. -
Page 7: How It Works
Quick start/ First time operation 1. Before switching on for first time please ensure unit has settled for 12 hours. 2. Please remove ‘carbon filter’ from its bag and locate between the anti- dust filter and air inlet on the body of the product (make sure carbon filter is lined up properly with guide locators on the air inlet). -
Page 8: Where To Position
Where To Position Excess moisture will travel throughout your home, in the same way that cooking smells waft to every room in the house. For this reason, the dehumidifier should be positioned, so that it can draw this moist air towards it from all over the home. Alternatively, if you have a serious problem in one area you can begin by positioning the dehumidifier close to this area and later moving it to a more central point. - Page 9 Comfort Humidity Light (EverDri14EL) Blue light - room humidity > 70% (too moist) Green light - room humidity 50~70% (Just right) Red light - room humidity < 50% (Too dry) Red light flashing - water tank full / tank not inserted correctly EverDri14EL features a Comfort Humidity light on the front panel of the product.
- Page 10 Control Panel and Operation (EverDri10E & EverDri14EL) 1. Power indicator 2. ON/OFF (power) button 3. Water tank “Full” indicator 4. Humidity setting button 5. Working mode indicator (continuous working, humidity 40%, 50%, 60%, 70%) 6. Timer operation indicator 7. Timer button Steps: 1.
- Page 11 Drainage While the water tank is full, the compressor will stop for self-protection and the water tank full indicator light will turn red. To move the water tank, pull it out squarely from the unit. After empting the water tank, place the water tank carefully back into its location into space.
-
Page 12: Maintenance
Maintenance Always unplug the unit from the mains before carrying out any maintenance or cleaning of the unit. CLEANING THE BODY Use a soft damp cloth to wipe the unit clean. Don’t ever use volatile chemicals, gasoline, detergents, chemically treated clothes, or other cleansing solutions. -
Page 13: Troubleshooting
Troubleshooting THE UNIT DOES NOT OPERATE: • Is the unit plugged in? • Is the house electricity on? • Is the room temperature below 5°C or above 32°C? If so, then it is out of the working range of the unit. •... -
Page 14: Spare Parts
Recycling Recycling: For electrical products sold within the European Community. At the end of the electrical products useful life it should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice in your country. - Page 15 Guarantee What does a Dimplex Guarantee cover? Dimplex products deliver reliable service for normal, household use in domestic settings. All Dimplex products are individually tested before leaving the factory. If you are a consumer and you experience a problem with your Dimplex product, which is found to be defective due to faulty materials or workmanship within the guarantee period, this Dimplex guarantee will cover repair or - at the discretion of Dimplex –...
-
Page 16: Terms And Conditions
Terms and Conditions The Dimplex guarantee is valid for 1 calendar year, plus 2 if registered, from the date of purchase of your Dimplex product from a recognised retailer in the country of purchase and use, or the date of delivery of the product if later, always provided the original receipt has been retained and is produced as proof of purchase.
