U-Line S-12741 Installation

S-12741, S-12742, S-12743
π
S-12744, S-12745, S-14117
S-14118, S-21920, S-21921

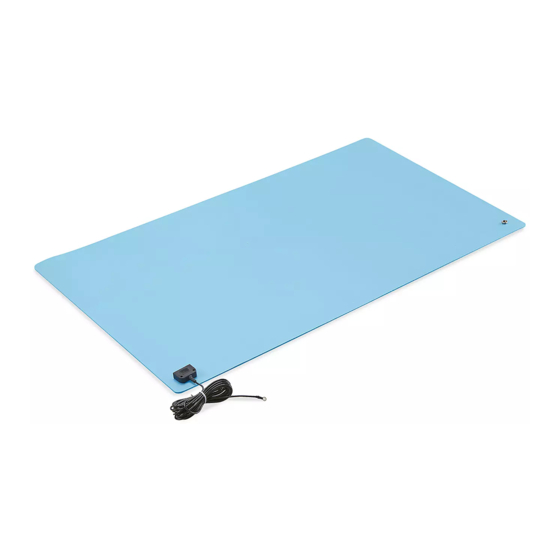

ANTI-STATIC
TABLE MAT
1. Fasten the ground cord to the most convenient
snap fastener.
2. Unwind just enough ground cord to reach a suitable
building ground. A ground cord can be fastened
to a grounded wall outlet first by shutting off the
power to such outlet and then removing the cover
plate and attaching to one of the screws holding the
receptacle box. Remove only one screw.
NOTE: Do not remove receptacle from the box.
For personnel unfamiliar with making electrical
connections, it is recommended that the
ground connections be done by an electrician.
π
PAGE 1 OF 3 CHICAGO • ATLANTA • DALLAS • LOS ANGELES • MINNEAPOLIS • NYC/PHILA • SEATTLE • MEXICO • CANADA
1-800-295-5510
uline.com
INSTALLATION
3. It is important to make proper ground connections
to prevent personal shock in the unlikely event that
the mat is accidentally electrified. Use only cords
supplied with the mat. Take care not to short-circuit
the ground cord or floor mat by bringing the mat into
contact with a hard ground.
4. Installation is now complete.
Pour le français, consulter la page 3.
NOTE: Electrical continuity should be checked
between the table mat snap terminal and
ground.
Para Español, vea página 2.
0617 IS-12741
