U-Line H-5501 Instructions

π
H-5501

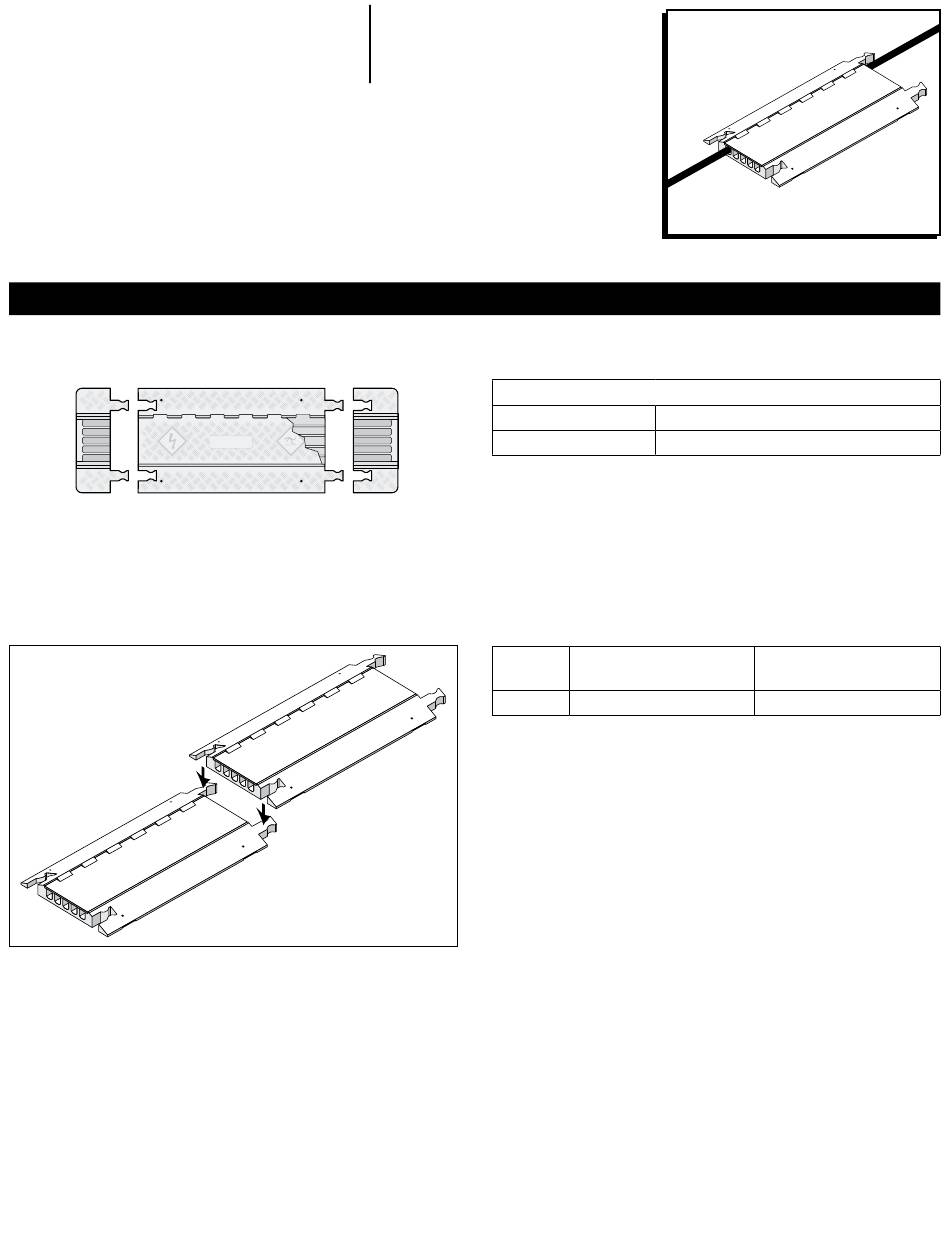

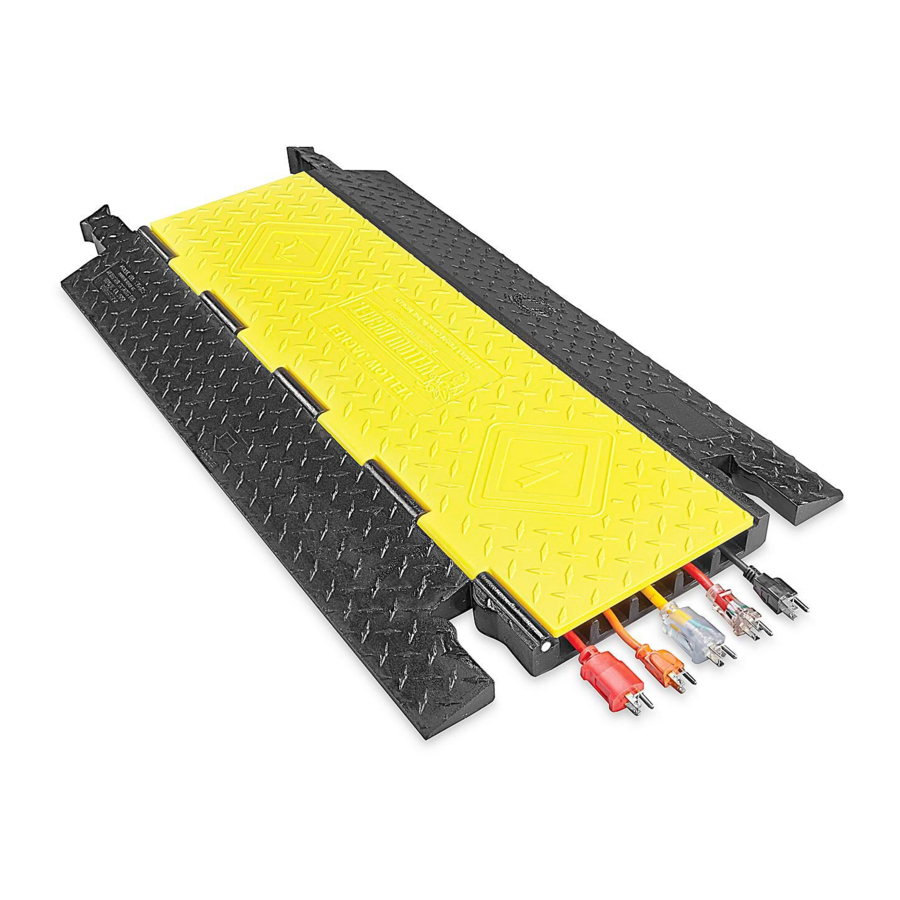

HEAVY DUTY 5 CHANNEL
CABLE PROTECTOR

COMPONENTS

End Cap 36" Lineal Protector

ASSEMBLY

Interlock with dog-bone connectors to extend
protection length. (See Figure 1)
Figure 1
• Inspect areas for safety hazards.
• Assemble sections by aligning female connectors
over male connectors and press with foot to secure.
• Open cover and install cables down into channels.
• Close cover flush with base.
• Test installation for intended use.
• Periodically inspect installation.
PAGE 1 OF 2
1-800-295-5510
uline.com
INSTRUCTIONS

CHANNEL CAPACITY

4 Outer Channels
Center Channel

LOAD CAPACITY

End Cap
The Heavy Duty 5 Channel Cable Protector has different
load supporting capabilities depending on type of
vehicle and temperature. The load capacity decreases
in warm environments. Test before use and inspect
periodically. Suitability must be verified by testing under
actual conditions.
MODEL
NO.
H-5501

OPERATING TEMPERATURE

-40° to 120°F (-40° to 48°C)

CHEMICAL RESISTANCE

Tested for compatibility with common motor oils,
gasoline and diesel fuel. Limited resistance to brake
fluids and other chemicals.

MATERIAL

UV-stabilized polyurethane elastomer.
CHANNEL CAPACITY - MAXIMUM DIAMETER
1.375" width x 1" height
1.65" width x 1" height
LOAD CAPACITY PER TIRE
MAX LOAD 70°F (21°C)
16,300 lbs.
LOAD CAPACITY PER AXLE
MAX LOAD 70°F (21°C)
32,600 lbs.
1115 IH-5501
