Page 3: Table Of Contents
Content Attention ....................2 I. Brief introduction ................. 4 II. Electrical Symbol ................4 III. Technical Specification ..............4 IV. Instrument Structure ................. 6 V. Instrument Operation................. 6 1. boot up, shutdown ................. 6 2. Manual / automatic switch ............6 3. -
Page 4: Attention
Attention Thank you for purchasing ETCR8600 Leakage Protector Tester of our company. In order to make better use of the product, please be certain: ——To read this user manual carefully. ——To comply with the operating cautions presented in this manual. u Pay special attention to safety when using this instrument in any case. - Page 5 u Operation, disassembly and maintenance of the instrument must be carried out only by a authorized and qualified person. u When there is an instrument fault, never use it because conti- nual use may result in danger. In this case, isolate the instru- ment immediately and delivered to an authorized agency for dealing with it.
-
Page 6: Brief Introduction
I. Brief introduction ETCR8600 Leakage Protector Tester is well designed and man- ufactured for online measuring the leakage operating current, leakage non-operating current, leakage operating time of the lea- kage protector; adopt 128dots×64dots displayed, it is convenient and intuitive. The range of leakage current is 0~500mA(10 gears: 15, 30, 50, 75, 100, 150, 200, 250, 300, 500mA),range of the lea- kage operating time is 0~999ms. - Page 7 Leakage cur- 15, 30, 50, 75, 100, 150, 200, 250, 300, rent gear 500mA. range of the leakage oper- 0~999ms. ating time accuracy of ±0.5%. the leakage operating time accuracy of ±1.0%. the current for each gear Fail- When the LCD display fault, it may be the ure informatio measured rated operating current gear is too small or the leakage protector has some faults.
-

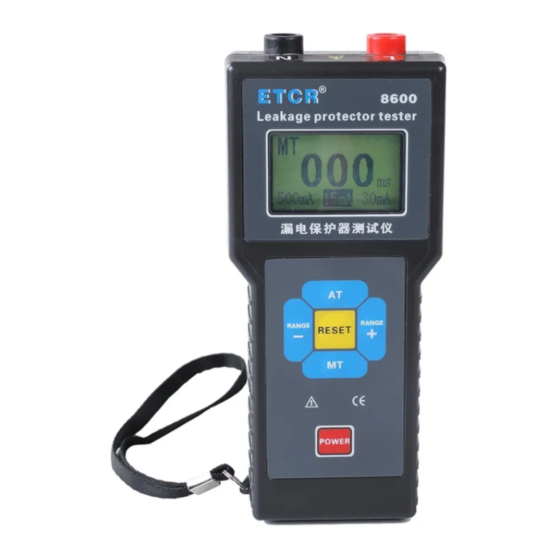

Page 8: Instrument Structure
safety rules 2, CAT III(600V) IEC61326(EMC standard). IV. Instrument Structure 1. N interface (connect ground wire) 2. L interface (connect fire wire) 3. LCD 4. AT: auto key 5. RANGE+ key (gear up) 6. MT: manual key 7. RANGE- key(gear down) 8. -
Page 9: Switch The Gear Of Rated Operating Current
will increase a gear automatically again after 2 seconds, until the trip breaking. At this time, the displayed gear on the button of LCD screen is the actual leakage operating current value, the displayed time is the leakage operating time. 3. - Page 10 Before measurement, disconnect the load fuse of the measured leakage protector to avoid damage to the load equipment. Then check the nameplate rating of the measured leakage protector, According to the nameplate rating to determine the current gear.(Generally, for the indoor type single phase two-wire mode leakage protector, the rated operating current is 30mA, the rated non-operating current is 15mA, The break duration ≤0.1s, that is ≤100ms).
-
Page 11: Replacing Battery
VI. Replacing Battery To avoid electric shock, when replacing the batte- ries, the test line must be pulled away from the in- strument, and do not connect with the measured wire. Observe the correct battery polarity, otherwise, the instrument will be damaged. Replace the battery with a new one as soon as possible when the battery voltage is low. - Page 12 Crocodile clip test line 1 PCS Socket test line 1 PCS Packing box 1 PCS Alkaline dry battery (AAA 1.5V) 4 PCS User manual ,Warranty card ,Quality certificate 1 Copy...
- Page 13 Manufactured by ETCR Electronic Technology Company Address: F-3F, No.4 Pengshang Zhifu Road, Jiahe, Baiyun District, Guangzhou, Guangdong, China Post Code: 510440 Tel: (86-20)62199556 Fax: (86-20)62199550 E-mail: info@etcr.cc Website: www.etcr.cc...
