Summary of Contents for GP WM2A

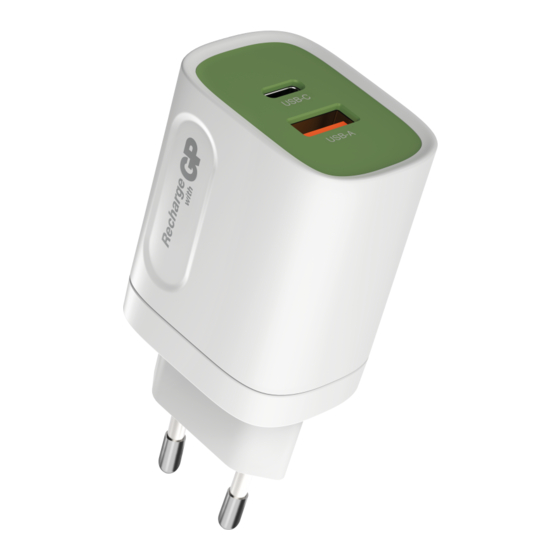

- Page 1 PD Charger WM2A Instruction Manual...
- Page 2 Read the instruction manual thoroughly before use. Keep the manual for future reference. Using your product 1. Attach the appropriate power plug to the charger by sliding the plug onto the pins until you hear a “click” sound. (See gures below) * Ensure to slide the top pin of the UK plug into its extended position before plugging the charger into a power outlet.
- Page 3 USB-C USB-A Specifications Input : AC 100-240V, 50/60Hz, 0.5A Max. Output : Single port charging USB-C – DC 5V/3A, 9V/2.22A, 12V/1.5A, 20W Max. USB-A – DC 5V/3A, 9V/2A, 12V/1.5A, 18W Max. Simultaneous charging USB-C+USB-A – DC 5V/3.1A, 15.5W Max. Total Output : 20W Max. Dimensions* : 44 (L) x 42 (W) x 31 (H) mm Weight* : 50g...
